High Speed Circular Saw HCS 130 MF

The Number One in High Performance and Precision

The HCS 130 MF industrial circular saw is a specialist for highest cutting performance and premium quality. Due to low cutting costs and tight tolerances, it quickly pays for itself in multi-shift operation. The basis of the extreme performance is the unique, extremely stable and solid construction with perfectly matched components and state-of-the-art drive technology.

The innovative multi-fluid cooling concept multiplies the inherently high sawing performance of the HCS high speed circular saw by providing precise cooling when sawing high-alloyed stainless and tool steels, nickel-based alloys such as Inconel or Hastelloy as well as titanium alloys.

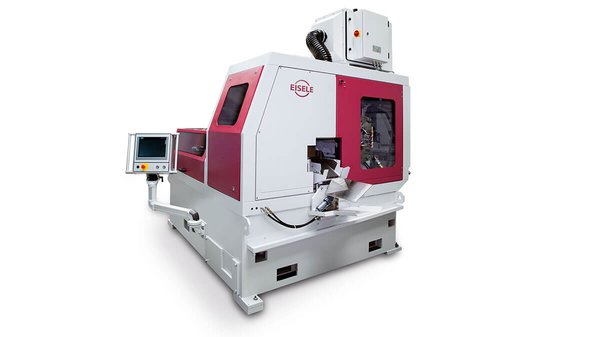

  • High speed circular saw HCS 160 MF with innovative Multi-Fluid technology

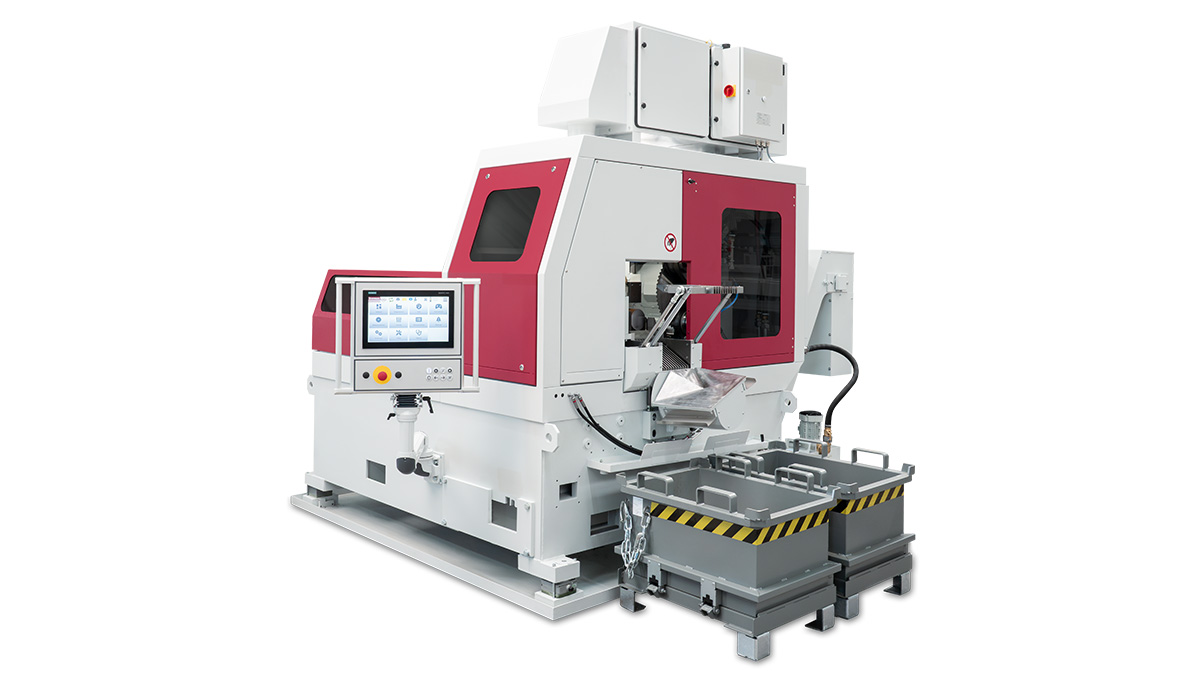

    HCS 130 MF

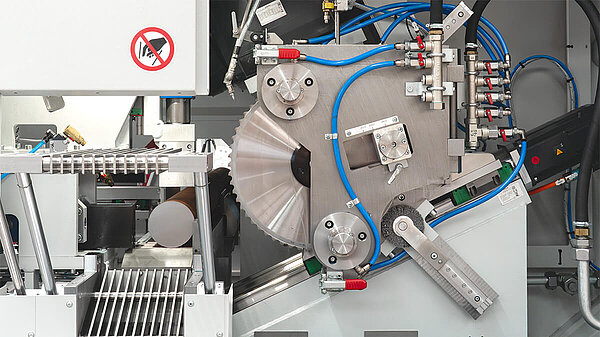

  • Blade Vibration Absorber BVA

    BVA – Blade Vibration Absorber (option)

  • Strong gearbox from our own production

    Stable, low-vibration gearbox

  • Multi-Fluid Coolant System

    Multi-Fluid cooling system (option)

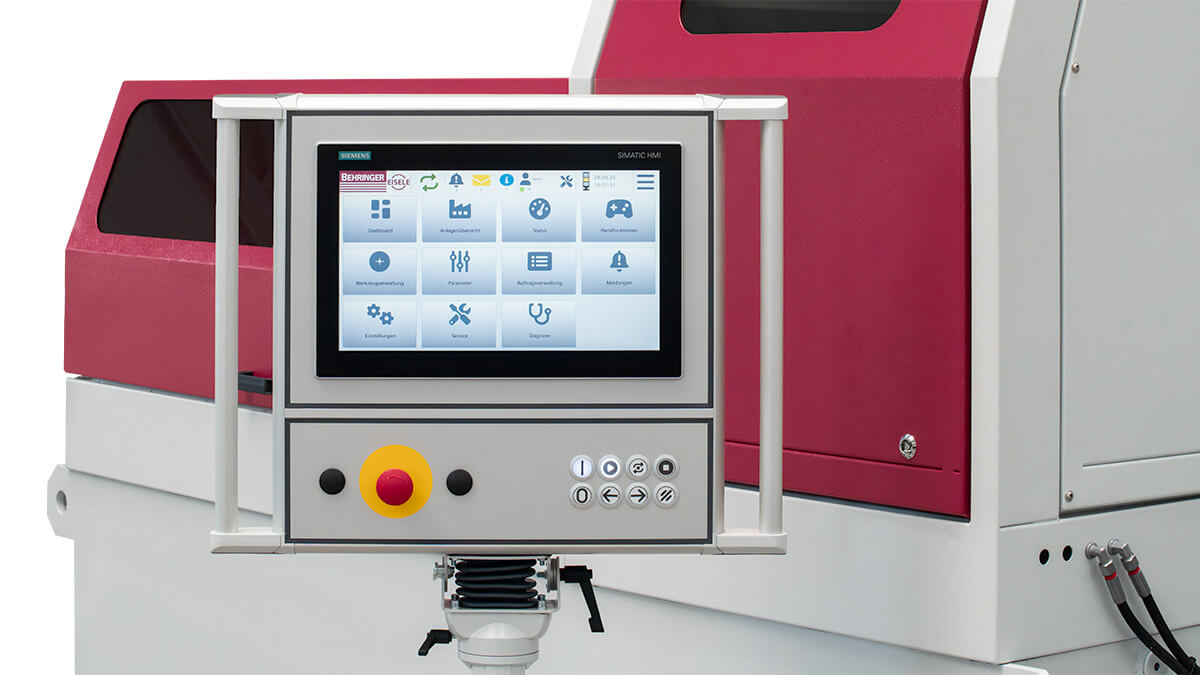

  • High speed circular saw with innovative control

    Powerful control system

  • Funnel shaped machine base of the high speed circular saw

    Funnel-shaped machine base

  • Feeding gripper with servo drive

    Servo-driven feeding gripper

Features of the high speed circular saw HCS 130 MF

  • Robust, low-vibration gear unit
    The heart of the saw unit is the worm gear unit, made by Behringer Eisele. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

  • BVA - Blade Vibration Absorber
    The perfect interaction between the largely-dimensioned carbide metal guides and an effective brush-system, which pro-actively removes chips, ensures not only a maximum service life but also an optimized cutting surface and a precise and swift cutting operation.

  • Servo-driven feeding gripper
    swiftly positions the material precisely and in a matter of seconds. Its advantages are: accurate cutting length and short cycle times with tight tolerances.

  • Extremely solid construction
    The extremely stable and solid machine bed is the basis of every HCS high speed circular saw. It ensures excellent vibration damping and ideal power flow. The cast iron parts made by Behringer have an additional positive effect.

  • Funnel-shaped machine base
    ensures perfect chip flow into the chip conveyor as well as the speedy disposal of chips and cooling liquids. Cleaning is extremely easy.

  • Linear guided saw feed
    The saw unit is moved dynamically through the entire cutting area via two linear guides in conjunction with a ball screw and a servo motor. This ensures a long service life, excellent saw cuts and low burr formation.

  • Multi-Fluid cooling system
    Depending on the application or on the material characteristics, the following three cooling/lubrication components can be combined with each other in the most effective way: Coolant jet nozzles for wet processing, micro-spraying device for minimum quantity lubrication and cooling vortex tube for dry processing.

  • Chip conveyor with coolant tank
    The new chip conveyor houses the coolant tank and coolant pump saving space. It ensures a rapid removal of the sawing chips and is easy to clean and maintain. Optionally, the chip conveyor can also be mounted with ejection to the front.

  • Simple and intuitive operation of the control unit
    Everything under control! The control unit is self explanatory and easy to operate; operating mistakes are avoided and it allows for quick navigation within the program menu. Other systems can also be easily connected, both on the software and hardware side.

Customer-specific sawing systems

Individual Configuration

The industrial circular saw HCS 130 MF can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data high speed circular saw HCS 130 MF

Cutting range 90° round 5.1 in
Cutting range 90° square 4.3 in x 4.3 in
Smallest dimension to be sawn round 0.8 in
Smallest dimension to be sawn square 0.8 in x 0.8 in
Drive power 30.2 hp
RPM 20 - 250 min-1
Saw blade diameter 12.4 in / 14.2 in / 16.5 in
Feeding length single stroke 39.4 in
Feed rate 68.1 in/s
Saw feed servo-driven
Material clamping hydraulic
Saw drive servo-driven
Length 106.3 in
Width 94.5 in
Height 98.4 in
Weight 9,950 lbs
Material support height 46.1 in
