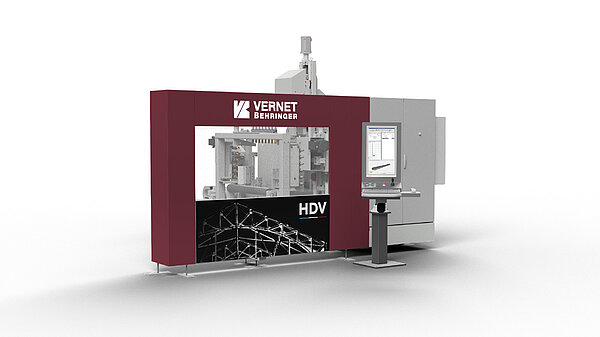

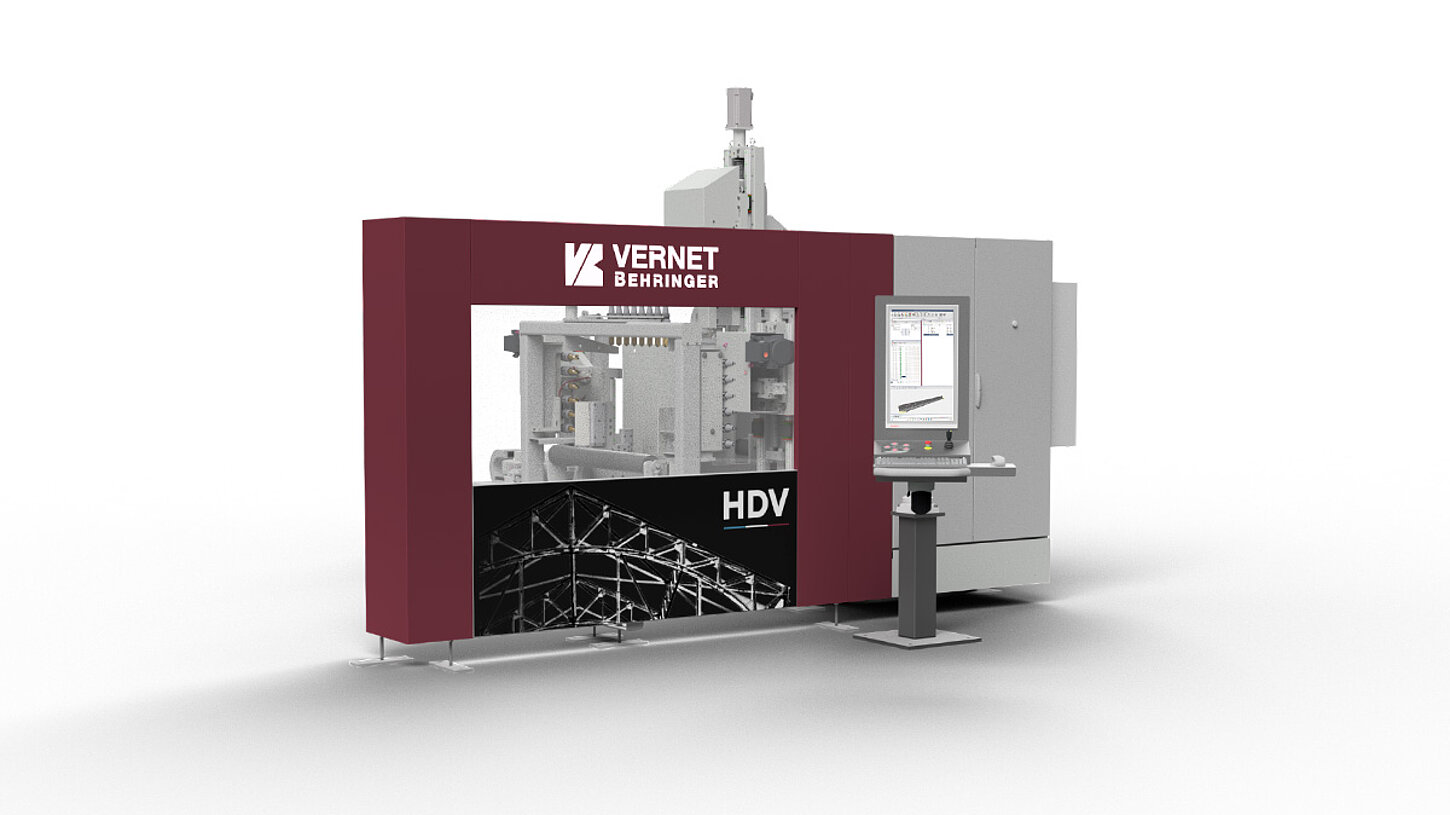

HDV - Compact machining centre for profiles

The all-in-one tool to boost your workshop efficiency

The Vernet Behringer HDV lines are specially designed for drilling, milling and marking rectangular tubes and profiles from 1.6 x 1.6 in to 39.3 x 17.7 in section, on 3 or even 4 sides. They can be combined with a band saw and/or a shearing unit. These lines offer a unique versatility on the market.

  • HDV Compact machining centre for steel profiles

  • 3 spindles with 7.8 in stroke in x-axis

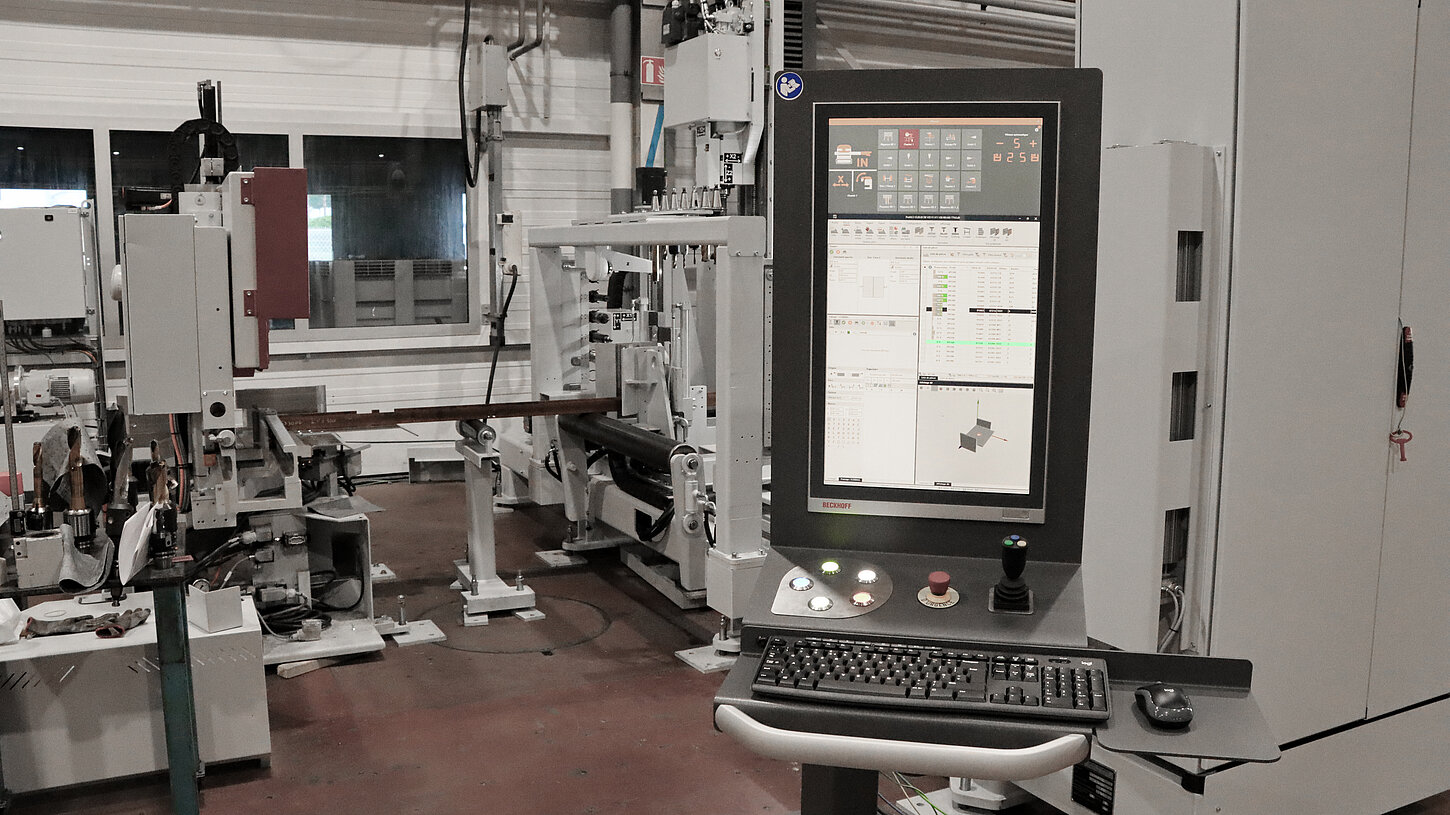

  • Complete and intuitive software suite with large 24-inch screen

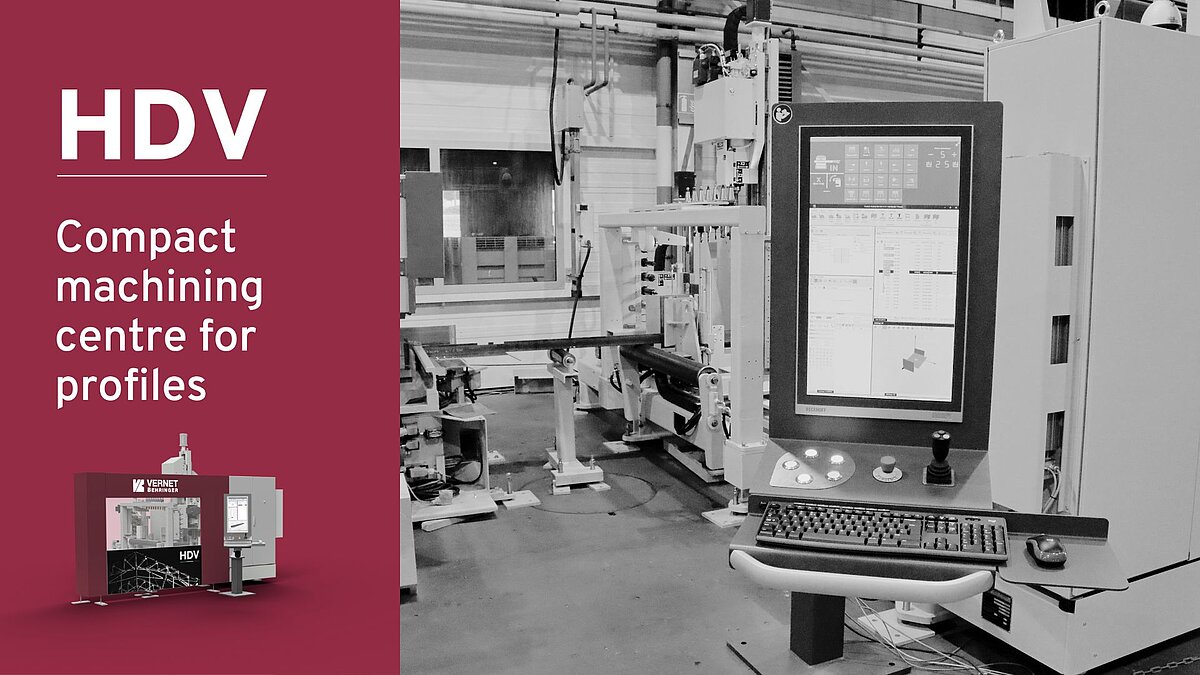

  • HDV video

Features of the drilling line HDV

Milling

Marking

Drilling

Scribing

Sawing

Shearing

  • Maximise the use of your machine
    suitable for processing small angles (especially when using the optional shears), square tubes from 1.6 x 1.6 in and H-profiles up to 27.5 in width and more! Possibility of processing steel profile systems for doors and windows.

  • Increase your production capacity

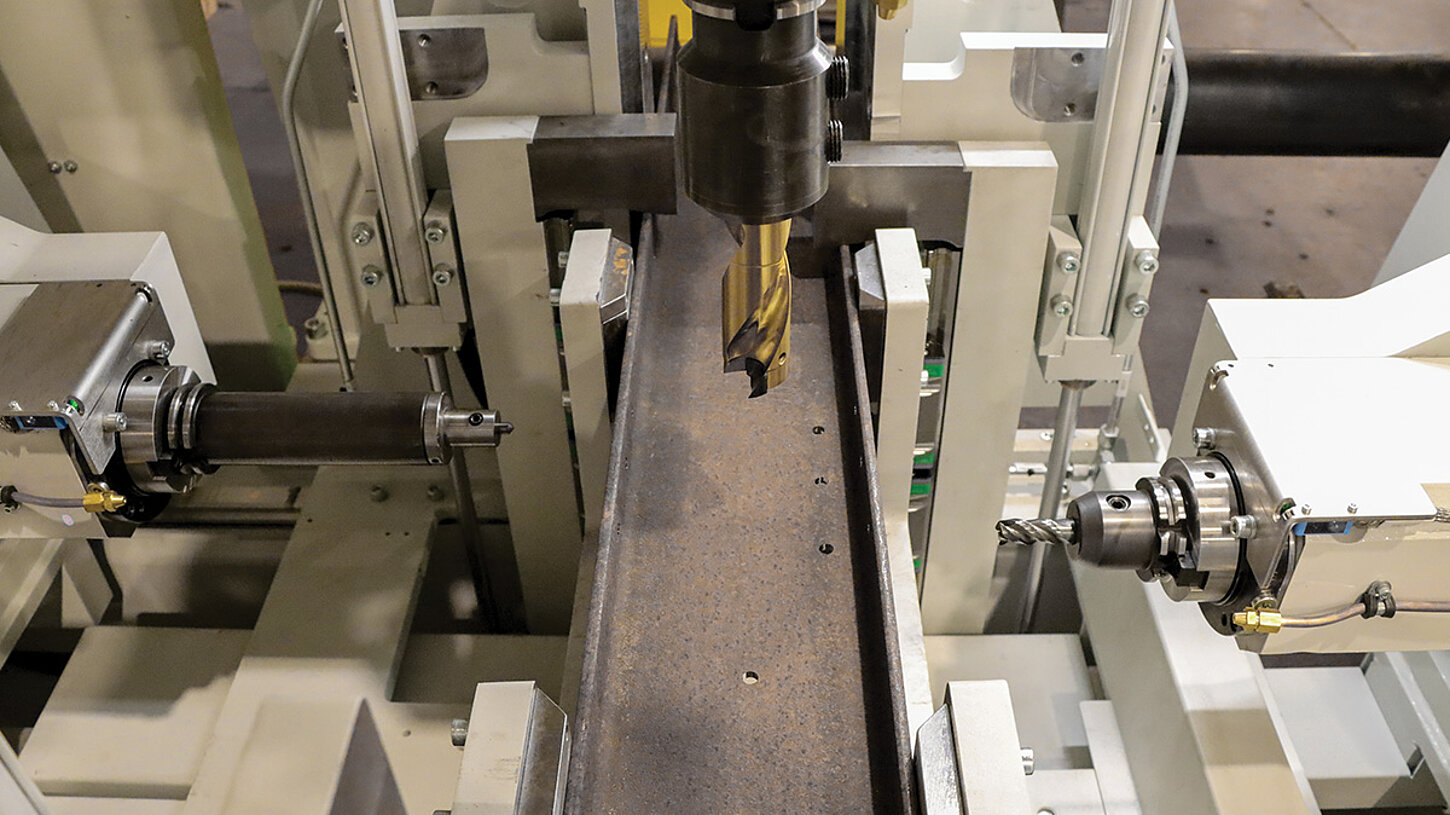

    Up to 60% faster than conventional drilling machines – thanks to the additional X-stroke of 7.8 in on all three drilling units. This allows simultaneous drilling on the wings and in the web at different positions. With a spindle speed of up to 4,000 rpm and high torque, the HDV is ideal for powerful carbide drilling.

  • Lowest wear
    The robust design of the machine minimises vibrations and ensures the longest possible tool life and optimum durability of the machine elements. The service life of the machine is significantly increased.

  • High-performance spindle motors
    A belt drive between the motor and the machining spindle ensures very high torque at the spindle, even with lower motor power.

  • Monitor your production
    User-friendly and powerful software suite allowing the optimization of your bar stock, the import and easy programming of your parts, the addition of information on your parts such as coding and slinging indications, manage and optimize your scrap stock. Make your machine communicate with your ERP.

  • Identify your parts and indicate assembly positions
    with the exclusive V-scoring system. It is extremely fast, silent and low in operating costs. The markings are still clearly visible after painting or galvanising.

  • The most energy-efficient machine in its range
    The HDV uses an average of 50% less installed power than competing products, while delivering equivalent or even superior performance.

Machining examples

Individual Configuration

The HDV can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data HDV

Capacity39.3 x 17.7 in
Materials to be processed
Raw material length78 ft
Max linear load335 lb/ft
Feeding systemCNC high speed carriage with hydraulic gripper
Spindles3 spindles with 7.8 in stroke in X-axis
V-scoring fast scribing Option:
MillingStandard
ThreadingStandard
Tool changer6 + 6 + 8 Ø
Spindle power (S6-60 %)14.7 hp
Spindle speed160 – 4,000 rpm
Control systemPRONC3 user-friendly programming software with 3D part display
