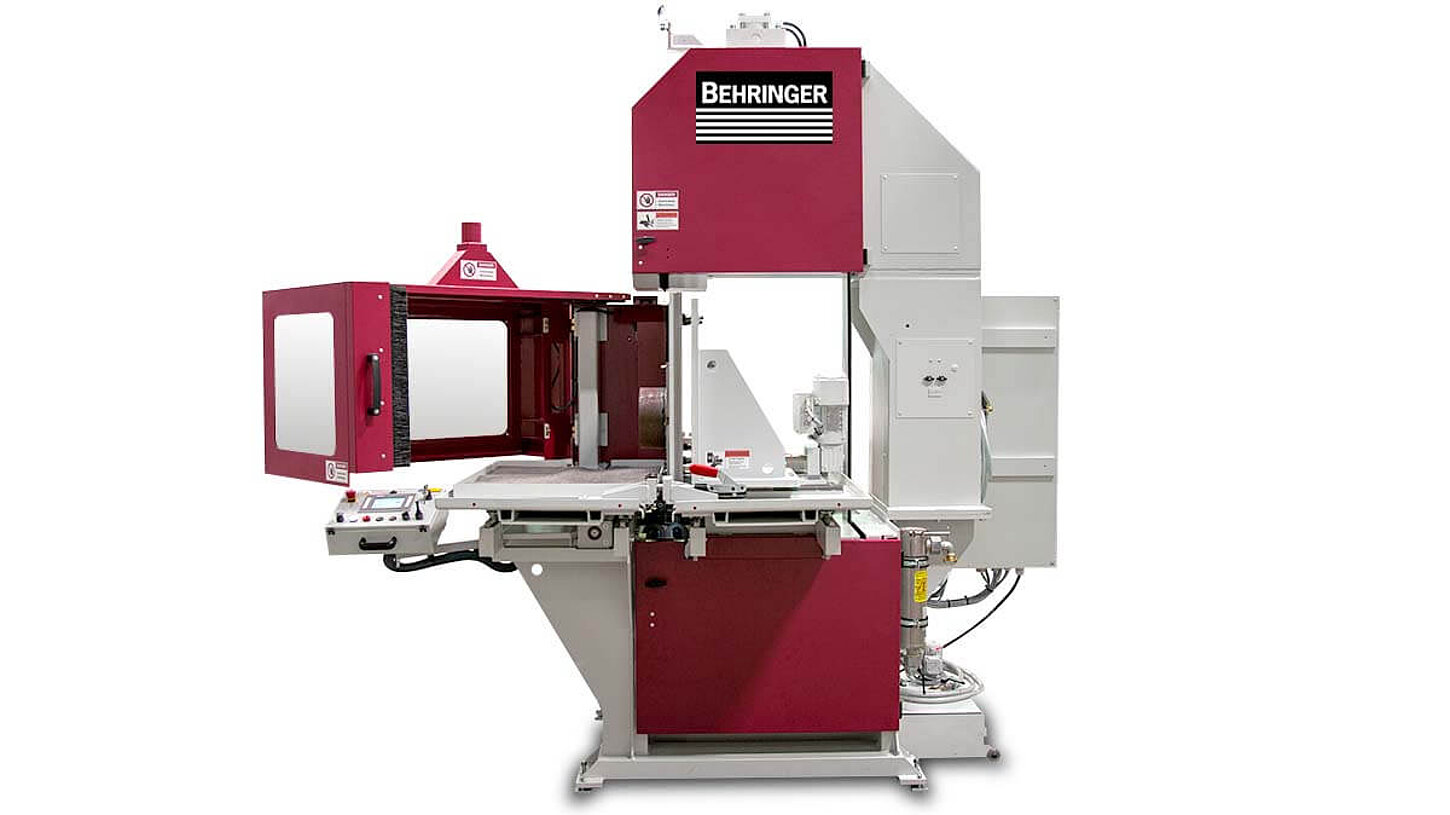

3D Saw LPS-T 3D
Precise cuts for additively manufactured components
The vertical bandsaw LPS-T 3D was developed for sawing 3D printing plates in various sizes up to 33.5 x 25.6 in. The individual production of the work holding according to customer requirements offers a high degree of flexibility when sawing 3D printing plates in different sizes and shapes. With its movable support table and NC-controlled workpiece holdig, even heavy 3D printing plates can be easily loaded and unloaded using lifting gear.
In order to optimally adapt the sawing system to the specific process, Behringer offers various options such as a machine housing with extraction option, minimum quantity lubrication as well as individual clamping options according to customer requirements.
3D Saw LPS-T 3D
3D Saw LPS-T 3D Setup and Saw Cut
Vorrichtung mit NC-Positionierung
Intuitive Touch Steuerung BehrCtrl10
Tischpositionierung über Kugelrollspindel
- Quick and easy loading and unloading
The shortest possible setup times are achieved because the LPS-T 3D is equipped with an NC-controlled device for holding additively printed base plates. Even heavy printed plates can be easily inserted into the device from above using lifting gear.
- Housing and exhaust system (optional)
Depending on the material of the 3D printing components and the lubricant used, dusts or vapors can be generated and released into the ambient air. To prevent this, it is advisable to use an enclosure with a connected extraction system that effectively filters both dusts and aerosols from the air.
- Micro Spray System (optional)
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.
- Chip conveyor (optional)
A generously sized chip conveyor with integrated coolant tank is located under the saw unit, directly in the chip flow direction. Any chips and coolant are collected here and separated. The conveyor can be moved out of the machine frame for cleaning and maintenance.
- Unsurpassed precision and cutting performance
The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.
- Automatic positioning of the printing plate
After mounting the 3D base plate, the alignment to the saw band is fully automatic. After entering the plate thickness in the control, an NC axis positions the device to the sawing line.

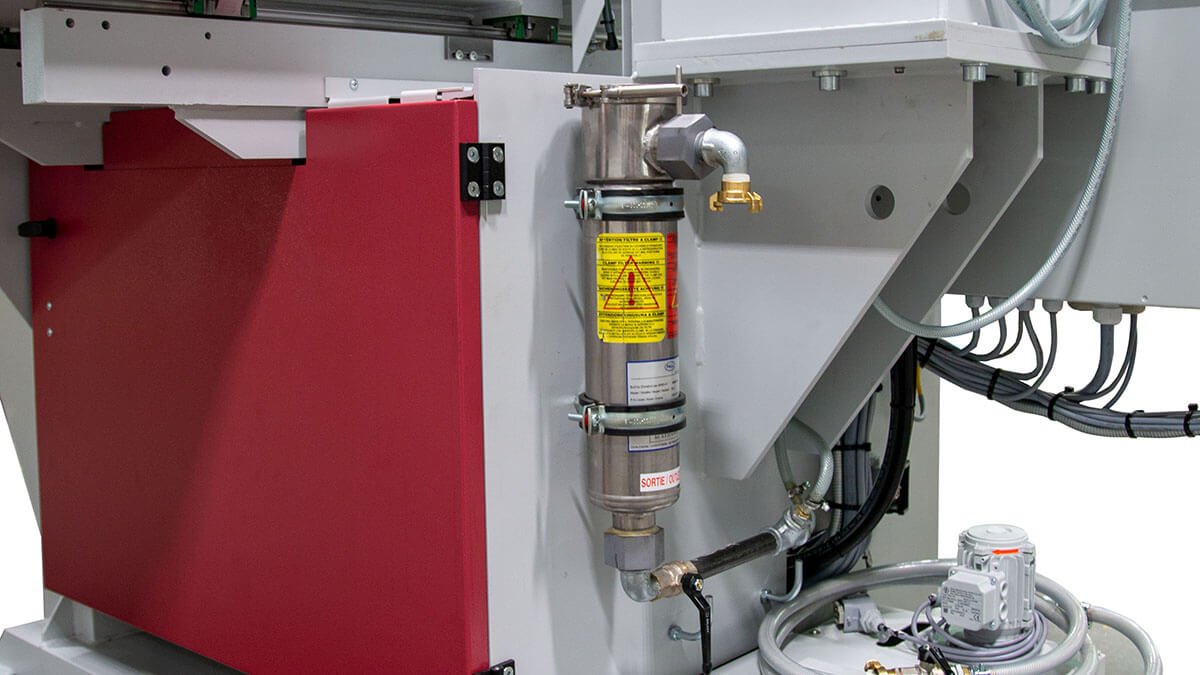

- Coolant cleaning
A standard filter unit cleans the coolant from particles and powder residues that are released during the sawing of printed components. This unit noticeably increases the service life of the coolant.
- Servo feed system with cutting pressure control
The BEHRINGER servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades. The fast response to the cutting pressure control increases the cutting performance when sawing 3D printed components, as it automatically adjusts the saw feed of the machine to the changing material cross-sections. Due to its location directly at the back of the saw blade, the system reacts quickly and precisely.
The 3D saw LPS-T 3D can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.
