Miter Bandsaw HBE420-723G

For metal construction, steel construction and sectional steel trade

The horizontal miter saw HBE420-723G perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique Behringer features. And all this at an optimum price-performance ratio. With its extensive range of applications, the miter saw reliably covers all the requirements of small and medium-sized businesses in metal construction, sectional steel trade, mechanical engineering and locksmith's shops. Thanks to the Behringer cutting pressure control, it is up to twice as fast as conventional miter bandsaws in the same price range when cutting profiles and pipes, even in the basic version.

  • Miter bandsaw Behringer HBE420-723G

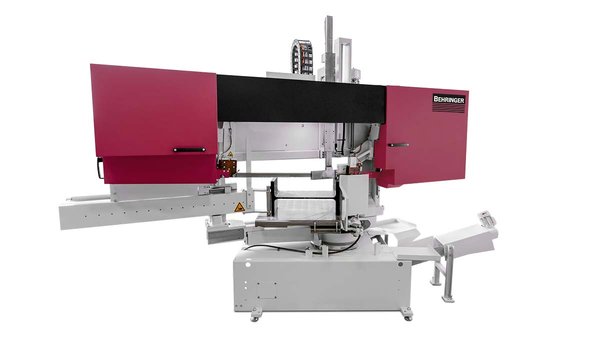

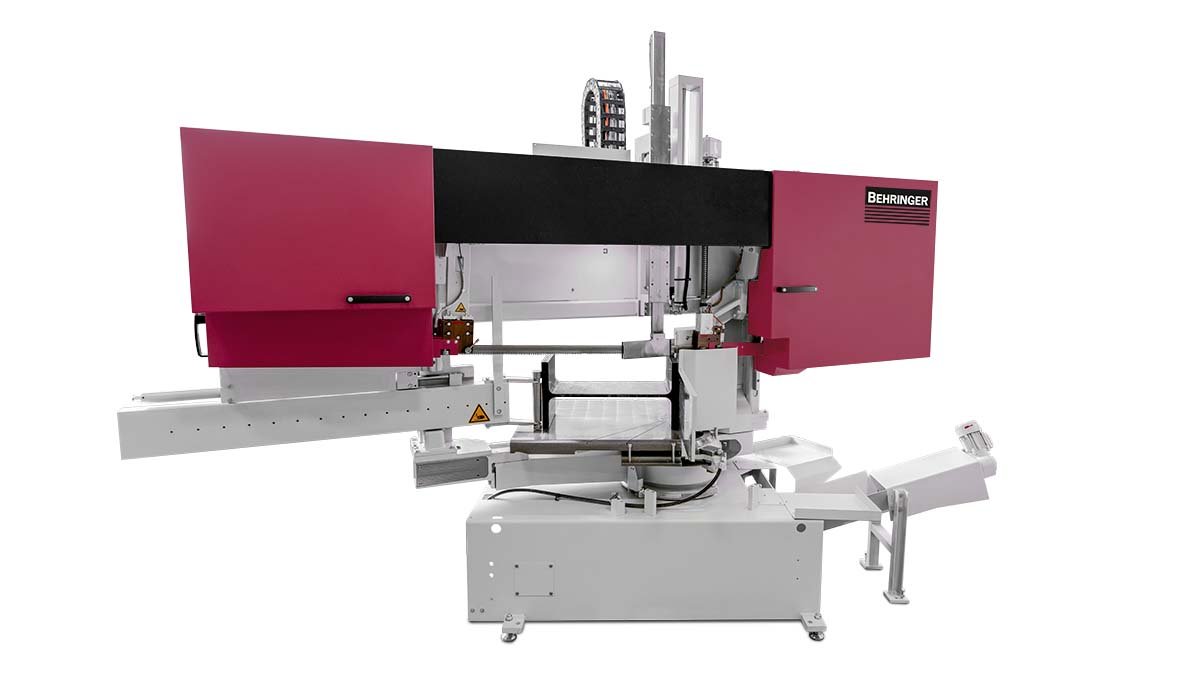

    Miter bandsaw HBE420-723G

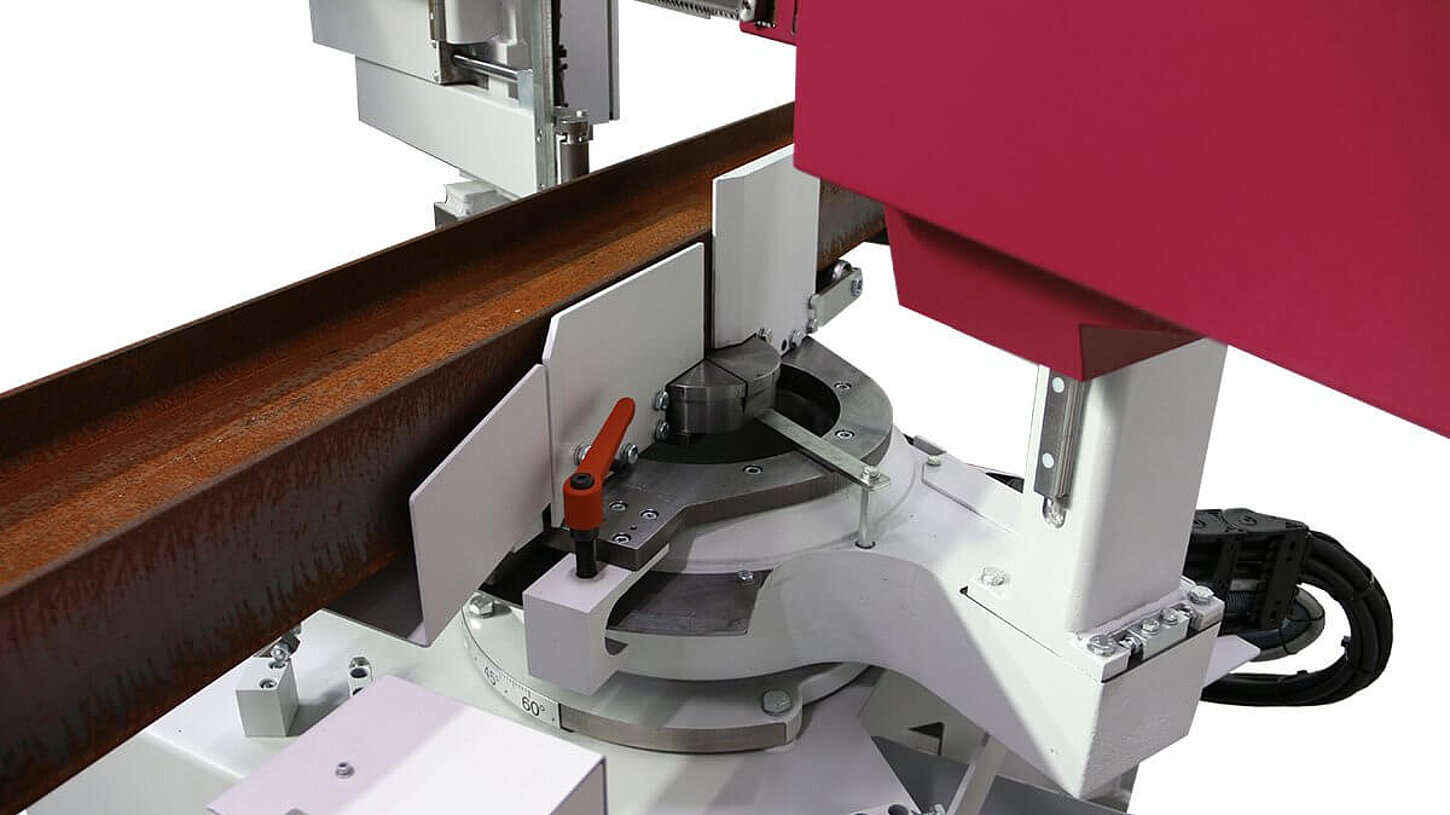

  • Miter bandsaw HBE420-723G easy angle adjustment

    Simple angle adjustment

  • Miter bandsaw HBE420-723G micro spray system

    Micro spray system

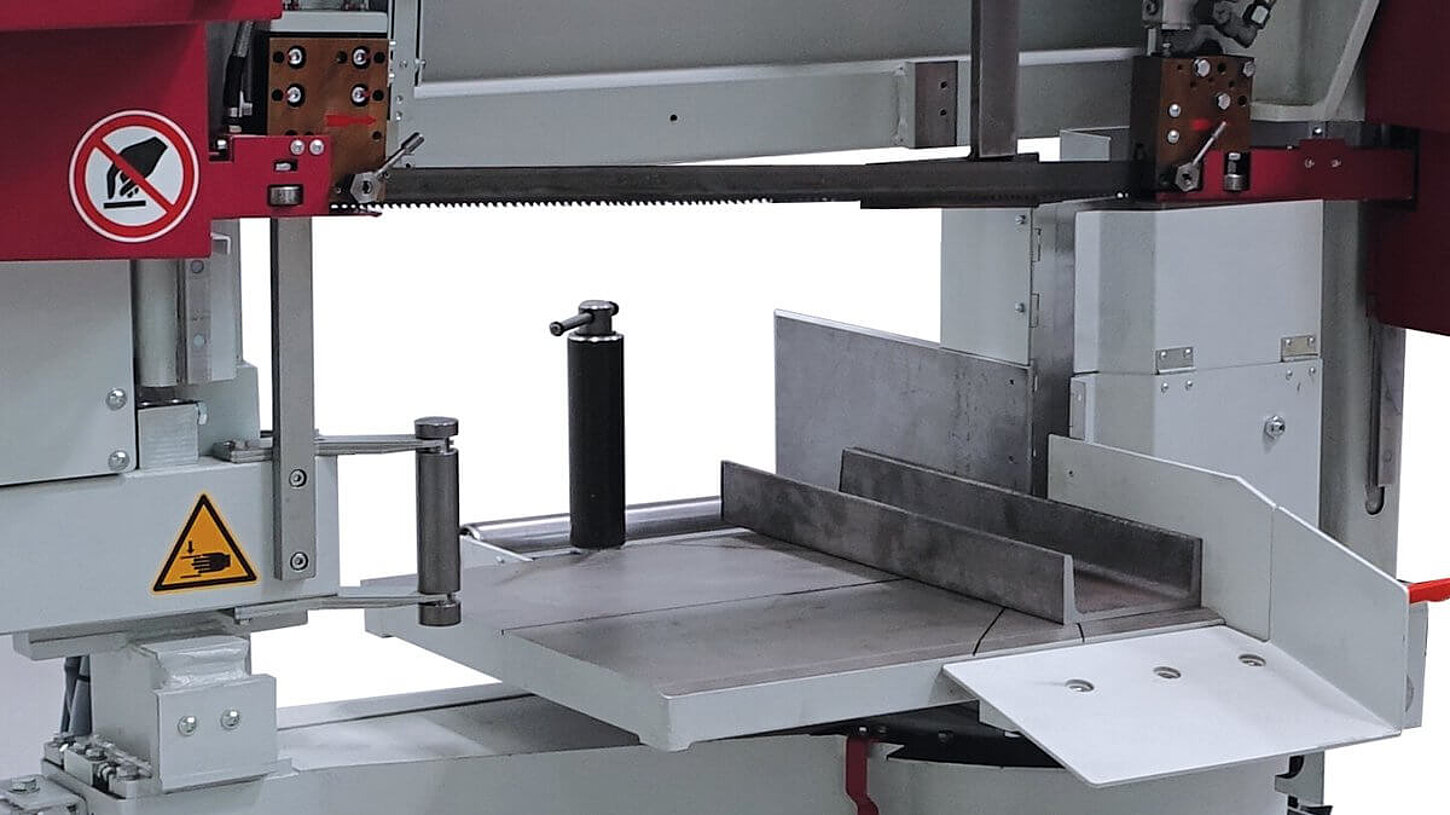

  • Miter bandsaw HBE420-723G closed material table

    Enclosed material table

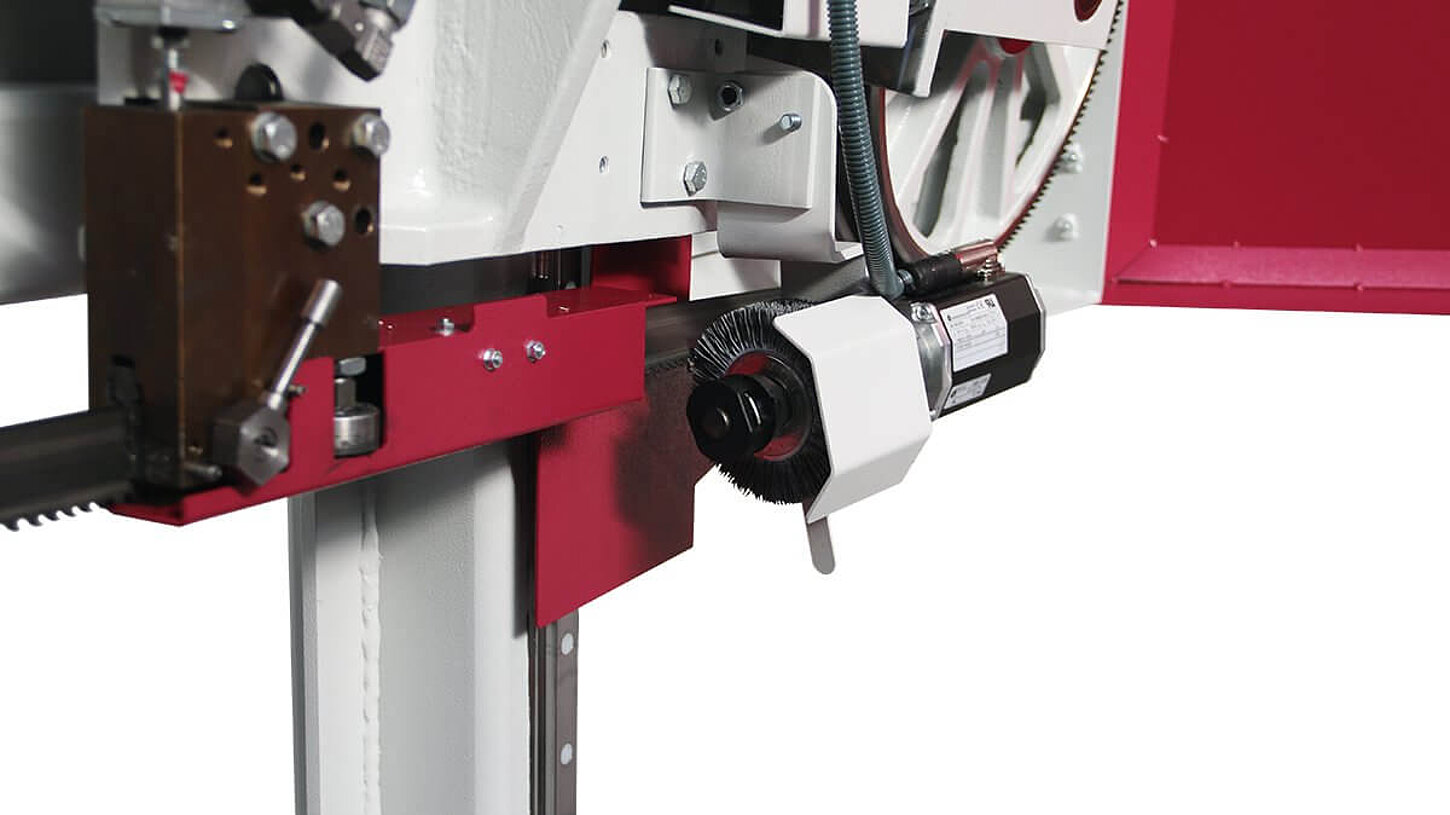

  • Mitre bandsaw HBE420-723G electrically driven chip brush

    Electrically driven chip brush

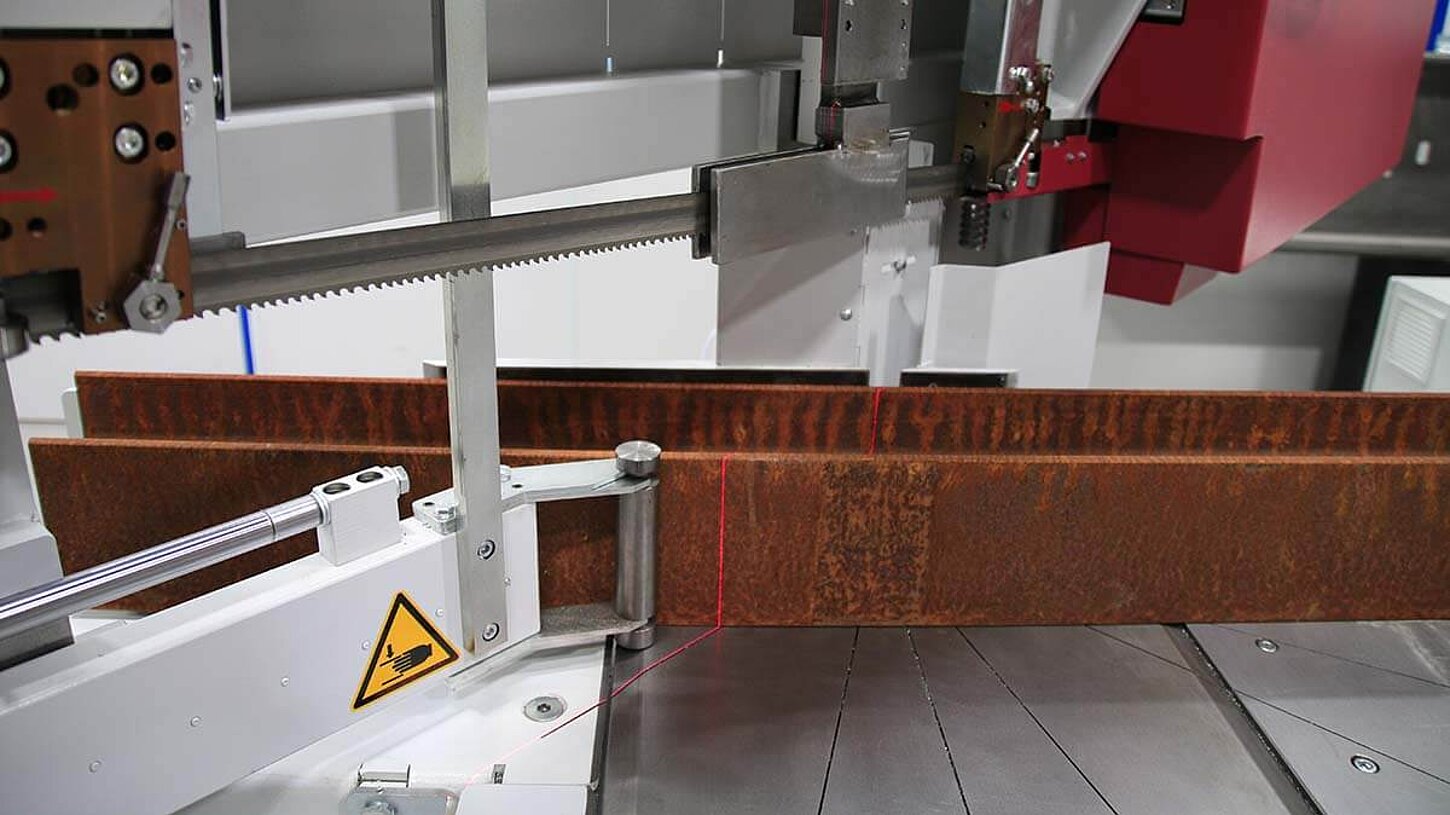

  • Miter bandsaw HBE420-723G line laser

    Line laser (option)

Features of the miter bandsaw HBE420-723G

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life of the miter saw.

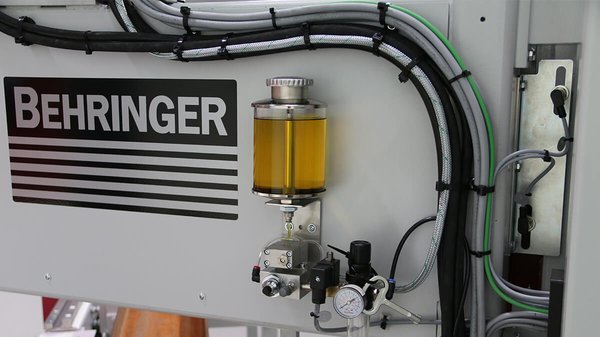

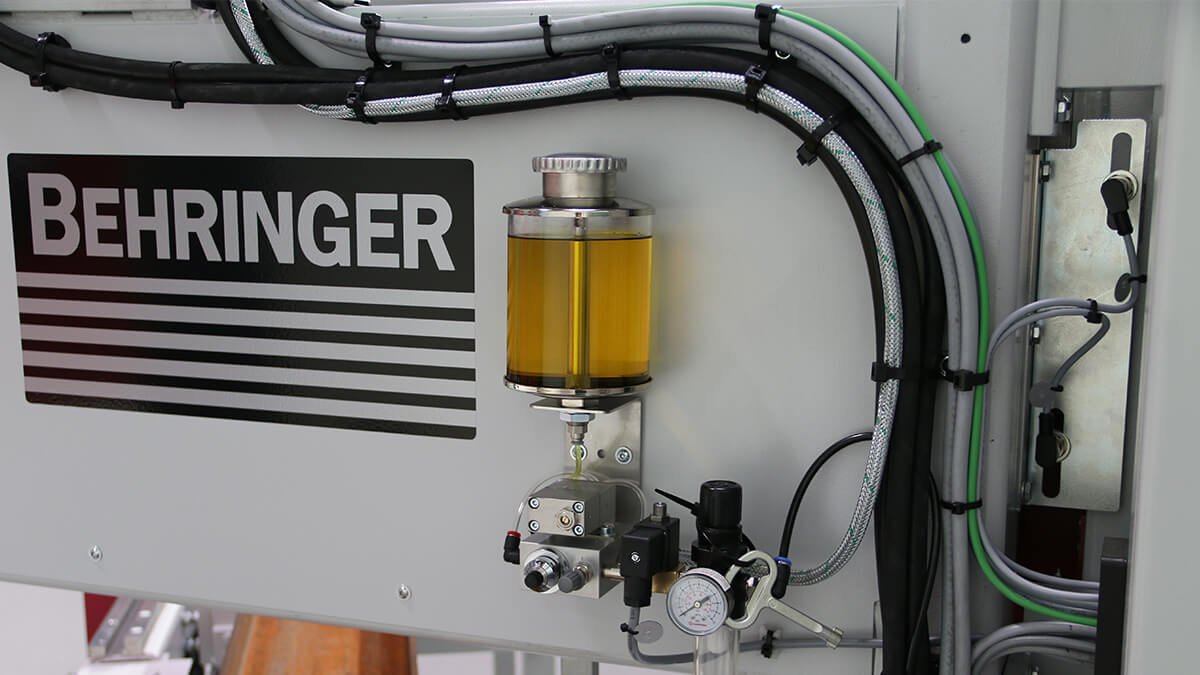

  • Micro Spray System
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

  • 3° inclination of the saw blade
    provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.

  • Customer-oriented sawing concepts
    Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

  • Closed material table
    The closed table support makes working with the miter bandsaw easier. Even short sections can be transported in and out of the machine without any problems.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Servo feed system (option)
    The saw is fed by a servo drive with ball screw. This results in significantly shorter non-productive times and more precise saw feeds. Your advantage: higher cutting output and longer blade life!

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Energy-efficient drives
    More output with less energy consumption. Protects the environment and your wallet.

Individual Configuration

The miter bandsaw HBE420-723G can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical data miter bandsaw HBE420-723G

Cutting range 90° round 16.5 in
Cutting range 90° flat 27.6 x 15.7 in
75° Mitre left round / flat 15.7 in / 27.6 x 15.7 in
60° Mitre left round / flat 15.7 in / 25.6 x 15.7 in
45° Mitre left round / flat 15.7 in / 21.3 x 15.7 in
30° Mitre left round / flat 11.8 in / 11.8 x 13.8 in
75° Mitre right round / flat 15.7 in / 27.6 x 15.7 in
60° Mitre right round / flat 15.7 in / 23.6 x 15.7 in
45° Mitre right round / flat 15.7 in / 18.5 x 15.7 in
Smallest dimension to be sawn round 0.6 in
Smallest dimension to be sawn flat 0.6 x 0.4 in
Drive power 7 hp
Blade speed 49 - 427 m/min
Saw blade dimensions 269.3 x 1-1/2 x 0.05 in
Rest piece length 2.2 in
Total power 14.8 hp
Saw feed hydraulic
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 56.7 in
Weight 143.7 in
Height 84.6 in
Weight 5512 lbs
Material support height 31.5 in
