Horizontal bandsaw HBE321A Dynamic

The automatic bandsaw offers powerful, accurate cuts with low costs per cut

The automatic band saw HBE321A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE321A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

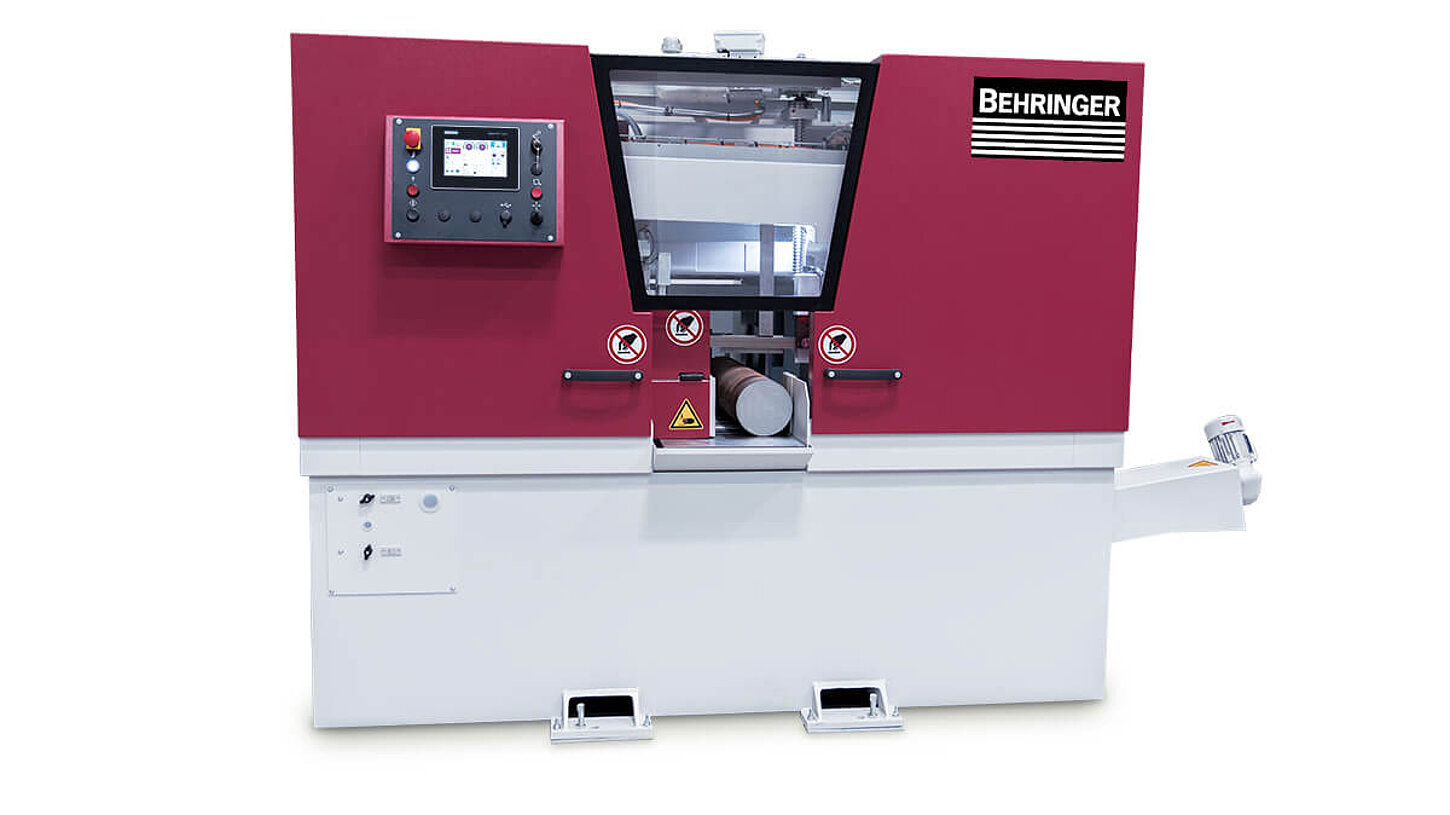

  • Behringer automatic band saw HBE321A Dynamic

    Automatic band saw HBE321A Dynamic

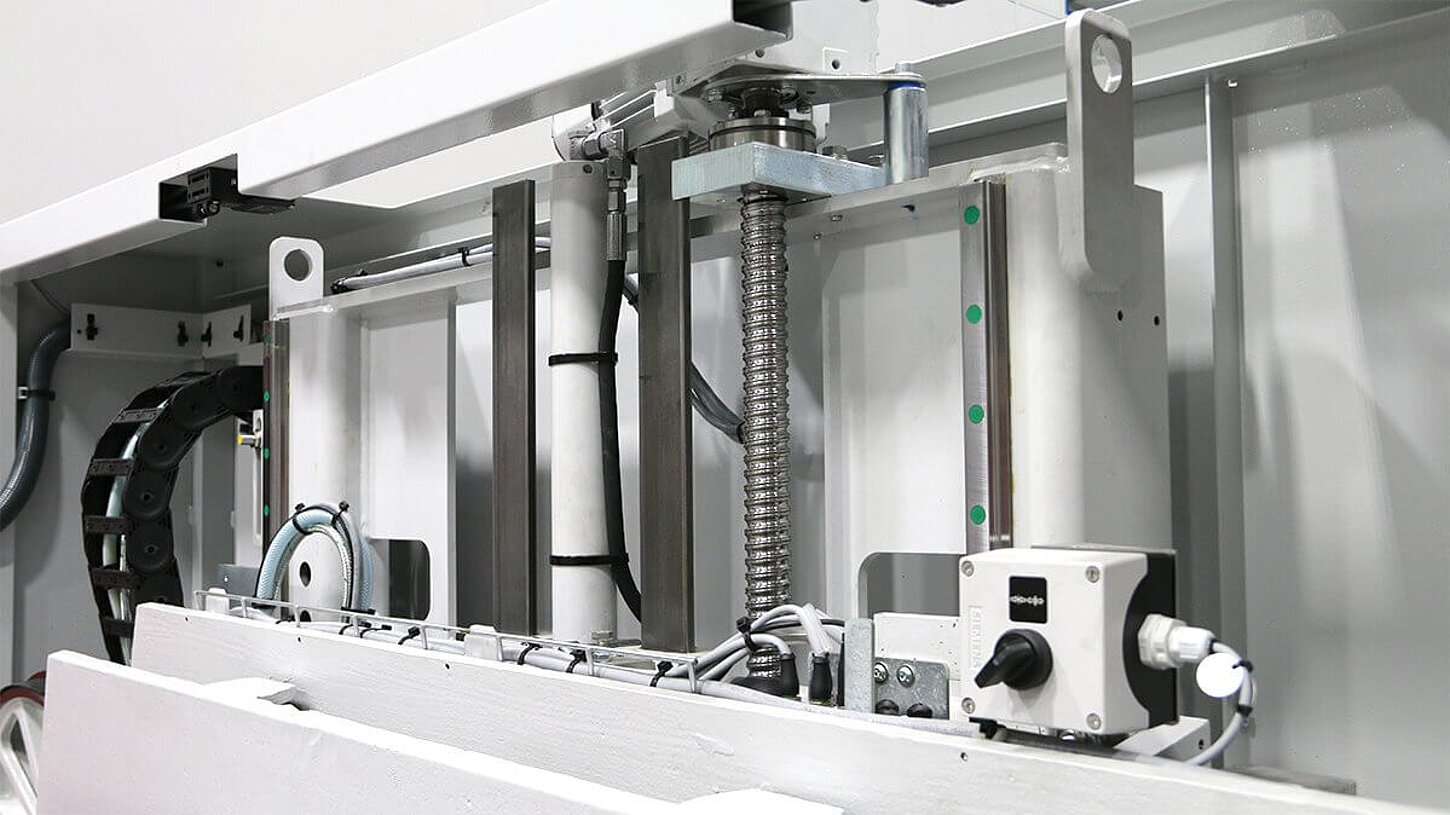

  • Behringer band saw HBE321A Dynamic servo feed system

    Servo-downfeed with cutting pressure control

  • Behringer machine control BehrCtrl10

    Intuitive BehrCtrl10 touch control

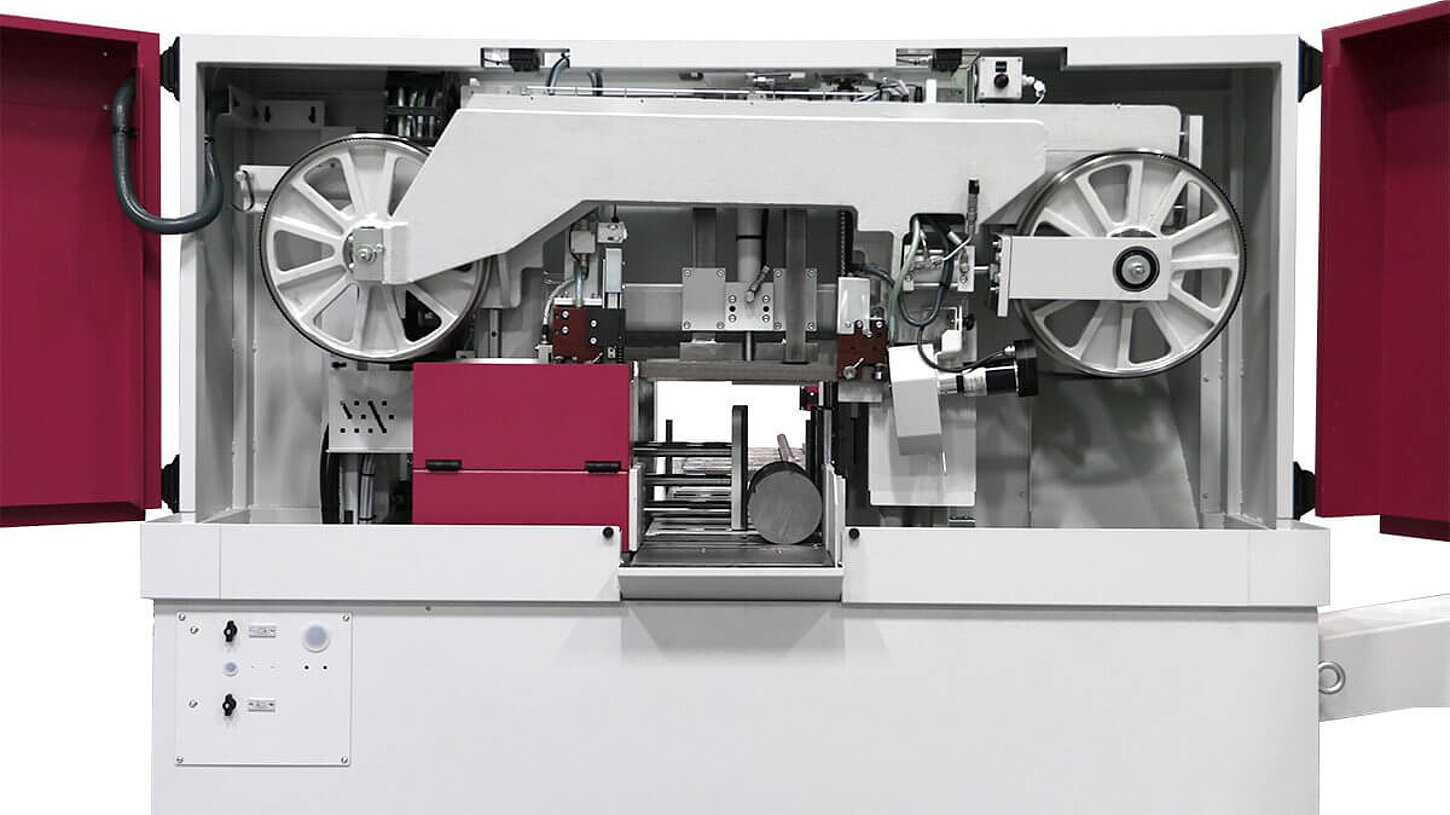

  • Behringer band saw HBE321A Dynamic saw frame made of vibration damping gray cast iron

    Stable cast iron saw frame

  • Youtube Logo

    Product video horizontal bandsaw HBE321A Dynamic

  • Behringer horizontal bandsaw HBE321A Dynamic electrically driven chip brush

    Electrically driven chip brush

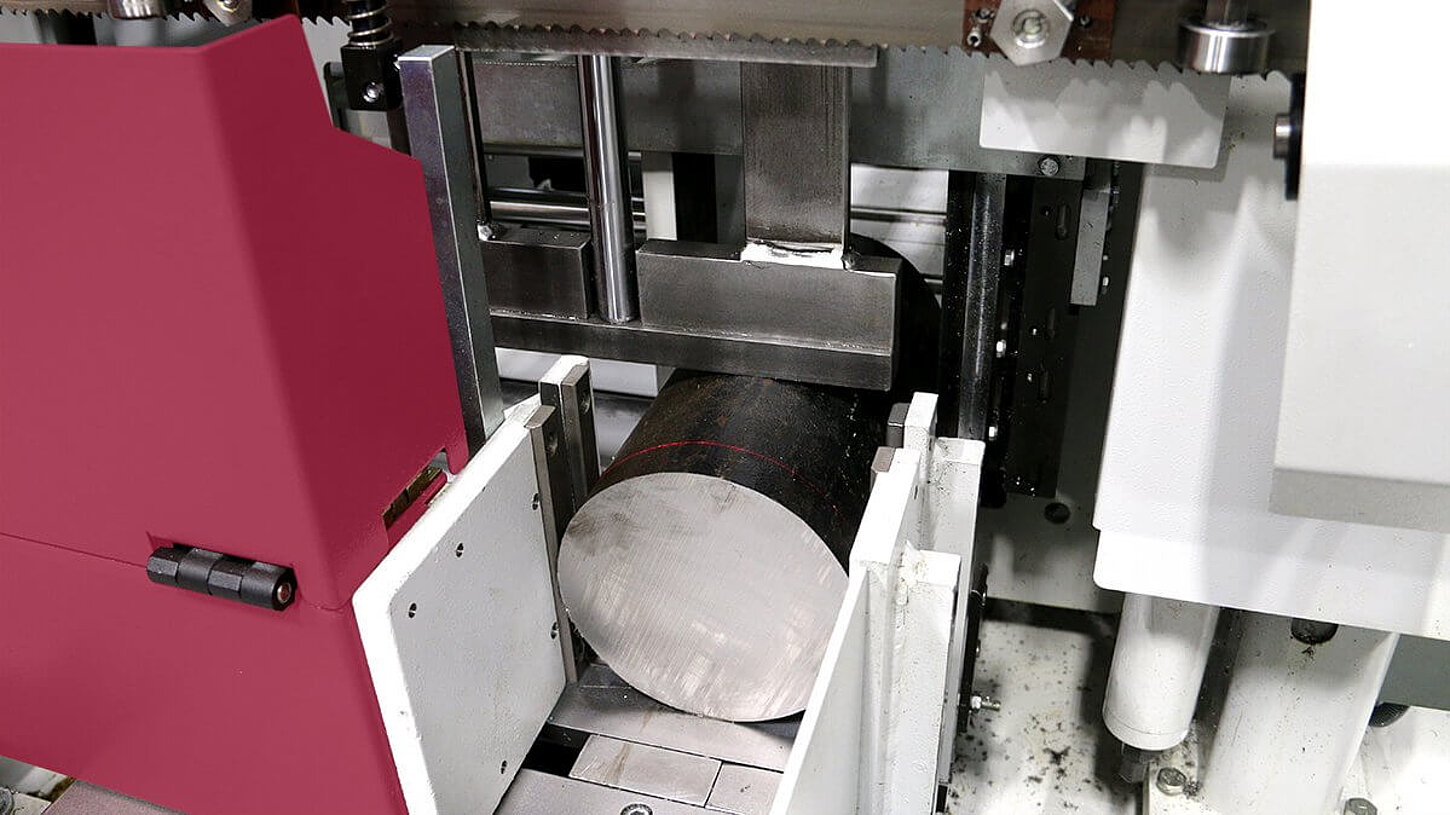

  • Behringer horizontal bandsaw HBE321A Dynamic line laser

    Line laser (option)

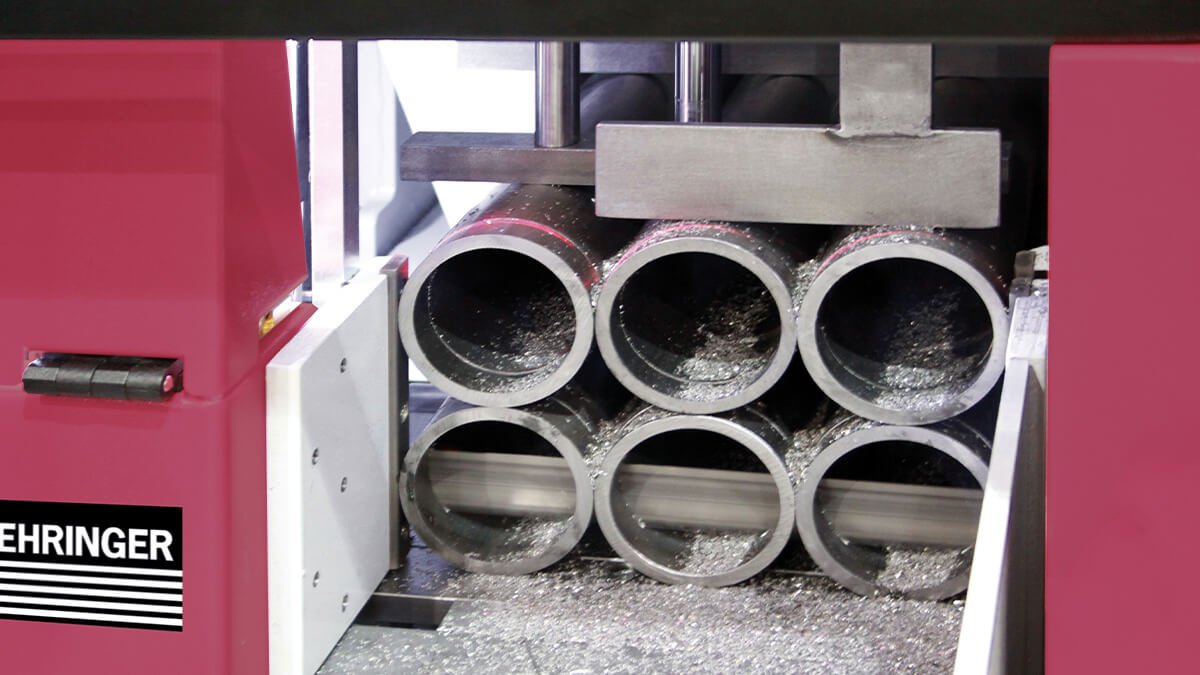

  • Behringer horizontal bandsaw HBE321A Dynamic bundle clamping device

    Bundle clamping device (option)

Features of the horizontal bandsaw HBE321A Dynamic

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Servo downfeed system
    The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Auto-Feed-Control
    Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Energy efficient
    The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

  • Easy to use
    Quick and easy operation of all functions of the automatic band saw via touch control.

  • Double clamping vice
    offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws of the band saw are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

Individual Configuration

The horizontal bandsaw HBE321A Dynamic can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Productivity boost for your production

Faster cuts with the new AFC Pro



  • Countering the shortage of skilled workers
    Optimum sawing results WITHOUT prior knowledge of the operator.

  • Increase your output
    Significantly increased cutting performance thanks to dynamic sawing process (up to 50% depending on material).

  • Wide range of materials - no problem
    The extensive material database even includes tempering or electro-slag remelting (ESR).

  • Scalable production
    The sawing know-how is in the machine control system. This allows you to easily adapt your production to changing requirements.

We would be happy to show you how you can make your production even more efficient with our sawing solutions.

Get in touch with us!

Technical data horizontal bandsaw HBE321A Dynamic

Cutting range 90° round 12.6 in
Cutting range 90° flat 13.8 x 12.6 in
Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 x 0.3 in
Feeding length single stroke 25.6 in
Drive power 3.5 hp
Blade speed 50 - 360 fpm
Saw blade dimensions 174.8 x 1-1/4 x 0.042 in
Rest piece length in automatic operation 2.8 in
Total power 5 hp
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 72.8 in
Width 90.6 in
Height 71.7 in
Weight 4188.8 lbs
Material support height 31.5 in
