MAPS - Profile Punch-Shear Line

Powerful versatile and robust machine, offering unbeatable productivity

The Vernet Behringer MAPS is the most productive machine on the market for marking, punching and shearing H, U, angle and flat profiles. It is designed for medium to large batch sizes with a high automation level.

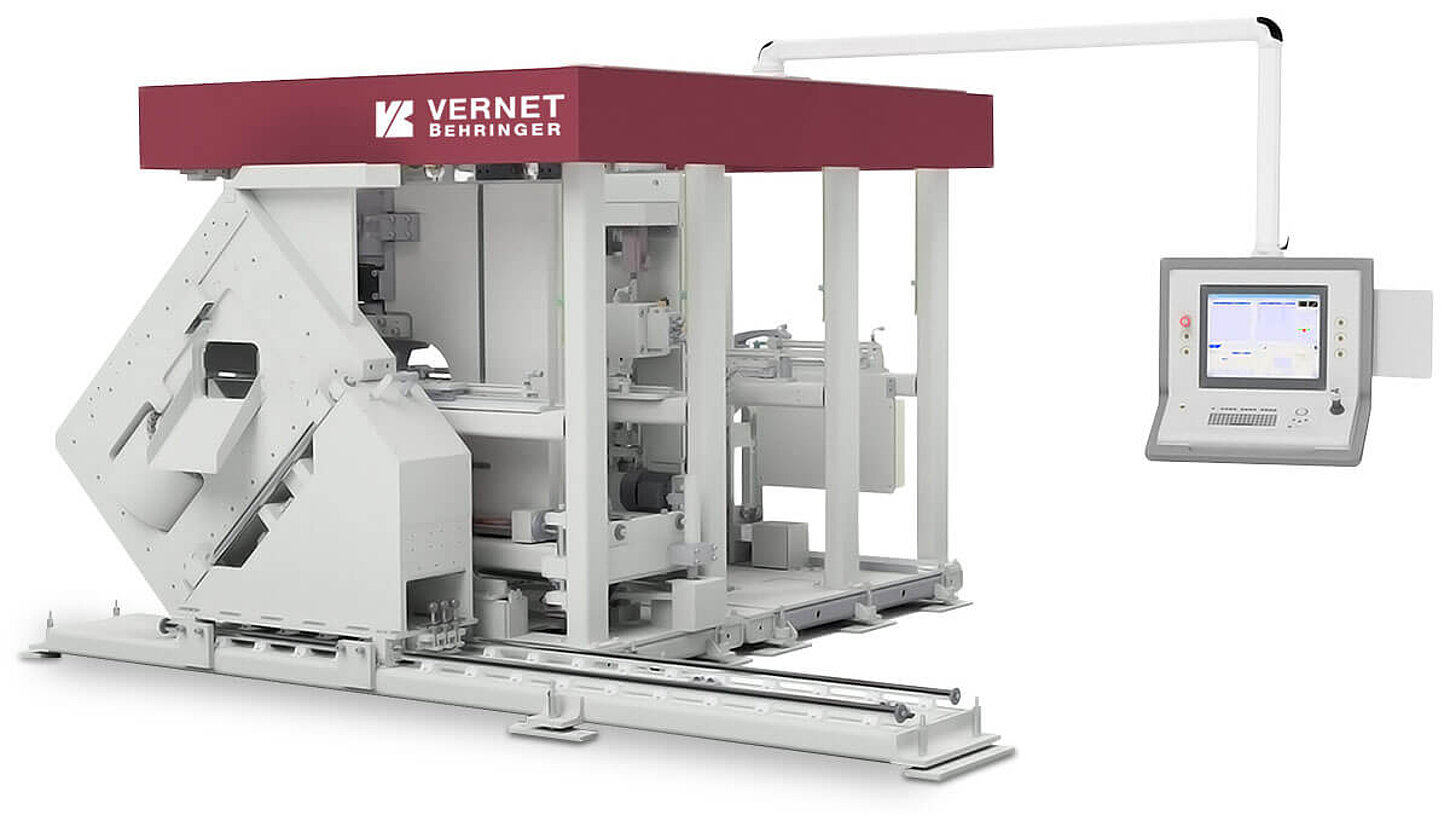

  • MAPS punch-shear line

  • Flange punching units

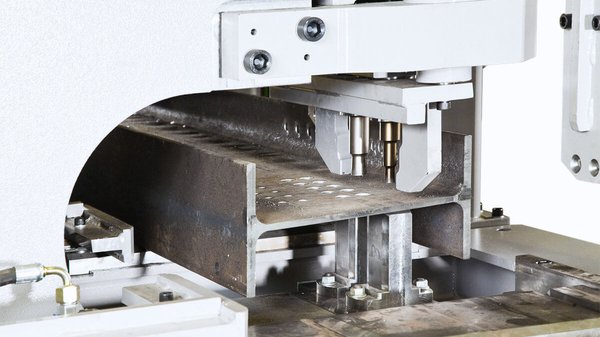

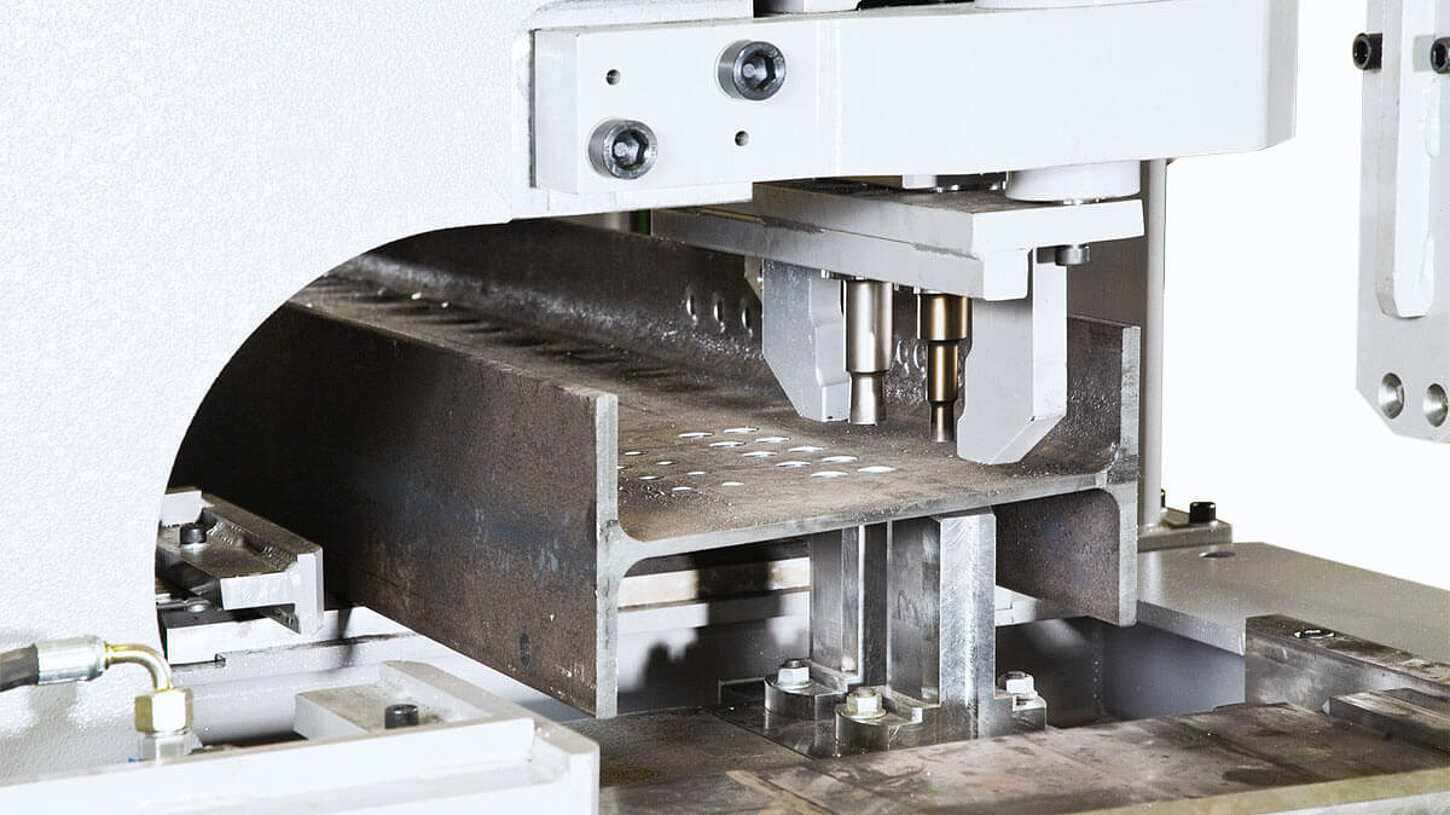

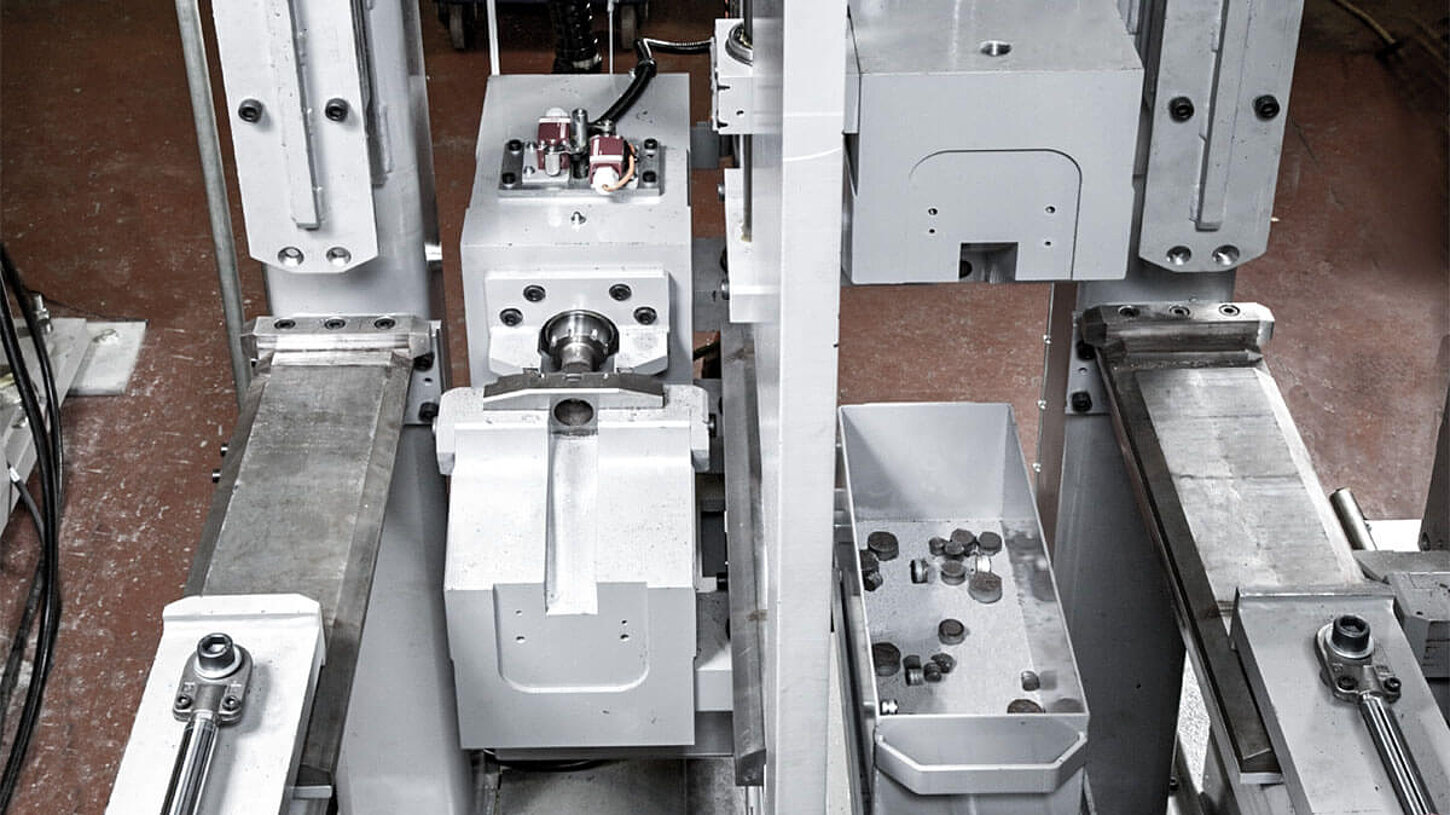

  • Web punching unit

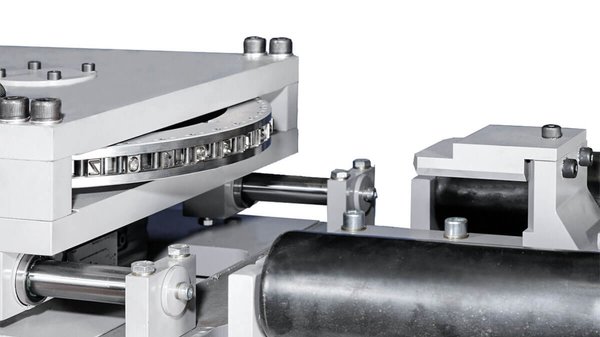

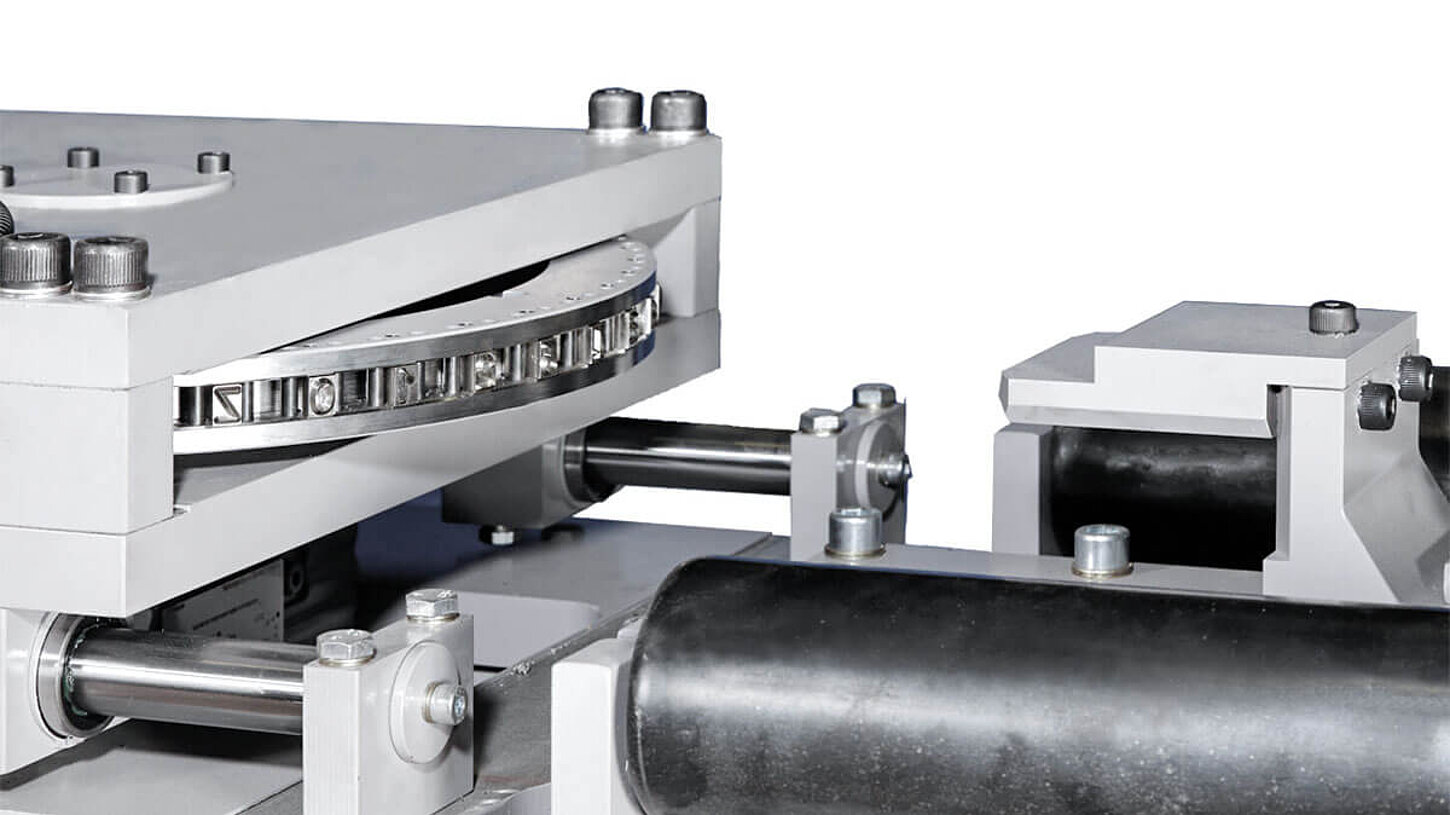

  • Disc marking unit

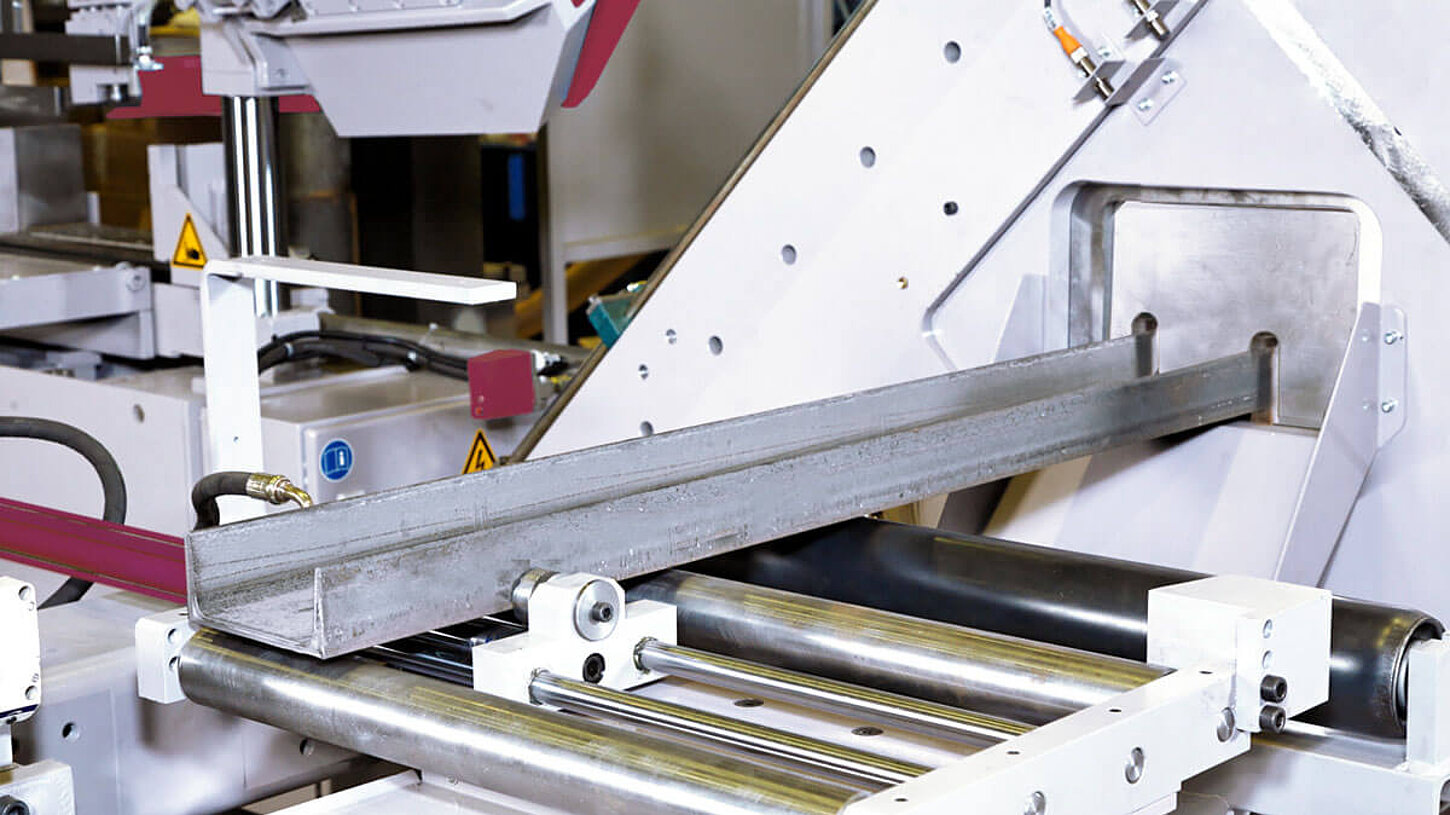

  • Shearing unit and repositioning vise

  • Youtube Logo

    Youtube Video MAPS

Features of the Profile Punch-Shear Line MAPS

Shearing

Marking

Punching

  • Produce parts in medium and large series with unbeatable productivity
    The punching technology is 2 to 5 times faster than drilling, the shearing technology allows even greater gains, with cutting times reduced by 10 to 20 compared to sawing! The MAPS is therefore the ideal machine for the production of angle bars, I-beam purlins and flat bars.

  • Avoid manual tasks
    thanks to the punching of oblong holes and the identification of the parts by the CNC disk marker allowing a deep marking that is visible after painting / galvanizing.

  • Monitor your production
    User-friendly and powerful software suite allowing the optimization of your bar stock, the import and easy programming of your parts, the addition of information on your parts such as coding and slinging indications, manage and optimize your scrap stock. Make your machine communicate with your ERP.

  • Reduce your operating costs
    Very low costs per hole and per cut with the use of long-life Vernet Behringer tools. Heavy duty machine and robust design for optimum durability.

Processable sections

Individual Configuration

The MAPS can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data Profile Punch-Shear Line MAPS

Punching


          IPE 3.2 - 17.7 in
          IPN 3.2 - 11.8 in
          UPE 3.2 - 15.7 in
          UPN/UPAF 3.2 - 11.8 in
          HEA 3.9 - 7.8 in
          HEB 3.9 - 7.8 in
          L 1.6 x 1.6 x .16 in - 5.9 x 5.9 x .59 in
          - 2.0 x .2 in - 17.7 x .8 in

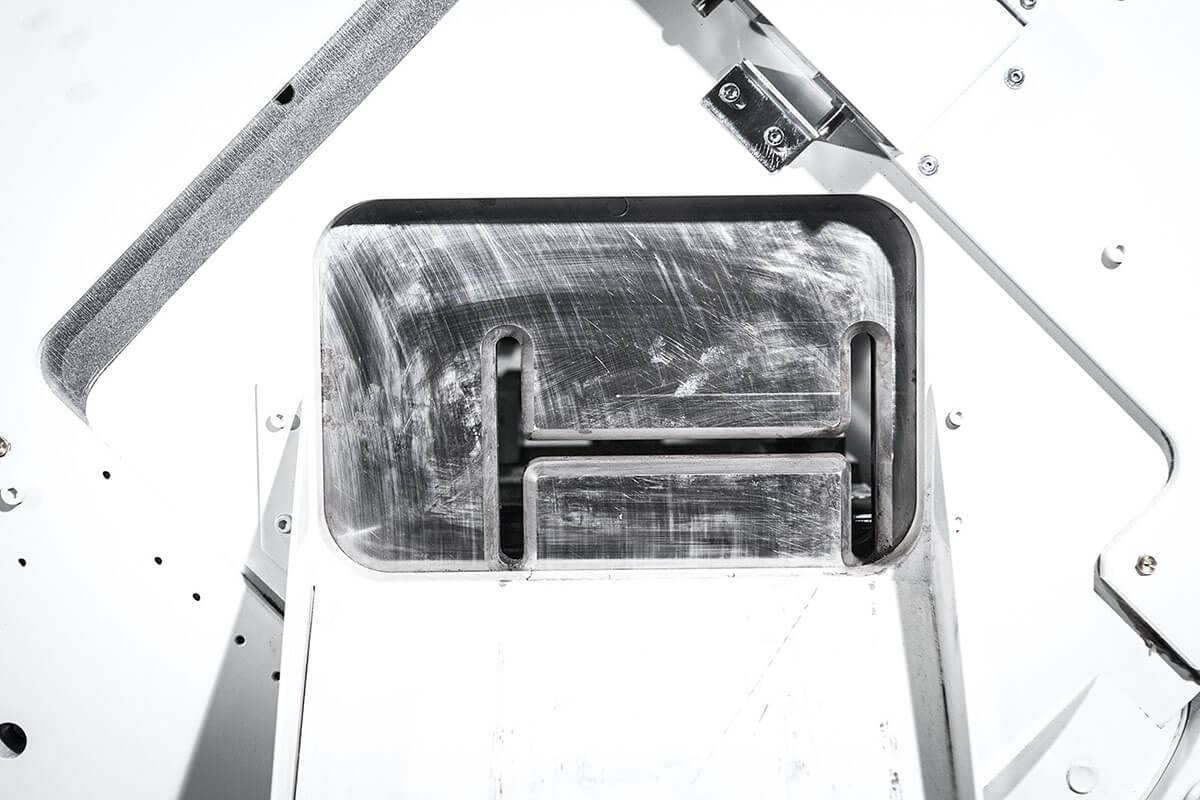

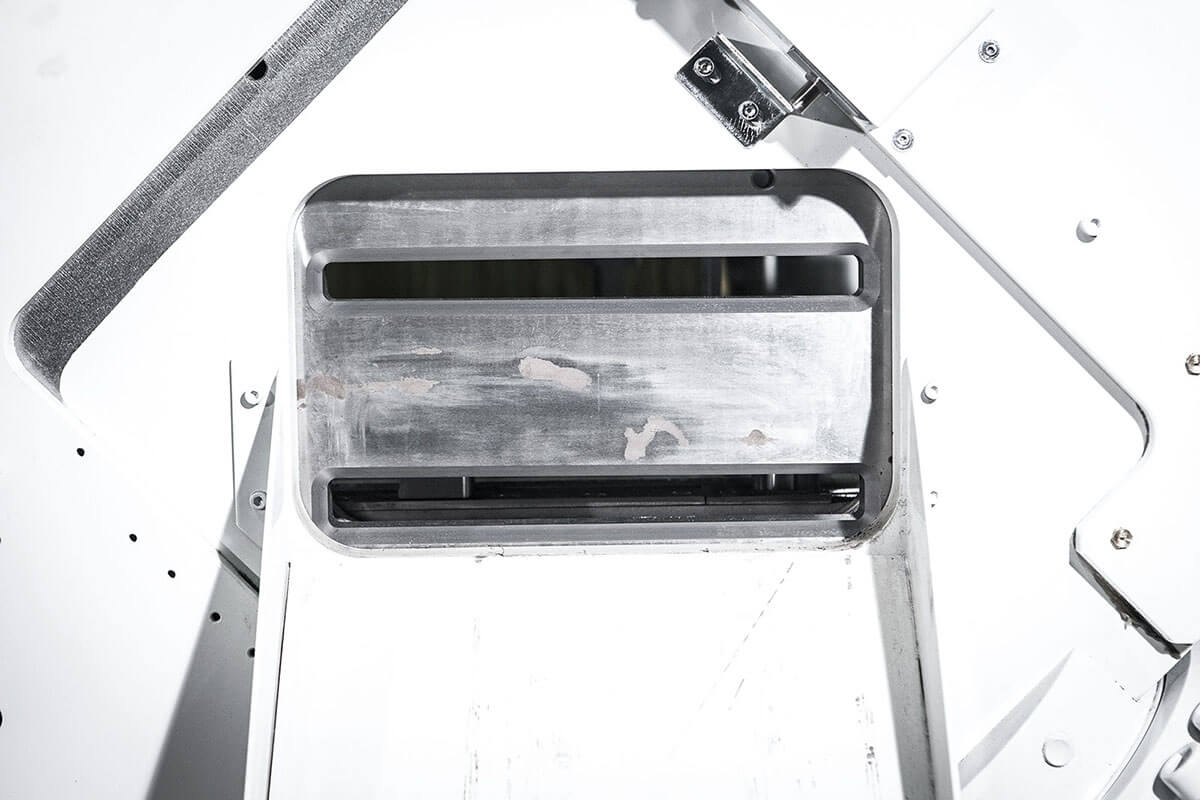

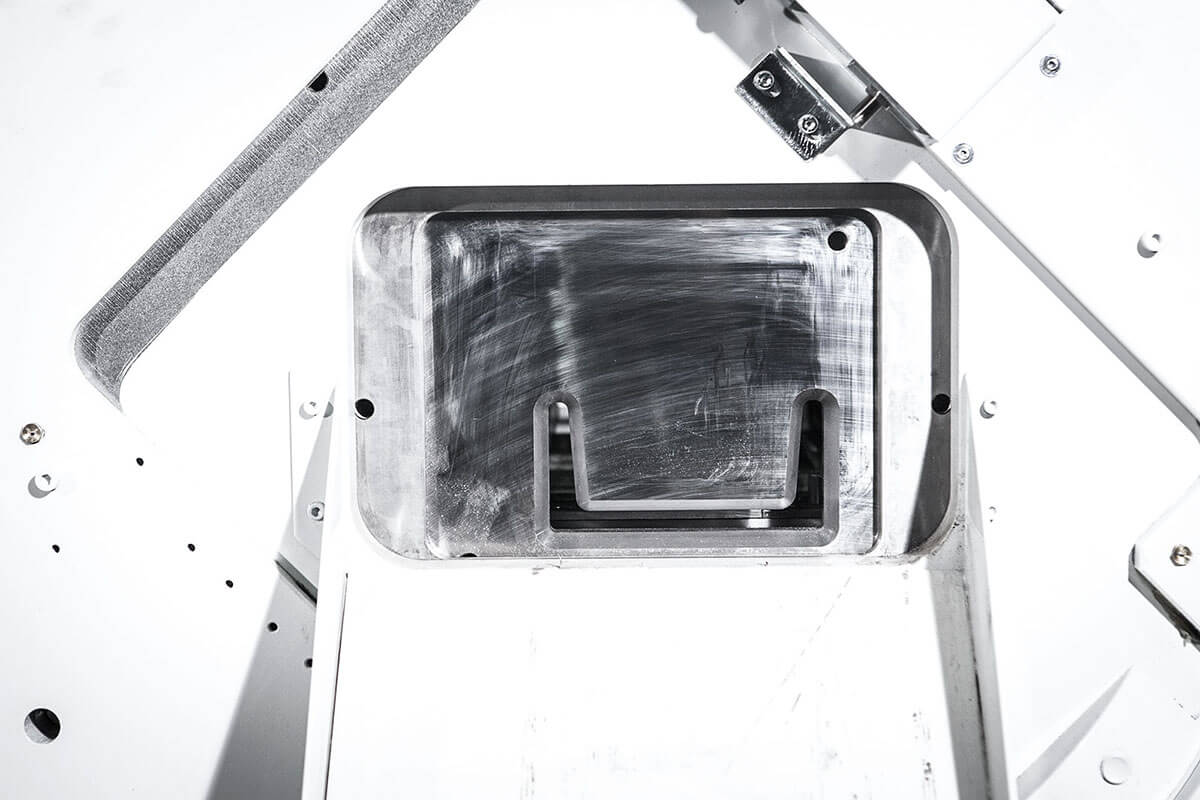

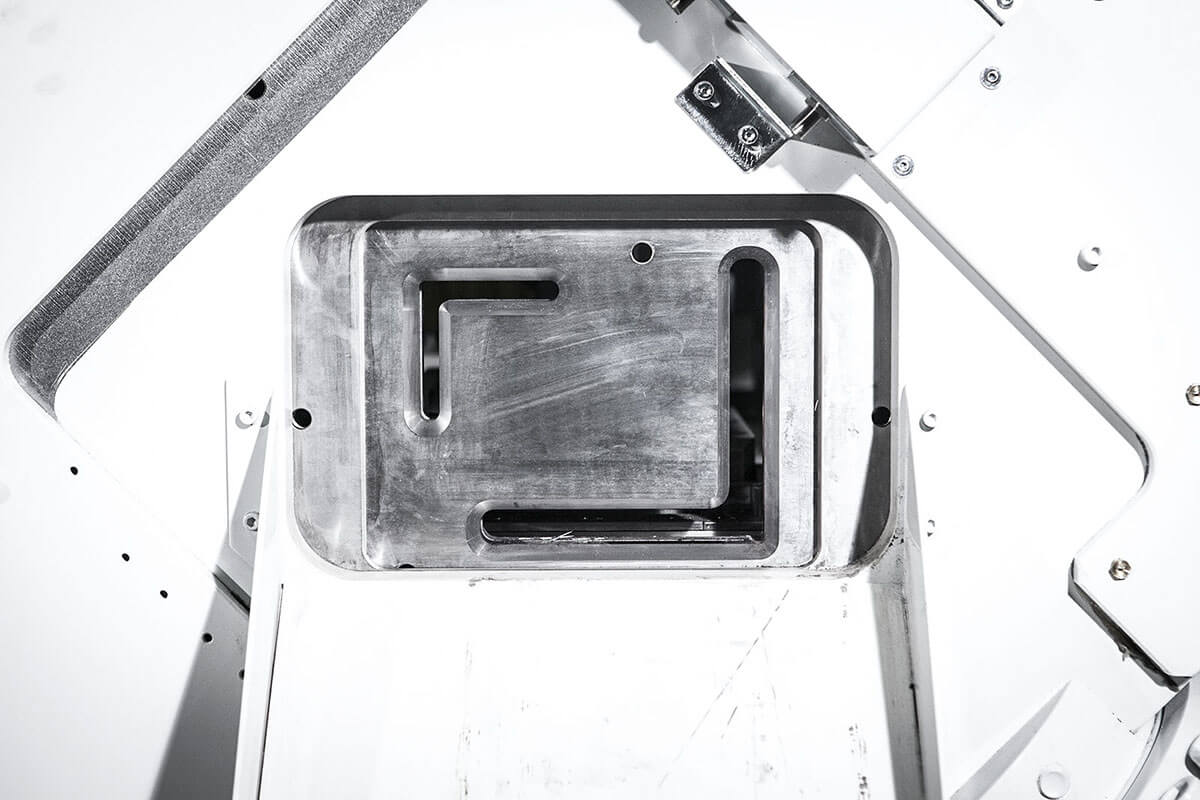

Shearing


          IPE 3.2 - 300 mm
          IPN 3.2 - 280 mm
          UPE 3.2 - 300 mm
          UPN/UPAF 3.2 - 300 mm
          HEA 3.9 - 180 mm
          HEB 3.9 - 140 mm
          L 1.6 x 1.6 x .16 in - 5.9 x 5.9 x .59 in
          - 2.0 x .2 in - 11.8 x .8 in

Raw material length up to 78 ft
Punching power web 154,000 lbs
Punching power flange 121,000 lbs

Feeding system

CNC high speed carriage with hydraulic gripper
Number of punching diameters 4 - 6
Shearing power 507,000 lbs
Disc marking unit Option
Repositioning vise Option
Control system PRONC23D user-friendly programming software with 3D part display
