Customer-specific sawing systems: Disposal devices

If you talk about the sawing process, you must also think about the disposal process. Whether merely evacuating the cut pieces or feeding them to subsequent processing stations – We can handle your cut pieces and guide them to wherever you like.

If you need space-saving and reliable solutions, just contact us. We are your competent partner and we provide comprehensive solutions for disposal and sorting: Inclined roller conveyors, disposal belts and hinged slat chain conveyors with sorting device are at your disposal.

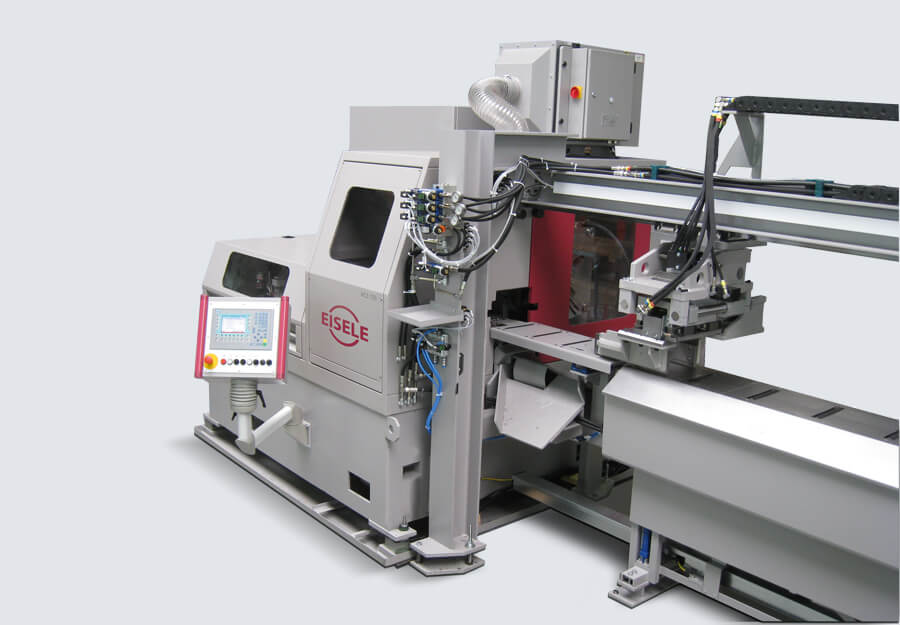

Outfeed portal

  • Reliable removal of the cut pieces from the cutting area
  • Disposal and transport of cut pieces to defined positions with servo drive

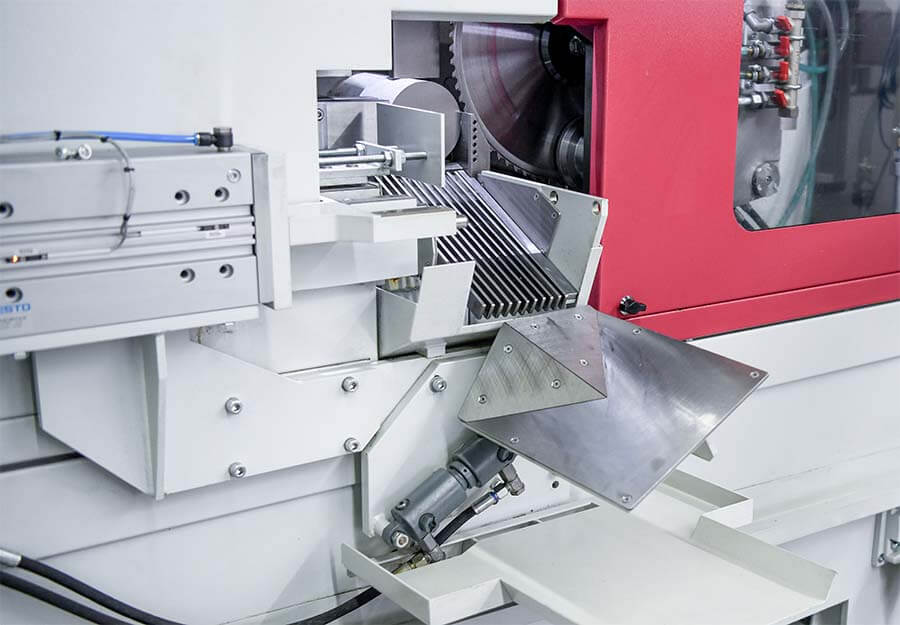

Sorting switch (standard feature)

  • Used for short cutting lengths
  • The pieces can be disposed into 2 containers (e.g. separate containers for trimcut and short rest pieces)

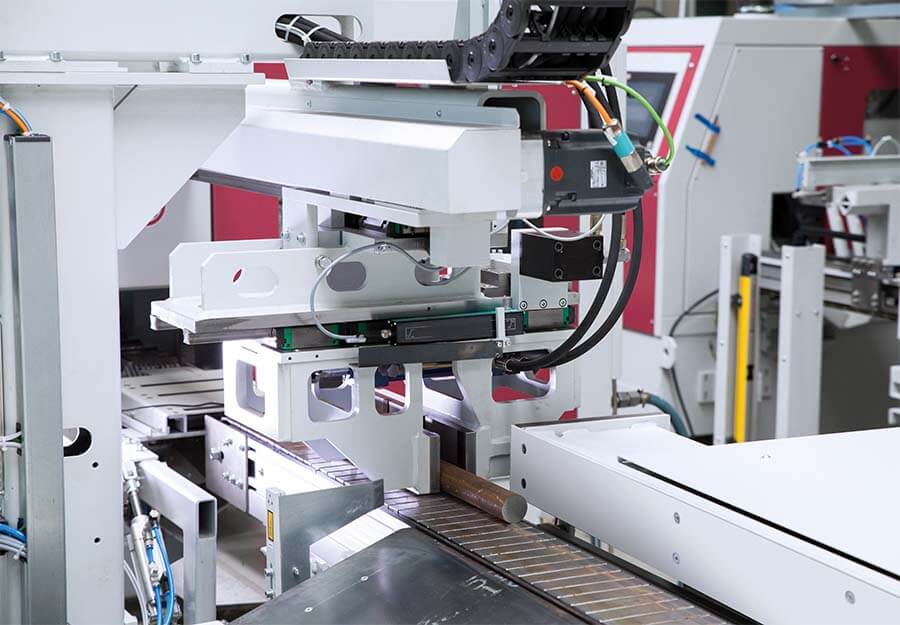

Disposal gripper HCS

  • Removes the pieces from the cutting area in
    a smooth and reliable way
  • Transfer to roller conveyor or belt conveyor
  • Pneumatic (E) or servo motor (MF) driven

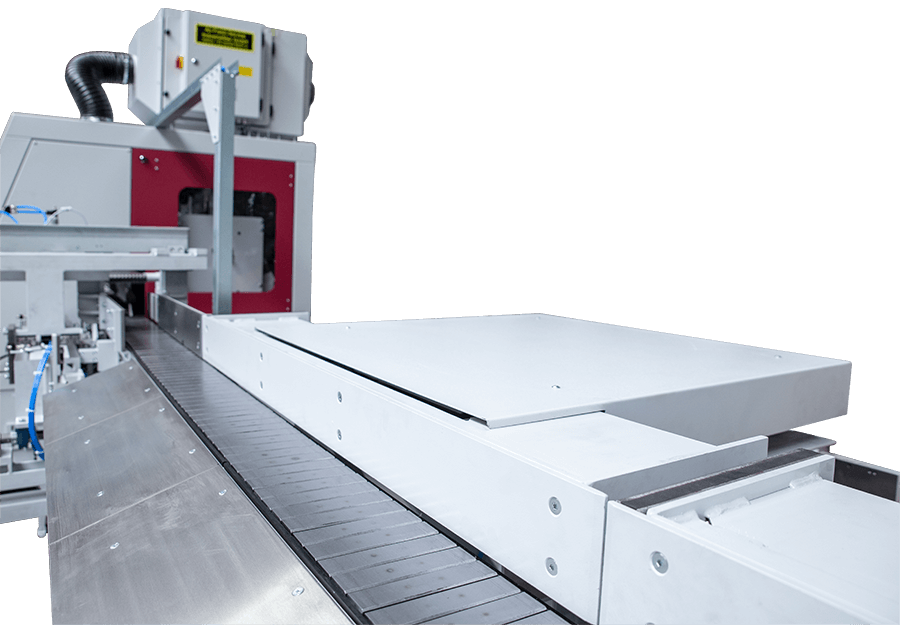

Hinge belt conveyor with pusher HCS

  • Easy removal of trim cuts and parts of
    any length
  • The pieces are pushed into boxes or on
    stillage legs from where they can be
    removed easily
  • Several storage positions on the outfeed
    side possible

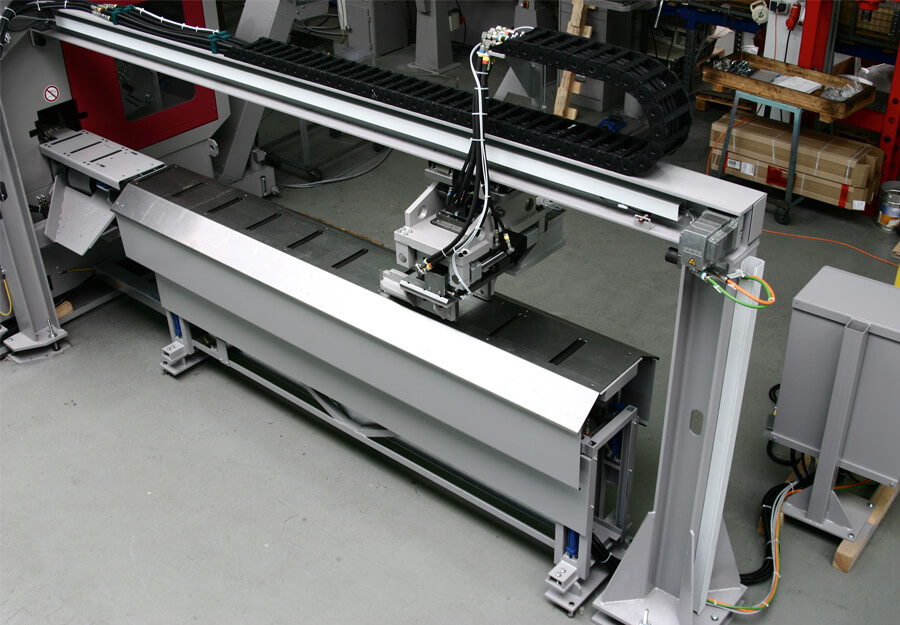

Tilting roller conveyor with container disposal

  • Linked directly to the outfeed portal
  • Pieces can be taken out from both sides

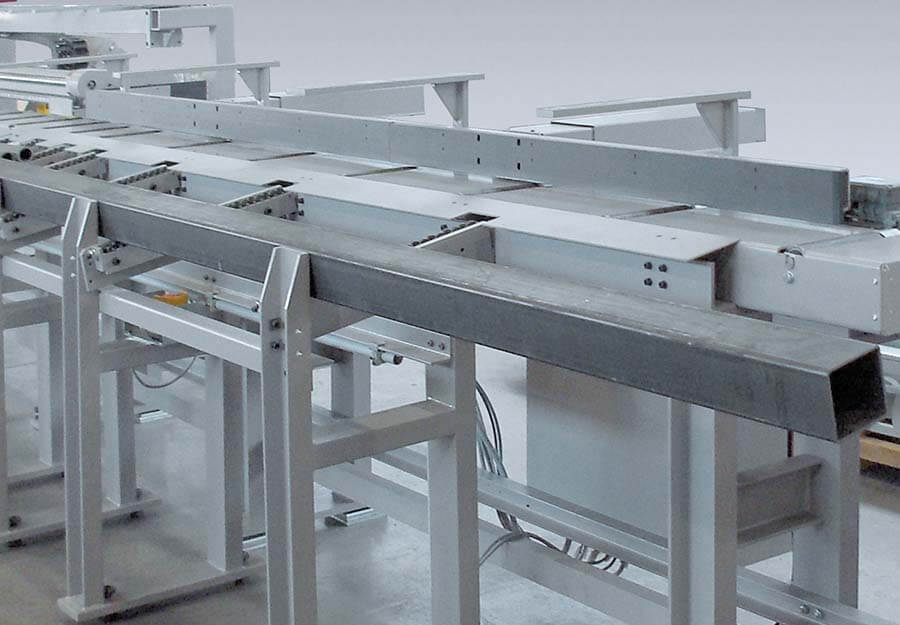

Powered roller conveyor with pushing devices

  • Smooth evacuation and transport of cut pieces (medium and long)
  • The pieces are pushed into boxes or pillars from where they can be removed easily

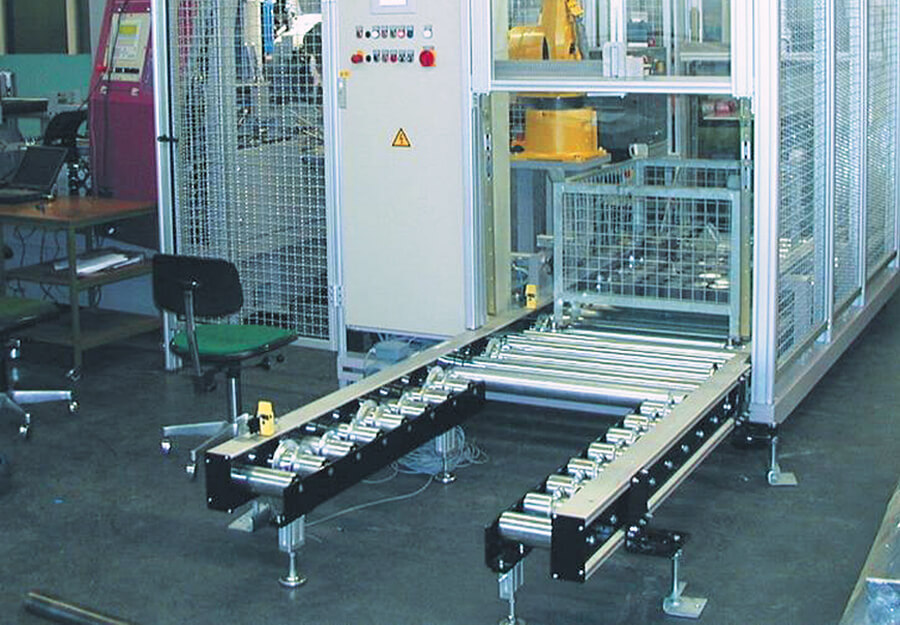

Robot cell with flexible automation options

  • Sorting, stacking, and palletising of finished
    workpieces
  • Marking by laser or dot peen marking
    system
  • Brushing and deburring of cut surfaces
  • Quality control through weighing and
    dimensional measurement
