Cold Saw VMS 370

Classics in any workshop that requires precise metal cuts

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles.

The heart of the VMS circular saw is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

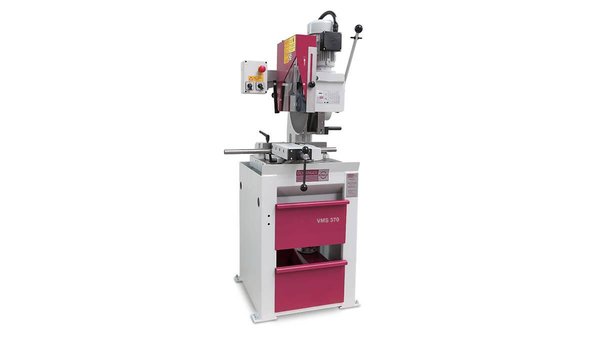

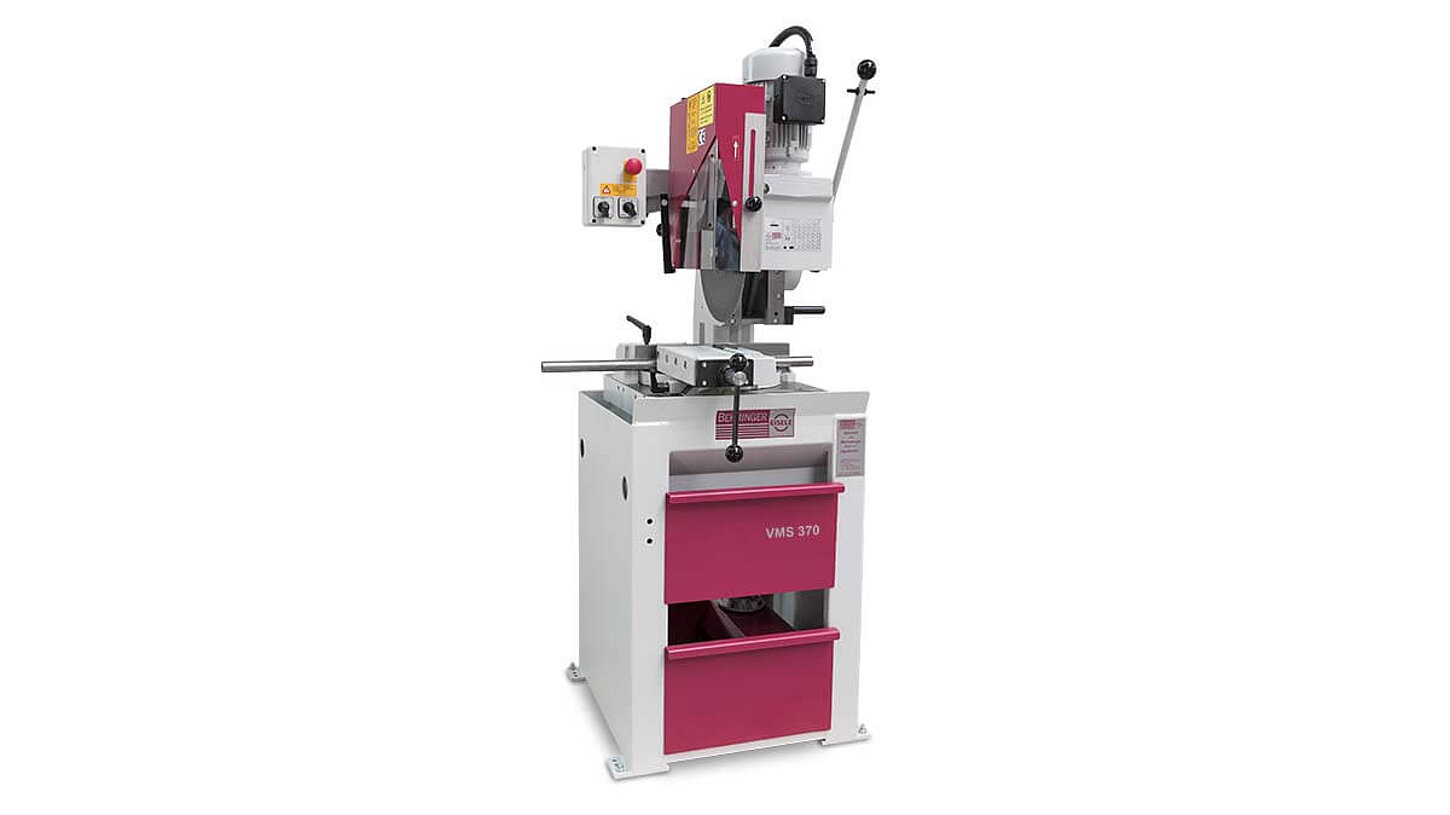

  • Behringer Eisele cold saw VMS 370

    Cold Saw VMS 370

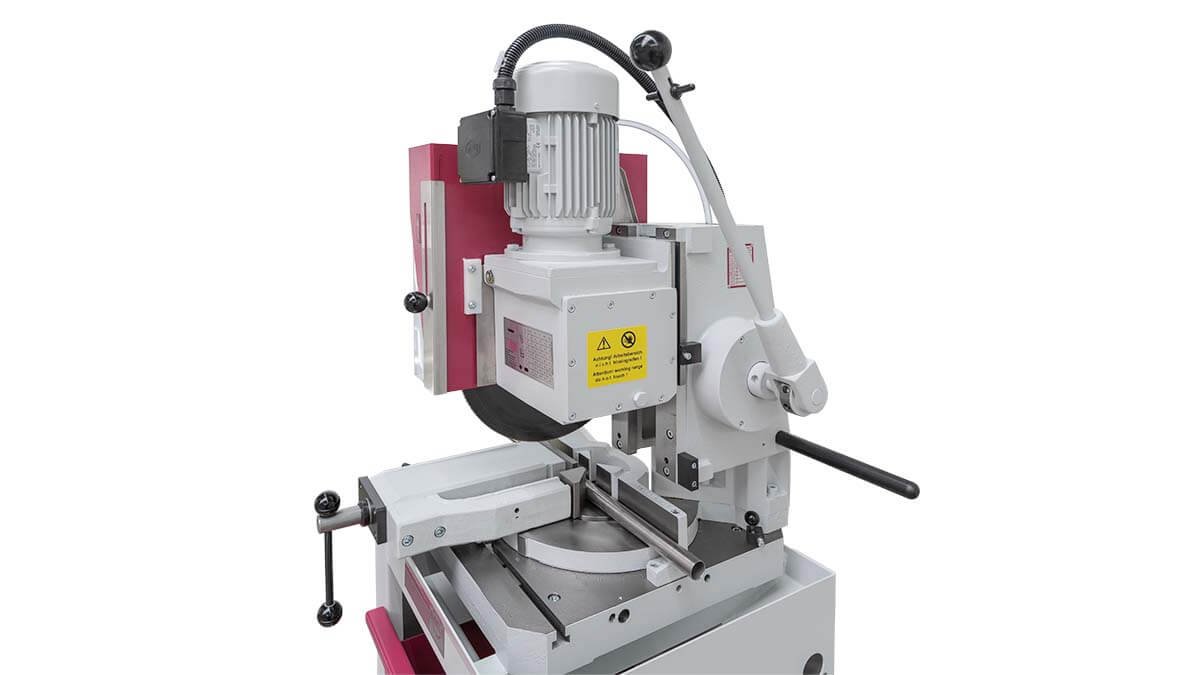

  • Behringer Eisele cold saw VMS 370 worm gearbox from our own production

    Worm gearbox from our own production

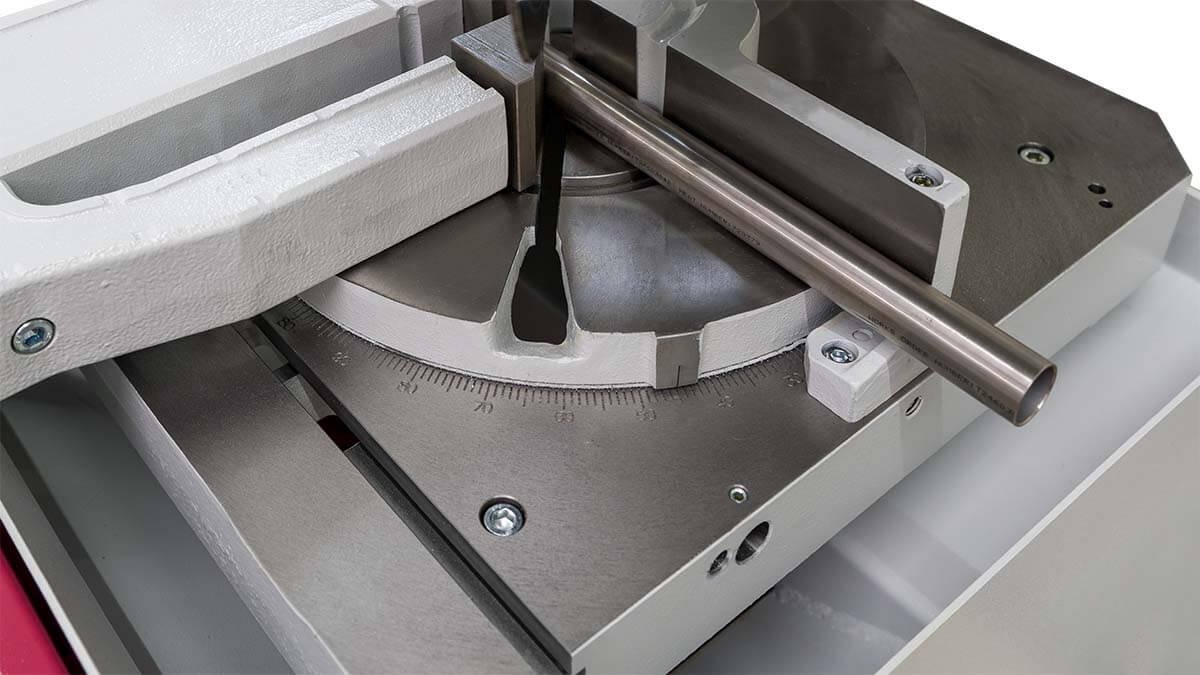

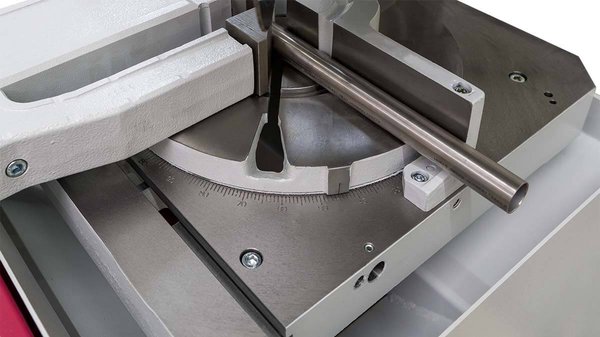

  • Behringer Eisele cold saw VMS 370 scale for displaying the set miter angle

    Convenient mitre adjustment

  • Behringer Eisele cold saw VMS 370 coolant device

    Coolant device

  • Behringer Eisele cold saw VMS 370 speed selection

    Speed selection of the circular saw

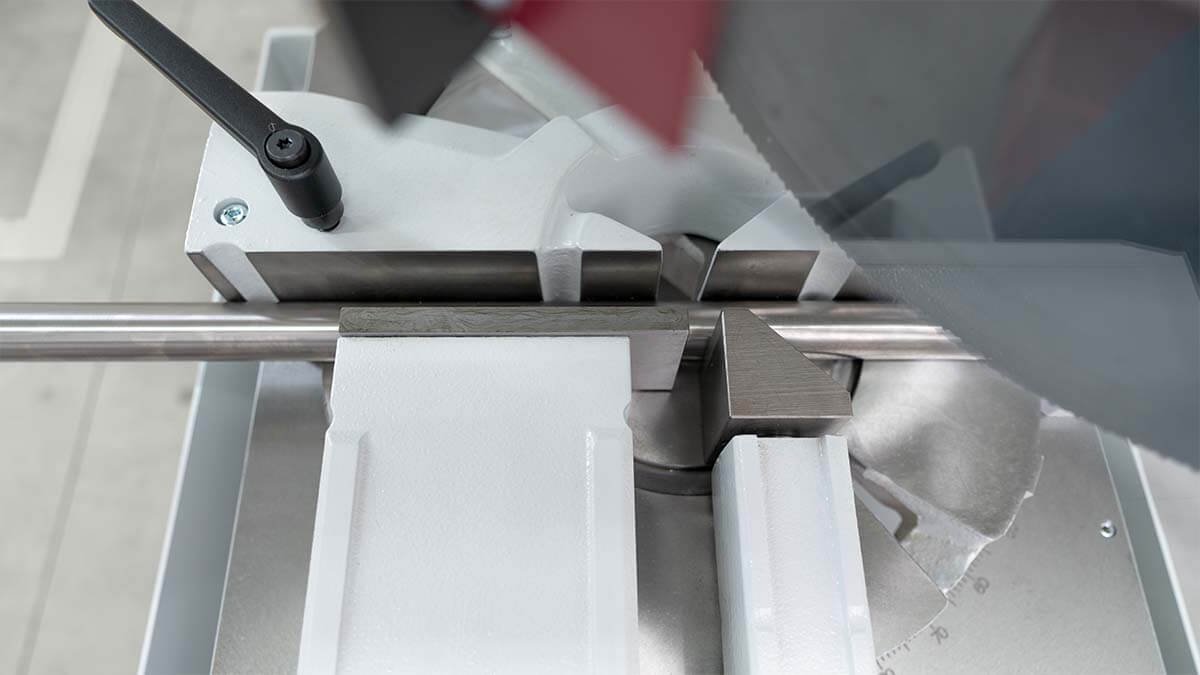

  • Behringer Eisele cold saw VMS 370 robust material vice

    Robust material vice

Features of the cold saw VMS 370

  • Worm gear unit with Eisele shock-absorbing feature
    An ideally designed gearbox from our own production offers long blade life and maximum durability.

  • User-friendly mitre adjustment
    with fixed stops. This allows changing mitre angles to be set precisely and quickly.

  • Low space requirement
    High productivity with simultaneously compact dimensions of less than 1 m².

  • Clean machine design
    The coolant unit and the chip drawer are integrated into the machine base.

  • High flexibility
    The cold saw VMS 370# can be flexibly adapted to your material flow.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • Saw feed via safety snap-in lever
    The saw feed can easily be set to the shortest possible saw travel.

  • Micro spray system (option)
    When sawing profiles, pipes and solid material, the minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

Individual Configuration

The cold saw VMS 370 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact



Measuring Systems

Increase the productivity of your vertical circular saw with our extensive range of compatible measuring stops and roller conveyors.

Learn More

Technical data cold saw VMS 370

Flat 90° 7.9 in x 3.9 in
Flat 45° 5.5 in x 3.9 in
Flat 30° 3.9 in x 3.9 in 1)

Square 90° 4.7 in 2)
Square 45° 3.9 in
Square 30° 3.5 in 1)

Round 90° 5.1 in
Round 45° 5.1 in
Round 30° 4.1 in 1)
Drive power 2.7 / 3.5 hp
RPM standard 17 / 34 - 34 / 68 min-1
RPM optional 8 / 16 / 32 / 64 min-1
Saw blade diameter 14.6 in
Saw feed manual
Material clamping manual
Length 42.7 in
Width 34.1 in
Height 70.9 in
Weight 950 lbs
Material support height 35.4 in

1) Only to the right side
2) When using additional jaw
