Measuring Systems

for our manual and semi-automatic VMS vertical circular saws

Increase the productivity of your Vertical Circular Saw! For this purpose, Behringer Eisele provides and extensive range of length measuring systems, from manual length stops to electronic measuring devices with digital pre-selection.

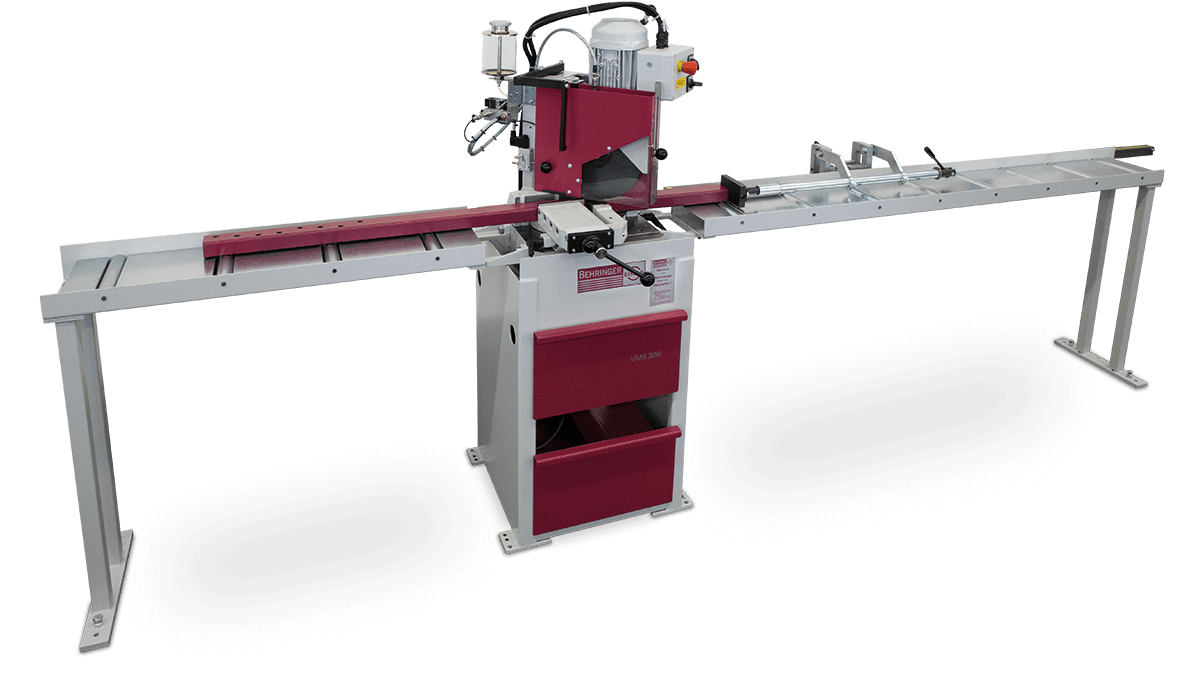

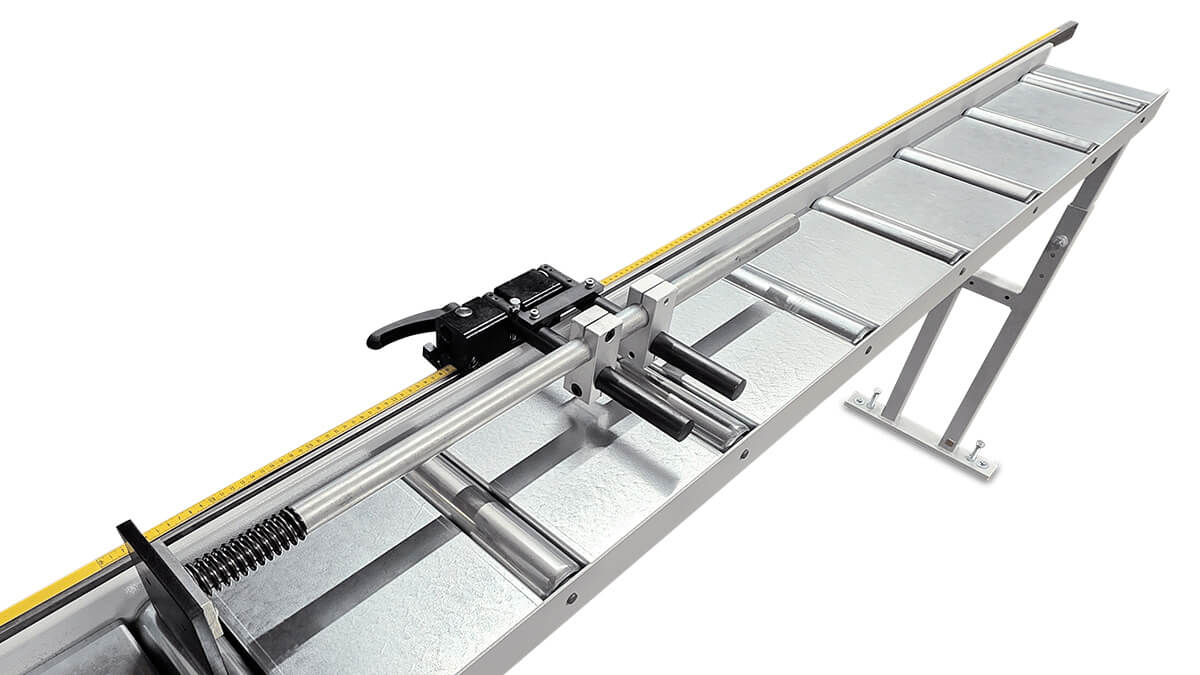

Manual measuring stop

  • Manual measuring system for easy positioning of the material
  • Ideal as an add-on for manual and small semi-automatic VMS machines

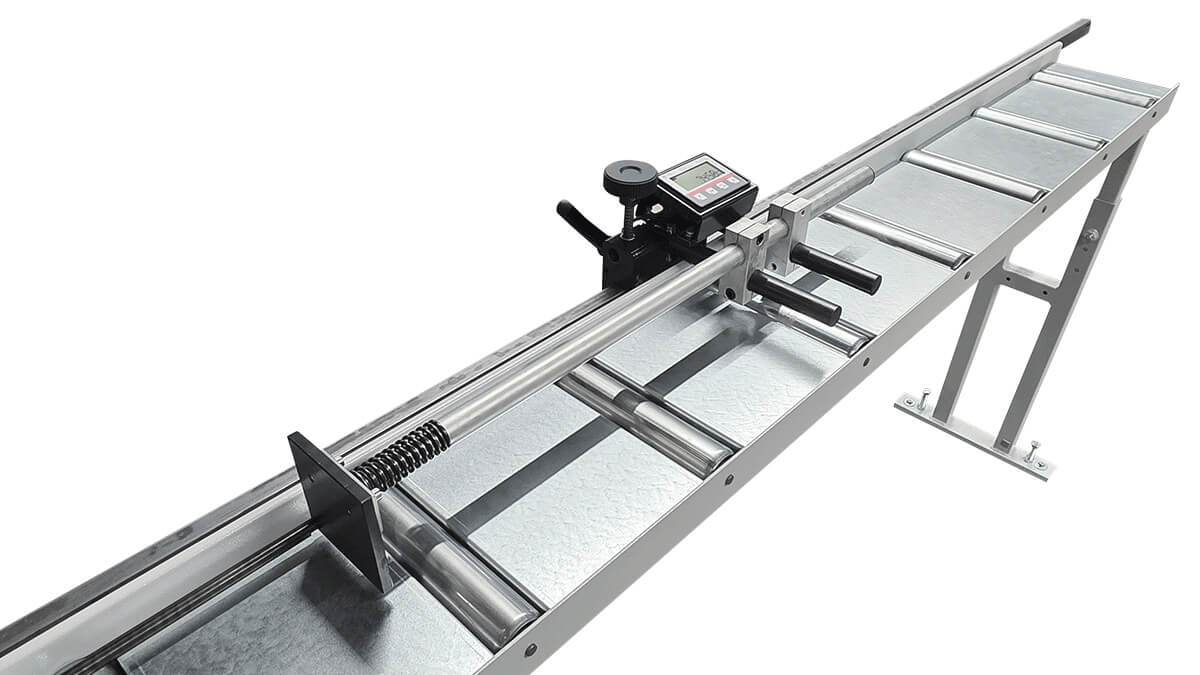

  • Available as analogue version or optionally with digital display of the measuring length
  • Arm retraction with impact damping manually controlled, optionally pneumatic

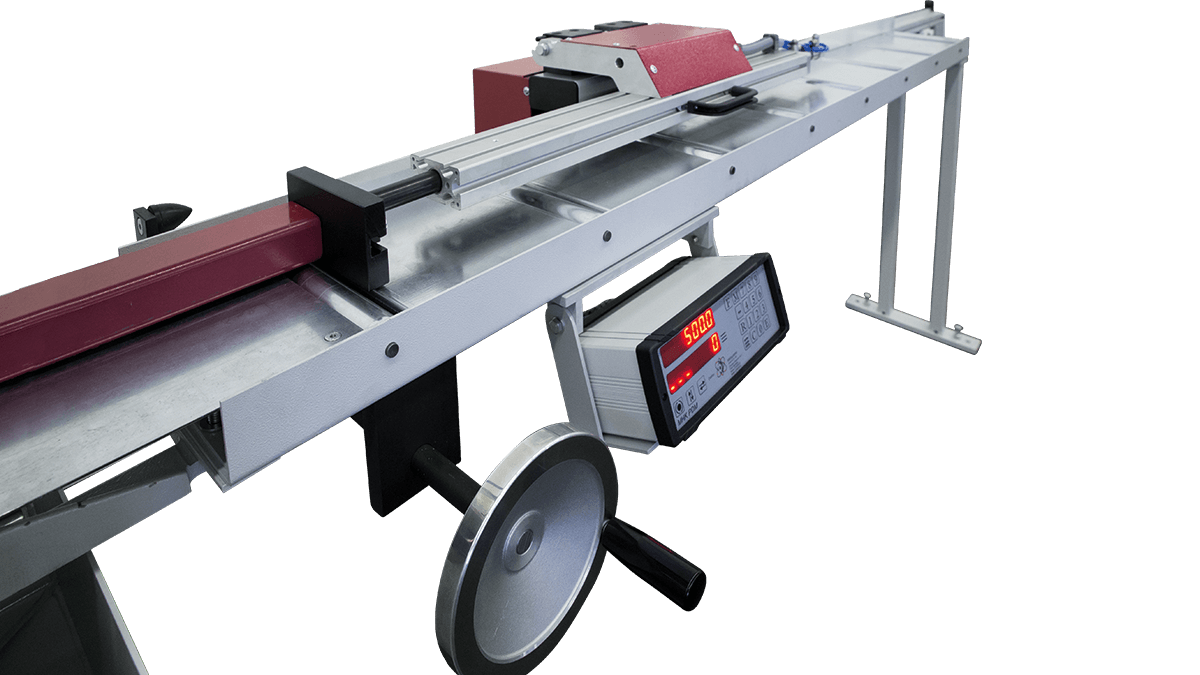

Electronic length measuring system MHK

  • The length positioning is done by hand wheel
  • Digital display of the measuring length
  • Simple operation
  • Once in position, the measuring stop is pneumatically clamped to prevent displacement of the measuring length
  • Arm retraction with impact dampening by pneumatic cylinder

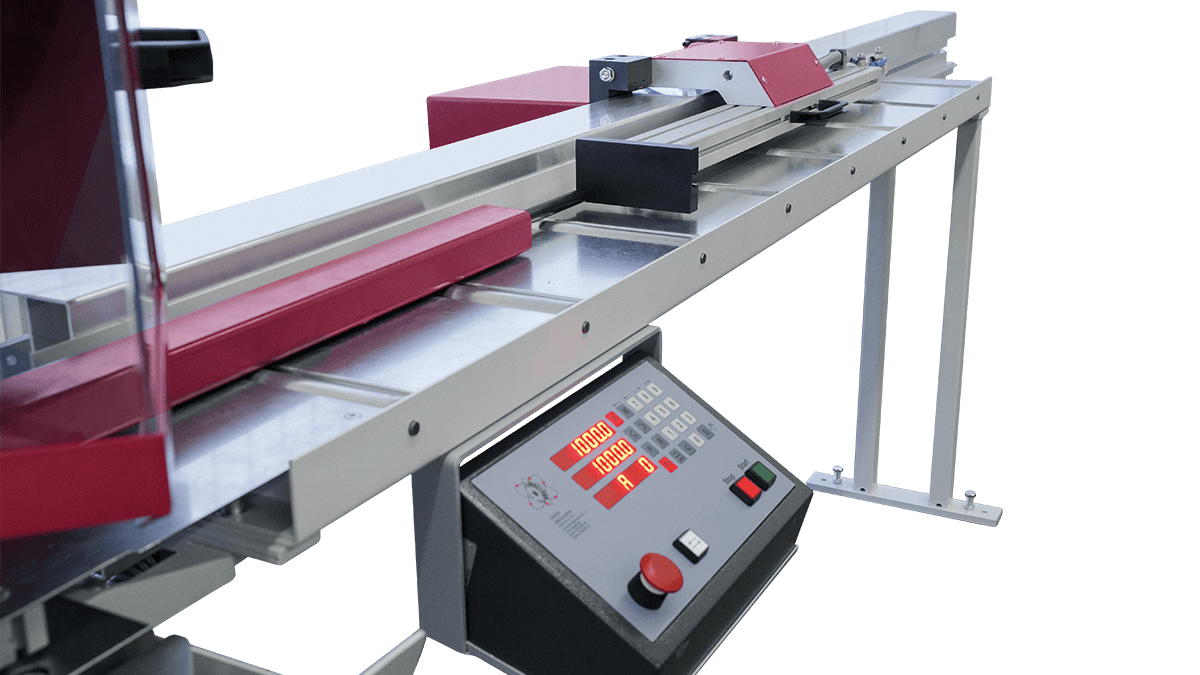

Electronic length measuring system ELA

  • The positioning is done automatically by an electric motor
  • The measuring length is simply entered via the control unit
  • Convenient and simple operation
  • Arm retraction with impact dampening by pneumatic cylinder
  • Ideal addition for a semi-automatic operation

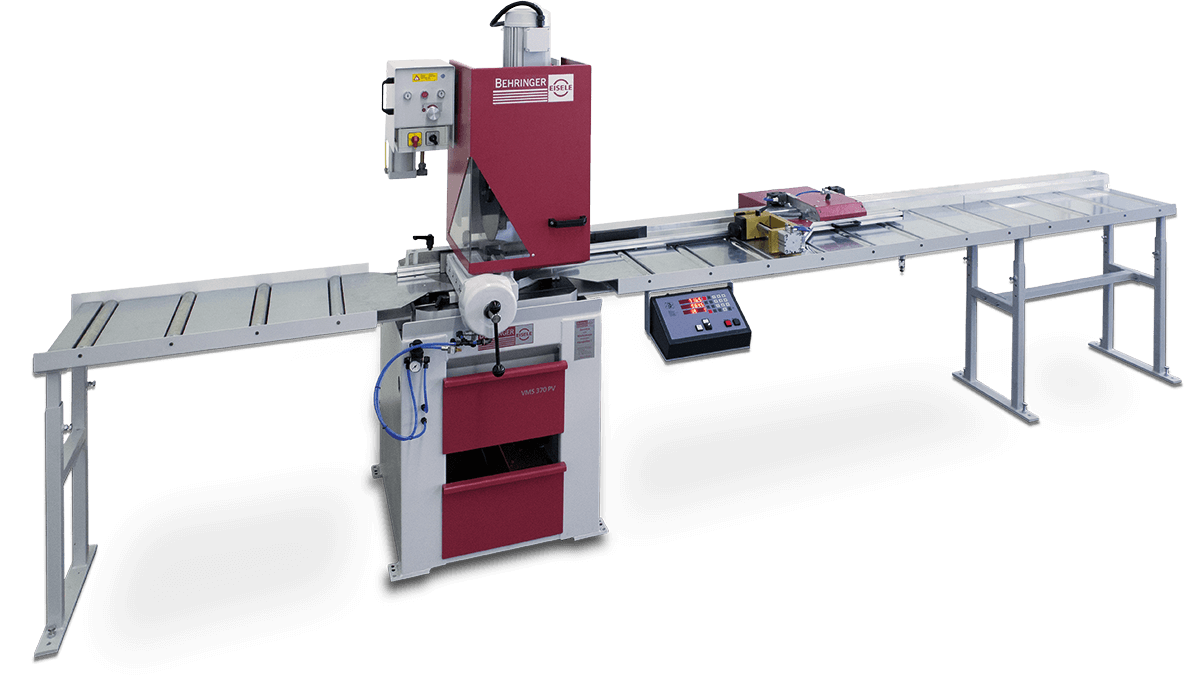

Electronic length measuring system with feed gripper ELA-P

  • The ELA-P is the combination of the electronic length stop ELA with an additional material clamping vice
  • The ELA-P can be usedas a length measuring unit or as a full-value feeding gripper
  • Positioning is done by electric motor
  • The measuring length or cutting length and number of pieces are programmed in the control unit
  • Ideal addition for automatic sawing of small series
