Cold Saw VMS 370 PV

Classics in any workshop that requires precise metal cuts

More than 250,000 cold saws sold worldwide speak for themselves. Simple operation, robust design and precise cuts make the metal-cutting cold saws of the VMS series a reliable partner in the workshop and factory. They are real all-rounders when it comes to cutting solid materials, tubes and profiles. In addition to the automatic saw feed, the VMS 370 PV also offers pneumatic clamping of the material.

The heart of the VMS circular saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface, the blade life and the service life of the saw.

  • Behringer Eisele Vertikal-Metallkreissäge VMS 370 PV

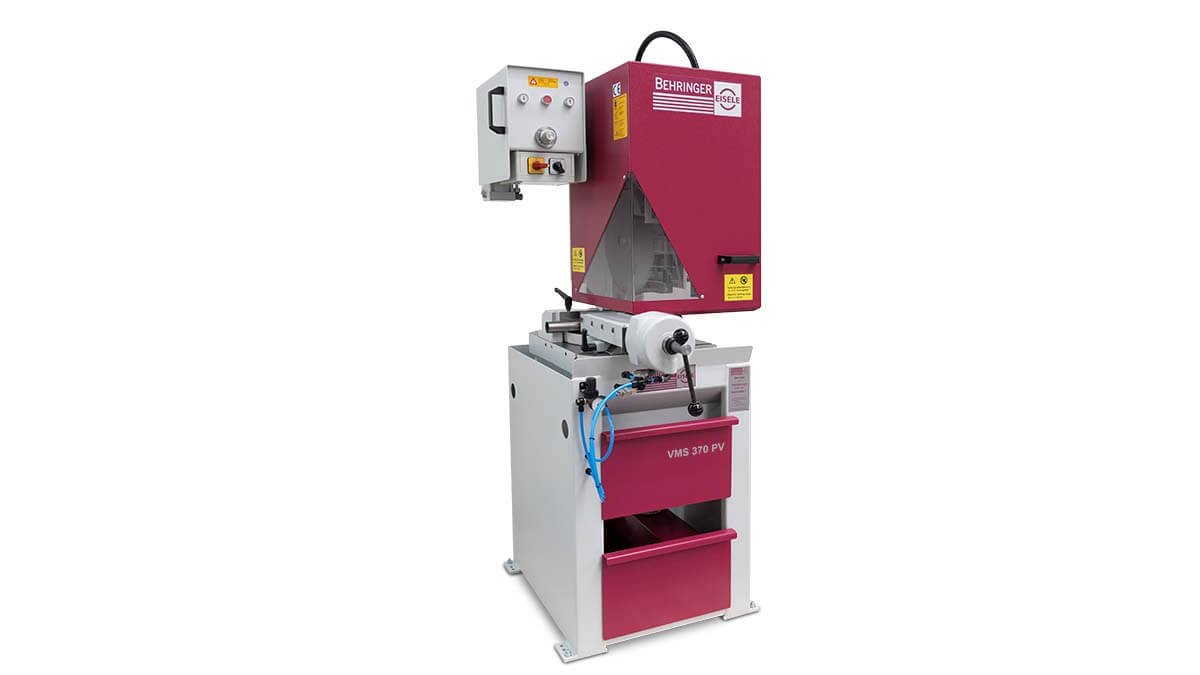

    Cold Saw VMS 370 PV

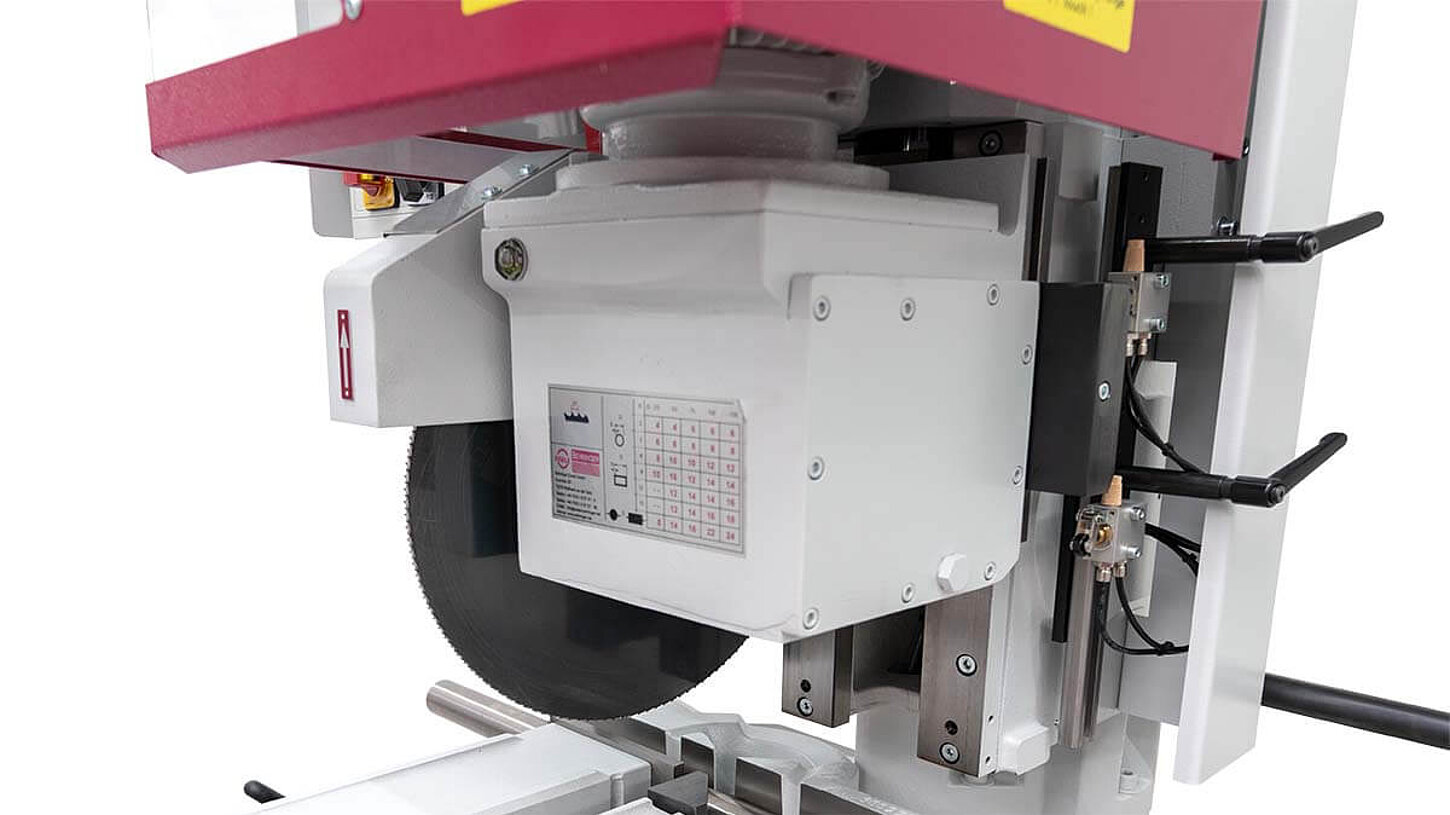

  • Behringer Eisele Vertikal-Metallkreissäge VMS 370 PV mit robustem Schneckengetriebe aus eigener Herstellung

    Worm gearbox from our own production

  • Behringer Eisele Vertikal-Metallkreissäge VMS 370 PV Vorschubeinstellung für den pneumatischen Sägevorschub

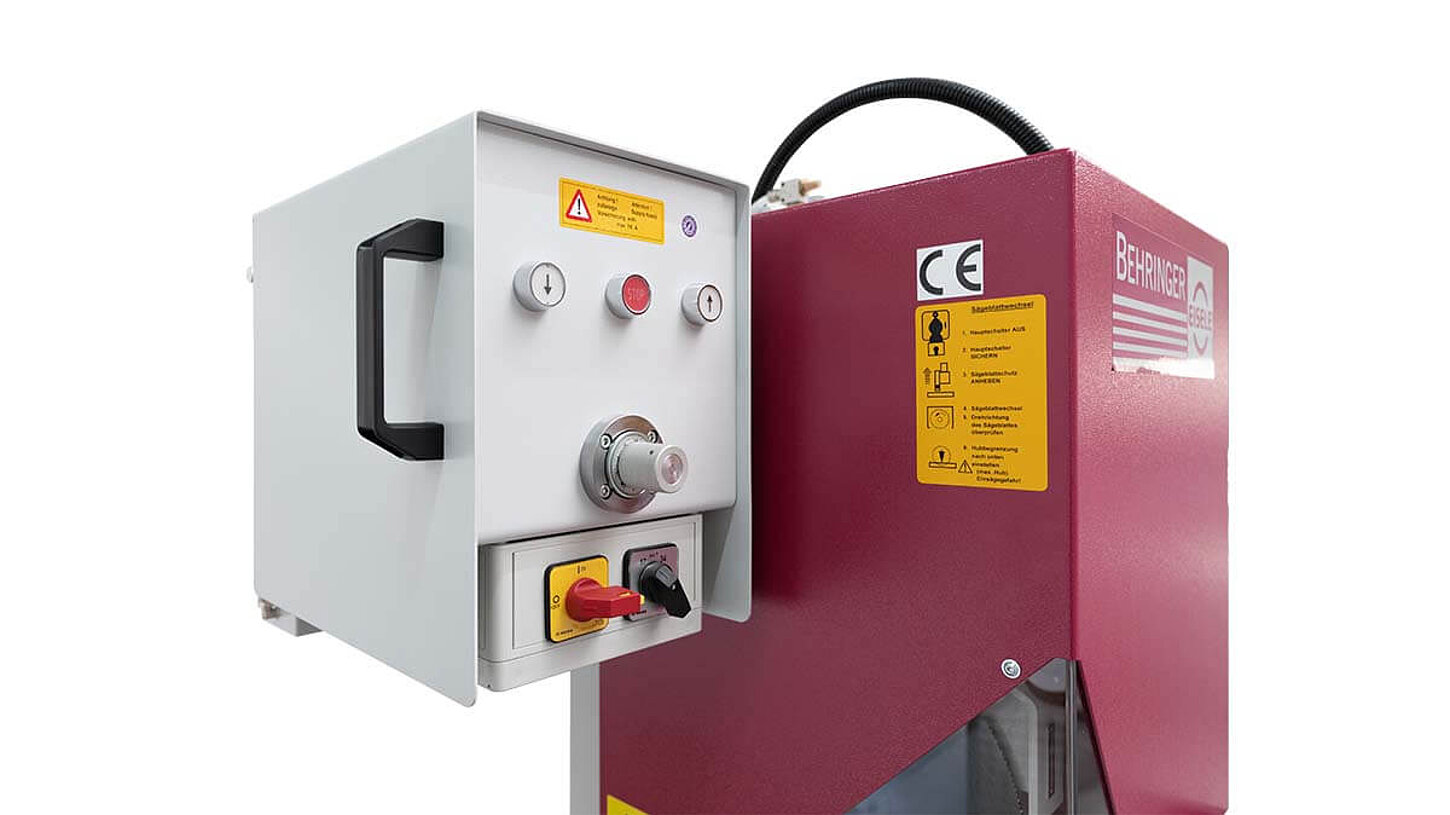

    Hydro-pneumatic saw feed

  • Behringer Eisele Vertikal-Metallkreissäge VMS 370 PV Skala zur Anzeige des Gehrungswinkels

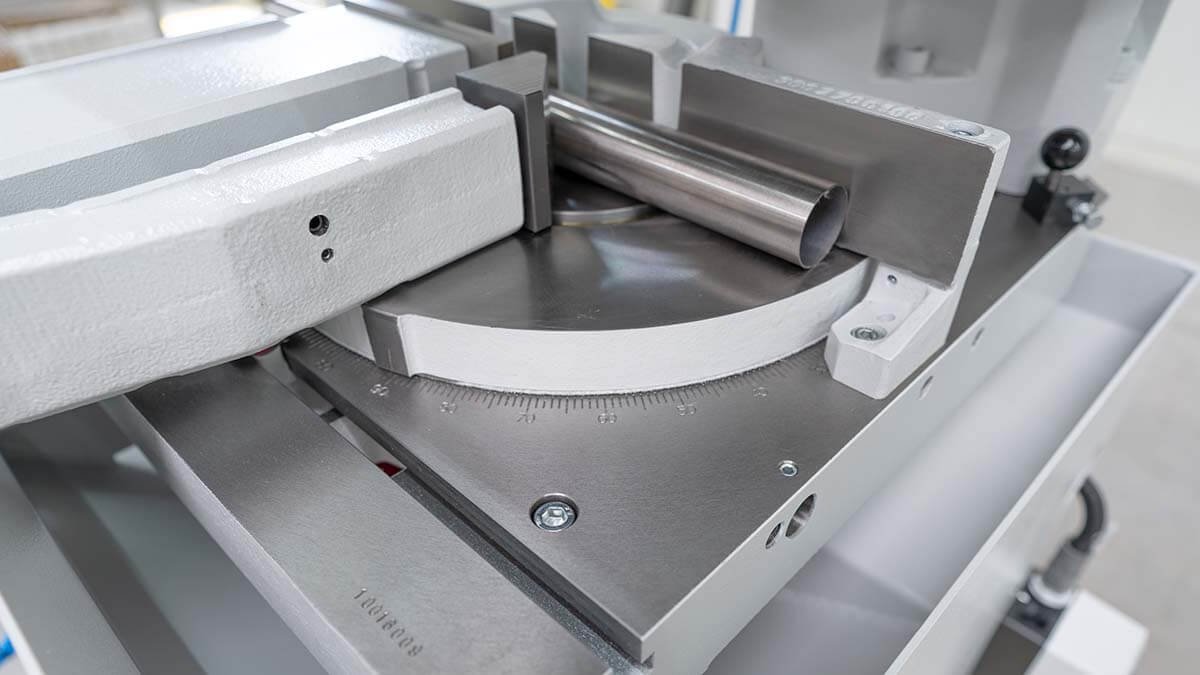

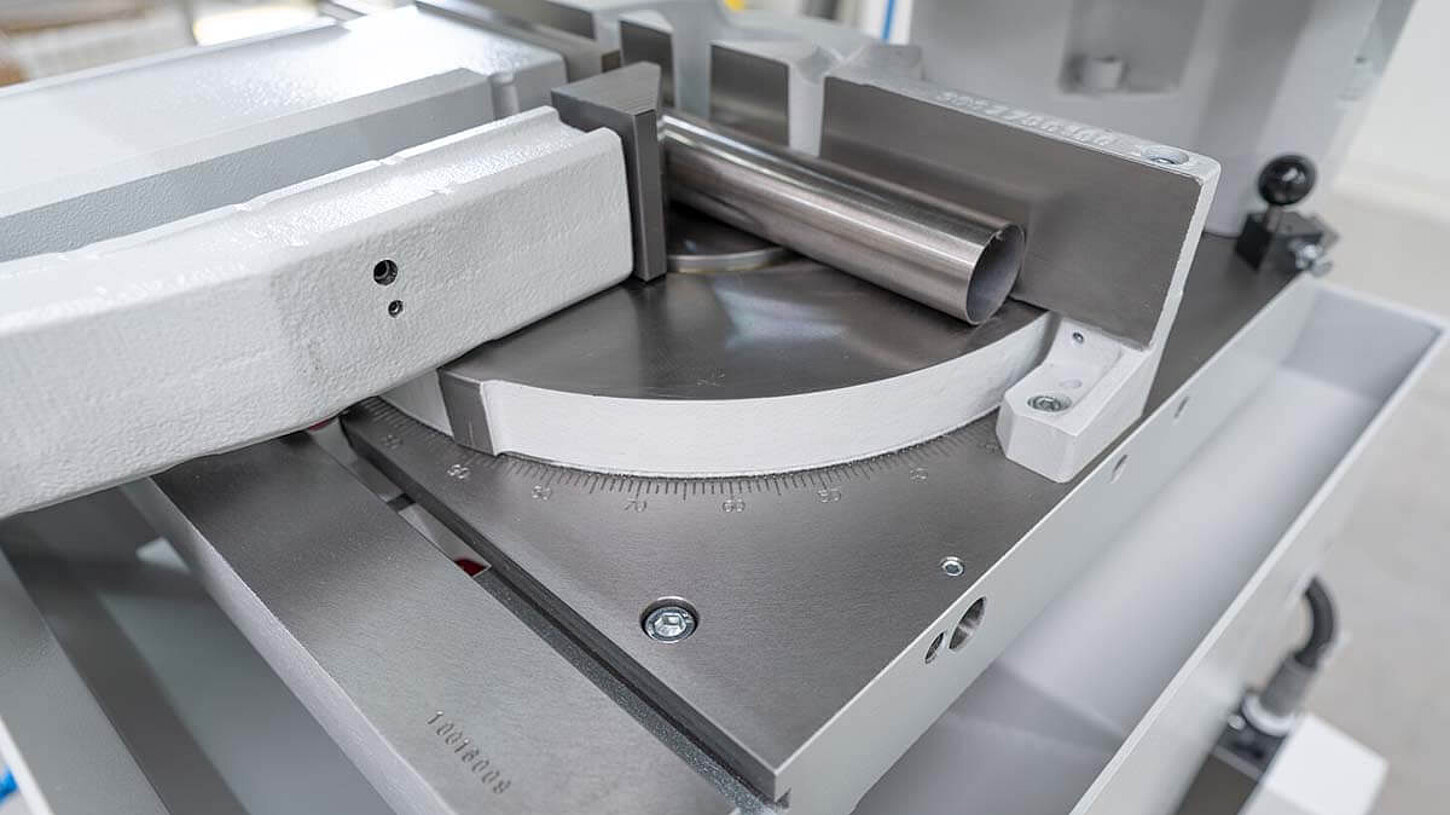

    Convenient mitre adjustment

  • Behringer Eisele cold saw VMS 370 PV coolant device

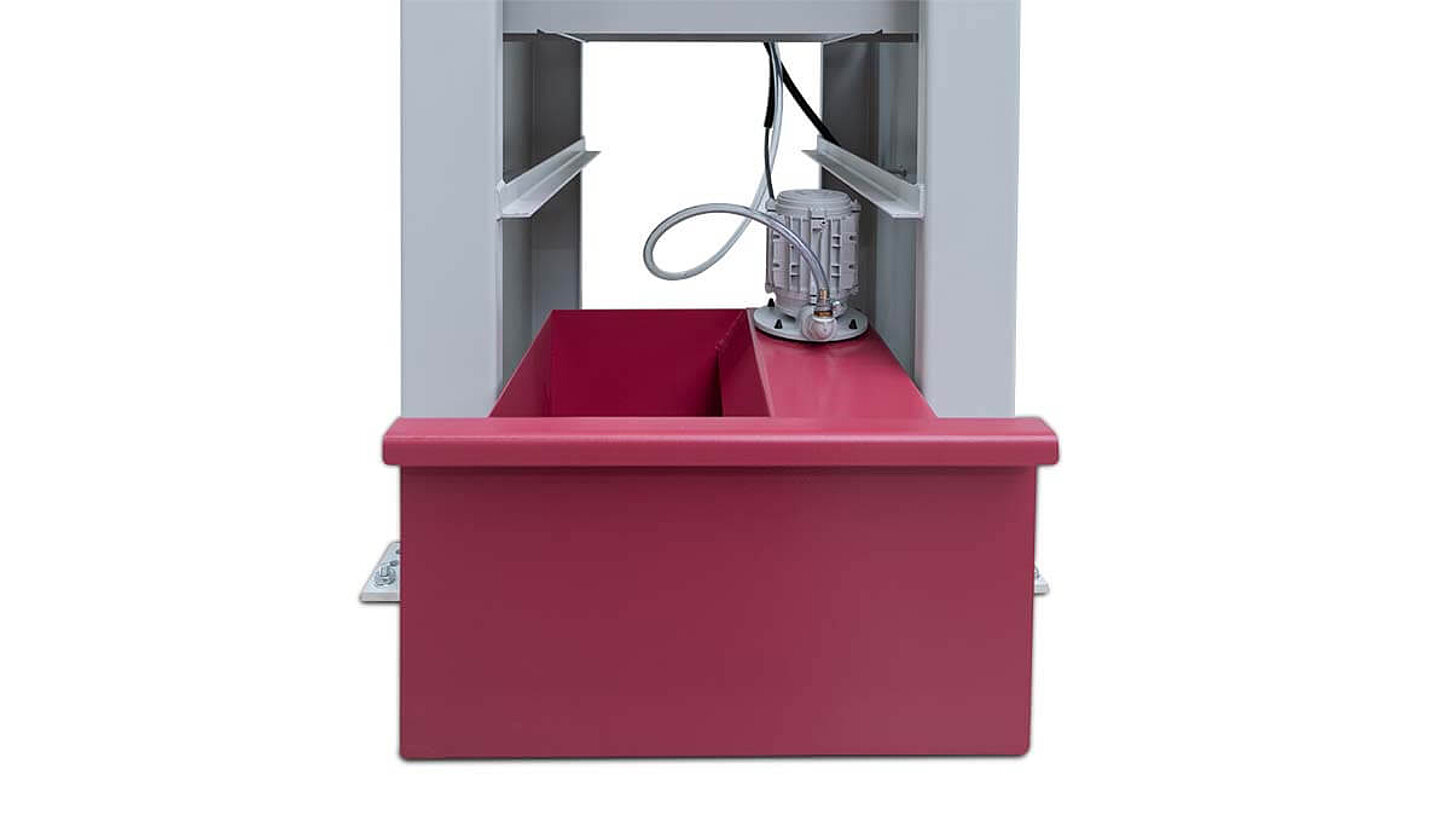

    Coolant unit of the circular saw

  • Behringer Eisele Vertikal-Metallkreissäge VMS 370 PV mit pneumatischer Materialspannung

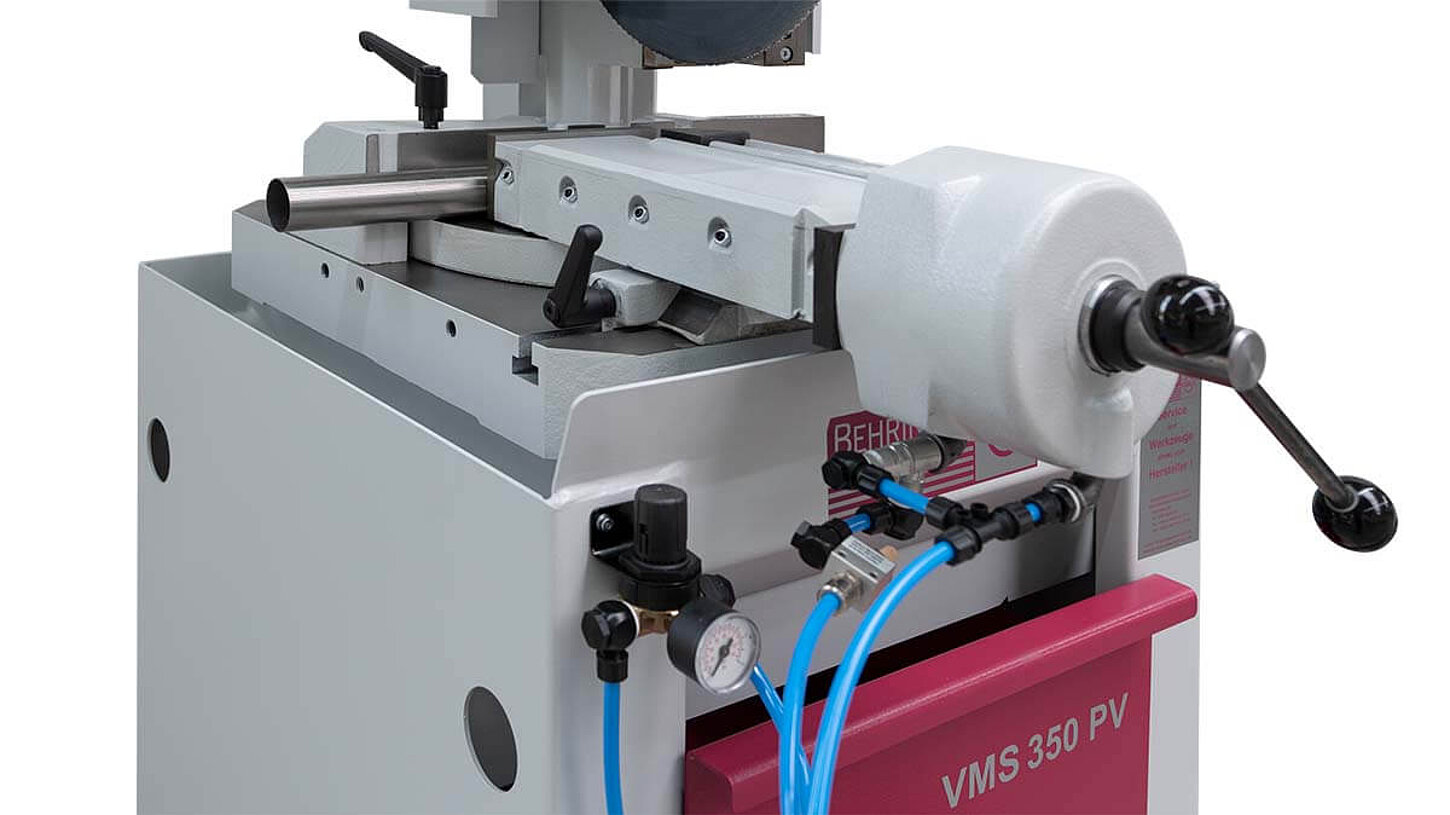

    Pneumatic quick clamping device

  • Behringer Eisele Vertikal-Metallkreissäge VMS 370 PV Einstellung des Sägeeintrittspunkts und Sägeaustrittspunkts

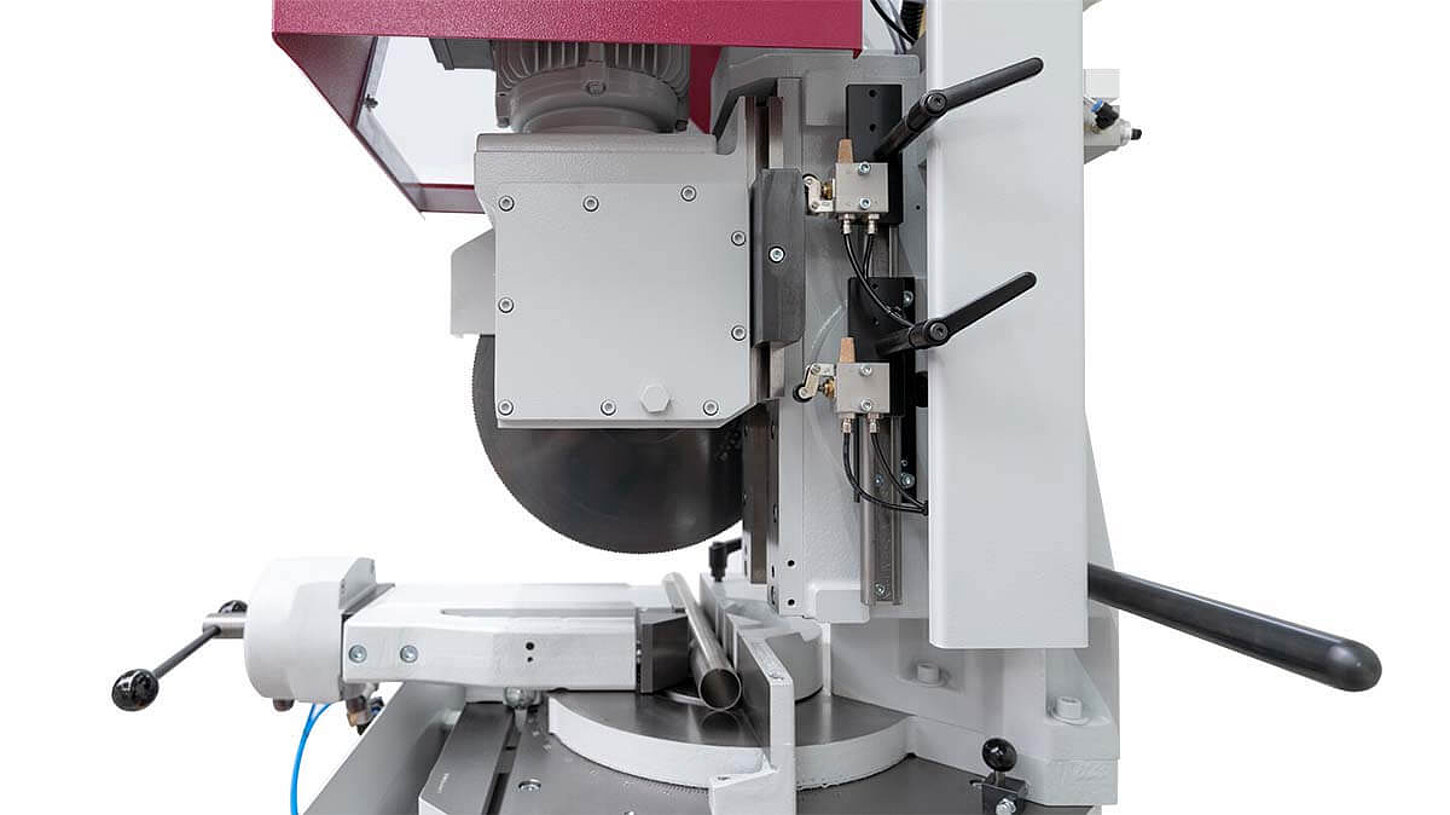

    Convenient stroke adjustment of the saw blade

  • Behringer Eisele Vertikal-Metallkreissäge VMS 370 PV Micro-Sprühsystem

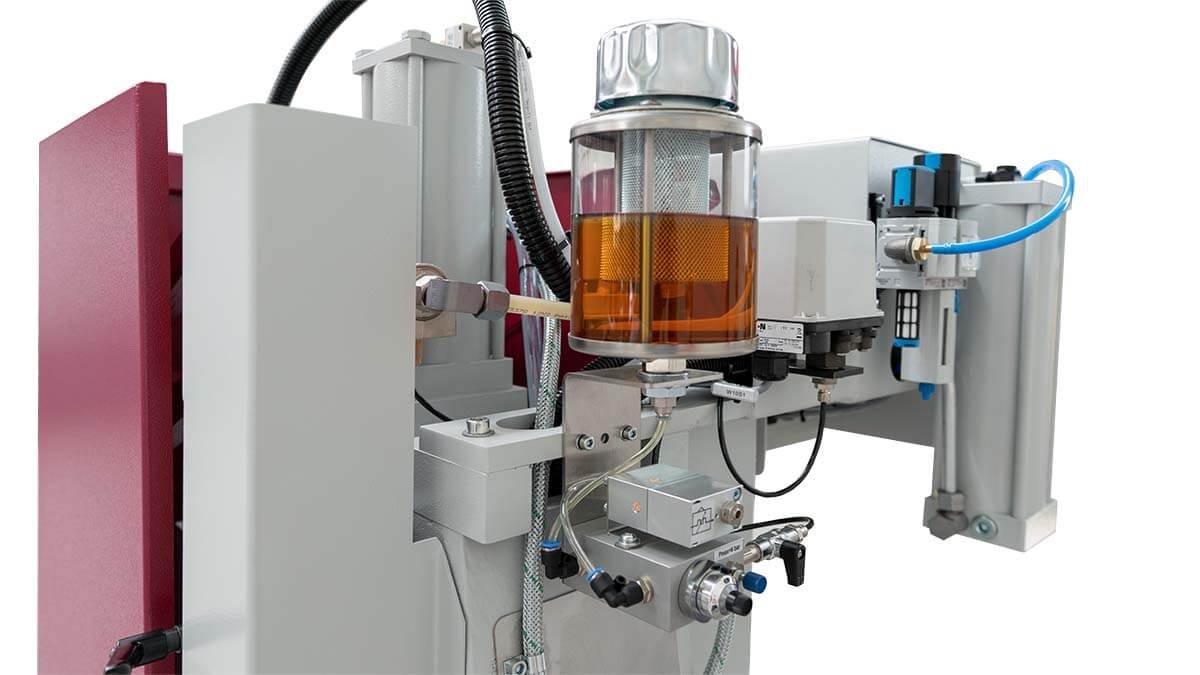

    Micro spray system (option)

Features of the cold saw VMS 370 PV

  • Worm gear unit with Eisele shock-absorbing feature
    An ideally designed gearbox from our own production offers long blade life and maximum durability.

  • User-friendly mitre adjustment
    with fixed stops. This allows changing mitre angles to be set precisely and quickly.

  • Low space requirement
    High productivity with simultaneously compact dimensions of less than 1 m².

  • Micro spray system (option)
    When sawing profiles, pipes and solid material, the minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

  • High flexibility
    The cold saw VMS 370 PV# can be flexibly adapted to your material flow.

  • Automatic saw feed
    The semi-automatic model with hydro-pneumatic saw feed and quick clamping device offers a high level of operating comfort as well as consistent cutting quality.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • Comfortable stroke adjustment
    The entry and exit points of the saw blade can be conveniently adjusted using two limit switches.

  • Large dimensioned protective cover
    ensures an easy and quick saw blade change and a high level of safety during work.

  • Clean machine design
    The coolant unit and the chip drawer are integrated into the machine base.

Individual Configuration

The cold saw VMS 370 PV can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact



Measuring Systems

Increase the productivity of your vertical circular saw with our extensive range of compatible measuring stops and roller conveyors.

Learn More

Technical data cold saw VMS 370 PV

Flat 90° 7.9 in x 3.9 in
Flat 45° 5.5 in x 3.9 in
Flat 30° 3.9 in x 3.9 in 1)

Square 90° 4.7 in 2)
Square 45° 3.9 in
Square 30° 3.5 in 1)

Round 90° 5.1 in
Round 45° 5.1 in
Round 30° 4.1 in 1)
Drive power 2.7 / 3.5 hp
RPM standard 17 / 34 - 34 / 68 min-1
RPM optional 8 / 16 / 32 / 64 min-1
Saw blade diameter 14.6 in
Saw feed hydro-pneumatic
Material clamping pneumatic
Length 52.6 in
idth 34.1 in
Height 70.9 in
Weight 1,040 lbs
Material support height 35.4 in

1) Only to the right side
2) When using additional jaw
