Aluminum Circular Saw VA-L 500 E

for cutting aluminium and non-ferrous metals

Excellent surface quality, high output, short rest piece lengths and careful material handling - the VA-L series aluminum saws set standards in all areas worldwide. With its pneumatic clamping devices and servo-driven saw feed system, it is unsurpassed in terms of cutting performance and precision.

  • Aluminum circular saw VA-L 560 NC2

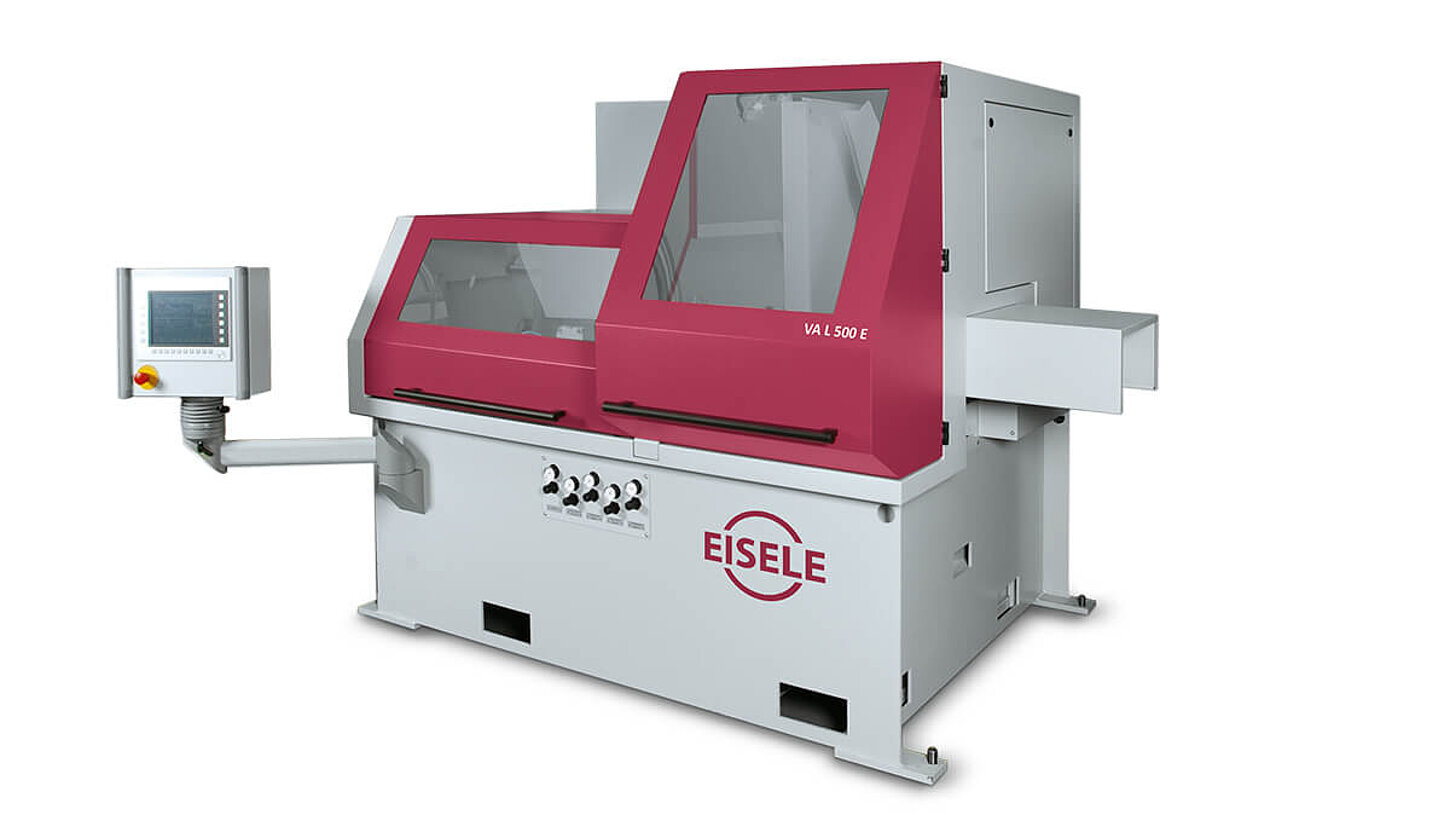

    Aluminum circular saw VA-L 500 E

  • large machine doors provide best accessibility

    Excellent accessibility

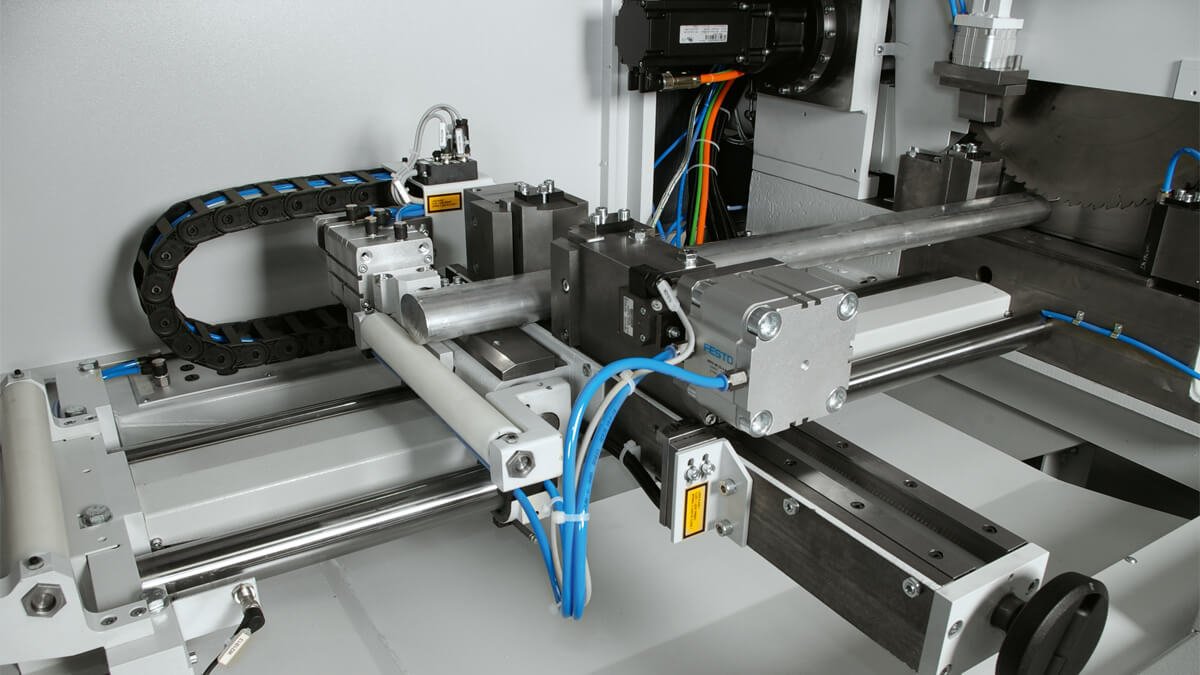

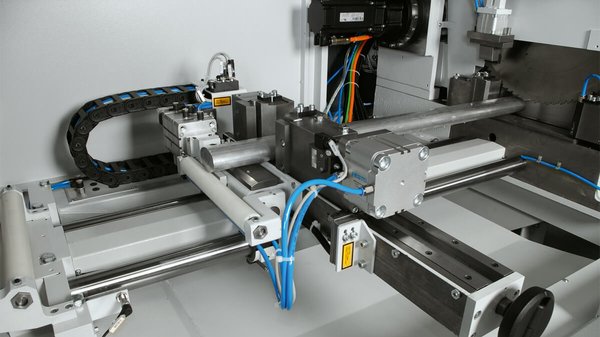

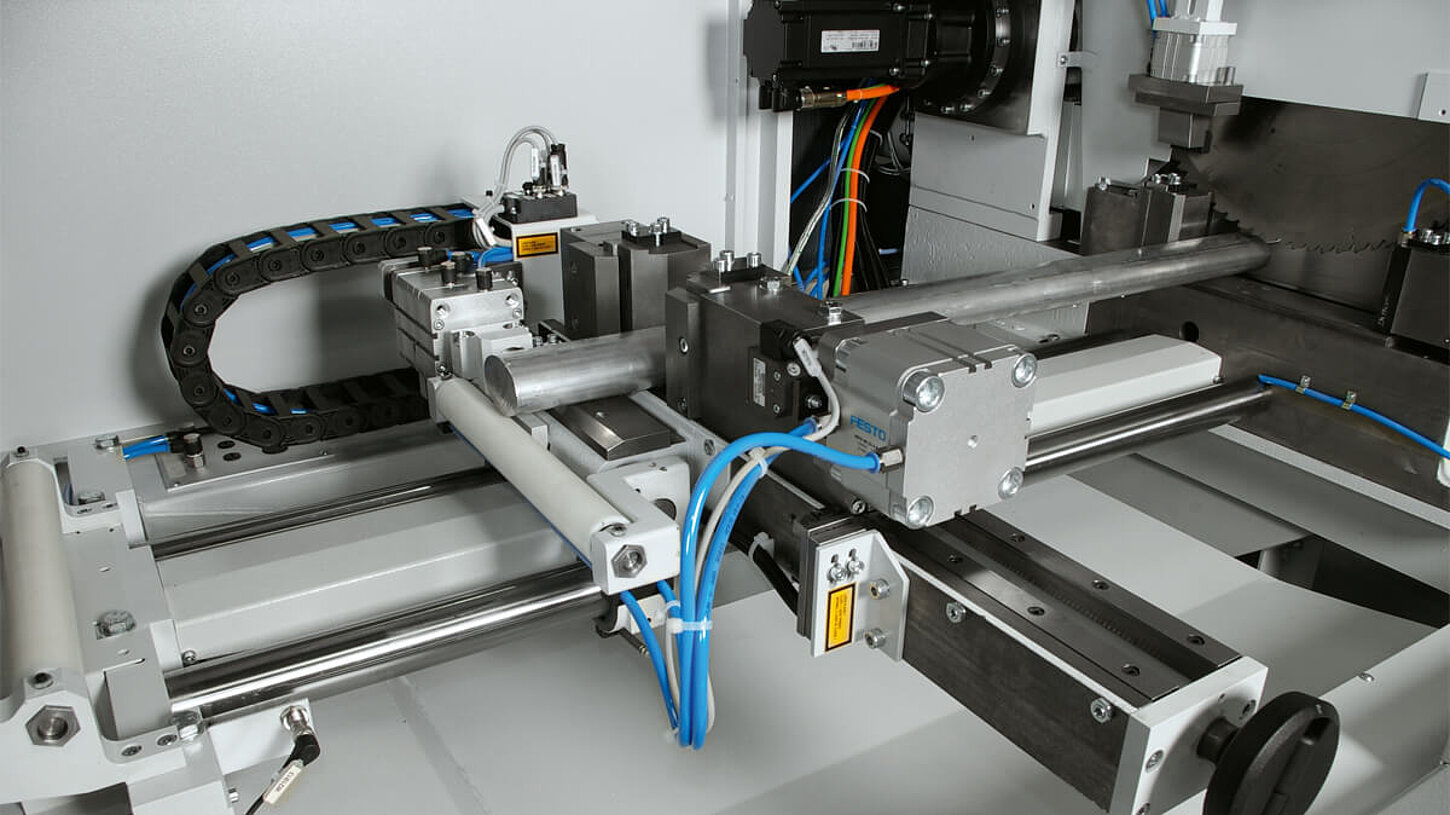

  • Feeding gripper for the positioning of the starting material

    Feeding gripper with lift and shift device

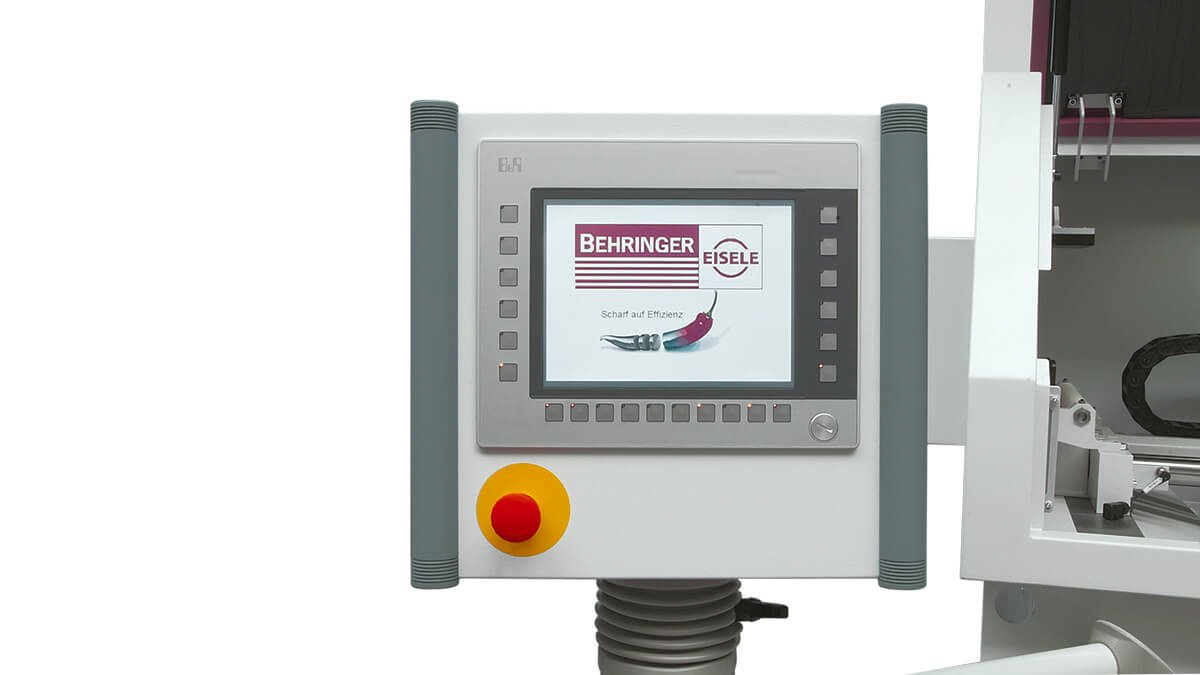

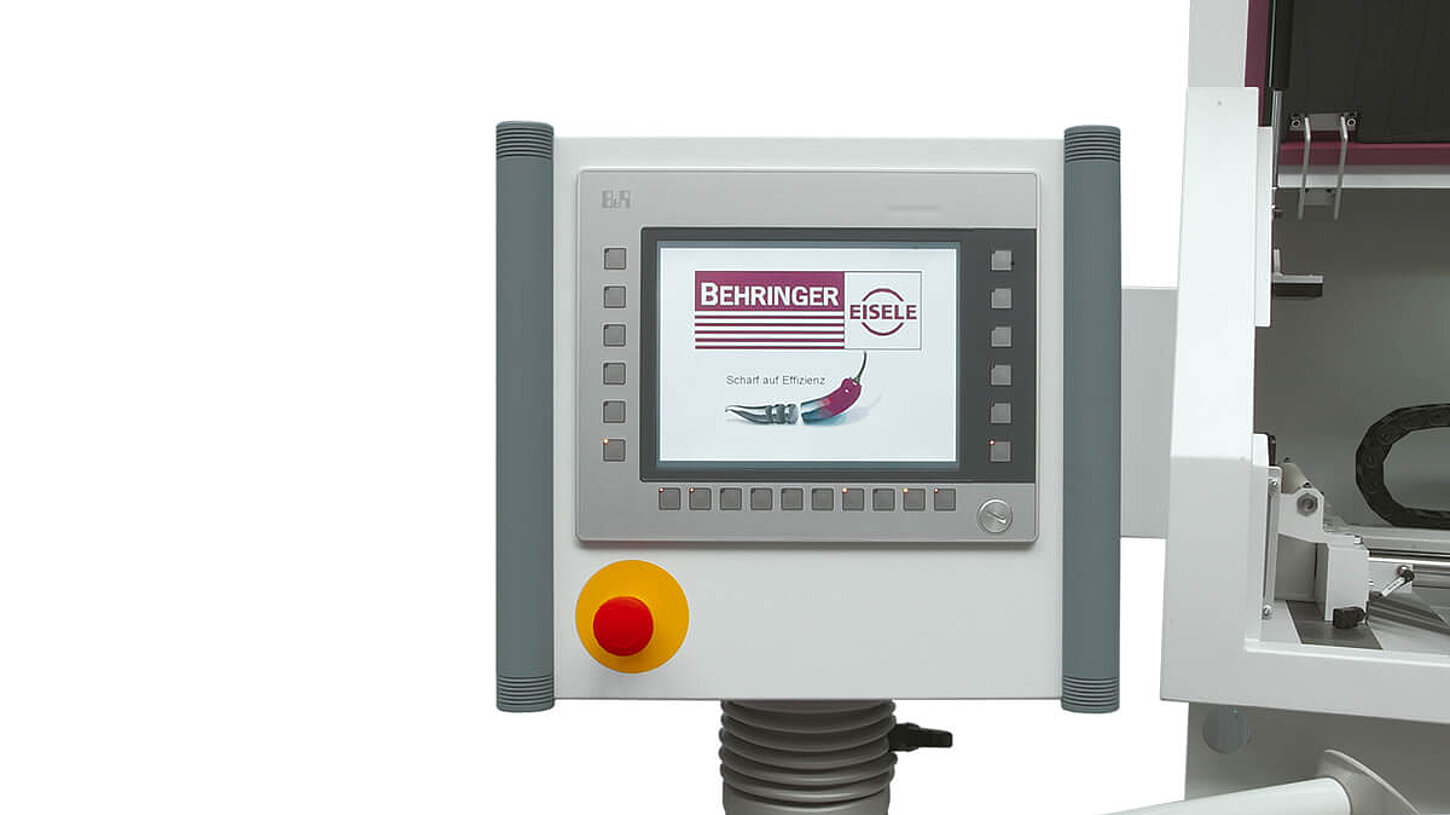

  • Aluminum saw VA-L 500 E intuitive PLC control with touch screen

    Intuitive control system of the aluminum saw

  • Cutting gap extension provides scratch-free cutting surfaces

    Automatic widening of kerf channel

Features of the aluminum circular saw VA-L 500 E

  • Excellent surface quality
    The aluminum circular saw provides an optimum, low-vibration cutting process. The workpieces can be transferred to the next operations without or almost without post-processing.

  • Careful material handling
    Damage to the material surface is avoided by the special design of the material handling systems.

  • Pneumatic material clamping
    Safe and surface-preserving clamping. For machining very thin-walled profiles, the use of form jaws is possible.

  • Material feed system with lift and shift device
    The NC axis with ball screw and servo drive in conjunction with lift and shift device guarantees extreme positioning accuracy and helps ensure gentle material handling. The material is lifted by the material support and moved by the fixed jaw.

  • Good accessibility
    The housing of the circular saw can be opened up to expose large areas of the machine. All the important components and parts are easily accessible. The machine’s open design affords direct access to all important components, facilitating maintenance, cleaning, repairs and saw blade exchange.

  • Short remnant length
    of only 90 mm in automatic operation saves expensive material.

  • Highest level of safety
    The unique machine concept prioritizes occupational safety and ergonomic design. The VA-L is 100% encapsulated as standard. The seal-tight casing practically excludes any risk of injury caused by reaching into the machine during sawing operation, as well as drastically reducing noise emissions.

  • Chip extraction
    The basic design of the VA-L aluminum saw is optimised for the connection of extraction systems. Tests have shown that up to 99.95% of the chips are thus extracted from the machine interior. This is essential for mass cutting applications!

  • Automatic widening of kerf channel
    allows clear return travel of the saw blade by pressing back the material and the offcut on both sides. The effect: increased service life of tools and elimination of scratching on the cut surface during blade retraction.

  • High output
    due to a powerful drive and optimised material flow.

Customer-specific sawing systems

Individual Configuration

The aluminum saw VA-L 500 E can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data aluminum circular saw VA-L 500 E

Cutting range 90° round 6.9 in
Cutting range 90° flat 9.2 in x 5.3 in
Cutting range 90° square 6.1 in x 6.1 in
Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 in x 0.4 in
Drive power 24.1 hp
RPM 800 - 3,400 min-1
Saw blade diameter 17.7 in - 19.7 in
Feeding length single stroke 39.4 in
Feed rate 0 - 39.4 in/s
Saw feed servo-driven
Material clamping pneumatic
Length 84.3 in
Width 79.2 in
Height 79.4 in
Weight 4,850 lbs
Material support height 36.4 in
