Table Band Saw HBP1100-1500T

The optimum solution for materials with a wide range of geometries

Behringer horizontal bandsaws in table design are ideal for use in forges, rolling mills and die casting factories, in steel finishing works and for tool and mold making. Their individually traversable material clamping vices and blade guide arms make these ideal for cutting bulky materials. The low table height makes this type of machine ideally suited for use on normal hall floor level.

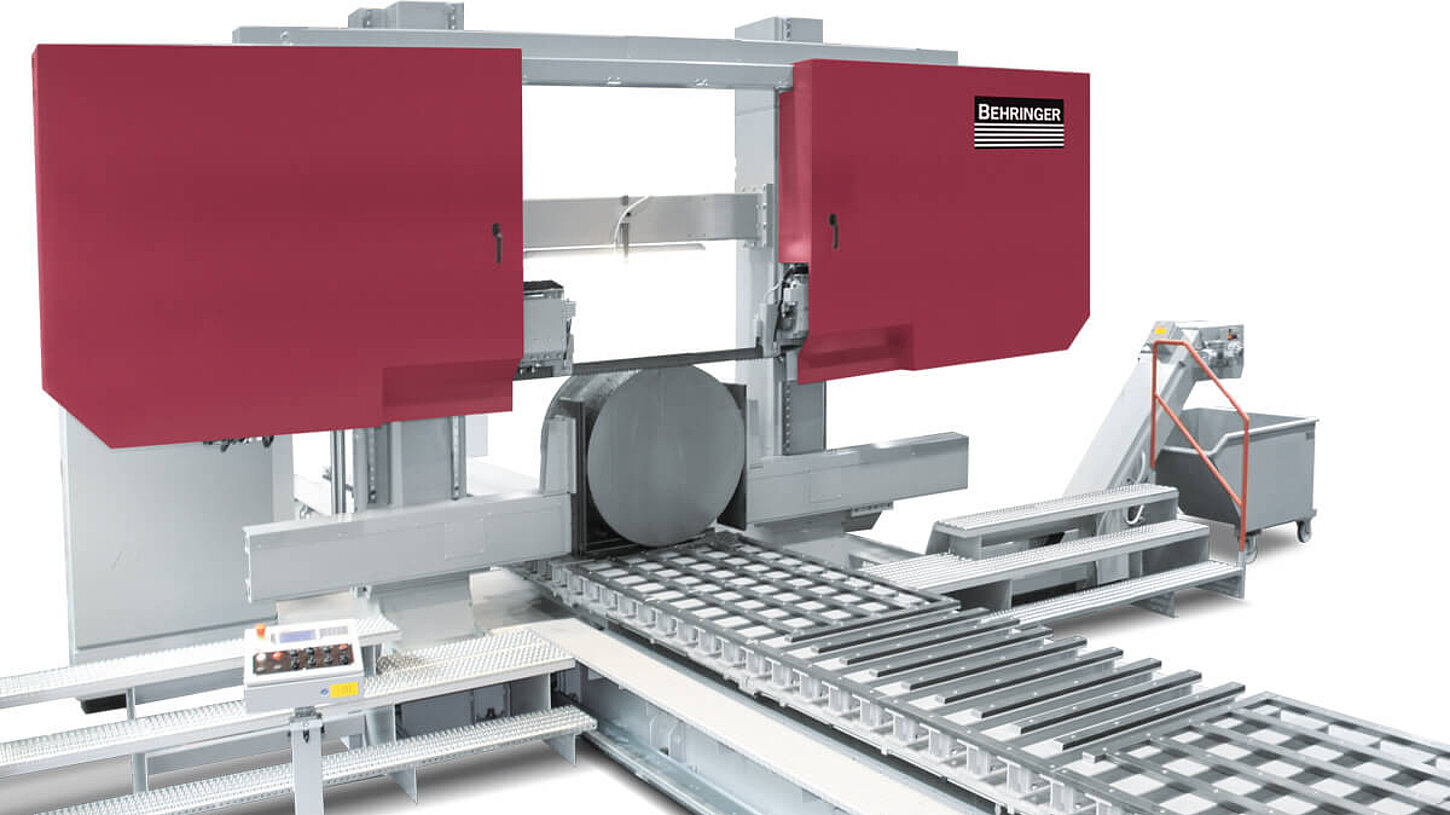

  • Behringer table band saw HBP1500T

    Table band saw HBP1100-1500T (similar illustration)

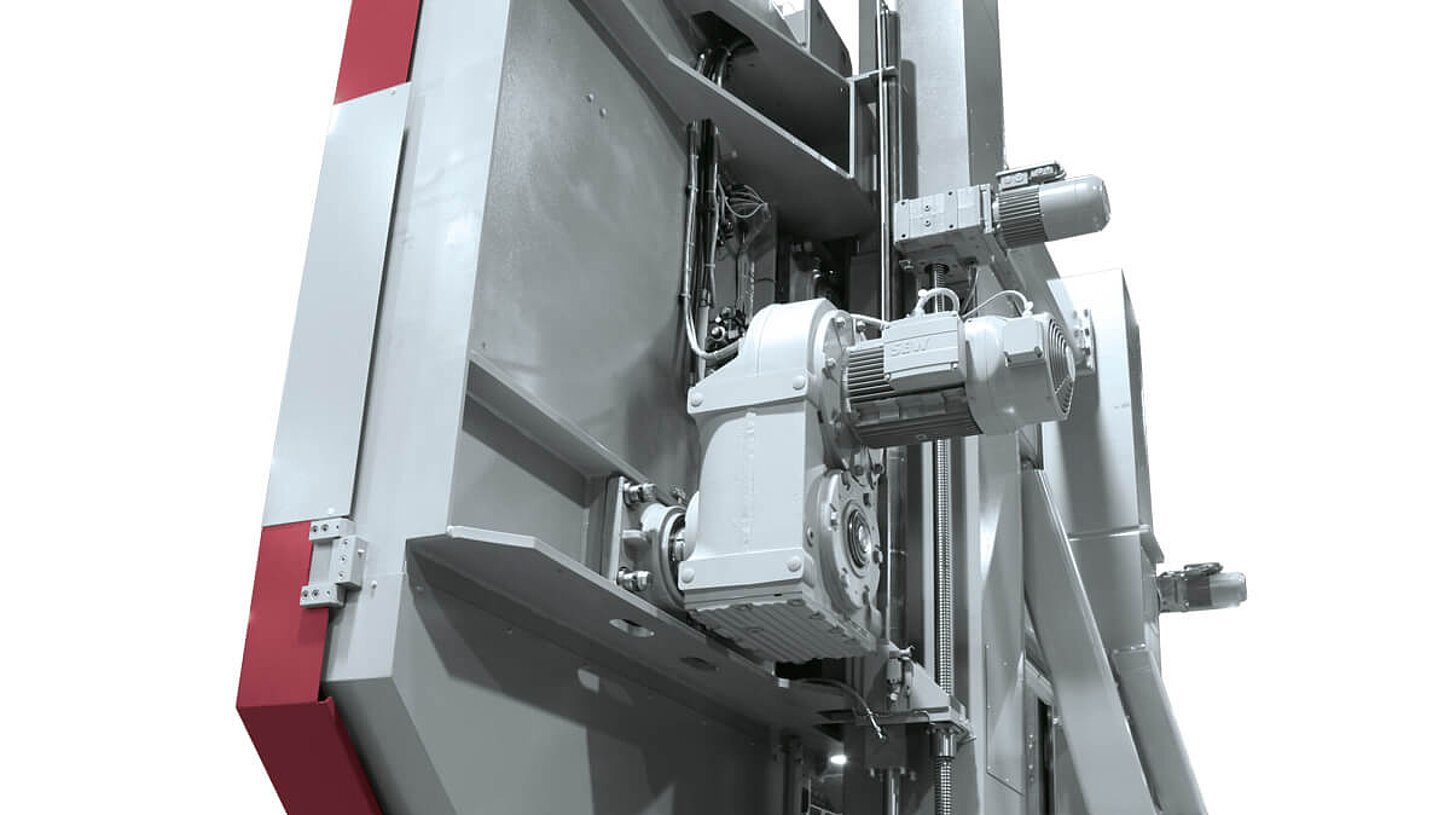

  • Behringer table band saw HBP1100-1500T saw feed via servo motor

    Servo Feed System

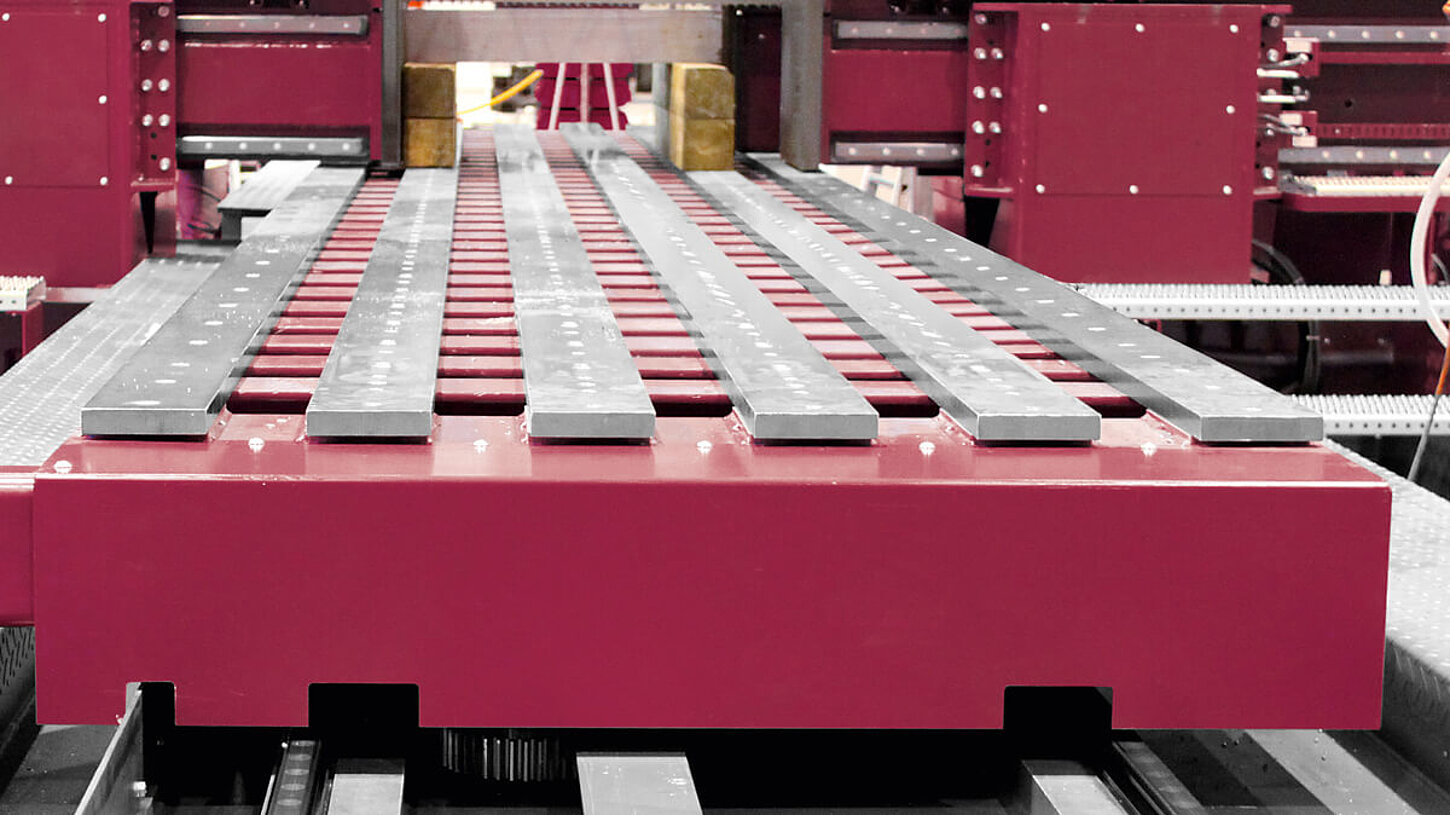

  • Behringer table band saw HBP1100-1500T solid material support table

    Solid material support table

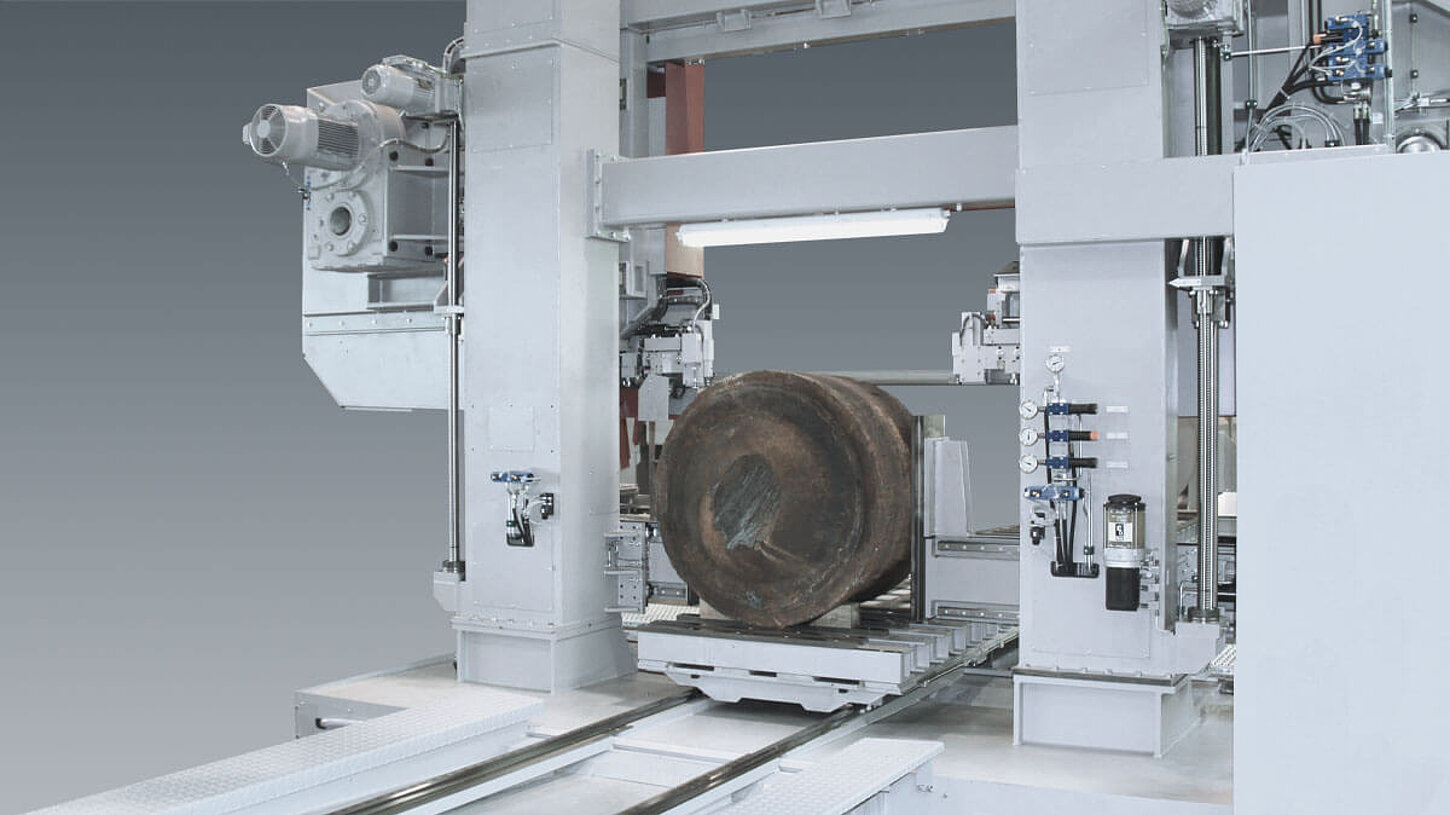

  • Behringer table band saw HBP1100-1500T good accessibility for maintenance

    Optimum accessibility for maintenance

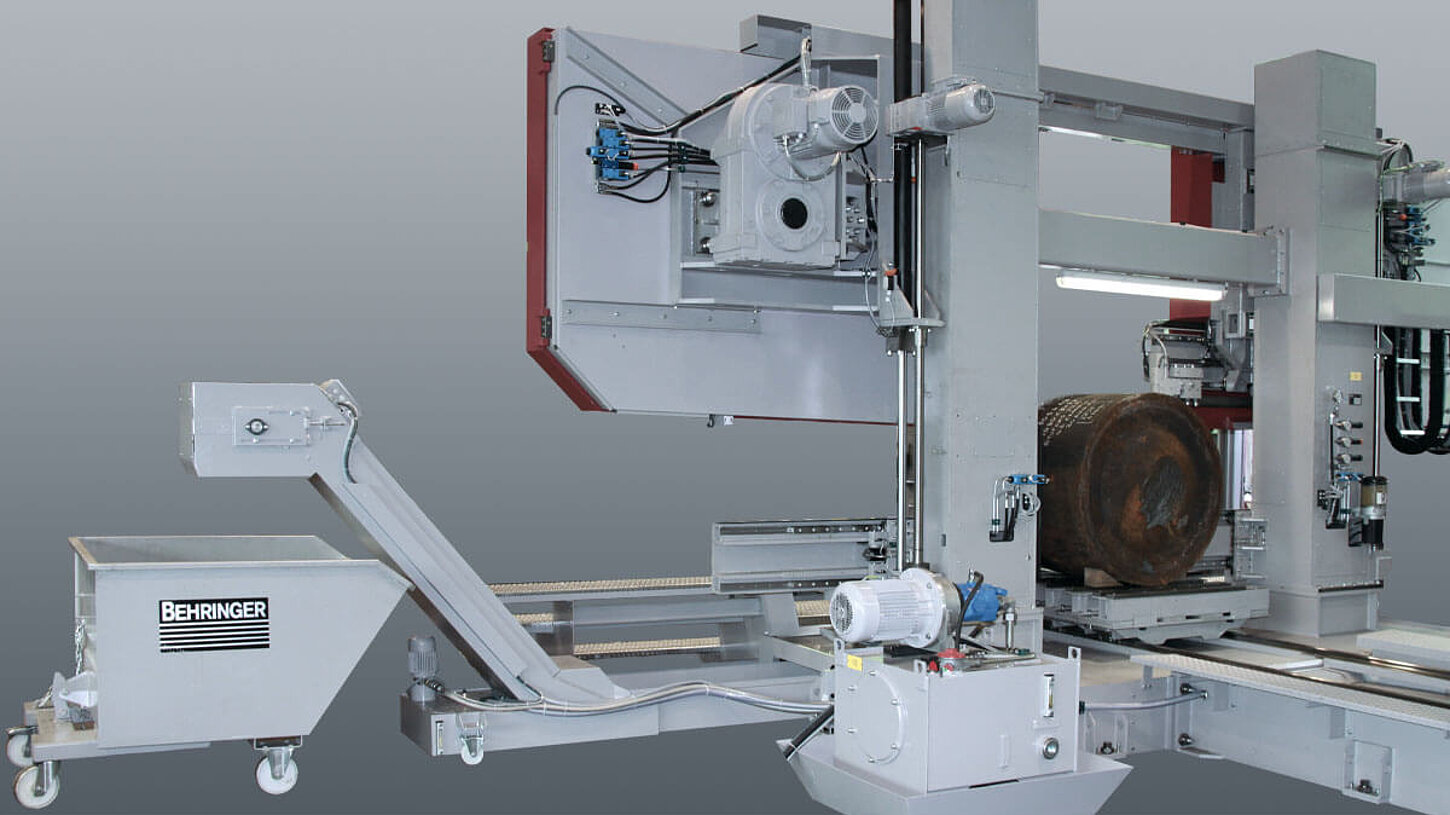

  • Behringer table band saw HBP1100-1500T slat band chip conveyor

    Chip conveyor with integrated coolant tank

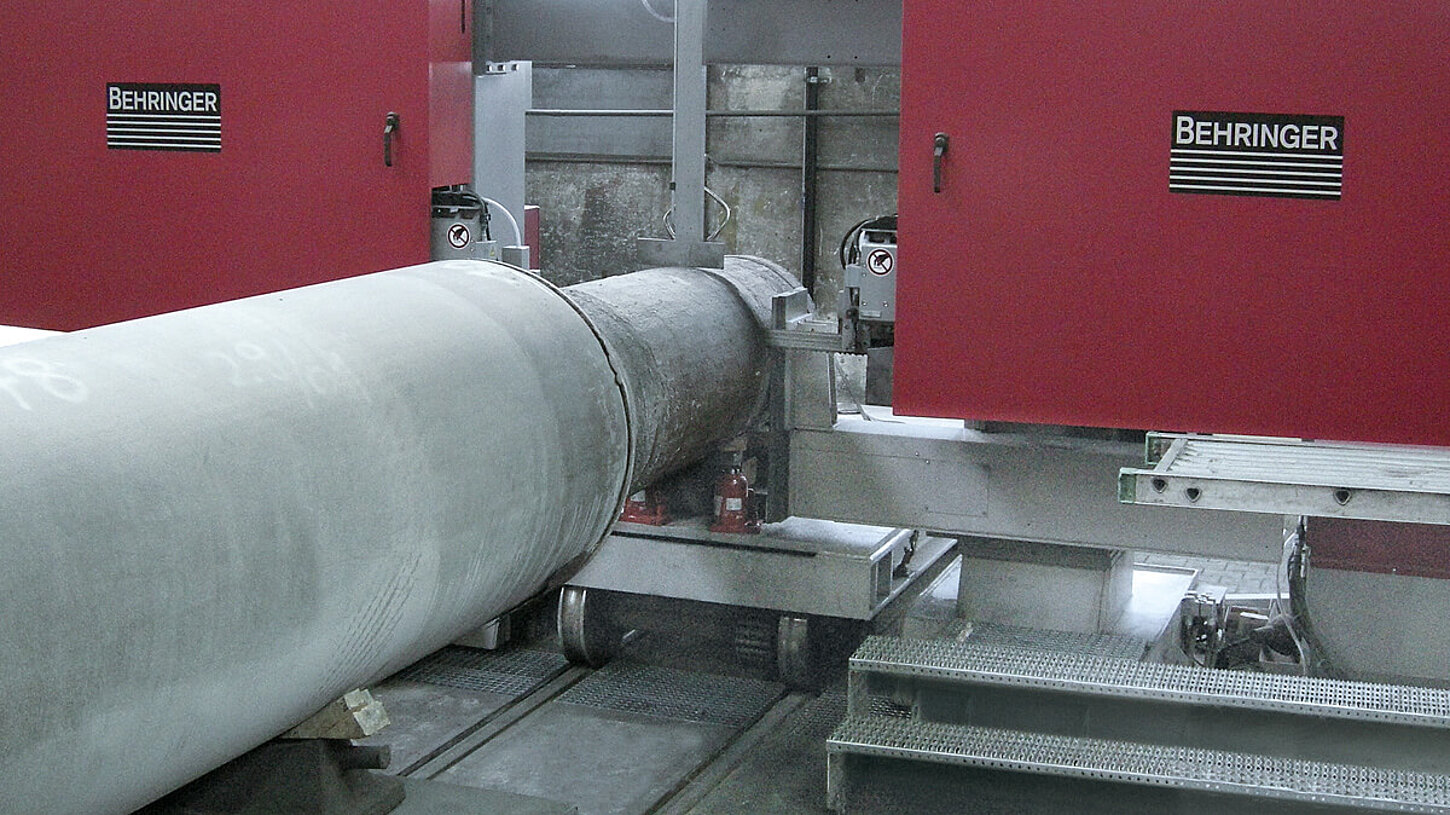

  • Behringer table band saw with split machine base for trolley application

    SPECIAL: Large bandsaw with split machine base for trolley application

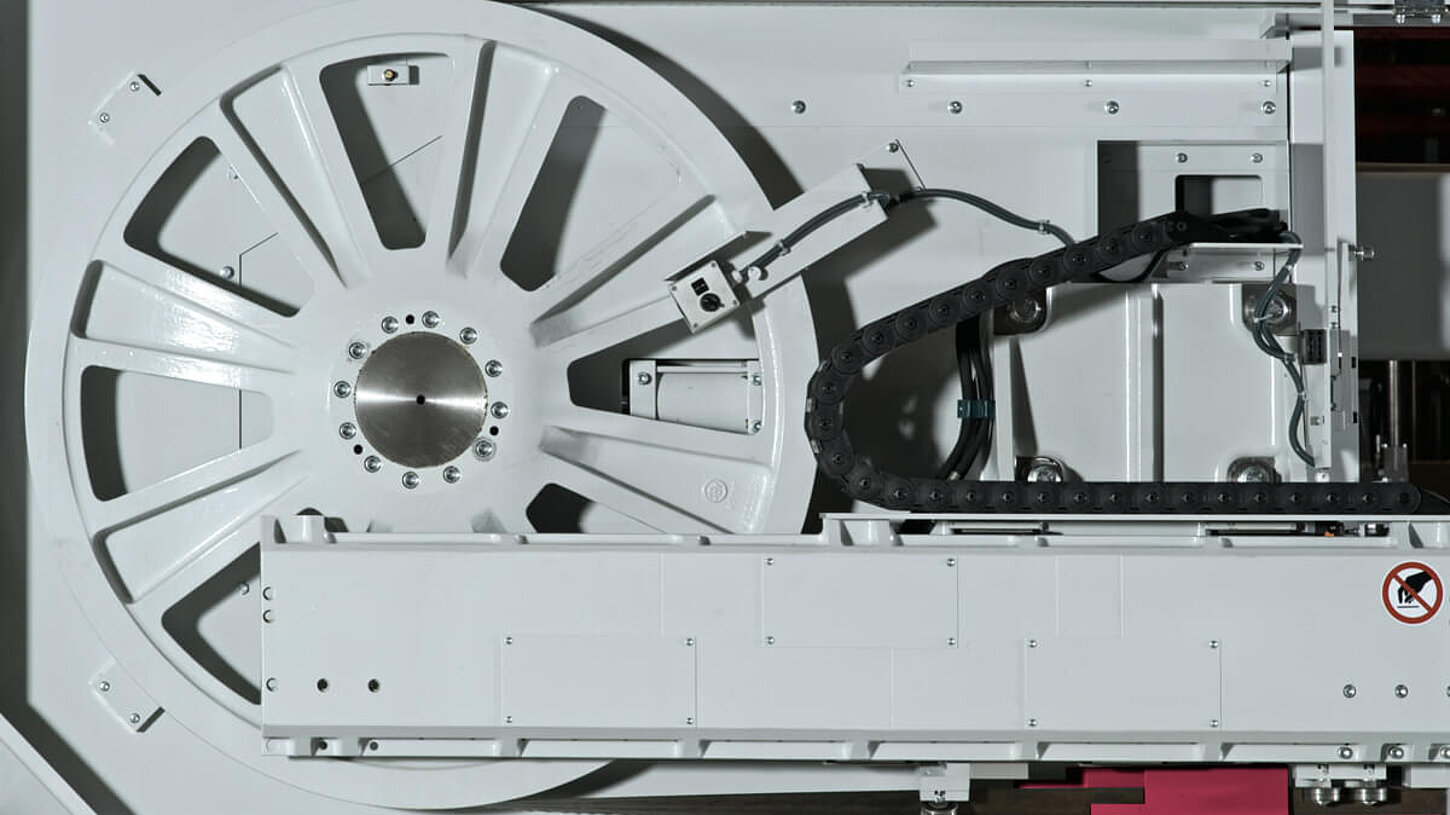

  • Behringer Großbandsäge HBP1100-1500T Bandlaufrad aus schwingungsdämpfendem Guss

    Cast iron band guiding parts

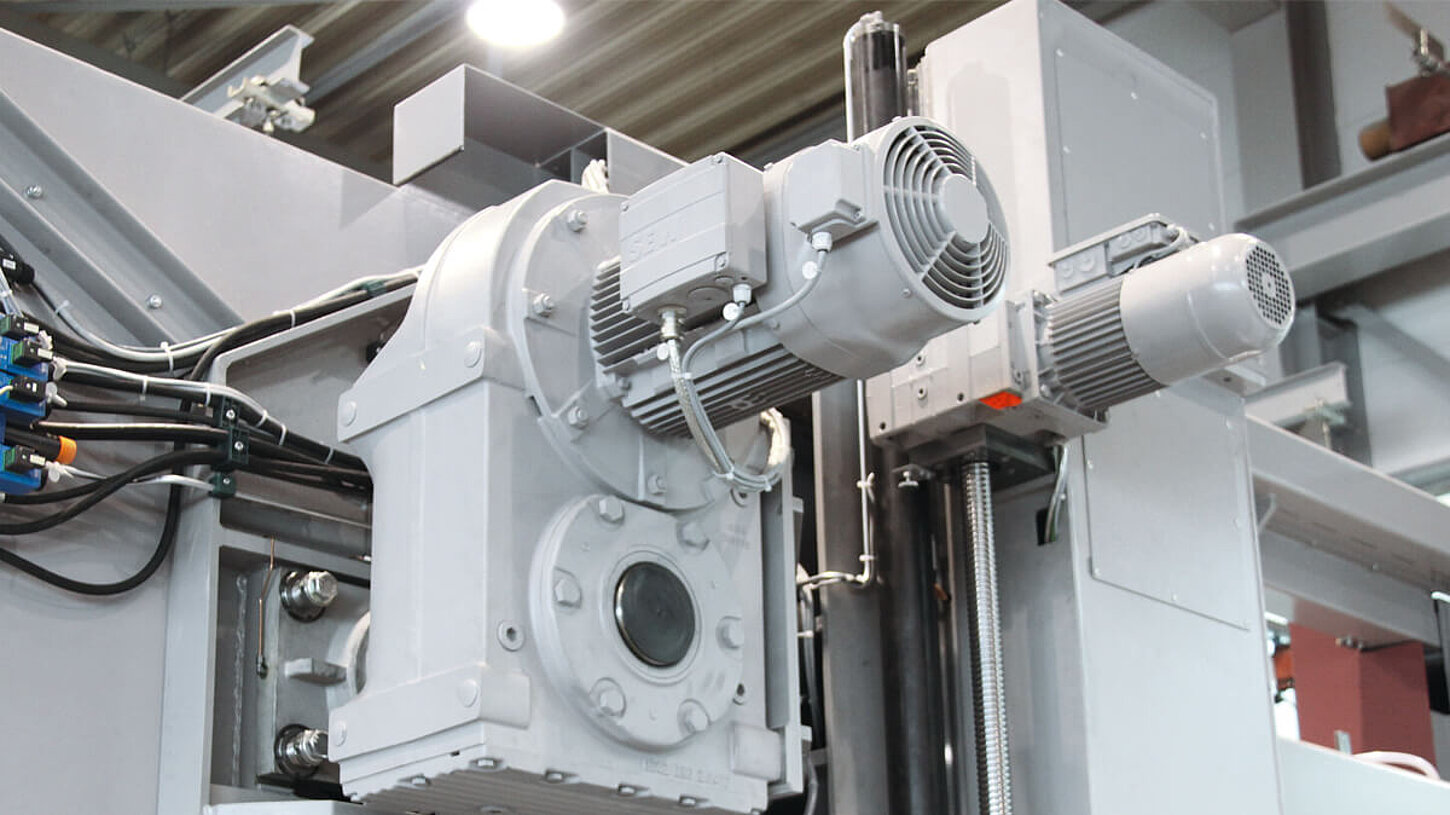

  • Behringer table band saw HBP1100-1500T powerful saw drive

    Powerful saw drive

Features of the table band saw HBP1100-1500T

  • Centric material clamping
    The optimum solution for bulky material. The material clamping vices and blade guide arms can be traversed independently of each other. The material is clamped in the position in which it was placed on the table, without the need for it to be moved to meet the fixed side of a vice.

  • Precise guiding system in portal design
    The portal design of the machine concept is the most recognizable feature of the Behringer large band saws. Two solid columns and support bars form a balanced machine concept to address the most stringent demands. The effects of this highly stable gantry design include minimal vibrations during sawing, high loading capacity, and an extremely long service life.

  • Rotatable band guide (option)
    Optionally available is the 90° rotatable band guide allowing vertical and horizontal sawing for notching material samples.

  • Powered duplex chip brushes
    actively clean the blade and prevent chips being drawn into the cutting channel. The brushes are adjusted automatically towards the saw blade, ensuring uniform cleaning action. The benefits: Increased tool service life and lower brush wear.

  • Servo feed system with two ball screw spindles
    The BEHRINGER servo feed system with cutting pressure control produces constant chip removal, especially with slow feed movements. Large and difficult-to-cut materials are thus sawn with the highest cutting performance and at the same time longer blade life.

  • Automation possible
    Behringer table machines are supplied as semi-automatic machines as standard. Automation is possible by upgrading with an additional vice at the end of the table. The positioning is axis-controlled.

  • Optimum accessibility
    Behringer attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs and simplifying saw blade changes.

  • No foundation work necessary
    The system is installed on the existing hall floor. Expensive foundation work is not necessary.

Individual Configuration

The HBP1100-1500T can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data table band saw HBP1100-1500T

Cutting range 90° round 43.3 in
Cutting range 90° flat 59.0 in x 43.3 in
Smallest dimension to be sawn round 15.8 in
Smallest dimension to be sawn flat 15.8 in x 7.9 in
Drive power 20.1 hp
Blade speed 26.2 - 275.6 fpm
Saw blade dimensions 540.6 x 3 x 0.063 in
Total power 40.2 hp
Table size L x W 118.1 in x 47.2 in
Maximum table load 66,200 lbs
Length 236.2 in
Width 307.1 in
Height 151.6 in
Weight 33,000 lbs
Material support height 27.6 in
