Horizontal Miter Bandsaw HBE610-1256G

For steel construction and sectional steel trade

The high-performance miter bandsawing machine HBE610-1256G is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic miter angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.

When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE610-1256G is therefore consequently designed for low-operator use in automated sawing lines. Extensive infeed and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.

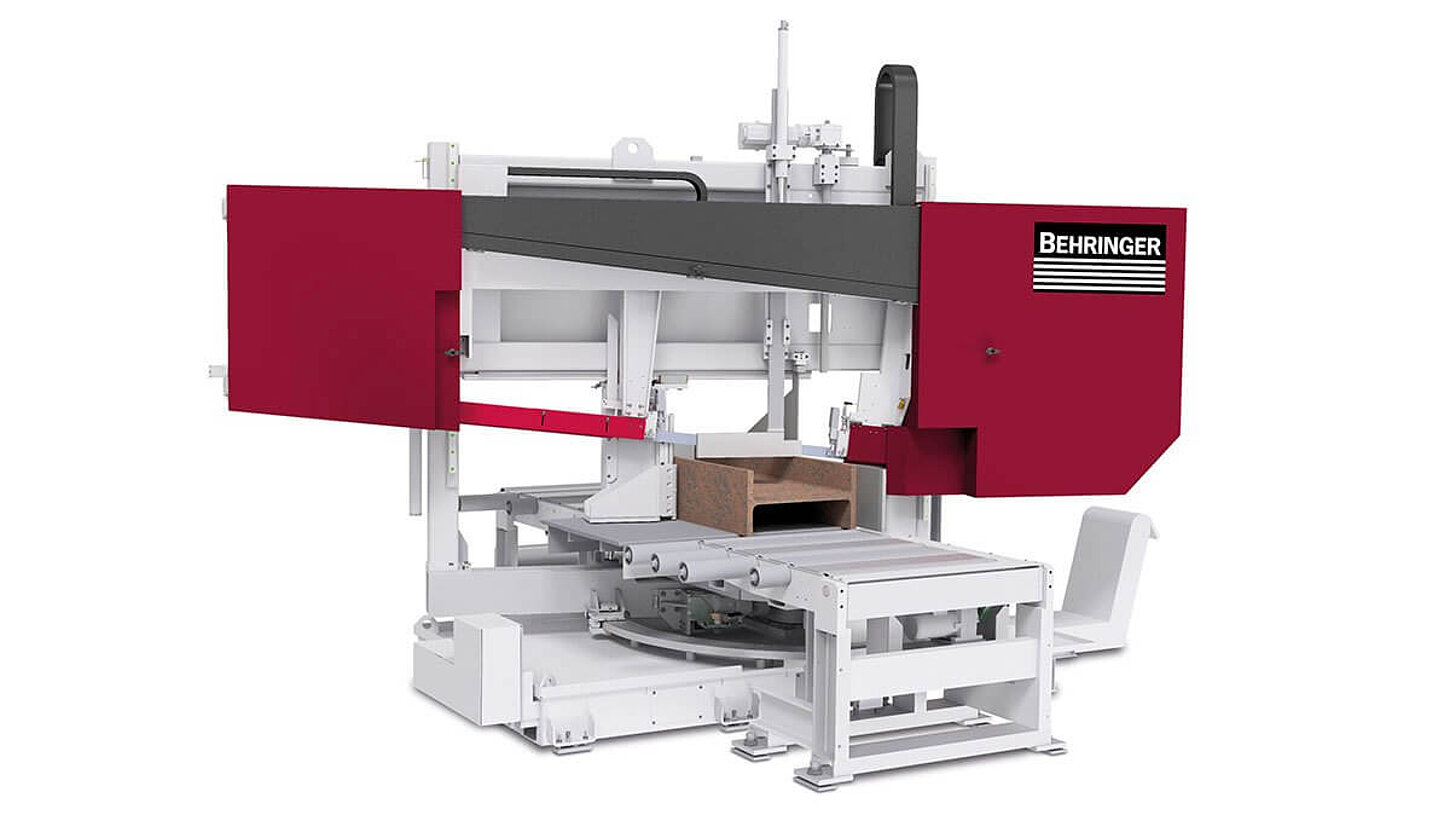

Behringer Gehrungssäge HBE610-1256G

HBE610-1256G

Behringer Gehrungssäge HBE610-1256G Materialauflagetisch

Enclosed material table

Behringer Gehrungssäge HBE610-1256G Servomotor für Sägevorschub

Servo feed system with BEHRINGER cutting pressure control

Behringer PC Steuerung

Powerful PC control

Behringer Gehrungssäge HBE610-1256G Bandlaufrad aus Grauguss

Cast iron band guiding parts

Behringer Gehrungssäge HBE610-1256G automatische Gehrungswinkeleinstellung

Fast NC mitre angle adjustment

Behringer Gehrungssäge HBE610-1256G elektrisch angetriebene Spänebürste

Electrically driven chip brush

Behringer Gehrungssäge HBE610-1256G Magnet-Späneförderer

Magnetic chip conveyor (option)

Features of the HBE610-1256G

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life.

  • 6° inclination of the saw band
    provides significantly higher cutting performance when sawing large beams and hollow profiles and reduces burr formation.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Customer-oriented sawing concepts
    Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

  • Closed material table
    The closed table support makes working with the mitre band saw easier. Even short sections can be transported in and out of the machine without any problems.

  • Downfeed control with servo drive
    The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

  • Double clamping vice
    offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Micro Spray System
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

  • Energy-efficient drives
    More output with less energy consumption. Protects the environment and your wallet.

Individual Configuration

The HBE610-1256G can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data HBE610-1256G

Cutting range 90° round 24 in
Cutting range 90° flat 49.2 x 24 in

75° Miter left round / flat 24 in / 47.2 x 24 in
60° Miter left round / flat 24 in / 43.3 x 24 in
45° Miter left round / flat 24 in / 34.6 x 24 in
30° Miter left round / flat 24 in / 24 x 24 in

75° Miter right round / flat 24 in / 47.2 x 24 in
60° Miter right round / flat 24 in / 43.3 x 24 in
45° Miter right round / flat 24 in / 34.6 x 24 in

Smallest dimension to be sawn round 1.2 in
Smallest dimension to be sawn flat 1.2 x 1.2 in
Drive power 10.1 hp
Blade speed 56 - 394 fpm
Saw blade dimensions 393.7 x 2-1/8 x 0.063 in
Rest piece length 1.8 in
Total power 21.5 hp
Saw feed Servo feed via ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 76.7 in (185 in at miter angle 30°)
Width 185 in
Height 127.6 in
Weight 9921 lbs
Material support height 31.5 in
