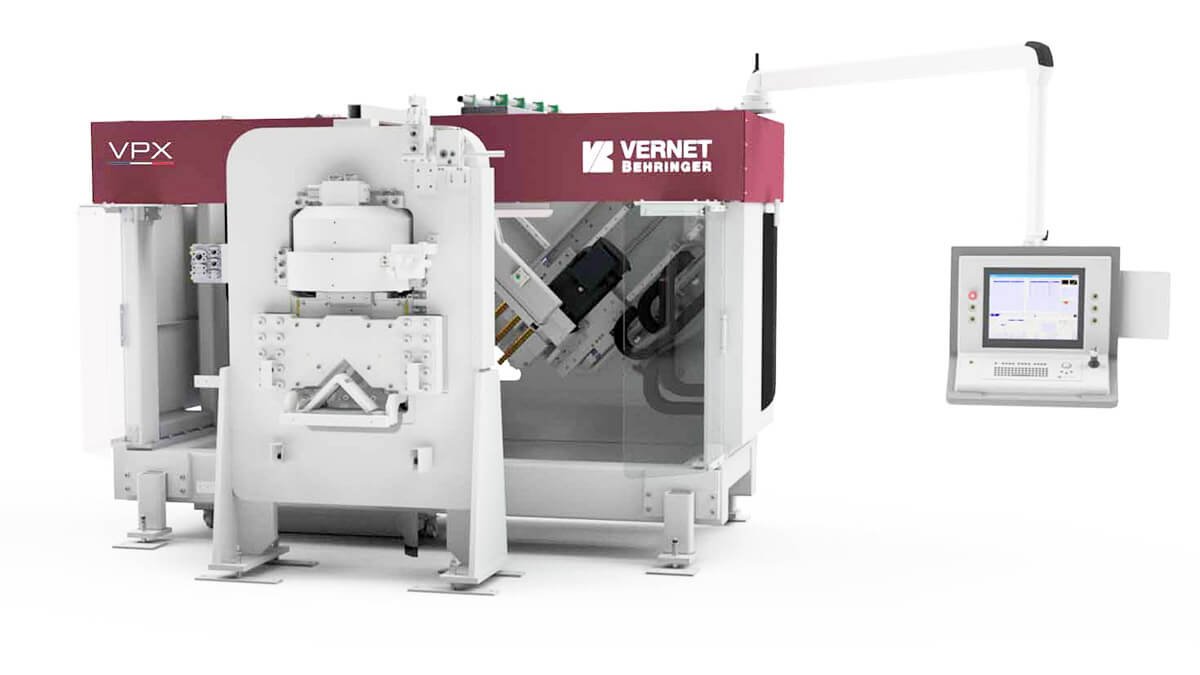

VPX250-SD - Versatile and ultra-productive angle line

Choose reliability and increase your productivity

The Vernet Behringer angle line VPX250-SD covers numerous machining operations: marking, drilling and shearing. This highly productive machine combines high work rates and great ease of use. The VPX250-SD is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for angles up to 10.0 x 1.0 in.

  • Angle line VPX250-SD

  • CNC carriage and gripper

  • Loading chains with rotating arms

  • High speed single cut shearing unit

  • Highly versatile disc marking unit

  • High speed marking barrel marking unit

  • Drill units above the angle: easy collection of chips and coolant

Features of the angle line VPX250-SD

Marking

Drilling

Shearing

  • Unique design on the market
    for angle processing in ^ position, offering the best productivity and low operating costs.

  • Low operating costs
    Use of short punches is rigid and price effective.

  • Heavy-duty design
    Designed and manufactured for rough & tough working environments

  • Highest Productivity
    Heavy duty hydraulics and mechanical design suitable for continuous work af full load.

  • Quick tool changing
    thanks to excellent accessibility and ergonomics.

  • User-friendly software suite
    PRONC23D programming software for easy part import and programming with 3D display.

  • Operational everywhere
    The VPX250-SD can be specially adapted for use in particularly high or low temperatures.

  • Optimum accessibility
    Vernet Behringer attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs.

Individual Configuration

The VPX250-SD anlgle line can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data angle line VPX250-SD

Capacity min 2.0 x .2 in
Capacity max 10.0 x 1.0 in (also available up to 6.0 x .625 in : VPX160-SD)
Shearing power 1,323,000 lbs
2-spindle SD drilling unit with 4-tool changer option
Disc marking unit option, 40 positions
Barrel marking unit option, 176,000 lbs, 8 positions, up to 15 characters/position
Feeding system CNC high speed carriage with hydraulic gripper
Storage chains and rotating arms option
Outfeed conveyor with tilting unloading arms standard
Removable element for unloading short parts option
Fully-automatic loading, gripping and unloading operations option
Multi-zone automatic part sorting option
Machine control PRONC23D programming software with 3D part display
