MAG620 - Plate machining centre
Drilling, milling, marking and plasma cutting for plates with one single reference

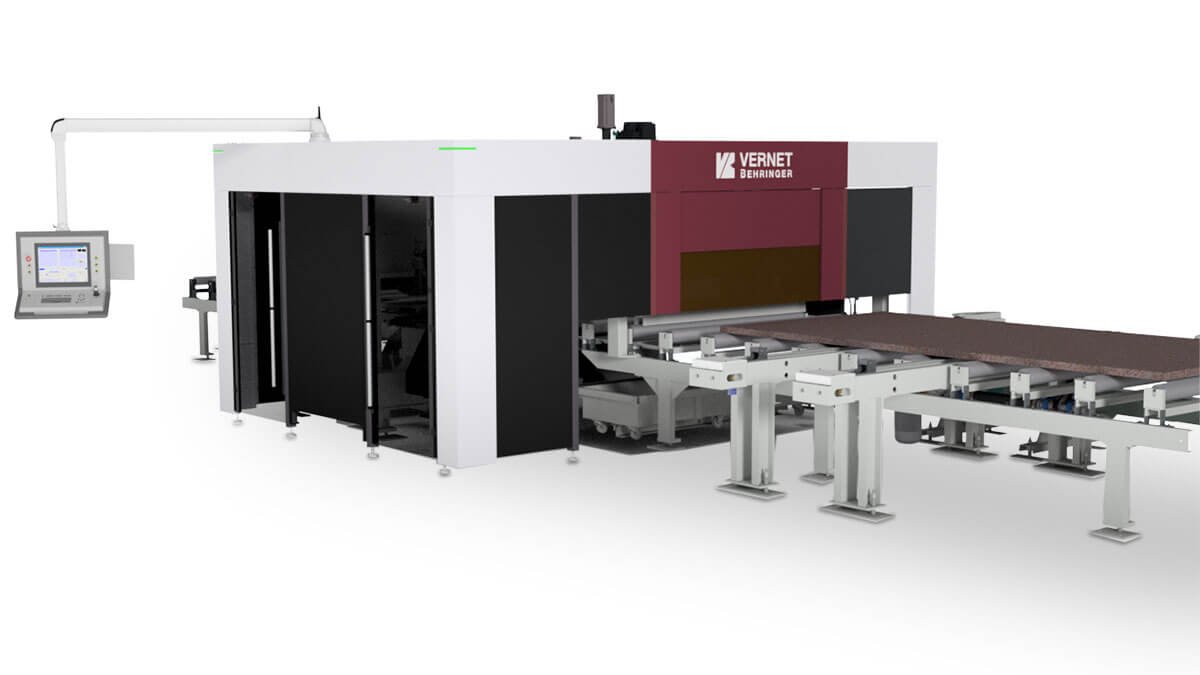

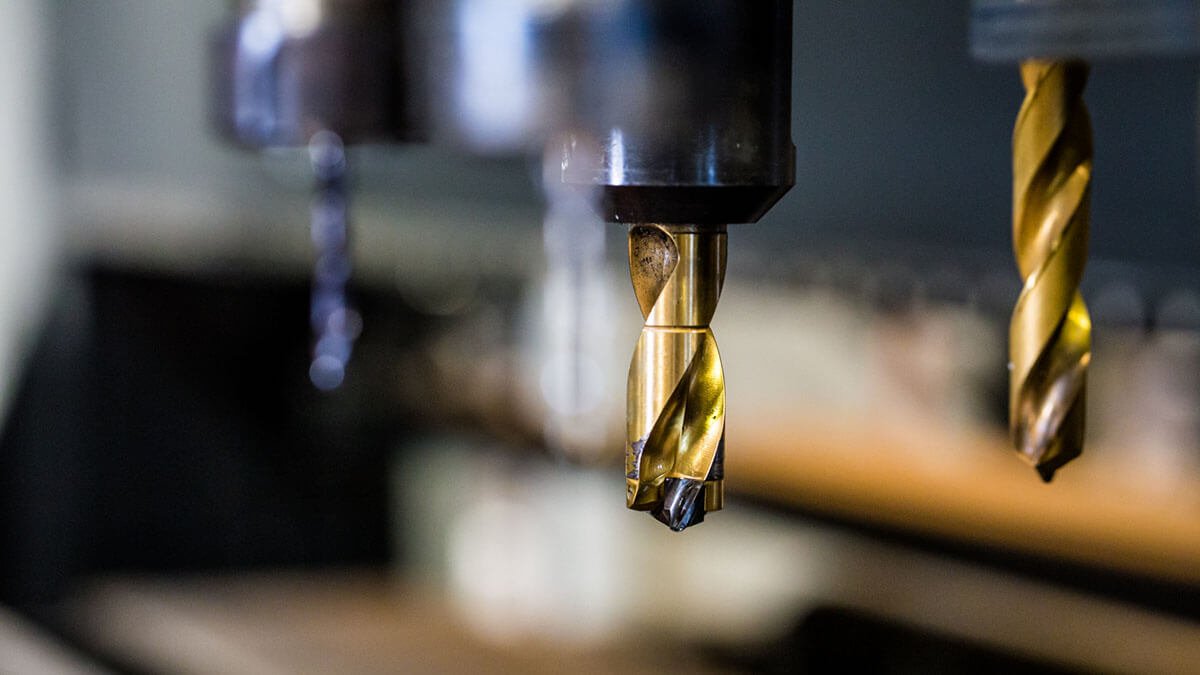

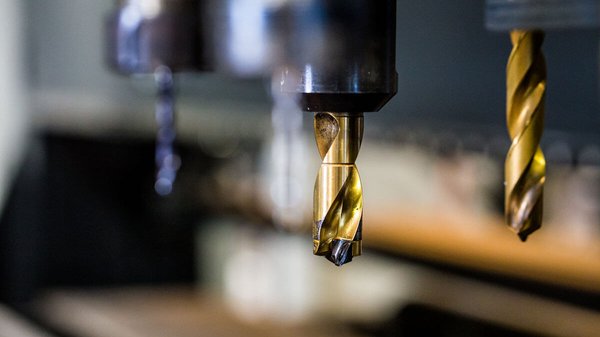

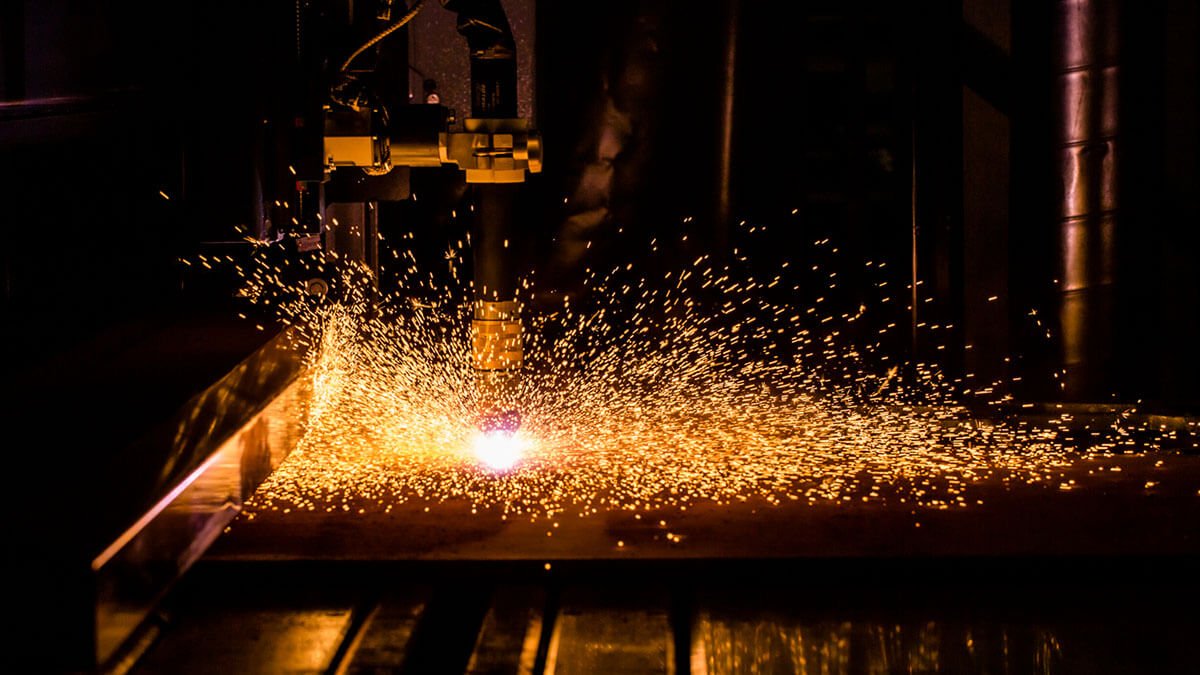

The Vernet Behringer MAG620 plate machining machine offers precise and fast machining in a passthrough operation. It combines marking, carbide drilling and milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts).
The MAG620 also offers a high level of automation with automatic part handling and automatic or semi-automatic plate loading.
|V-scoring fast marking||Standard|
|High speed disk marking unit with 40 characters||Option|
|Spindle power||21.4 hp|
|Rotation speed||160 - 4,000 rpm|
|Maximum drill diameter||2.0 in Ø|
|Tool changer||14 stations|
|Plasma source||Hypertherm - Kjellberg |
170 - 400 A
|Machine Control||PROSH programming software with nesting license|
