MAG420 - Plate machining centre

Drilling, milling, marking and plasma cutting for plates with one single reference

The Vernet Behringer MAG420 plate machining machine offers precise and fast machining in a passthrough operation. It combines marking, carbide drilling and milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts).

The MAG420 also offers a high level of automation with automatic part handling and automatic or semi-automatic plate loading.

  • MAG420 plate machining centre

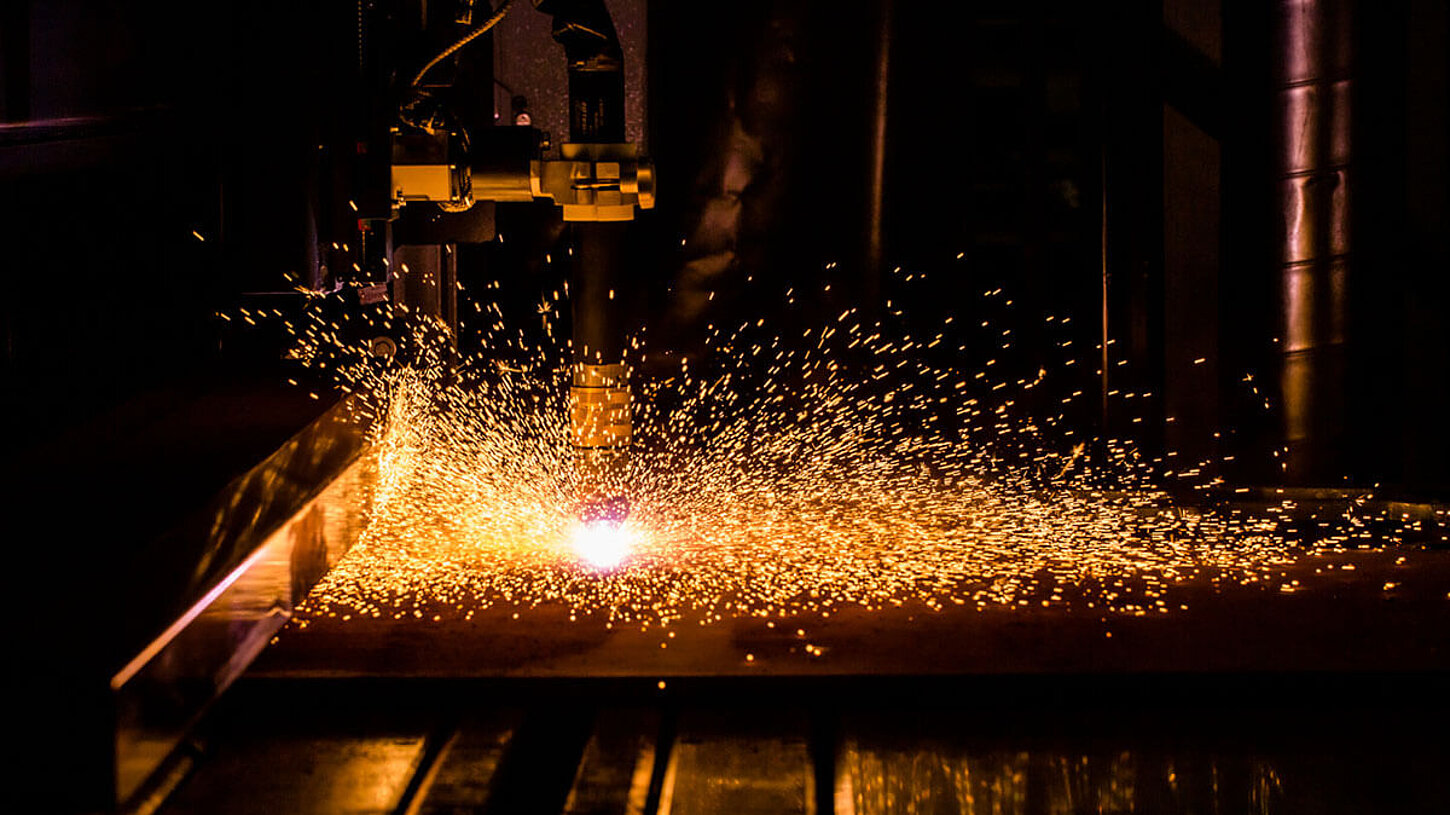

  • High definition plasma cutting torch

  • 14-station tool changer

  • Youtube Logo

    Product video MAG420

Features of the plate processing machine MAG420





  • Manpower savings
    thanks to the semi-automatic or automatic loading of the plates, the complete machining of parts without handling between operations and the automatic unloading of gussets.

  • Fast and precise machining
    of metal plates. The MAG420 combines marking, carbide drilling-milling, holes deburring (lower and upper faces) and high definition plasma cutting (straight and bevel cuts) in one machine.

  • Flexible automation modules
    including automatic plate loading, automatic part unloading and palletizing.

  • Full enclosure
    The optional full enclosure of the plate processing centre provides maximum protection for the operating personnel.

  • Material saving
    with advanced nesting software and continuous chained cutting without skeleton. In addition, the repositionable measuring carriage allows for remnants of only 0.8 in.

  • Process connectivity
    Semi or full integration of a VB by SPK Finition tumbling machine for cut parts deburring, descaling, edge rounding, degreasing and surface preparation.

  • Automatic 14-fold tool changer
    Thanks to the 14-fold tool changer, the MAG420 is equipped for flexible machining tasks and can work automatically for a long time.

Individual Configuration

The plate processing centre MAG420 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical data plate processing machine MAG420

Plate dimensions 157.5 x 78.7 in
Min. / max. thickness (depending on plasma source) 0.2 in - 1.2 / 2.0 in
Max. weight 4,400 lbs or 440 lb/ft
          V-scoring fast marking Standard
          High speed disk marking unit with 40 characters Option
          Spindle power 21.4 hp
          Rotation speed 160 - 4,000 rpm
          Maximum drill diameter 2.0 in Ø
          Tool changer 14 stations
Plasma cutting
          Plasma source Hypertherm - Kjellberg
170 - 400 A HD
          Machine Control PROSH programming software with nesting license
