Miter Circular Saw PSU 450 H

The "universal" for metalworking and fabrication

Universal, precise and fast - these are the performance features of the PSU 450 H semi-automatic miter saw for cutting metals. Designed for cutting profiles, pipes and solid material in metal and comparable materials, this machine is specifically designed to address the needs of locksmiths and metalworking shops. The miter setting is equipped with convenient fixed stops at 90°, 45° and 30°. The 450 mm diameter saw blade used offers a wide cutting range - also for miter cuts.

The heart of the PSU miter saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

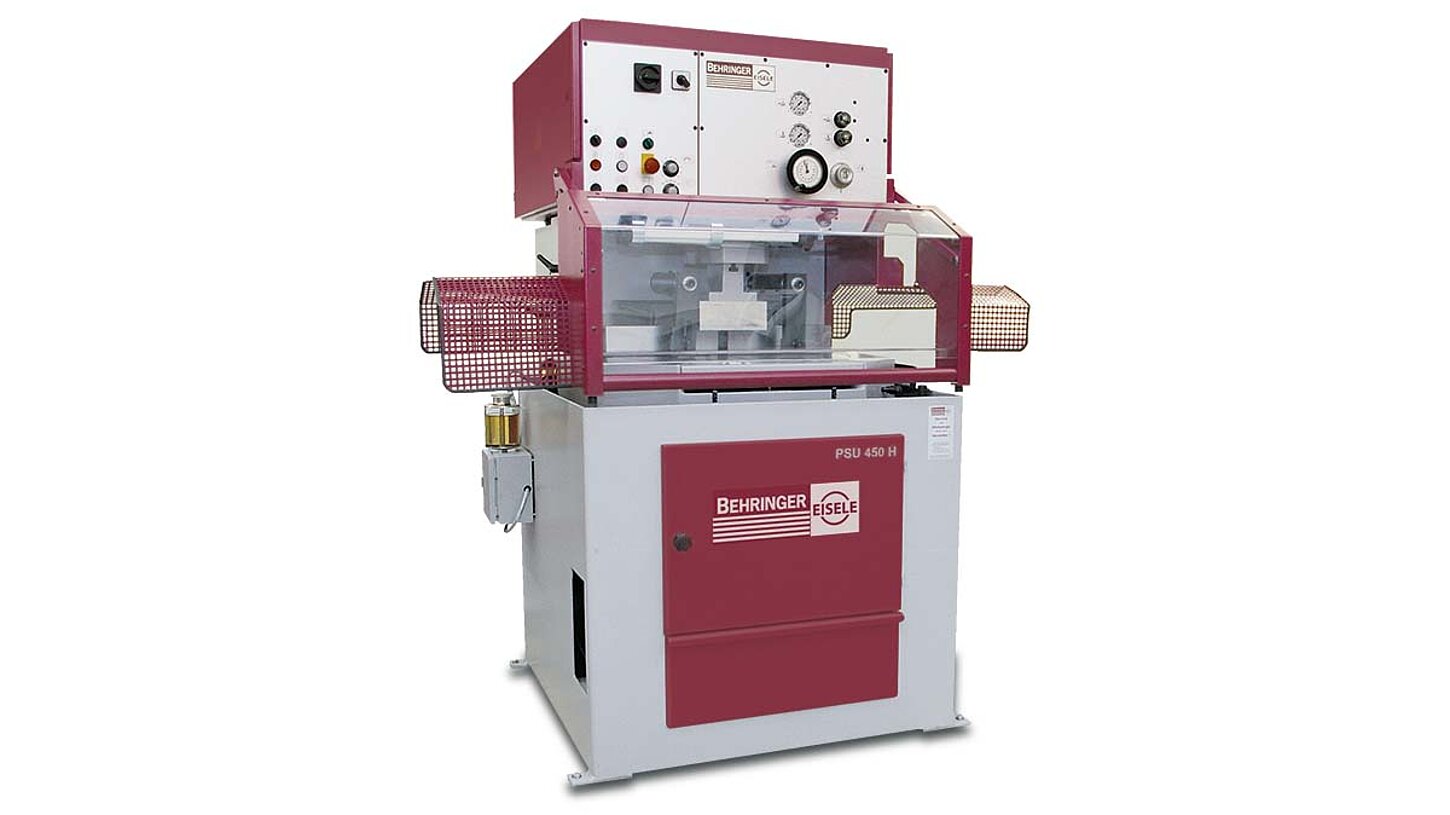

Miter circular saw PSU 450 H

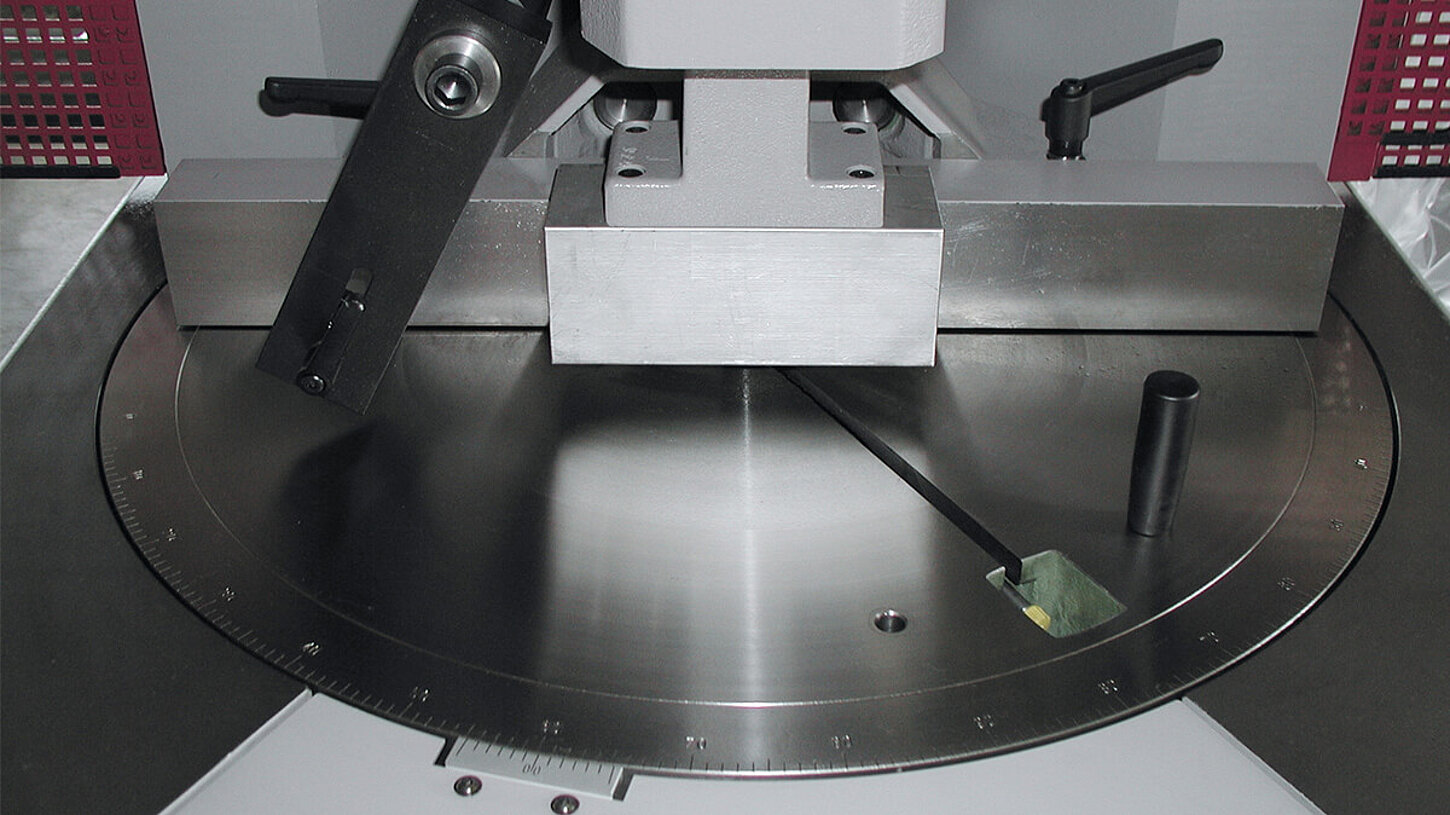

Convenient miter adjustment ± 30°

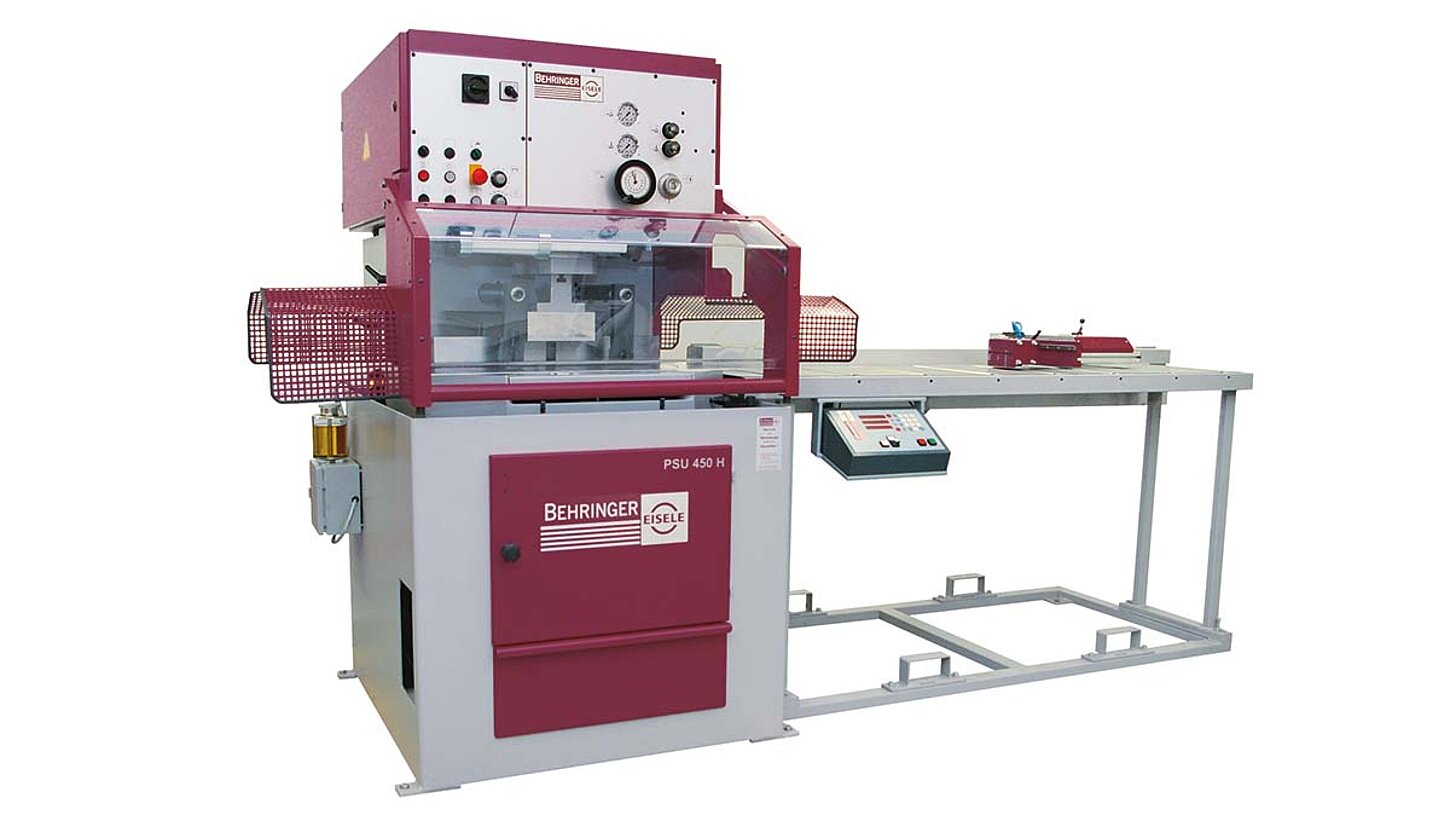

Miter saw with individual material handling

Features of the miter circular saw PSU 450 H

Optimum chip flow
also when sawing tubes and hollow profiles due to the saw feed from bottom up.

Extensive range of materials
The miter circular saws of the PSU series cover an extensive range of materials such as flat, angular and solid material, pipes and special profiles. They are therefore ideally suited for use in industry and workshops.

Sturdy machine base
The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

High cutting quality
Workpiece clamping on both sides of the saw blade ensures a clean cutting surface and low tolerances.

Robust and durable
The heart of the PSU saw units is a worm gear unit with Eisele shock-absorbing feature, produced in-house. The robust design of the gearbox consistently dampens vibrations. This ensures a good cutting surface, long saw blade life and a long service life of the saw.

Convenient mitre adjustment
The mitre angle is easy to set thanks to the well thought-out design with the saw unit at the bottom. In addition, fixed stops at 30°, 45° and 90° are provided as standard.

Micro spray system
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

Individual Configuration

The miter circular saw PSU 450 H can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

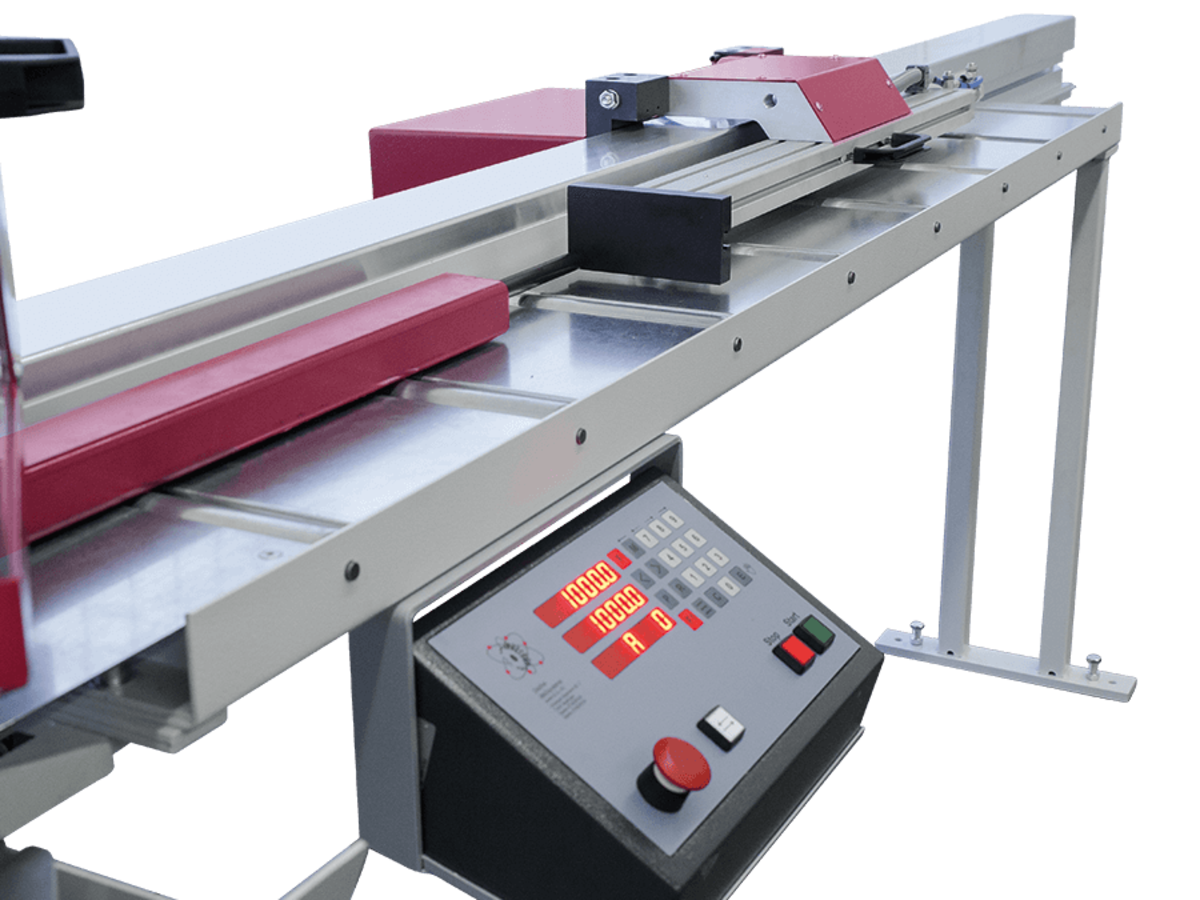

Measuring Systems

Increase the productivity of your up-stroking mitre circular saw with our extensive range of compatible measuring devices and roller conveyors.

Learn More

Technical data miter circular saw PSU 450 H

Flat 90°	9.4 in x 2.7 in / 15.3 in x 1.2 in ¹⁾
Flat 45°	6.7 in x 2.7 in / 11.0 in x 1.2 in ¹⁾
Flat 30°	4.7 in x 2.7 in / 7.5 in x 1.2 in ¹⁾

Square 90°	5.5 in x 5.5 in
Square 45°	4.9 in x 4.9 in
Square 30°	3.9 in x 3.9 in

Round 90°	5.9 in
Round 45°	5.7 in
Round 30°	4.7 in

Smallest dimension to be sawn round	0.4 in
Smallest dimension to be sawn flat	0.4 in x 0.4 in

Drive power	4.0 / 4.8 hp
RPM standard	6 / 12 / 24 / 48 min^-1
RPM optional	12 / 24 / 48 / 96 min^-1
Saw blade diameter	17.7 in
Saw feed	hydraulic
Material clamping	hydraulic

Length	57.1 in
Width	63.4 in
Height	74.8 in
Weight	3,000 lbs
Material support height	40.2 in

¹⁾ With adjustable material stop
