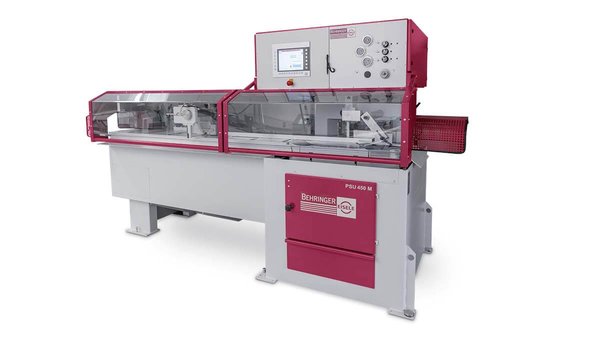

Automatic Mitre Circular Saw PSU 450 M

Automatic mitre saw for industry and workhops

The automatic mitre circular saw PSU 450 M is a true all-rounder for cutting tubes, profiles, solids and angles. Impressive features include its high output, process reliability and simple handling. Its automatic mitre adjustment and servo motor-driven feed gripper make for extreme flexibility in this outstanding saw machine concept. Its modular structure allows the PSU 450 M to be combined with infeed magazines or disposal devices.

he heart of the PSU mitre saw unit is the worm gear unit with Eisele shock-absorbing feature, produced in-house. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

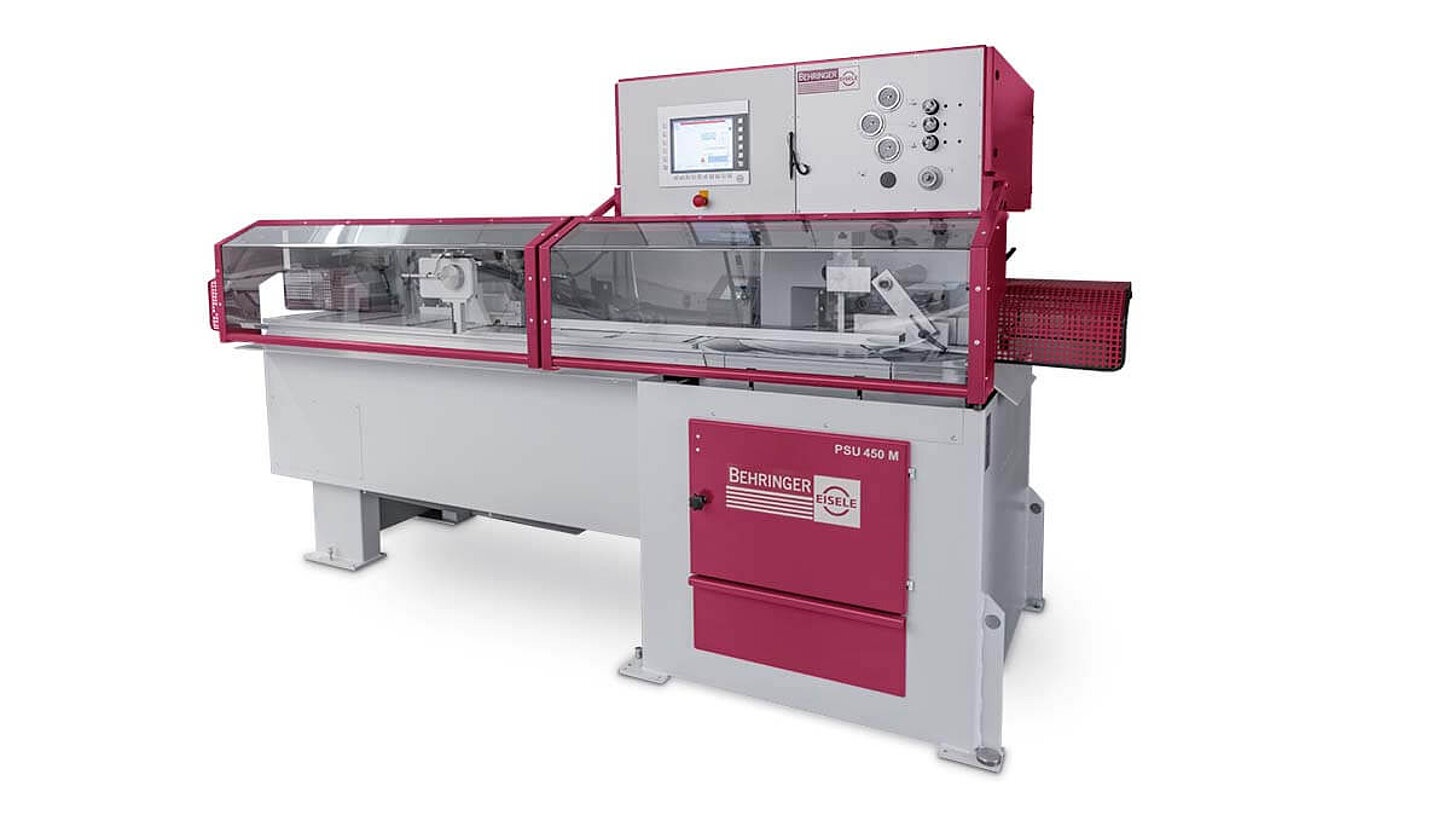

  • Automatic miter circular saw PSU 450 M

    Automatic miter circular saw PSU 450 M

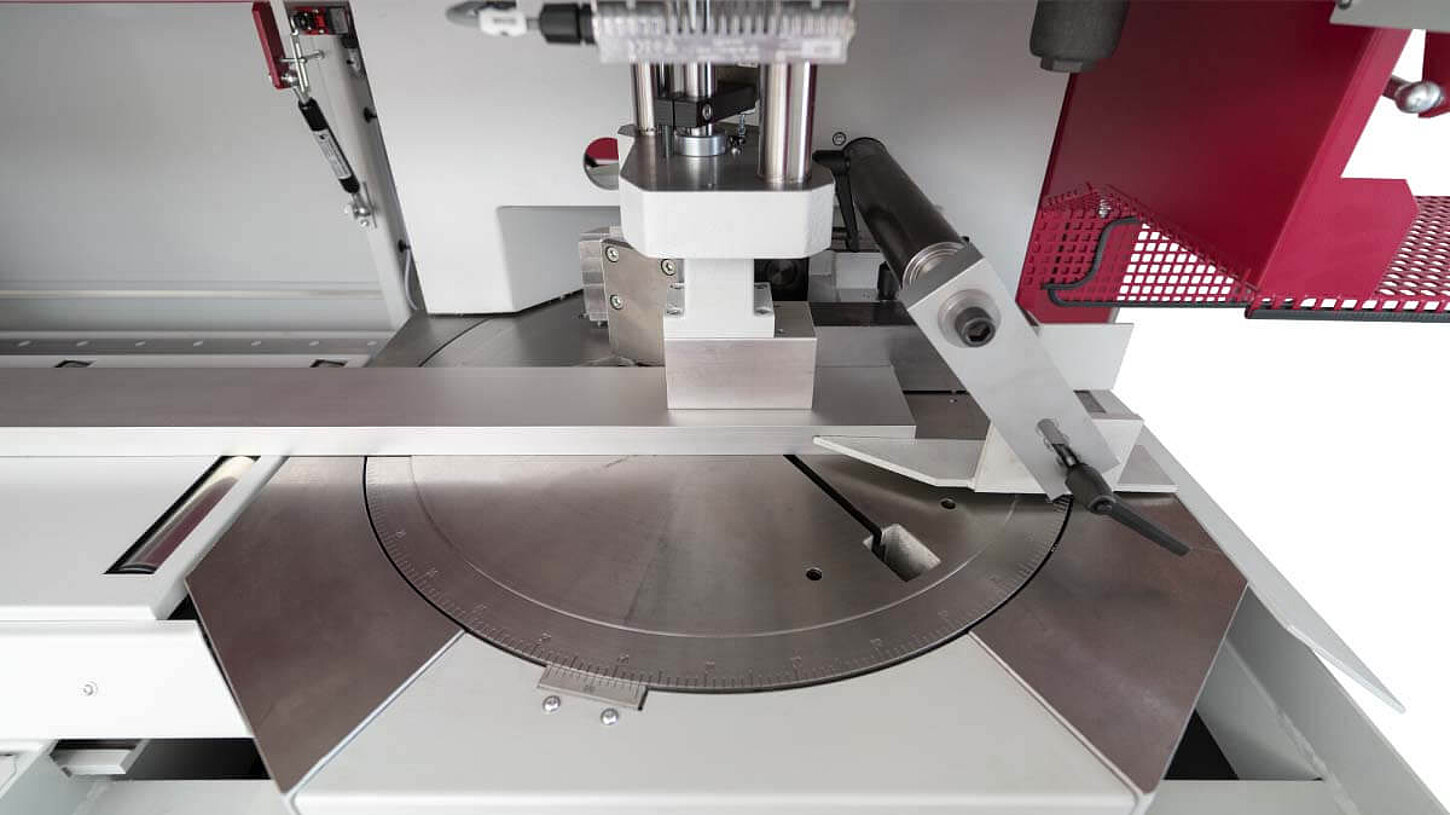

  • Automatic miter circular saw PSU 450 M material table with miter adjustment

    Automatic mitre adjustment 30° to 150°

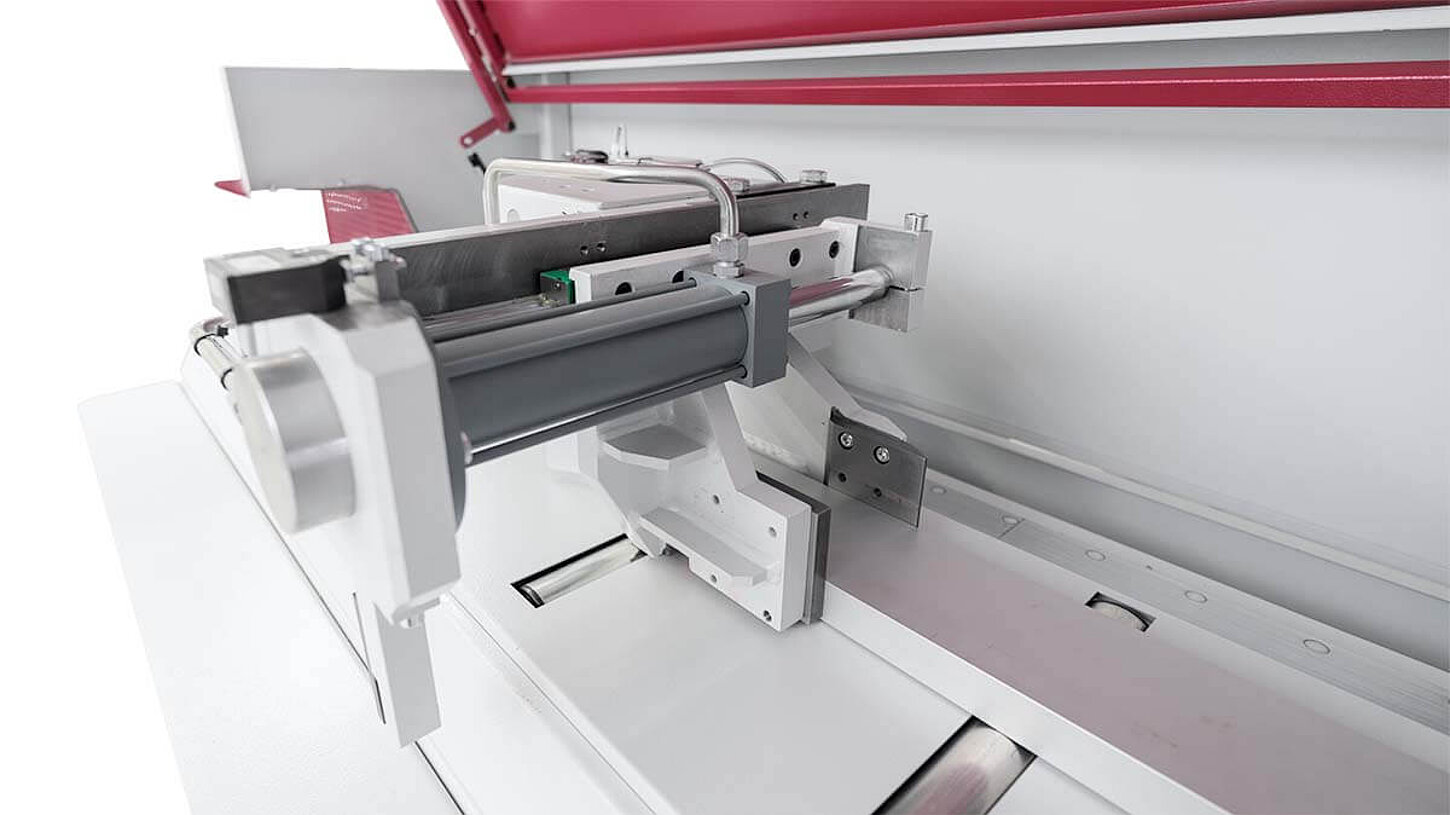

  • Automatic miter circular saw PSU 450 M feeding gripper

    Servo-driven feeding gripper

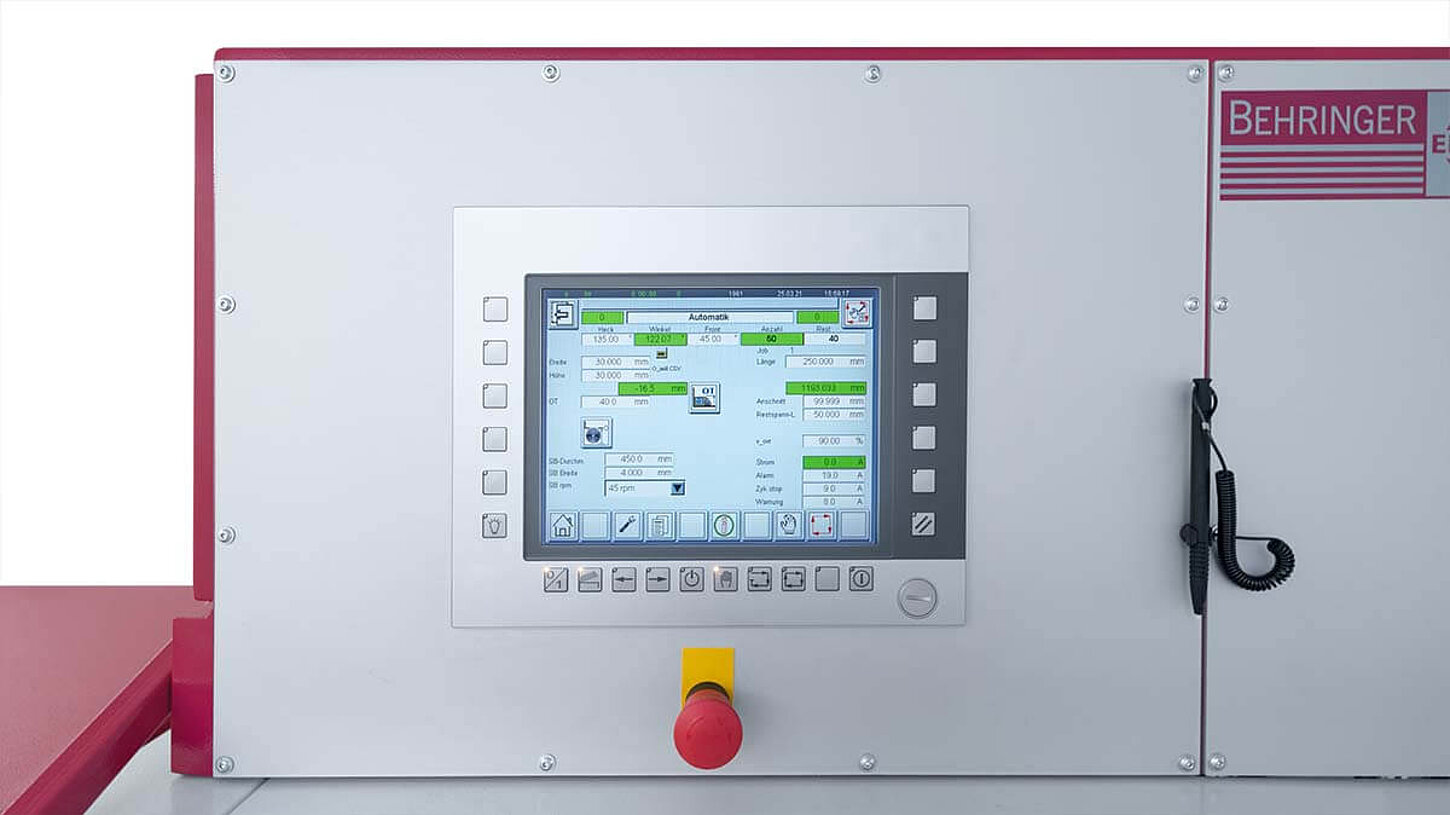

  • Automatic miter circular saw PSU 450 M intuitive PLC control with touch screen

    Powerful control

Features of the miter circular saw PSU 450 M

  • Optimum chip flow
    also when sawing tubes and hollow profiles due to the saw feed from bottom up.

  • Extensive range of materials
    The miter circular saws of the PSU series cover an extensive range of materials such as flat, angular and solid material, pipes and special profiles. They are therefore ideally suited for use in industry and workshops.

  • Sturdy machine base
    The heavy machine stand and the vibration-damping cast iron components made by Behringer ensure a low-vibration sawing process and thus an increase in tool life.

  • Micro spray system
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle. This guarantees a long tool life and a clean working environment.

  • High cutting quality
    Workpiece clamping on both sides of the saw blade ensures a clean cutting surface and low tolerances.

  • Robust and durable
    The heart of the PSU saw units is a worm gear unit with Eisele shock-absorbing feature, produced in-house. The robust design of the gearbox consistently dampens vibrations. This ensures a good cutting surface, long saw blade life and a long service life of the saw.

  • Simple, intuitive control
    Everything in view. Everything under control. The control system is self-explanatory, simple, avoids operating errors and allows quick navigation in the various programmes.

  • Servo axes
    for precise and fast length positioning of the starting material and mitre angle adjustment.

  • Short cycle times
    by electronic cutting height adjustment and rapid return of the saw blade.

  • Reduced material consumption
    Alternating sawing eliminates the need for gussets on sections with the same angle. This saves material and increases productivity.

Individual Configuration

The miter circular saw PSU 450 M can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data miter circular saw PSU 450 M

Flat 90° 9.4 in x 2.7 in
Flat 45° 7.1 in x 2.0 in
Flat 30° 5.1 in x 1.2 in

Square 90° 5.5 in x 5.5 in
Square 45° 4.9 in x 4.9 in
Square 30° 3.9 in x 3.9 in

Round 90° 5.9 in
Round 45° 5.7 in
Round 30° 4.4 in

Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 in x 0.4 in
Drive power 4.0 / 4.8 hp
RPM standard 6 / 12 / 24 / 48 min-1
RPM optional 12 / 24 / 48 / 96 min-1
Saw blade diameter 17.7 in
Feeding length single stroke 59.1 in
Feed rate 26.3 in/s
Saw feed hydraulic
Material clamping hydraulic
Length 122.1 in
Width 59.1 in
Height 76.8 in
Weight 5,100 lbs
Material support height 40.2 in
