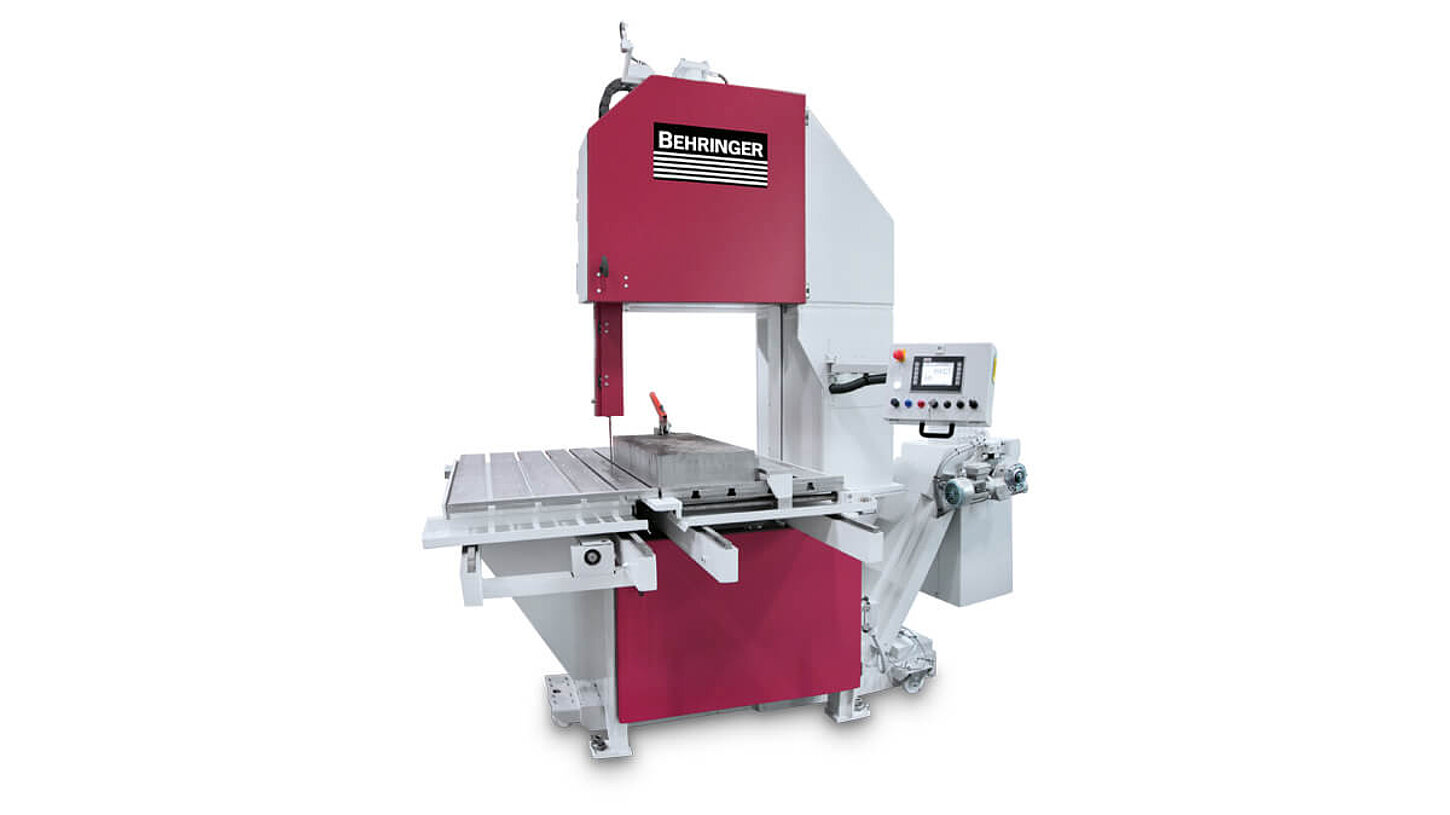

Table band saw LPS-T1500

The compact vertical saw - ideal for toolmaking and test cuts

With its moveable support table, the easy-to-use LPS-T1500 vertical saw is the all-rounder when it comes to sawing small, compact parts and short sections. Those are typically needed i.e. in toolmaking. Sample cuts and notching work on difficult-to-machine material are also part of its repertoire. What is more: due to the compact dimensions the LPS-T1500 table band saw can also be set up in areas with limited space.

  • Behringer Tischbandsäge LPS-T

    Table band saw LPS-T1500

  • Behringer vertical bandsaw LPS-T1500 provides saw cuts with high precision

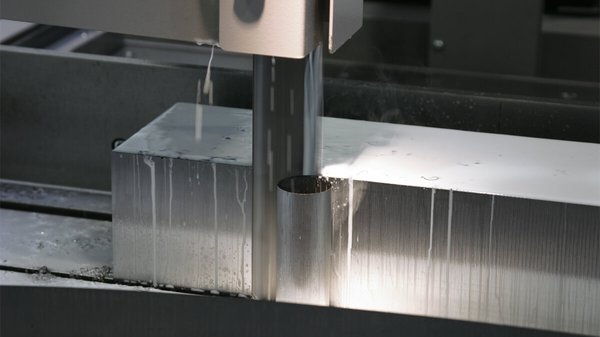

    Unsurpassed precision (video)

  • Behringer Tischbandsäge LPS-T Messeinrichtung mit NC-Positionierung

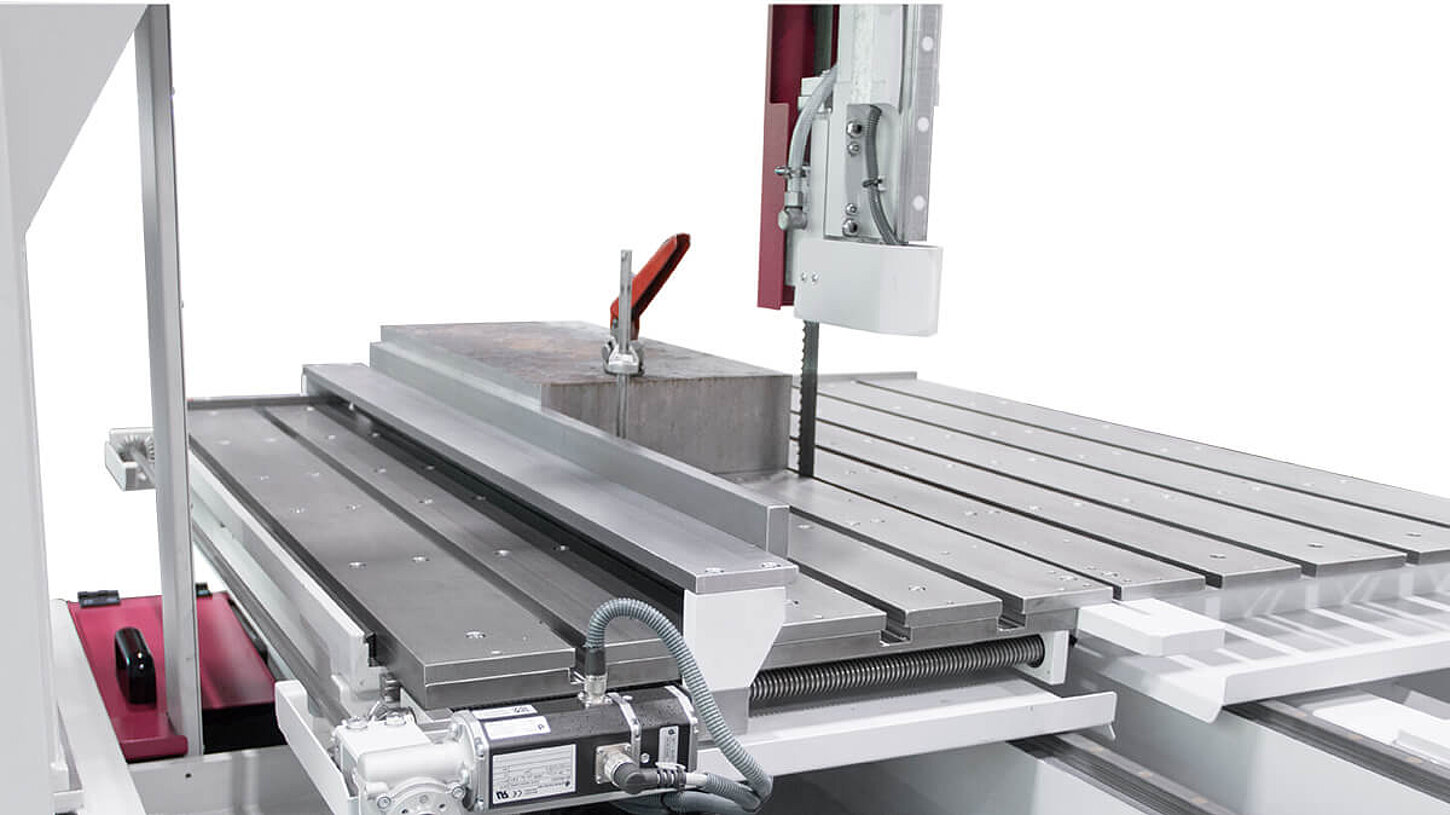

    NC measuring unit (option)

  • Youtube Logo

    Product video vertical saw LPS-T1500

  • Behringer Tischbandsäge LPS-T Tischpositionierung und Sägevorschub durch Servomotor

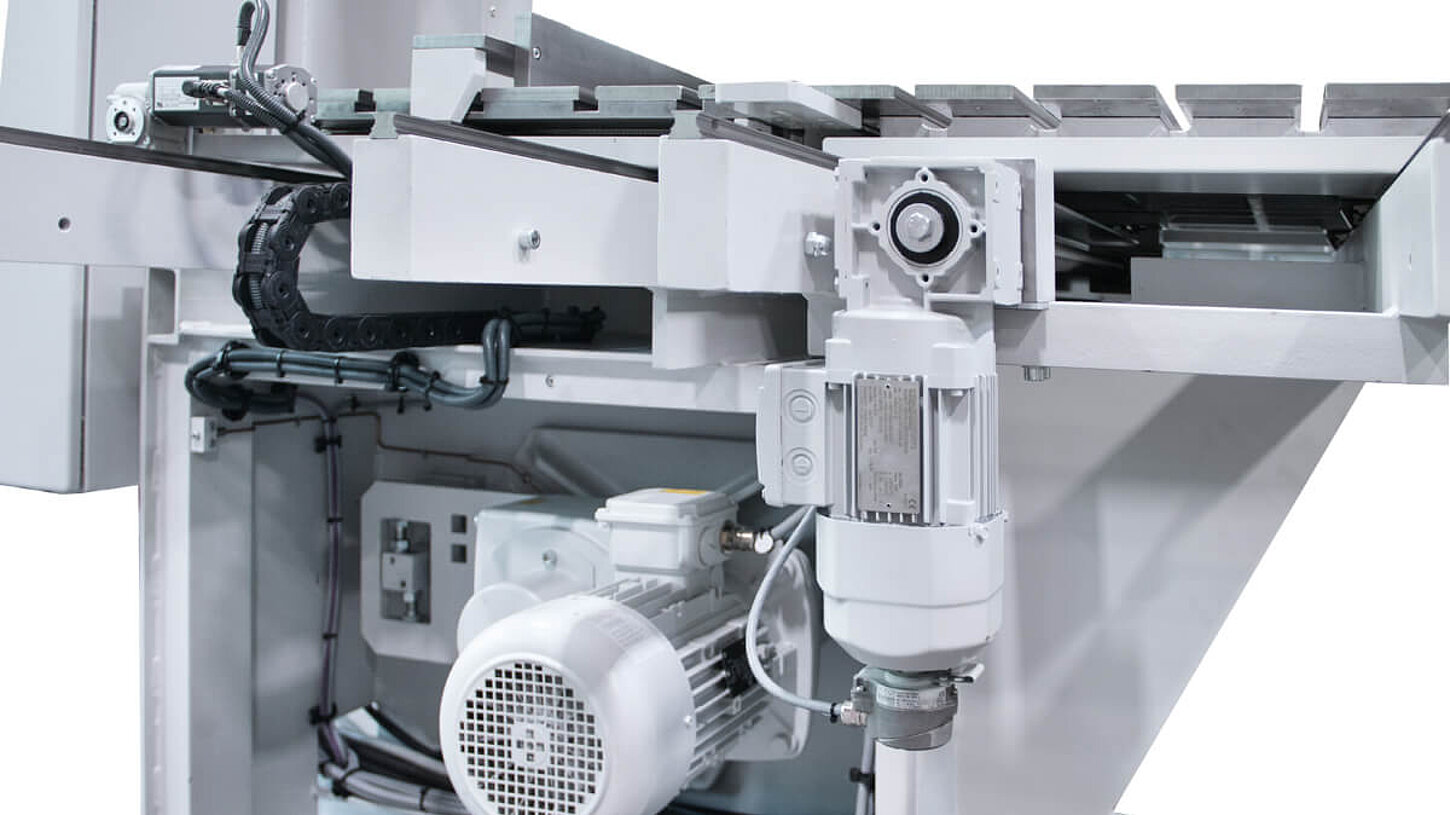

    Table positioning via ball screw spindle

  • Behringer Tischbandsäge LPS-T intuitive Steuerung mit Touch-Screen

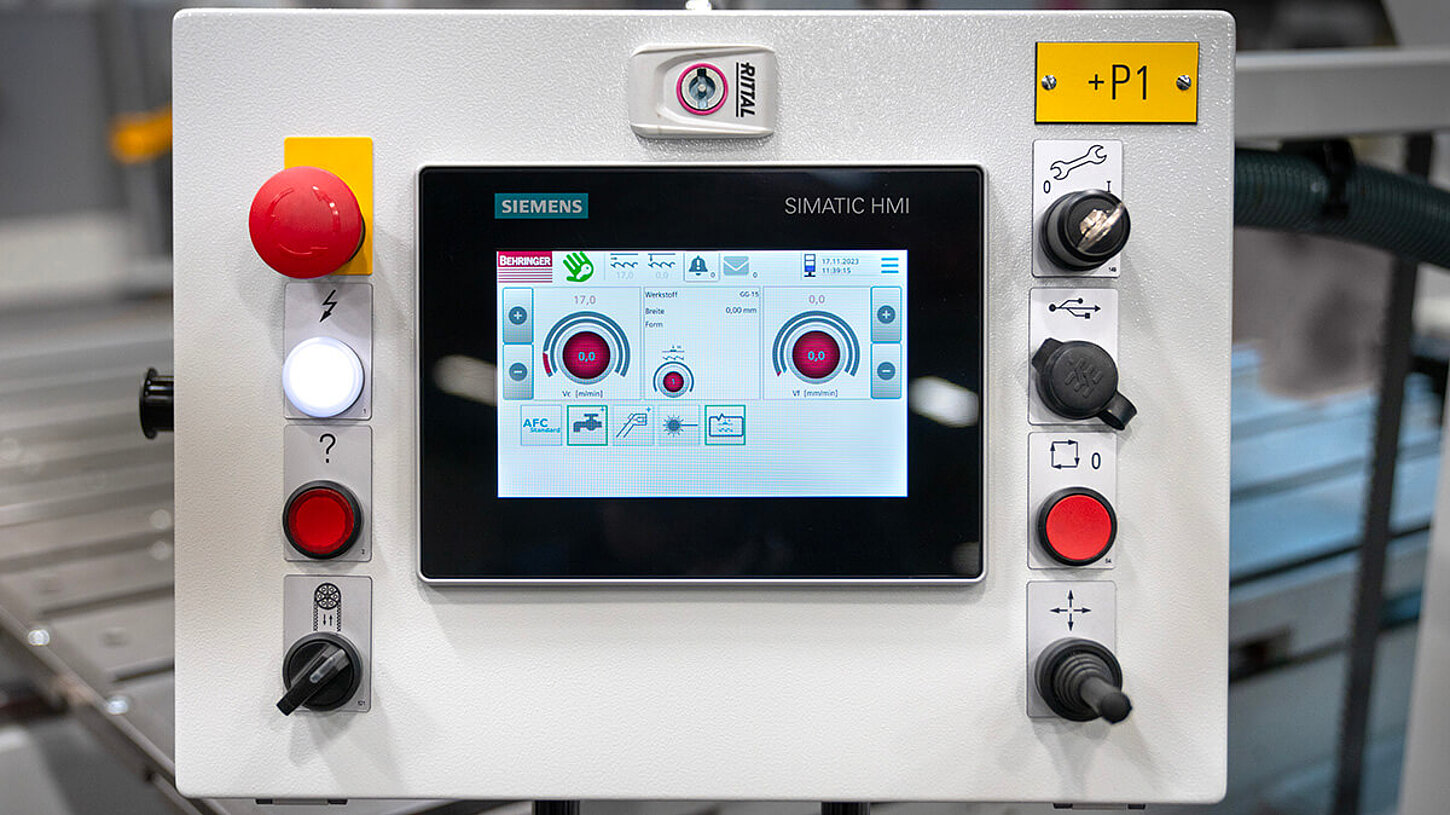

    Intuitive touch control BehrCtrl10

  • Behringer Tischbandsäge LPS-T Späneförderer

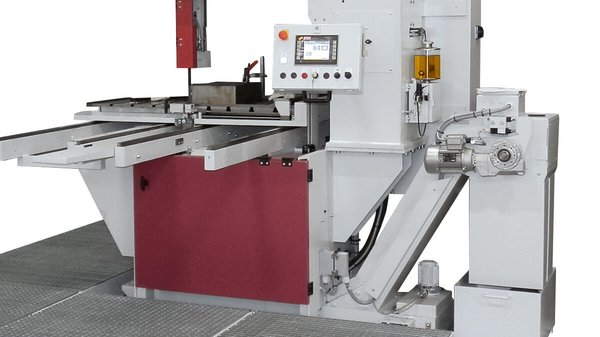

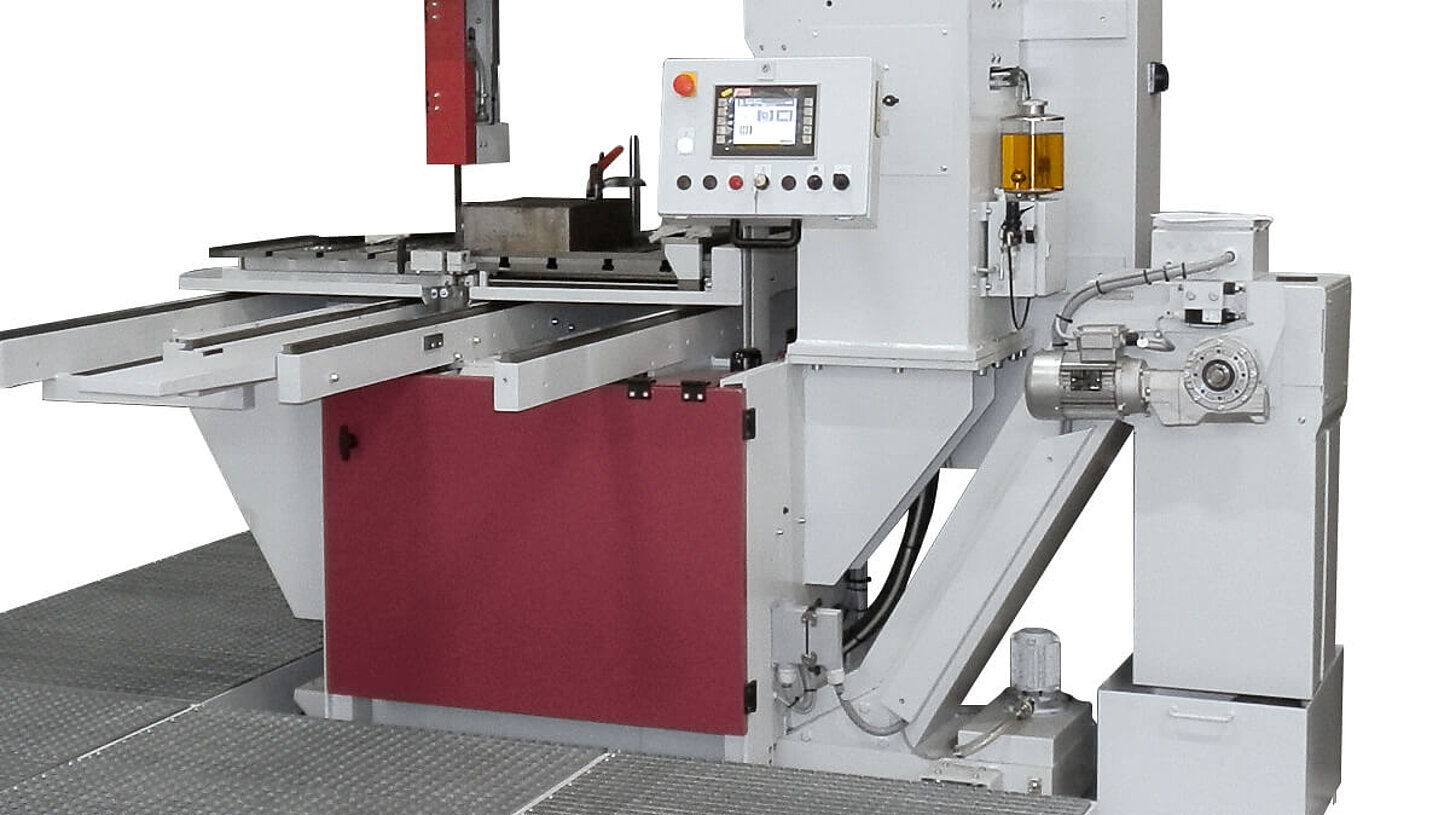

    Chip conveyor with integrated coolant tank

  • Sonderlösung: Ringsäge auf Basis der Behringer Tischbandsäge LPS-T

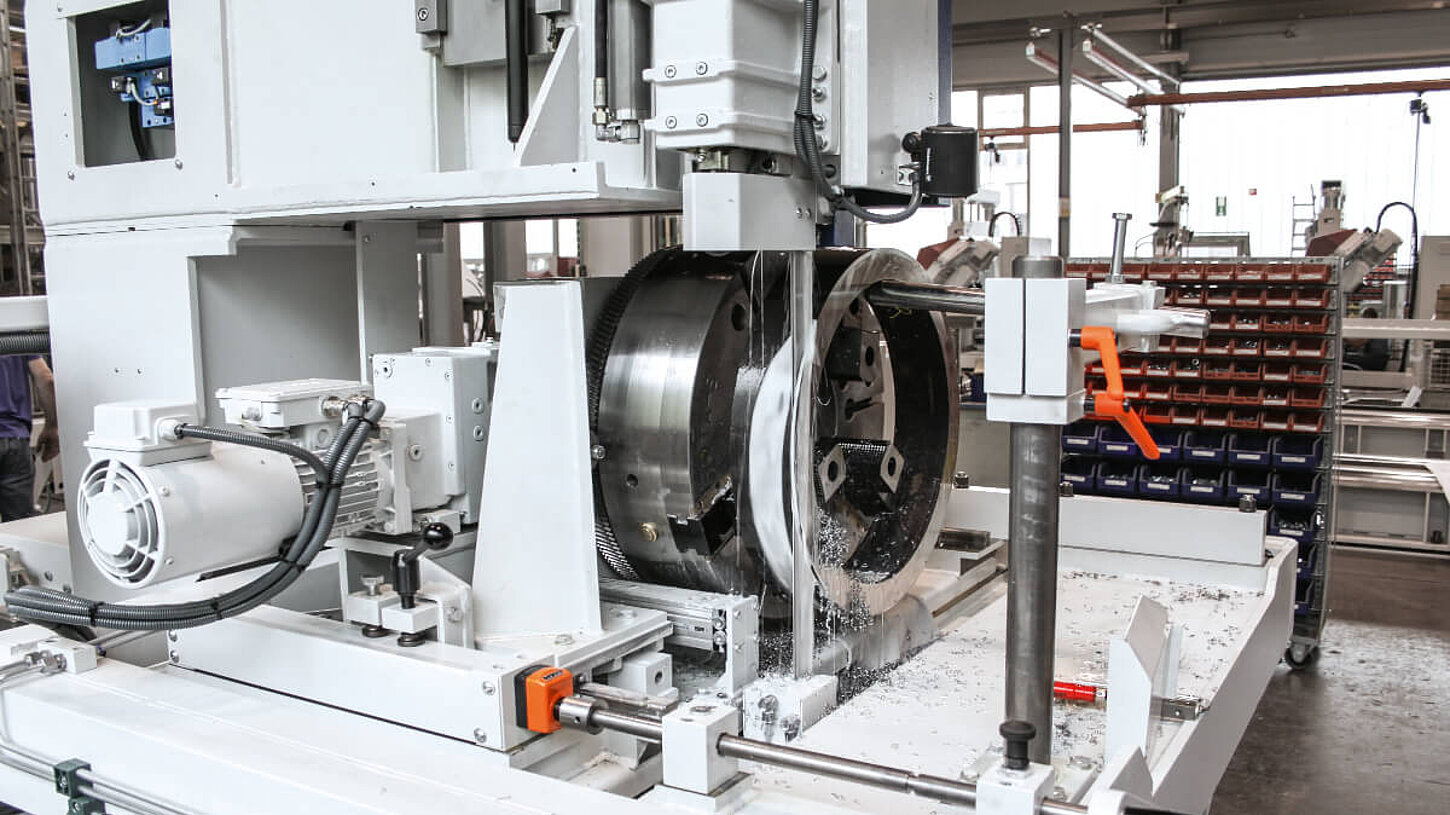

    A special solution: the ring saw

Features of the table band saw LPS-T1500

  • Unsurpassed precision and cutting performance
    The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.

  • Servo Feed System
    The Behringer servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades. The rapid response of the servo feeding system to the sensors for the cutting pressure regulation systematically prevents overloading and premature wear of the bandsaw blades.

  • Chip conveyor standard
    A generously sized chip conveyor with integrated coolant tank is located under the saw unit, directly in the chip flow direction. Any chips and coolant are collected here and separated. The conveyor can be moved out of the machine frame for cleaning and maintenance.

  • Movable material support table
    For easy loading and unloading by crane, the material table of the vertical saw can be moved out from under the saw unit.

  • NC measuring unit
    The LPS-T can be equipped with an optional NC-controlled measuring unit. The cutting depth is digitally pre-programmed in the control system. When placing down the material on the vertical saw, it can be easily aligned with the measuring device and then securely clamped. This considerably speeds up the setup process.

  • Quick bandsaw blade change
    Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Compact
    Due to its compact dimensions, the table band saw LPS-T1500 can also be set up in constricted spaces.

Individual Configuration

The table band saw LPS-T1500 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data table band saw LPS-T1500

Cutting length 59.0 in
Cutting width 24.4 in
Cutting height 23.6 in
Minimum cutting width 0.2 in
Minimum cutting height 0.4 in
Drive power 5.4 hp
Blade speed 56 - 394 fpm
Saw blade dimensions 225.6 x 1-1/2 x 0.05 in
Total power 8.0 hp
Supporting area inside table 60.6 in x 25.2 in
Supporting area outside table 60.6 in x 25.2 in
Length 167 in
Width 108 in
Height 126 in
Weight 8,800 lbs
Material support height 47.2 in
