Automatic Vertical Band Saw LPS40-160-4A

Fully automatic cutting of plates - especially in the steel trade industry

The LPS40-160-4A automatic plate saw is the ideal solution to produce parts from plates in one set-up. There is no need to rotate the plates manually. Thanks to the 90° rotating band guide the vertical bandsaw produces both longitudinal cuts and sawing of finished parts without manual material handling. The precise servo-driven feeding gripper position the heavy material precisely.

The nesting functionality of the automatic vertical band saw reduces processing time and waste. The clear machine control visualizes the sawing tasks clearly and prevents errors.

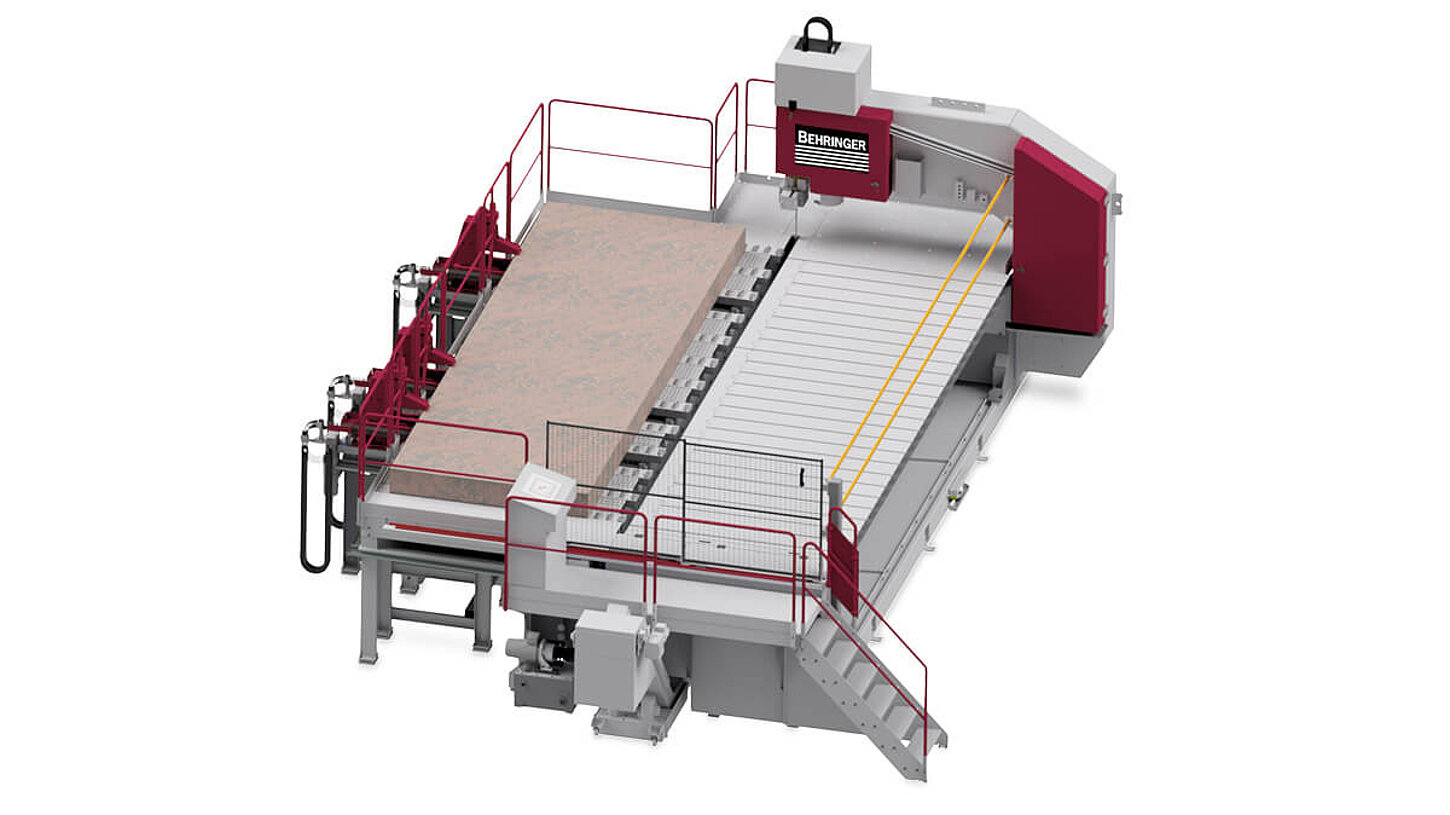

  • Behringer automatic vertical band saw LPS40-160-4A

    LPS40-160-4A (similar illustratoin)

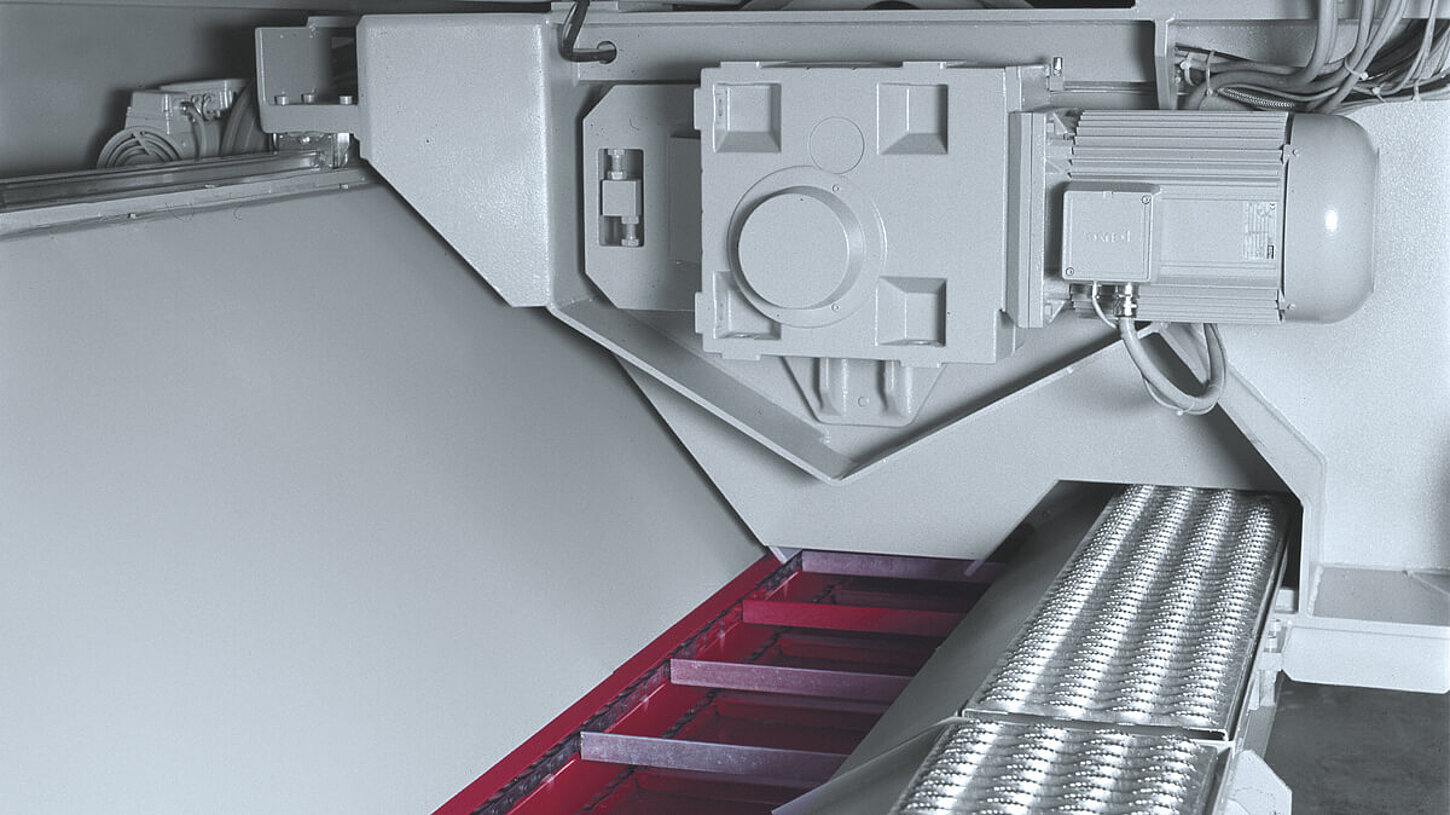

  • Behringer automatic vertical band saw LPS40-160-4A saw feed with servo motor

    Servo feed system

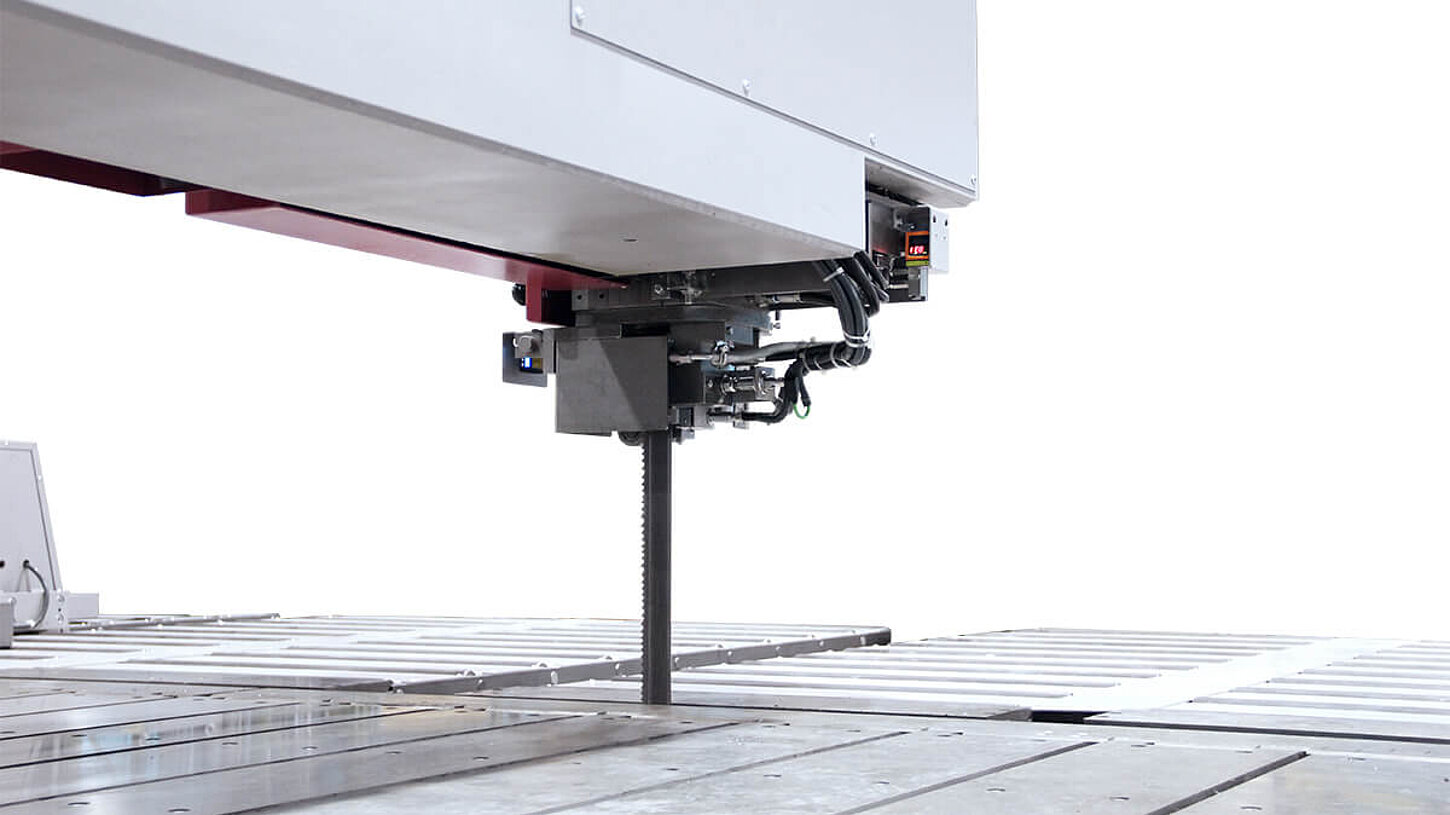

  • Behringer automatic vertical band saw LPS40-160-4A rotatable band guide allows sawing of parts and trim cuts on rolled plate

    Rotating band guide (option)

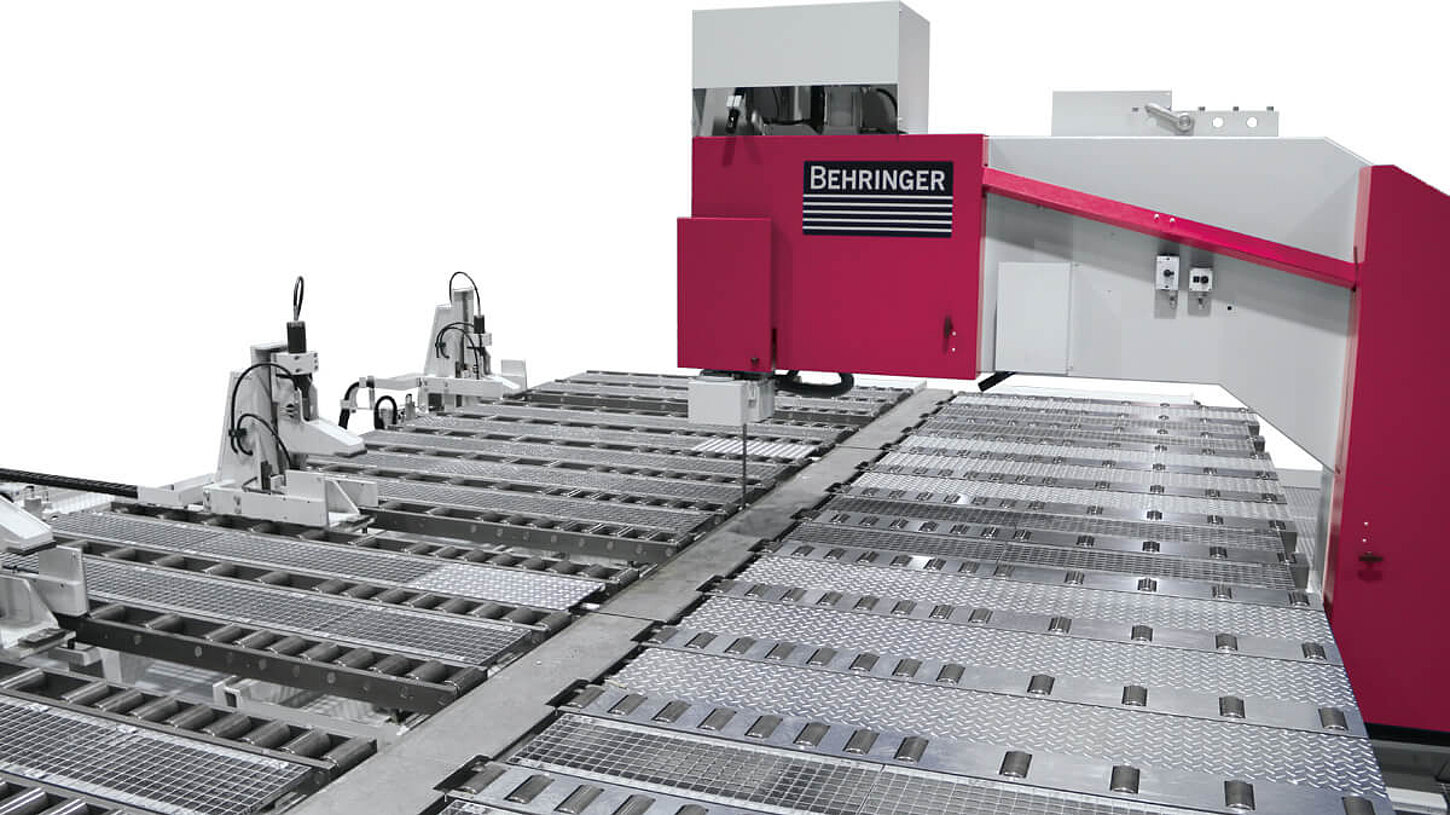

  • Behringer automatic vertical band saw LPS40-160-4A with support rollers on the inner table

    Table variant with rollers on the inner table

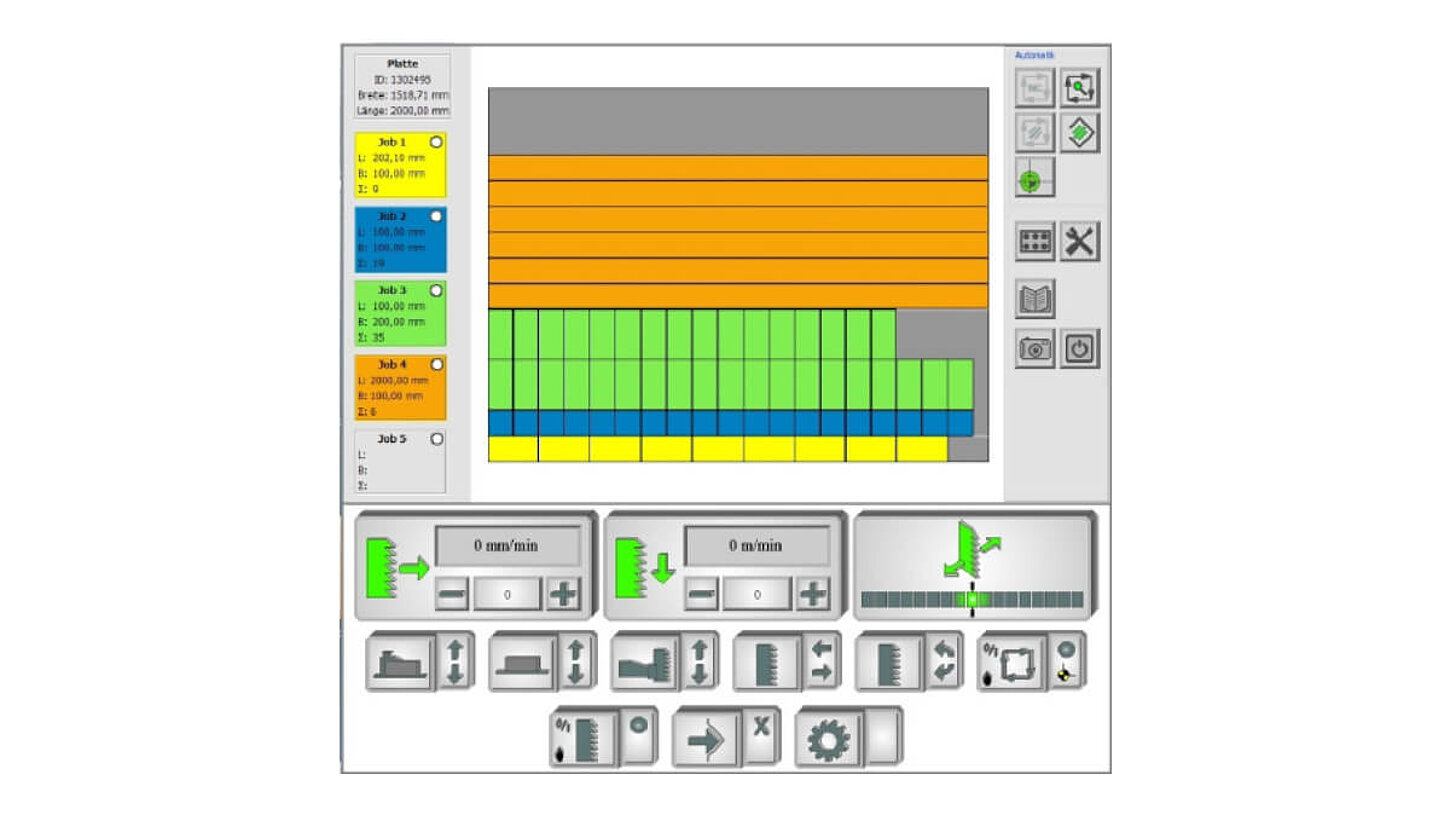

  • Behringer automatic vertical band saw LPS40-160-4A control with nesting functionalities

    System control / plate editor

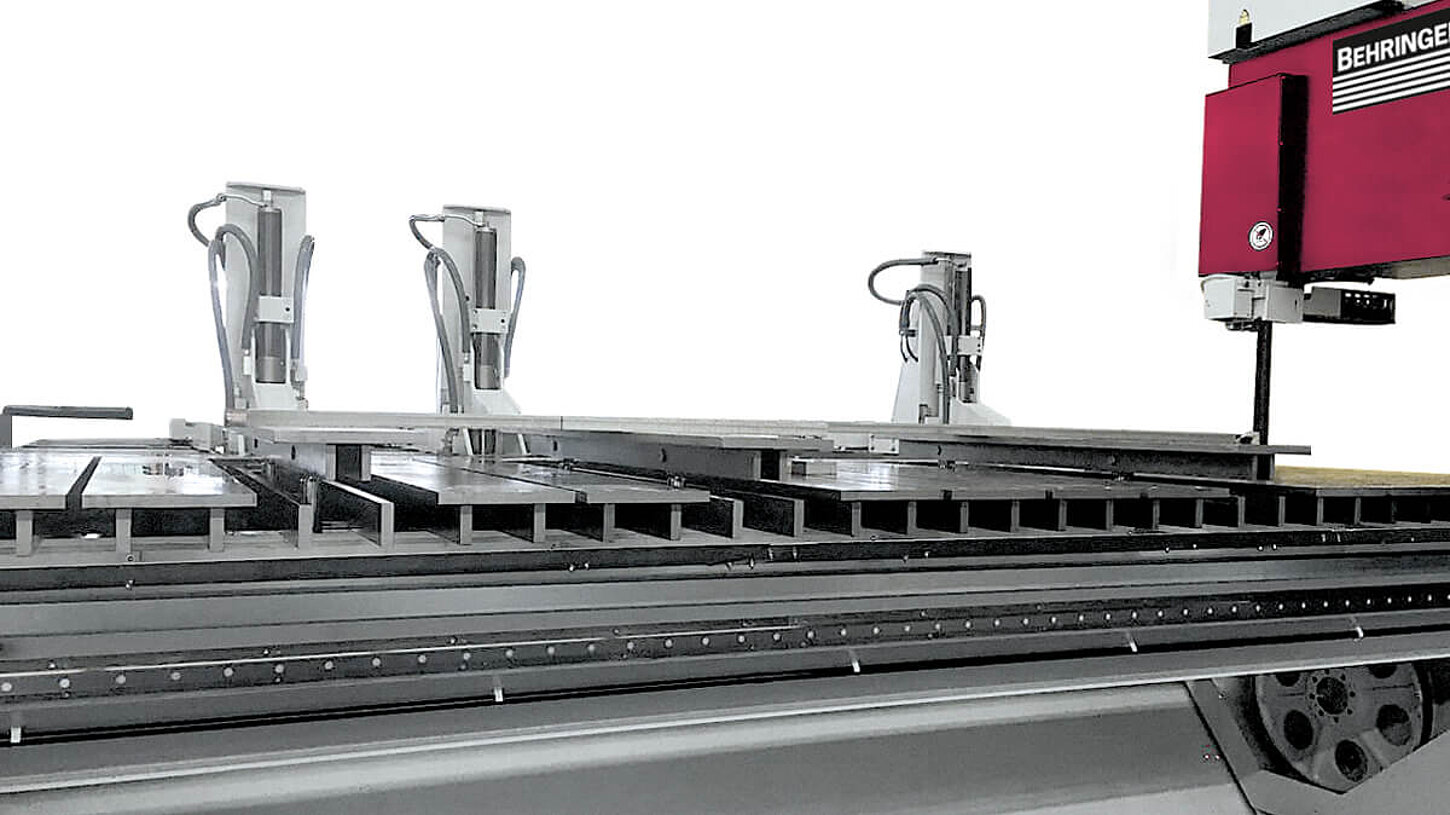

  • Behringer automatic vertical band saw LPS40-160-4A lifting device for loading with the forklift truck

    Lifting unit for forklift loading (option)

Features of the automatic vertical band saw LPS40-160-4A

  • High degree of automation
    Due to their high degree of automation and the optional 90° rotatable band guide, the Behringer LPS automatic machines enable fully automatic order processing for the production of customer-specific dimensions.

  • Advantages in material purchasing
    By producing flat materials from large sheets, rationalisation effects can be achieved both in warehousing and in the purchase of raw materials.

  • Unsurpassed precision and cutting performance
    The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.

  • Forklift loading (option)
    Hydraulic lifting devices can be added for loading the LPS automatic machines with a forklift truck. When extended, the fork rakes can be driven under the material. The material is then placed gently on the material table.

  • Rotatable blade guide
    The LPS automatic machines can be supplied with a blade guide that can be rotated by 90°. This enables the machine to be used for automatic longitudinal and crosswise cutting of plates.

  • System control / plate editor
    Benefit from intuitive system control with touchscreen. The jobs are entered into the plate editor and clearly displayed in the working area. The raw plate dimensions are measured fully automatically through standard plate contour detection.

  • Nesting functionality
    The optimised arrangement of the sawing jobs is carried out either according to cutting time or waste (rest piece optimisation).

  • Quick bandsaw blade change
    Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

Individual Configuration

The automatic vertical band saw LPS40-160-4A can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data automatic vertical band saw LPS40-160-4A

Cutting length 161.4 in
Cutting width 63.0 in
Cutting height 15.8 in
Minimum cutting width 1.2 in
Minimum cutting height 0.3 in
Drive power 10.1 hp
Blade speed 33 - 360 fpm
Saw blade dimensions 346.5 x 2-1/8 x 0.063 in
Inside table:
Supporting area 70.8 in x 167.3 in
Outside table:
Supporting area 70.8 in x 167.3 in
Number of grippers 3
Gripper stroke 72.8 in
Length 324.8 in
Width 244.1 in
Height 161.4 in
Weight 46,300 lbs
Material support height 63.8 in
