Vertical Bandsaw LPS100-120-6

Sophisticated technology for more performance

Especially for sawing large plates and solid blocks, the vertical bandsaw LPS100-120-6 has an extremely robust design. It is characterized by outstanding precision and cutting performance. Especially at sawing difficult to cut materials such as inconel or titanium. Thanks to its modular design, the block saw can be flexibly adapted to customer requirements.

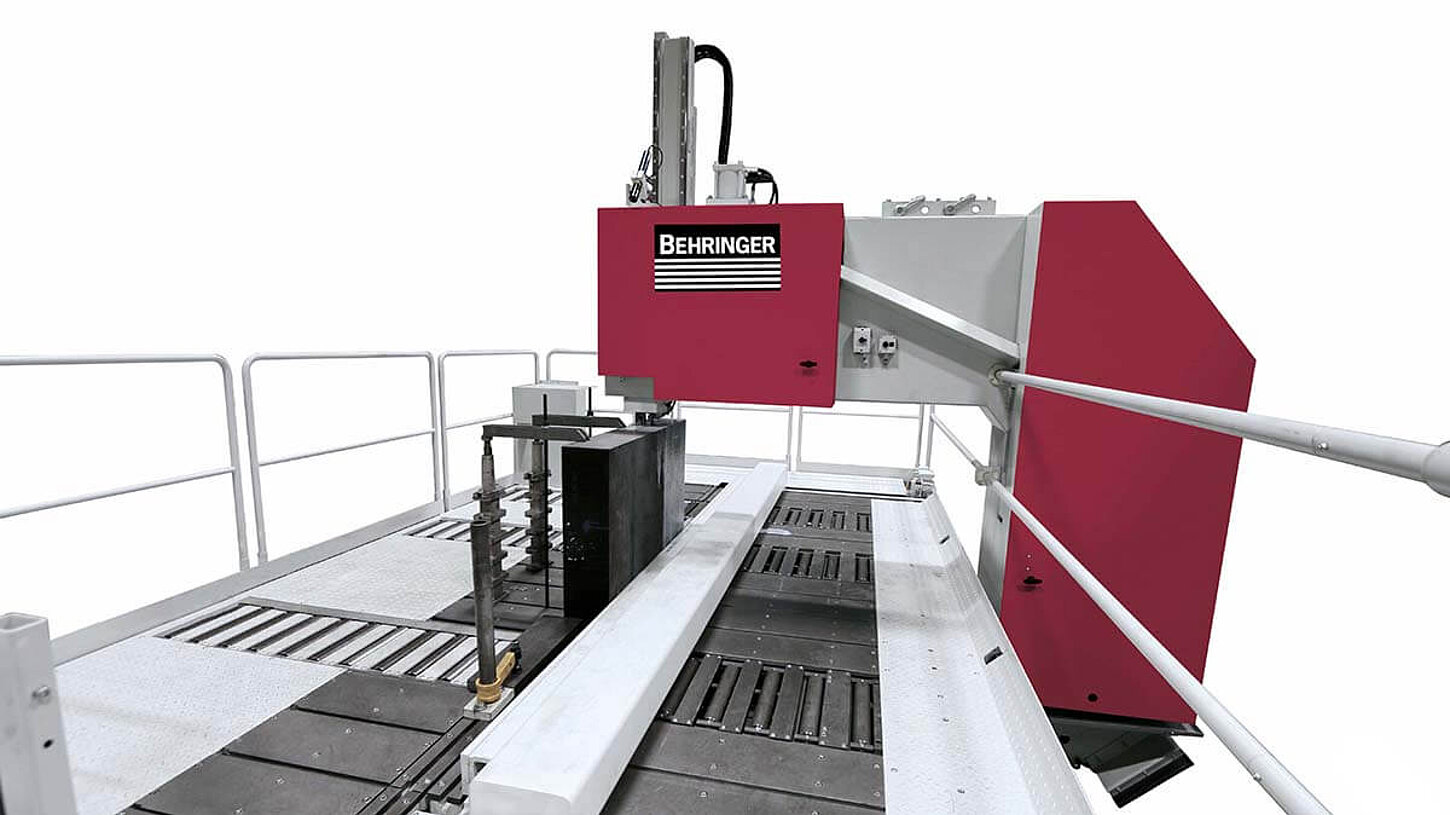

  • Behringer vertical bandsaw LPS80-160-6

    Vertical bandsaw LPS100-120-6 (similar illustration)

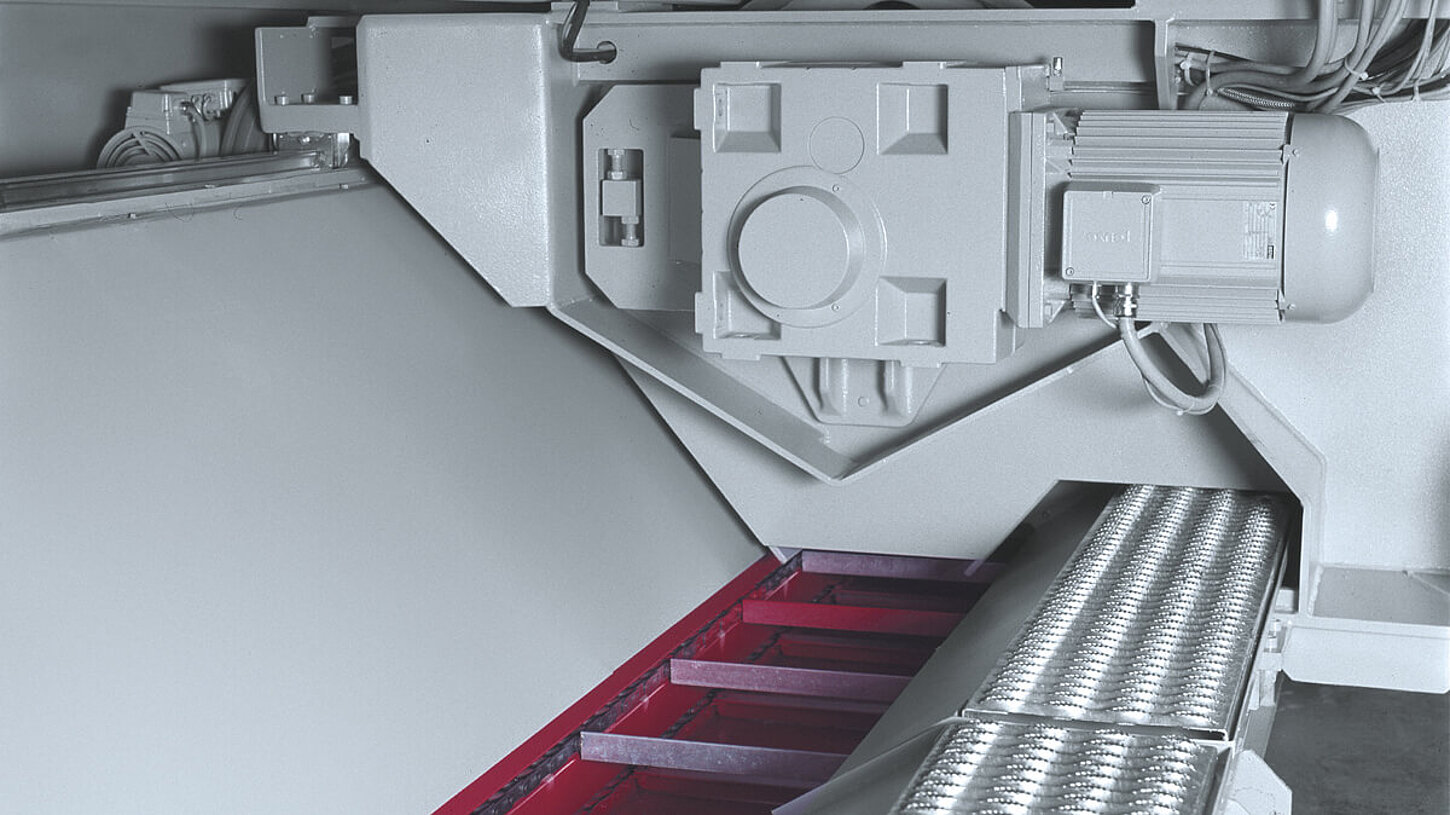

  • Behringer vertical bandsaw LPS100-120-6 saw feed by servo motor

    Servo Feed System

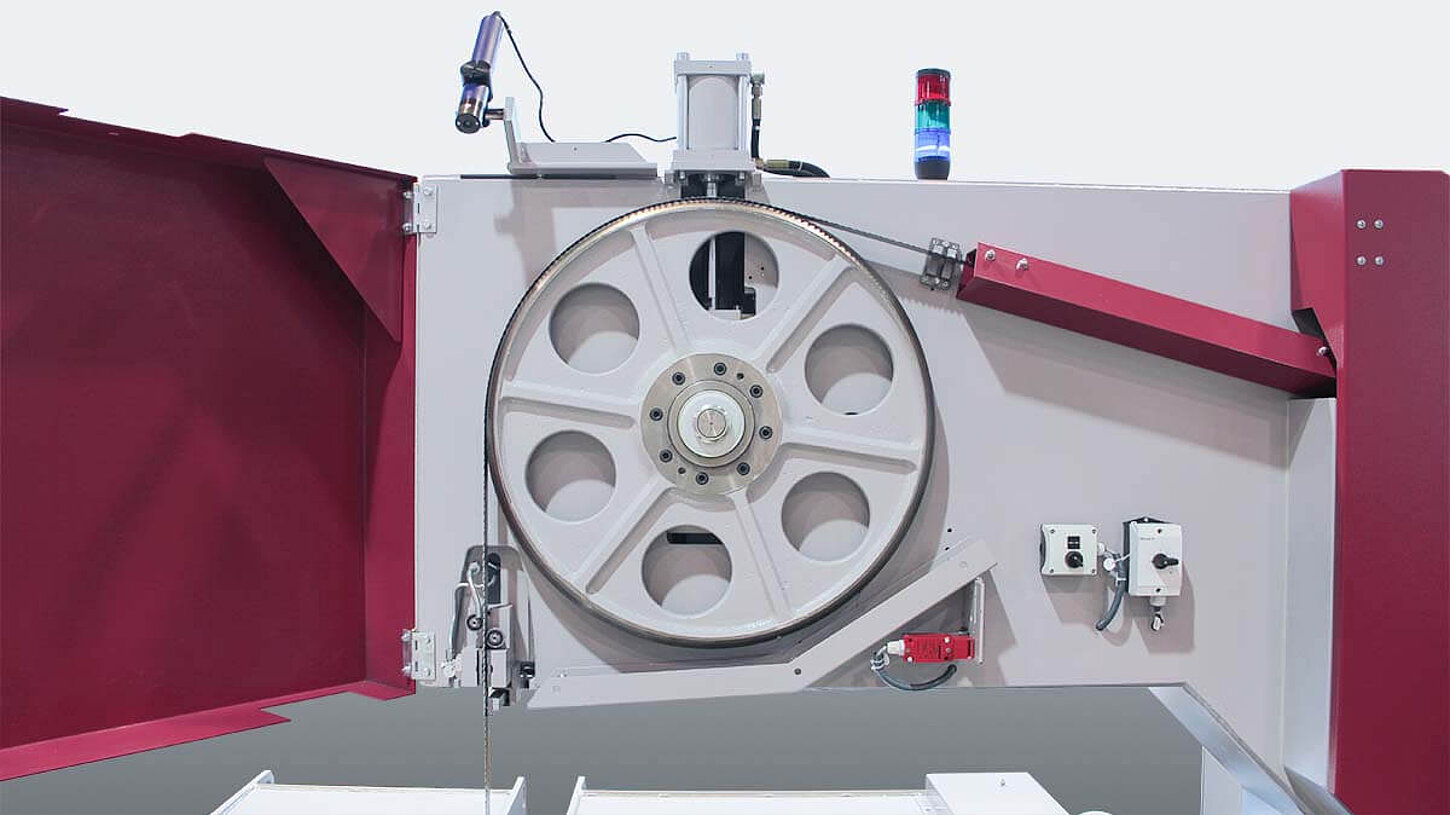

  • Behringer vertical bandsaw LPS100-120-6 band wheels made from vibration damping grey cast iron

    Band guiding parts made of grey cast iron

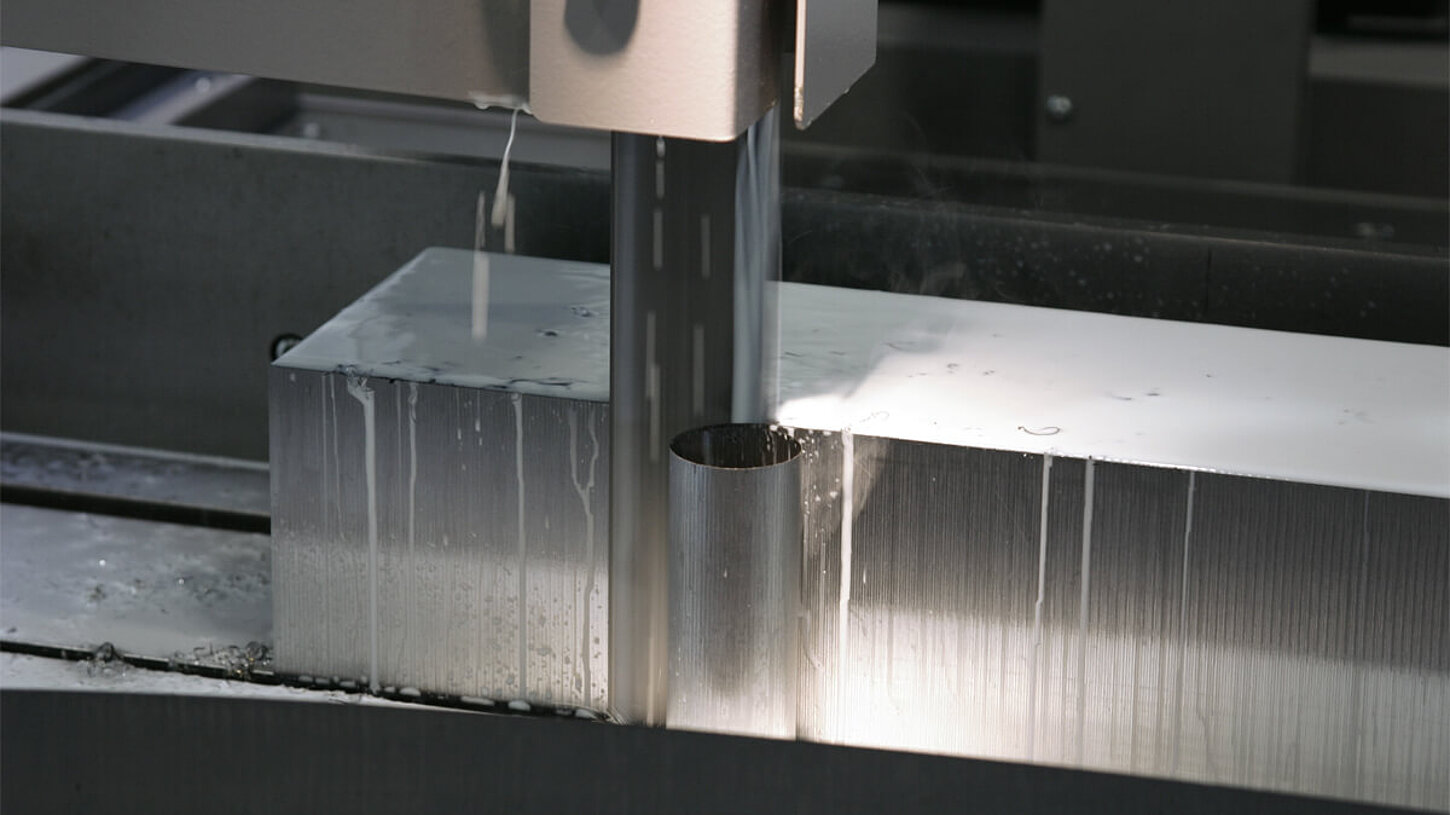

  • Behringer vertical bandsaw LPS100-120-6 allows saw cuts with high precision

    Unsurpassed precise plate saw

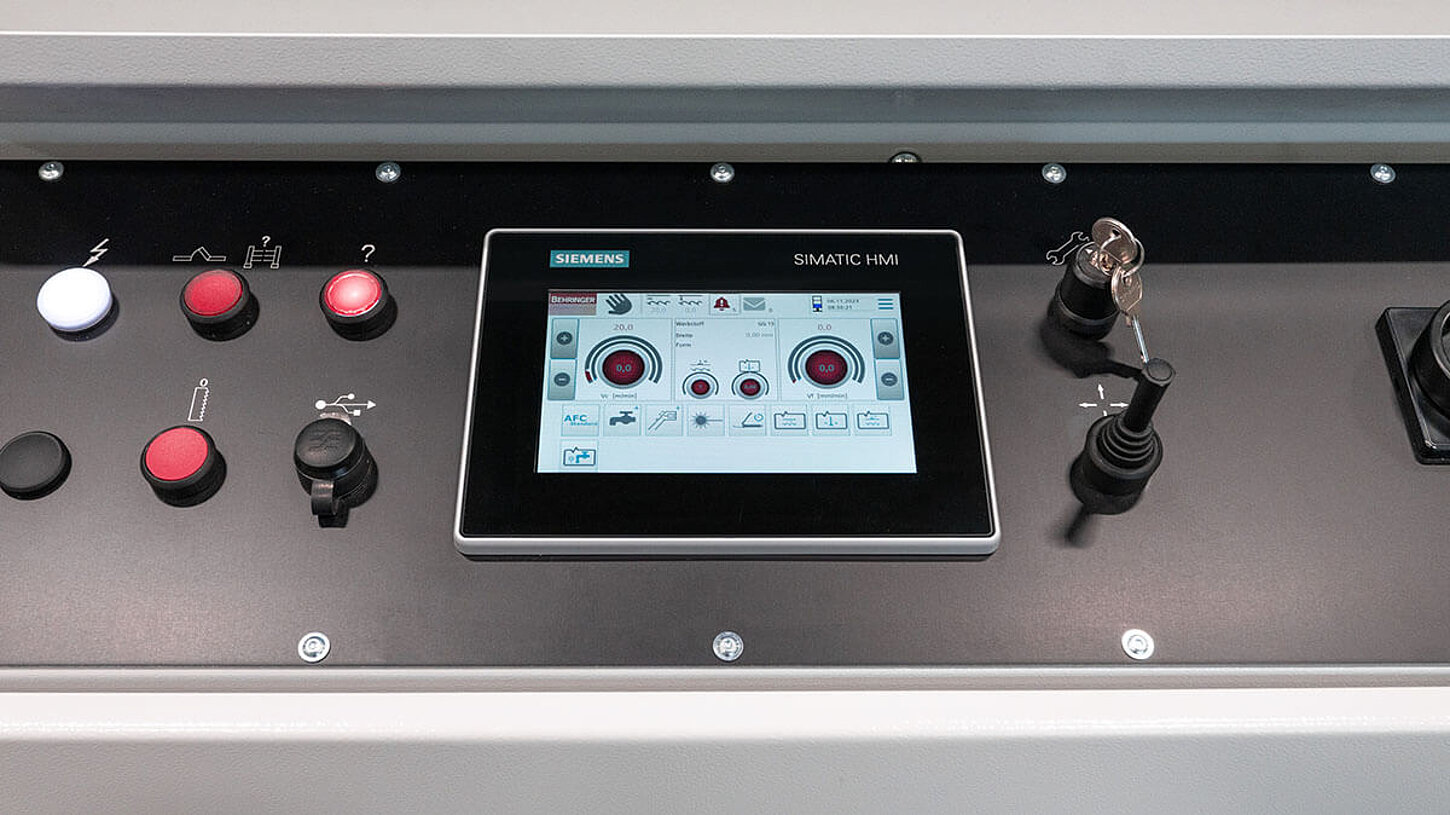

  • Behringer vertical bandsaw LPS100-120-6 intuitive PLC control

    Intelligent control

  • Behringer vertical bandsaw LPS100-120-6 band guide close to the cutting edge

    Perfect blade guidance and chip removal

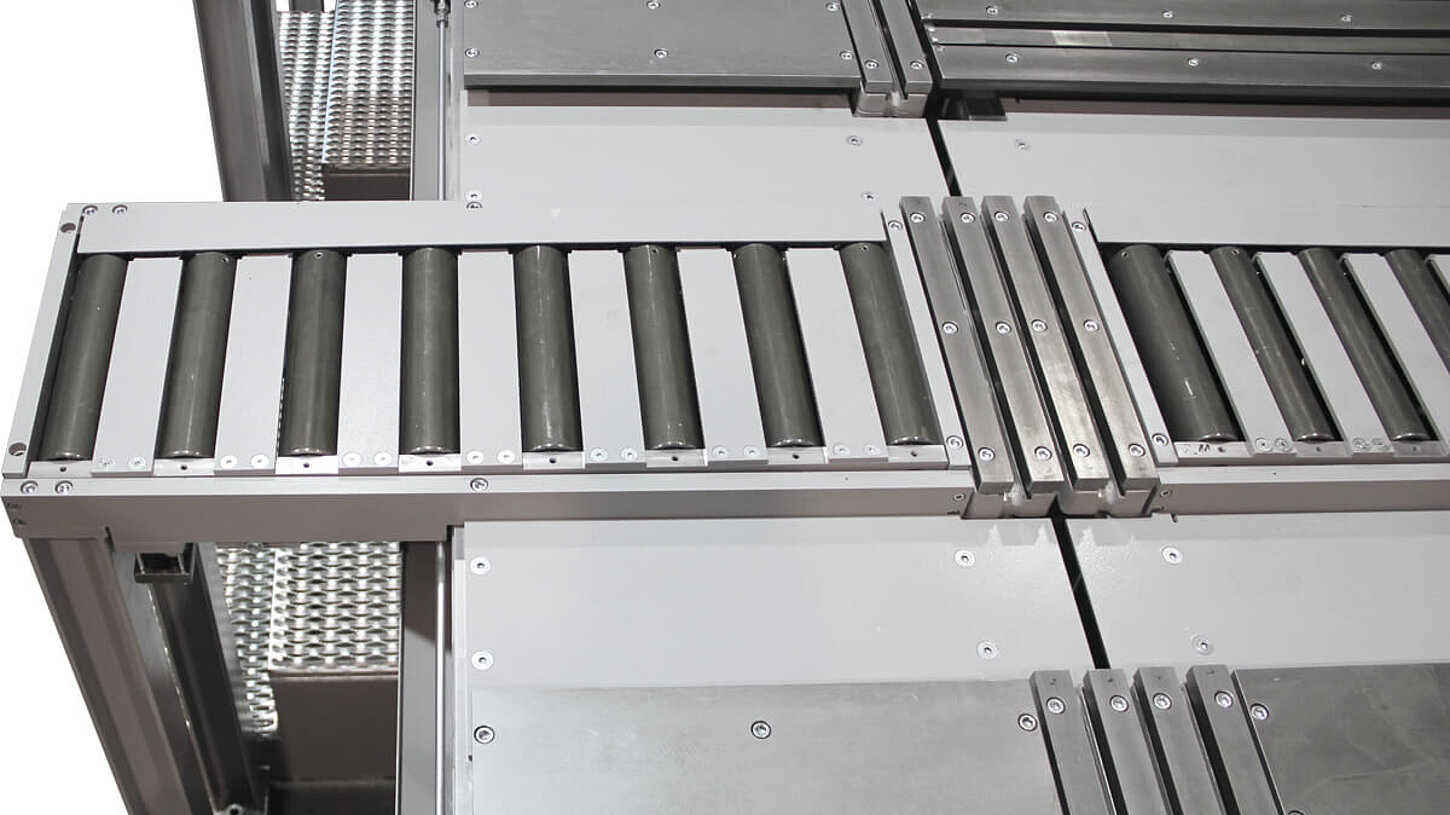

  • Behringer vertical bandsaw LPS100-120-6 with liftable roller conveyor segments for positioning the material

    Liftable roller conveyor segments (option)

  • Behringer vertical bandsaw LPS80-160-6

    NC measuring unit (option)

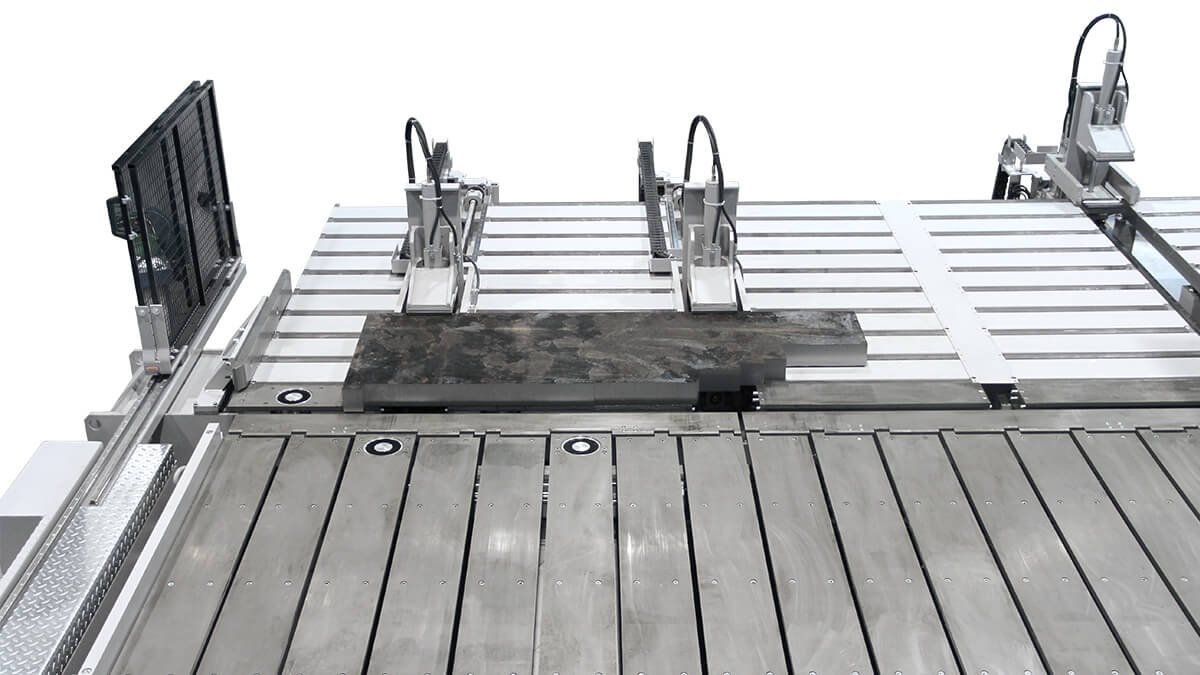

  • Magnetic clamping device for manual cuts

    Magnetic clamping device (option)

Features of the vertical bandsaw LPS100-120-6

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Quick bandsaw blade change
    Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

  • Unsurpassed precision and cutting performance
    The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.

  • Modular design
    The design of the block saw can be flexibly adapted to special requirements. Whether larger plate dimensions or higher table loads - almost all requirements can be met thanks to the modular design from the ground up.

  • Servo Feed System
    The Behringer servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades. The rapid response of the servo feeding system to the sensors for the cutting pressure regulation systematically prevents overloading and premature wear of the bandsaw blades.

  • A carefully designed machine concept
    The longitudinal cutting method is a typical feature of the Behringer plate saws. The workpiece remains firmly clamped to the material table while the saw unit moves.

  • Application-specific table versions
    LPS vertical bandsaws can be adapted to suit your exact requirements. The material support table has a modular construction and can be equipped with a variety of different options with a spacing pattern of 250 mm.

Individual Configuration

The block saw LPS100-120-6 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data vertical bandsaw LPS100-120-6

Cutting length 236.2 in (option up to 472.5 in)
Cutting width 47.3 in
Cutting height 39.4 in
Minimum cutting width 0.6 in
Minimum cutting height 0.4 in
Drive power 10.0 hp
Blade speed 56 - 394 fpm
Saw blade dimensions 330.7 x 2-1/8 x 0.063 in
Total power 20.1 hp
Supporting area inside table 47.3 x 236.2 in
Supporting area outside table 26.8 x 236.2 in
Length 384.0 in
Width 142.0 in
Height 152.0 in
Weight 49,900 lbs
Material support height 62.4 in
