Vertical Bandsaw LPS60-2

As flexible as your needs

The compact Behringer LPS60-2 block saw suits perfectly for contour- and allowance-optimized production of blanks from all plate dimensions and thicknesses. The plate saw has a robust design. It is flexible in use and can be perfectly adapted to your requirements. The good accessibility of the vertical bandsaw simplifies setup immensely. Thus the operator can reach all workpieces on the table by hand.

  • Behringer vertical bandsaw LPS60-2

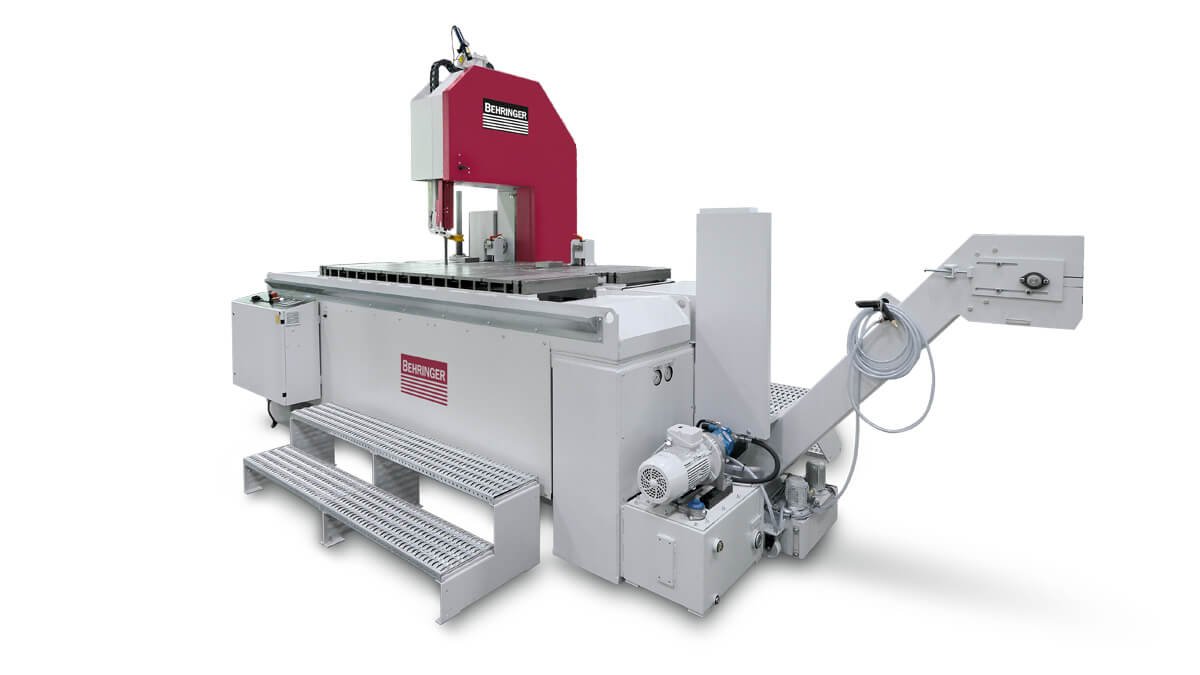

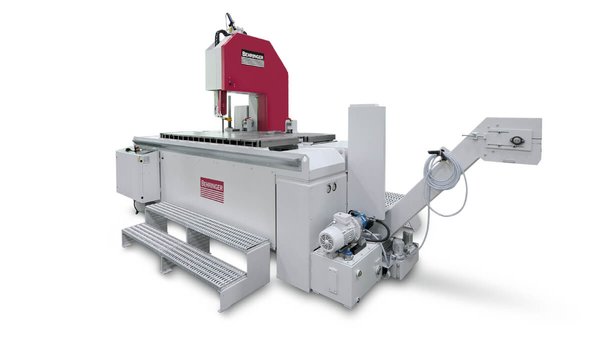

    Vertical bandsaw LPS60-2 (similar illustration)

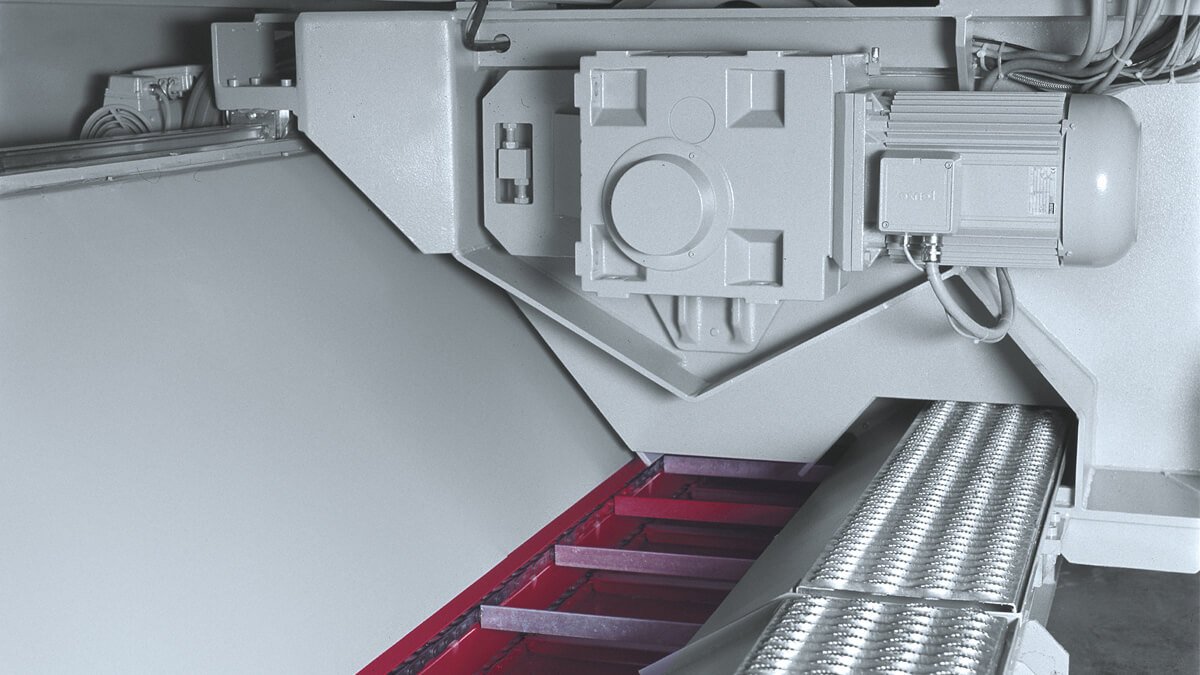

  • Behringer vertical bandsaw LPS60-2 saw feed by servo motor

    Servo Feed System

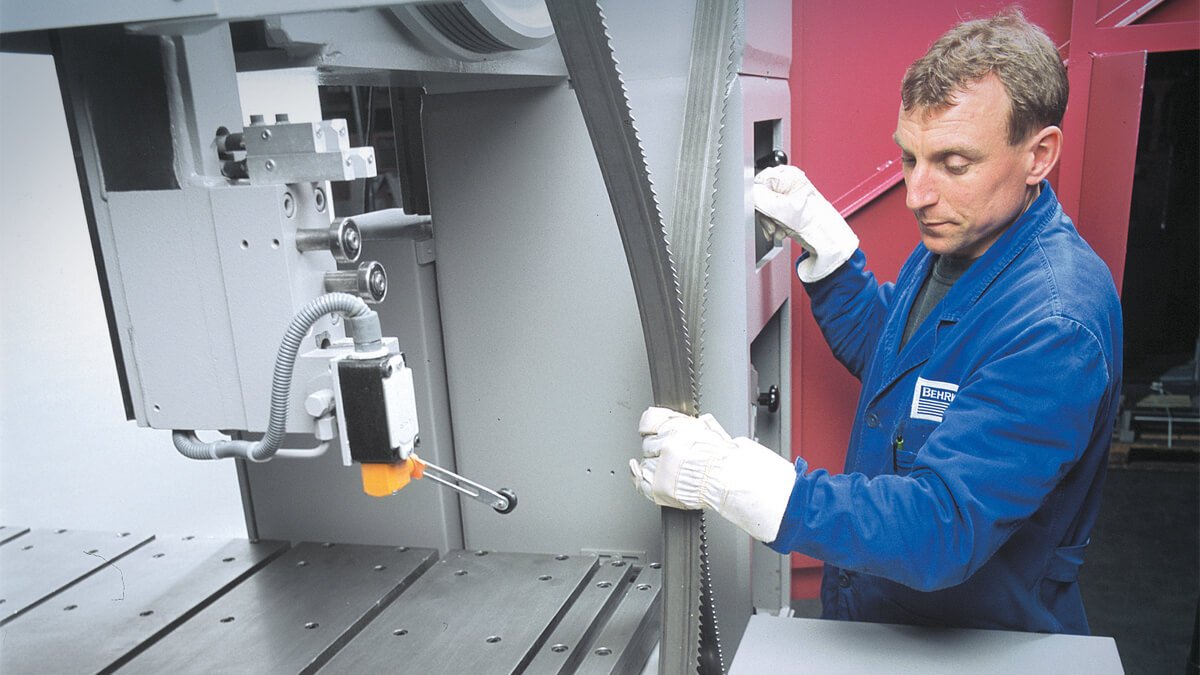

  • Behringer vertical bandsaw LPS60-2 simple and fast saw blade change

    Quick saw blade change

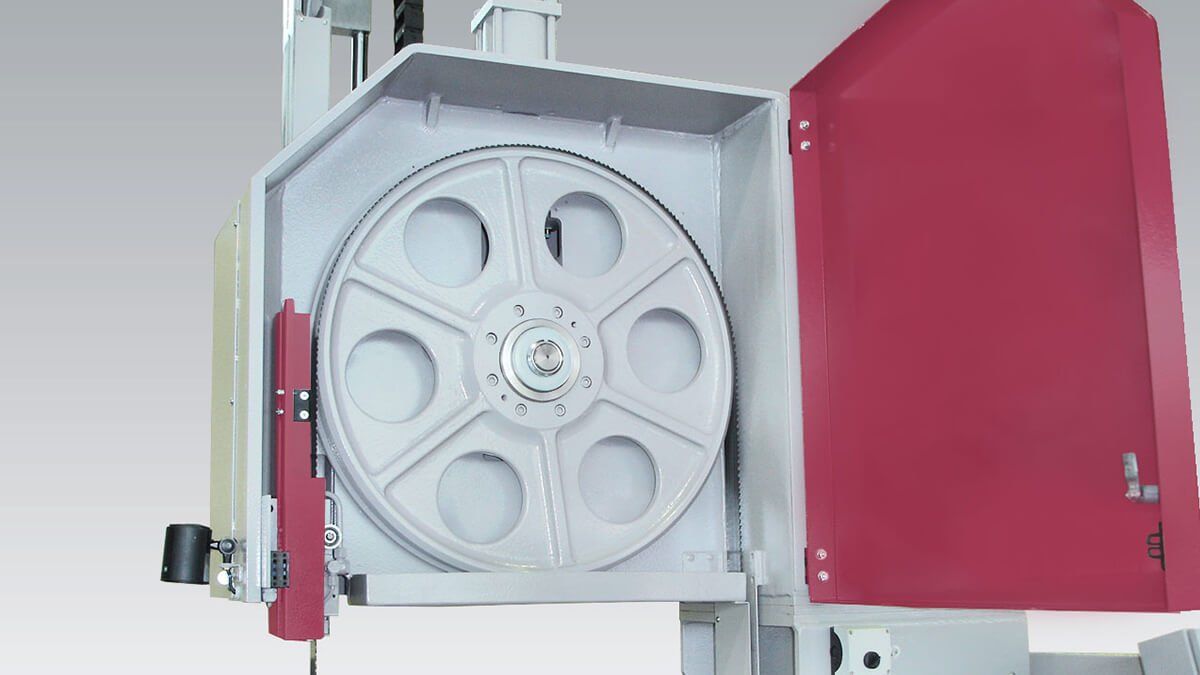

  • Behringer vertical bandsaw LPS60-2 band wheel made of vibration damping cast iron

    Band guiding parts made of grey cast iron

  • Behringer vertical bandsaw LPS60-2 provides saw cuts with high precision

    Unsurpassed precise plate saw

  • Behringer vertical bandsaw LPS60-2 band guide close to the cutting edge

    Precise band guides and effective chip cleaning

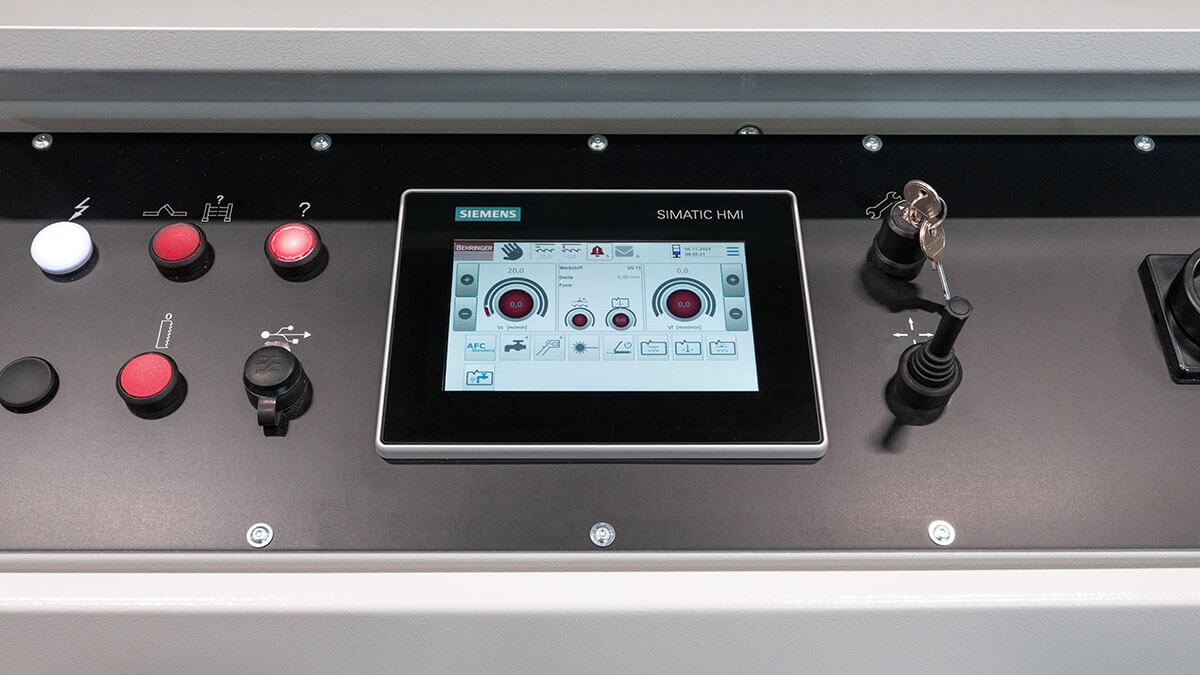

  • Behringer vertical bandsaw LPS60-2 with intuitive PLC control

    Intelligent control

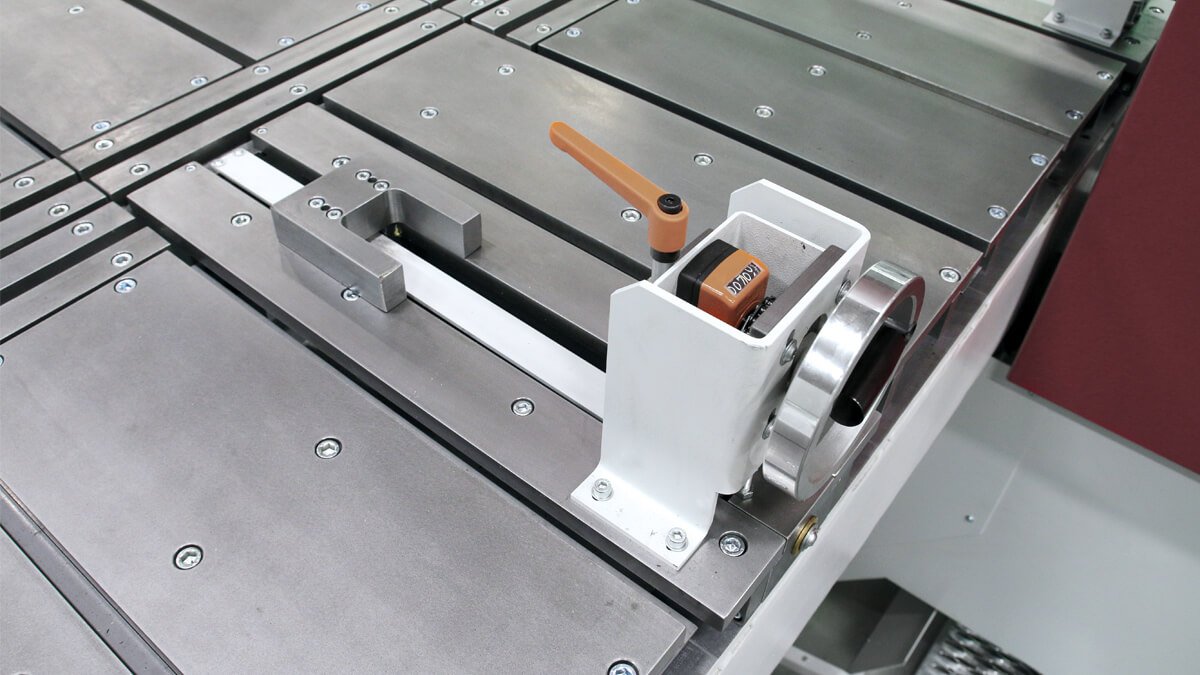

  • Behringer vertical bandsaw LPS60-2 application-specific table variants

    Application-specific table variants

Features of the vertical bandsaw LPS60-2

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Unsurpassed precision and cutting performance
    The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame. In comparison to plate and block bandsaw machines from other manufacturers, the force for the saw feed is applied directly beneath the cutting point, which results in feed movements that are considerably more accurate.

  • Application-specific table versions
    LPS vertical bandsaws can be adapted to suit your exact requirements. The material support table has a modular construction and can be equipped with a variety of different options with a spacing pattern of 250 mm.

  • Servo Feed System
    The Behringer servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades. The rapid response of the servo feeding system to the sensors for the cutting pressure regulation systematically prevents overloading and premature wear of the bandsaw blades.

  • A carefully designed machine concept
    The longitudinal cutting method is a typical feature of the Behringer plate saws. The workpiece remains firmly clamped to the material table while the saw unit moves.

  • Quick bandsaw blade change
    Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

Individual Configuration

The block saw LPS60-2 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical data vertical bandsaw LPS60-2

Cutting length 79.0 in
Cutting width 26.8 in
Cutting height 23.6 in (optional higher)
Minimum cutting width 0.6 in
Minimum cutting height 0.4 in
Drive power 7.4 hp
Blade speed 56 - 394 fpm
Saw blade dimensions 228.3 x 2 x 0.05
Total power 17.4 hp
Supporting area inside table 26.8 x 79.0 in
Supporting area outside table 26.8 x 79.0 in
Length 175.2 in
Width 92.5 in
Height 120.9 in
Weight 17,900 lbs
Material support height 54.5 in
