Swing Frame Bandsaw SLB240G-HA

Simple operation and precise cuts

The swing frame band saws of the SLB series from Behringer are reliable partners for daily sawing tasks in the workshop and factory. They are suitable for cutting tubes, profiles and solid material made of metal and comparable plastics.

In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, they are ideal sawing machines for use in locksmiths, maintenance companies, blacksmiths and training workshops.

Behringer Profi Metallbandsäge SLB230DG-HA

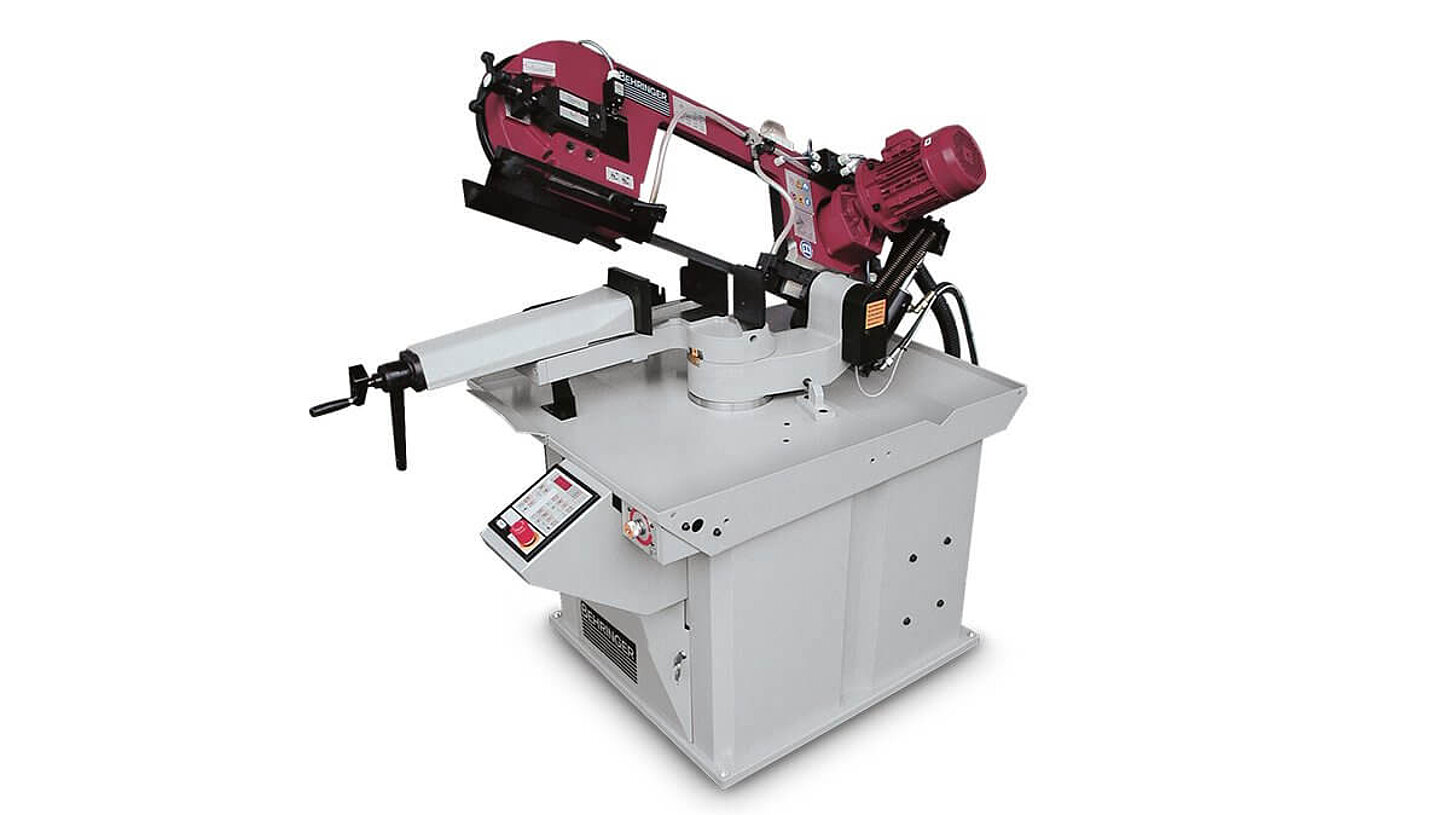

SLB240G-HA (similar to illustration)

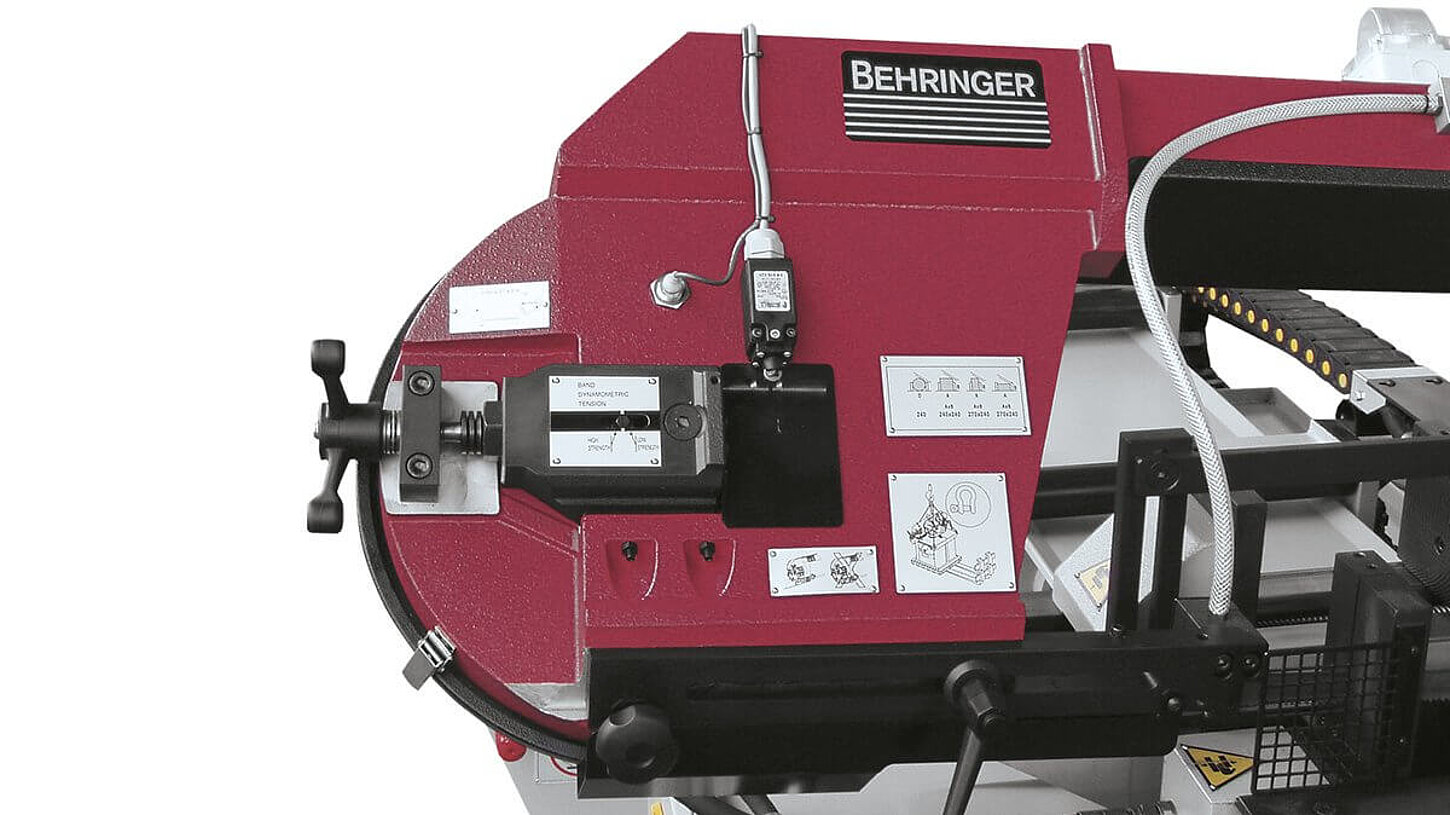

Behringer Metallbandsäge SLB240A Bandspannung mit automatischer Abschaltung bei Bandbruch

Saw Band Tensioning

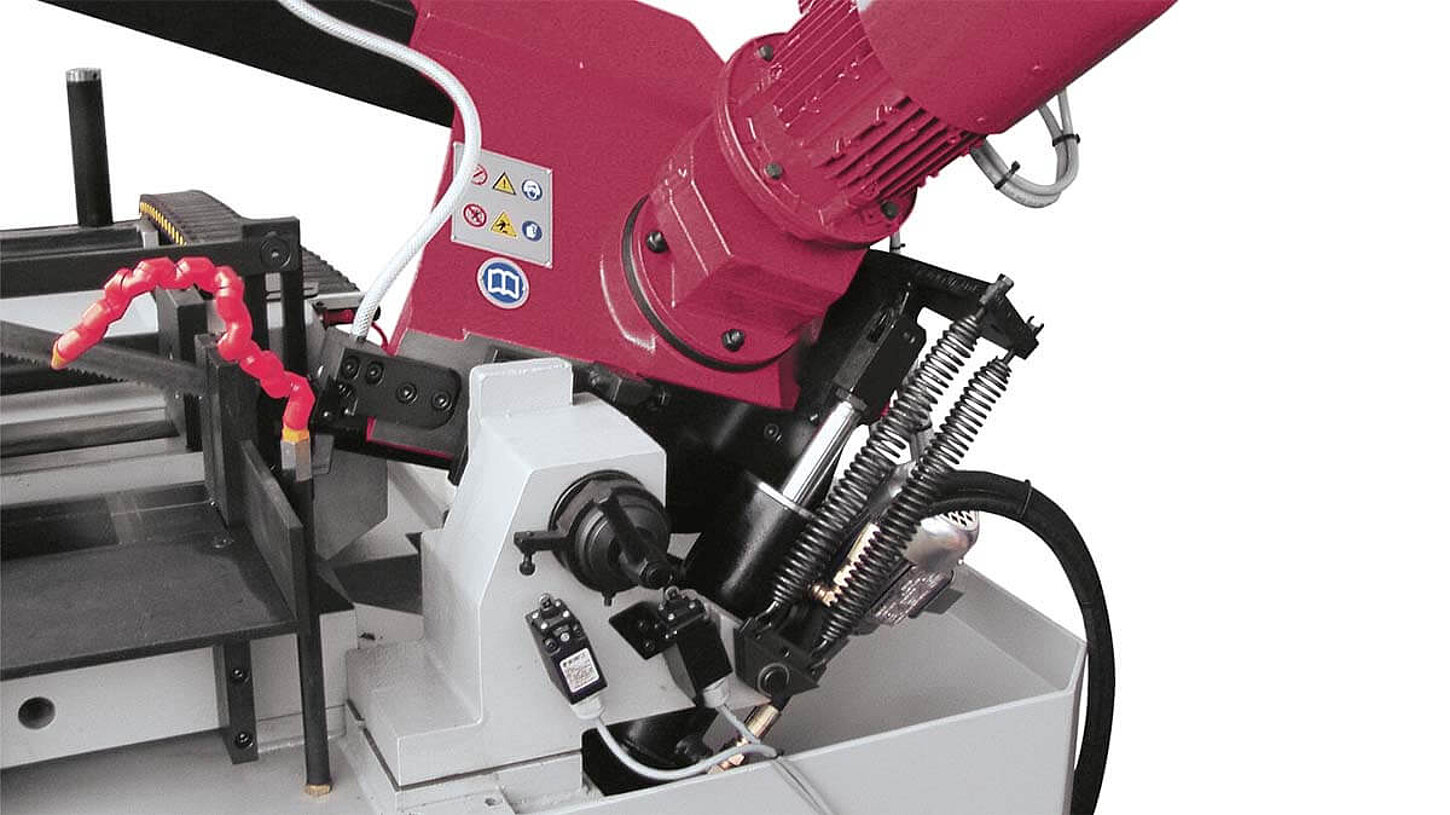

Behringer Metallbandsäge SLB240A hydraulischer Sägevorschub

Hydraulic Saw Feed

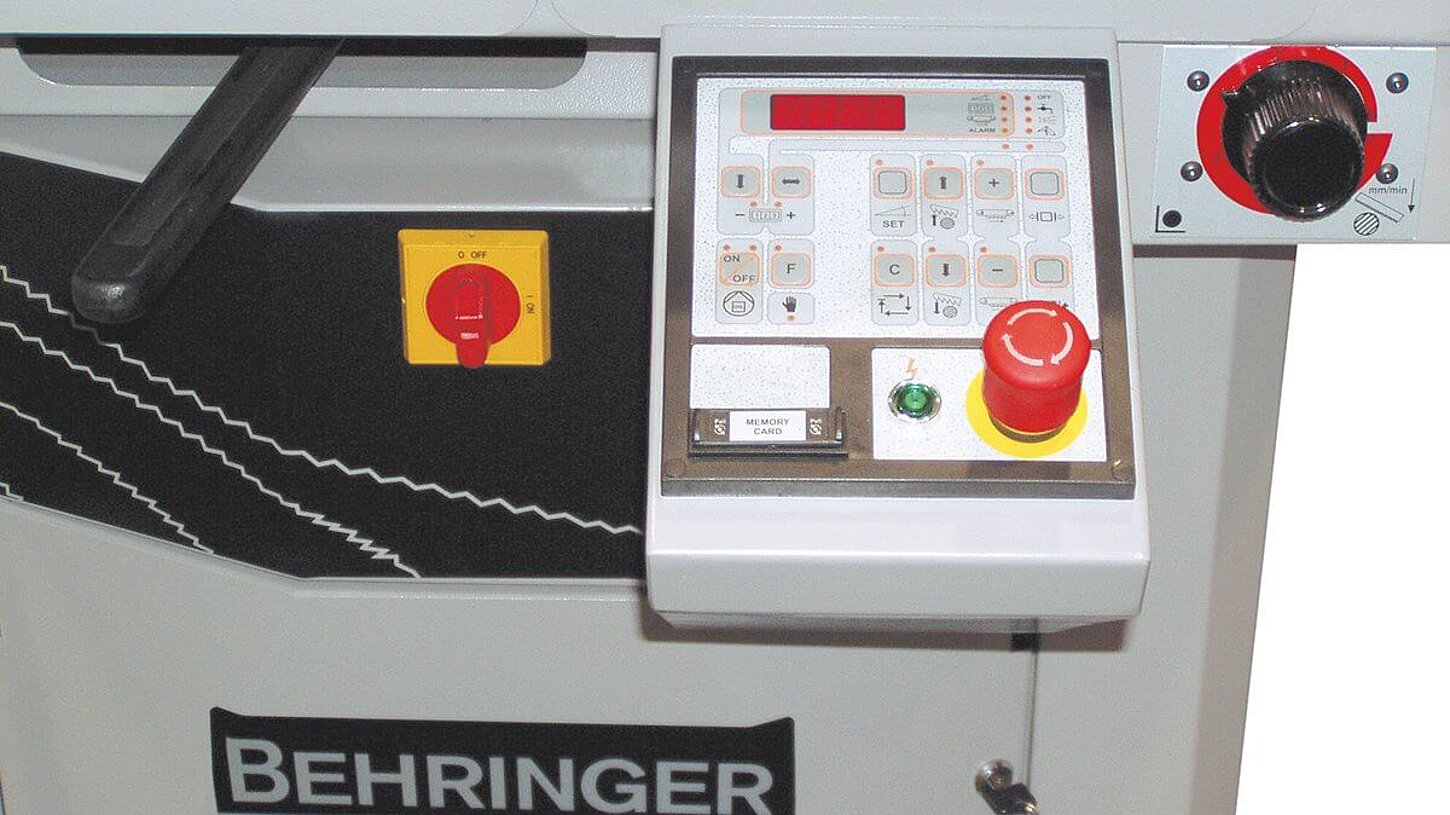

Behringer Metallbandsäge SLB230DG-HA Bedienpult

Control Panel

Behringer Micro-Sprühsystem an einer Metallbandsäge

Micro Spray System (option)

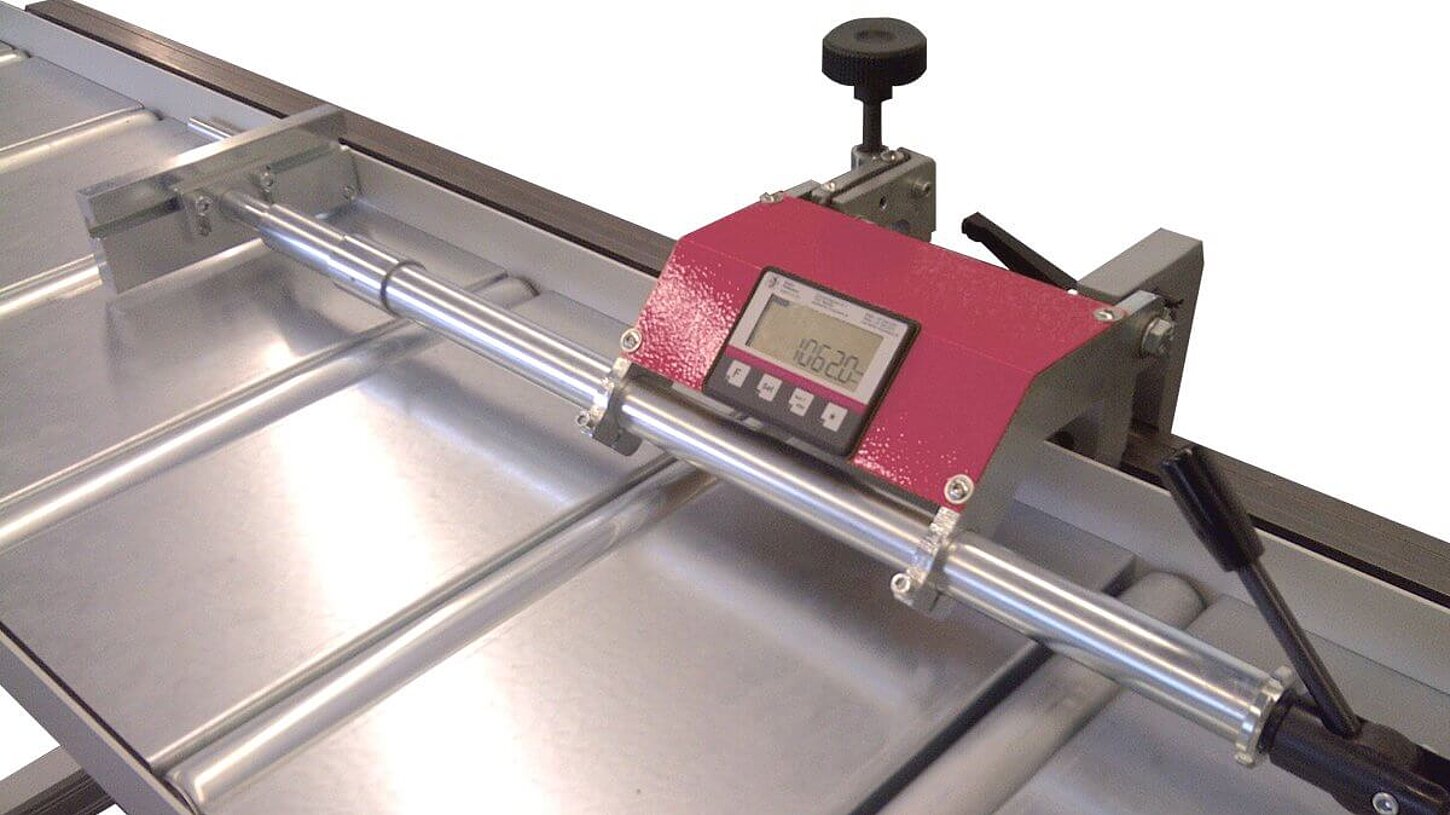

Behringer Messanschlag mit digitaler Anzeige

Measuring Unit with Digital Display (option)

Features of the SLB240G-HA

  • Miter Adjustment
    The miter angle can be adjusted to one side. The saw frame is locked by means of a quick-release clamp. The pivot point is in the area of intersection between the saw band and the datum vice - this does not change the reference line.

  • Frequency-Controlled Saw Drive
    offers maximum flexibility when sawing different material grades such as stainless steel or aluminum. The cutting speed can be adjusted infinitely variable.

  • Robust Material Vice with Quick-Clamping Device
    The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel. In semi-automatic operation, the material is then clamped using a short-stroke hydraulic cylinder.

  • Precise Band Guides
    Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

  • Standard Measuring Stop
    with millimeter scale up to 600 mm

  • Semi-Automatic Sawing Cycle
    After inserting the material, all it takes is a push of a button and the machine performs an automatic sawing cycle: clamp the material, saw, unclamp, lift the saw frame.

  • Hydraulic Saw Feed
    The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

  • Coolant System
    The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

  • Saw Band Tensioning
    The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

  • Material Handling from a Single Source
    The swing frame bandsaw machines of the SLB series can be perfectly tailored to your application with roller conveyors and measuring devices.

Individual Configuration

The SLB240G-HA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data SLB240G-HA

Cutting range 90° round 10.2 in
Cutting range 90° flat 14.6 in x 10.2 in

45° Miter right round 10.2 in
45° Miter right flat 10.2 in x 10.2 in
45° Miter right flat 11.4 in x 4.7 in

30° Miter right round 7.1 in
30° Miter right flat 7.1 in x 7.1 in
30° Miter right flat 7.5 in x 3.5 in

Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 in x 0.3 in
Drive power 1.5 hp
Blade speed 53 - 393 fpm
Saw blade dimensions 129.9 x 1-1/16" x 0.035 in
Length 63.0 in
Width 29.9 in
Height 74.8 in
Weight 1,140 lbs
Material support height 37.8 in
