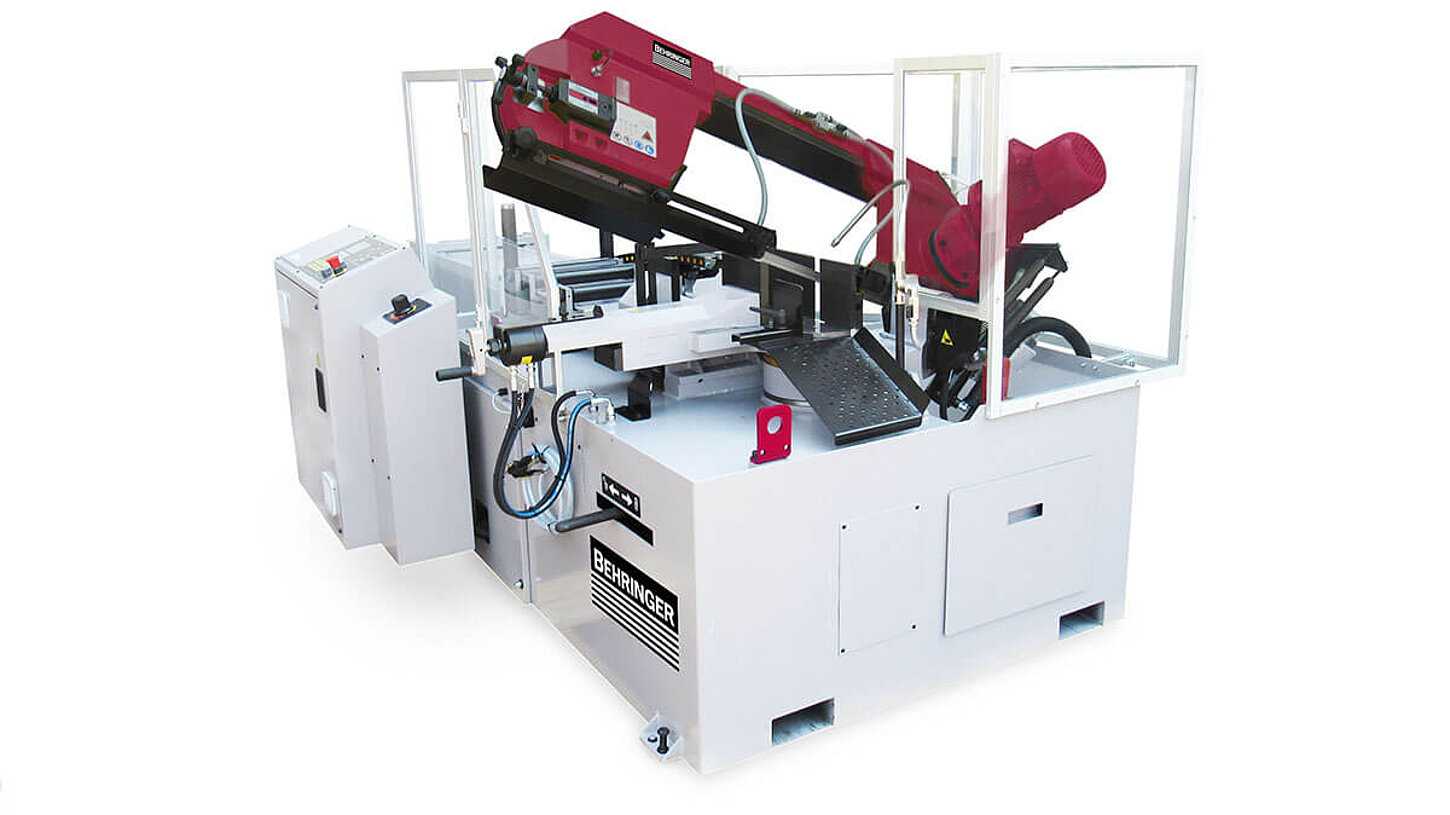

Automatic Bandsaw with Miter Device SLB240AG

Simple operation and precise serial cuts for professional use

The SLB240AG from Behringer is a fully automatic bandsaw with miter device designed for easy operation and maximum reliability. It is ideally suited for single and serial cuts of pipes, profiles and solid materials made of metal and comparable plastics. At the same time, it impresses with its precision and smooth running.

In addition to its extensive basic equipment, the automatic bandsaw offers an attractive price/performance ratio. The small footprint makes it the ideal sawing machine in metalworking stores.

  • Automatic bandsaw SLB240AG

  • Materialzange und Gehrungseinrichtung

  • Behringer automatic bandsaw SLB240A band tension with automatic switch-off in case of band breakage

    Saw Band Tensioning

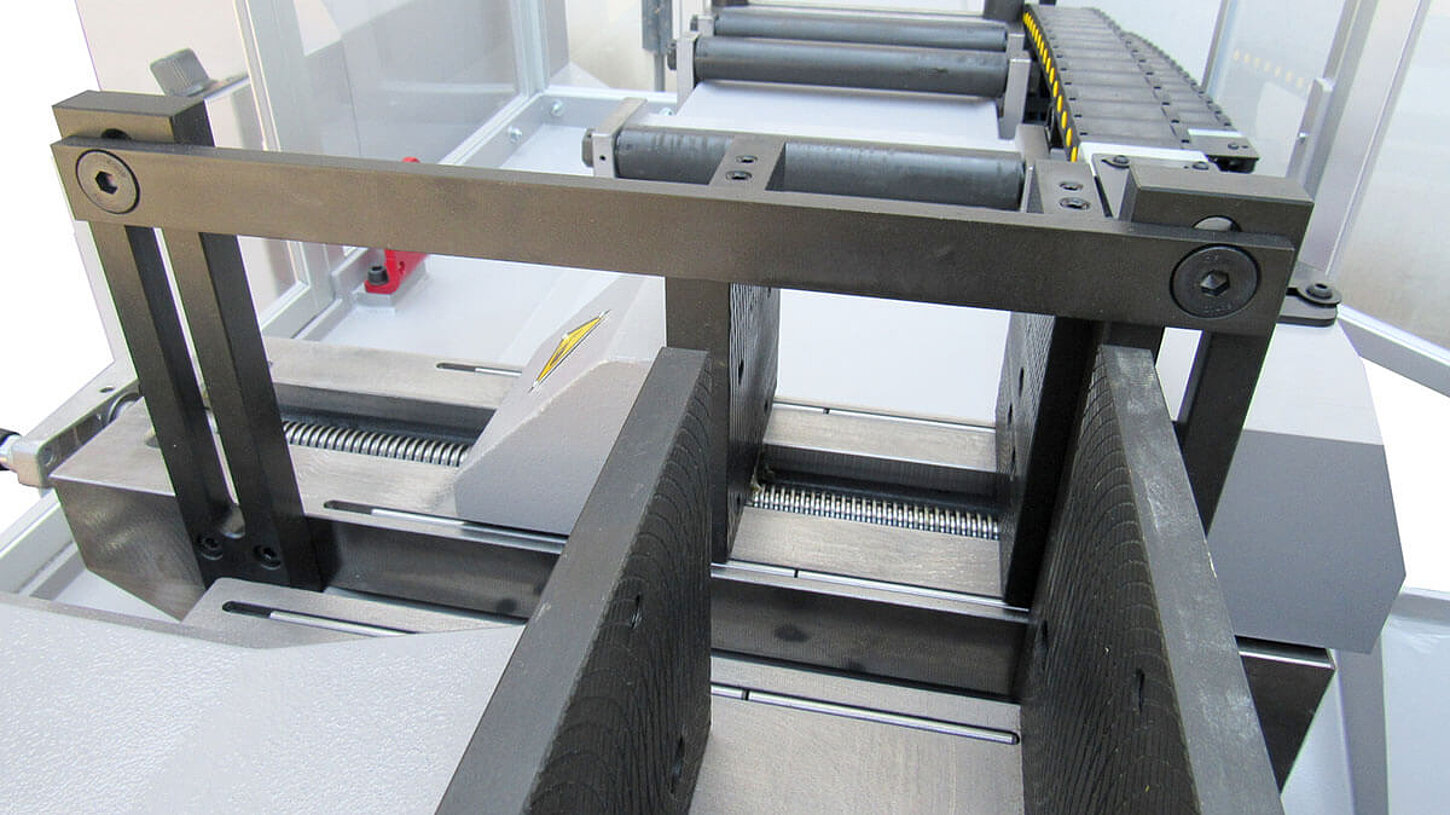

  • Material feeding gripper

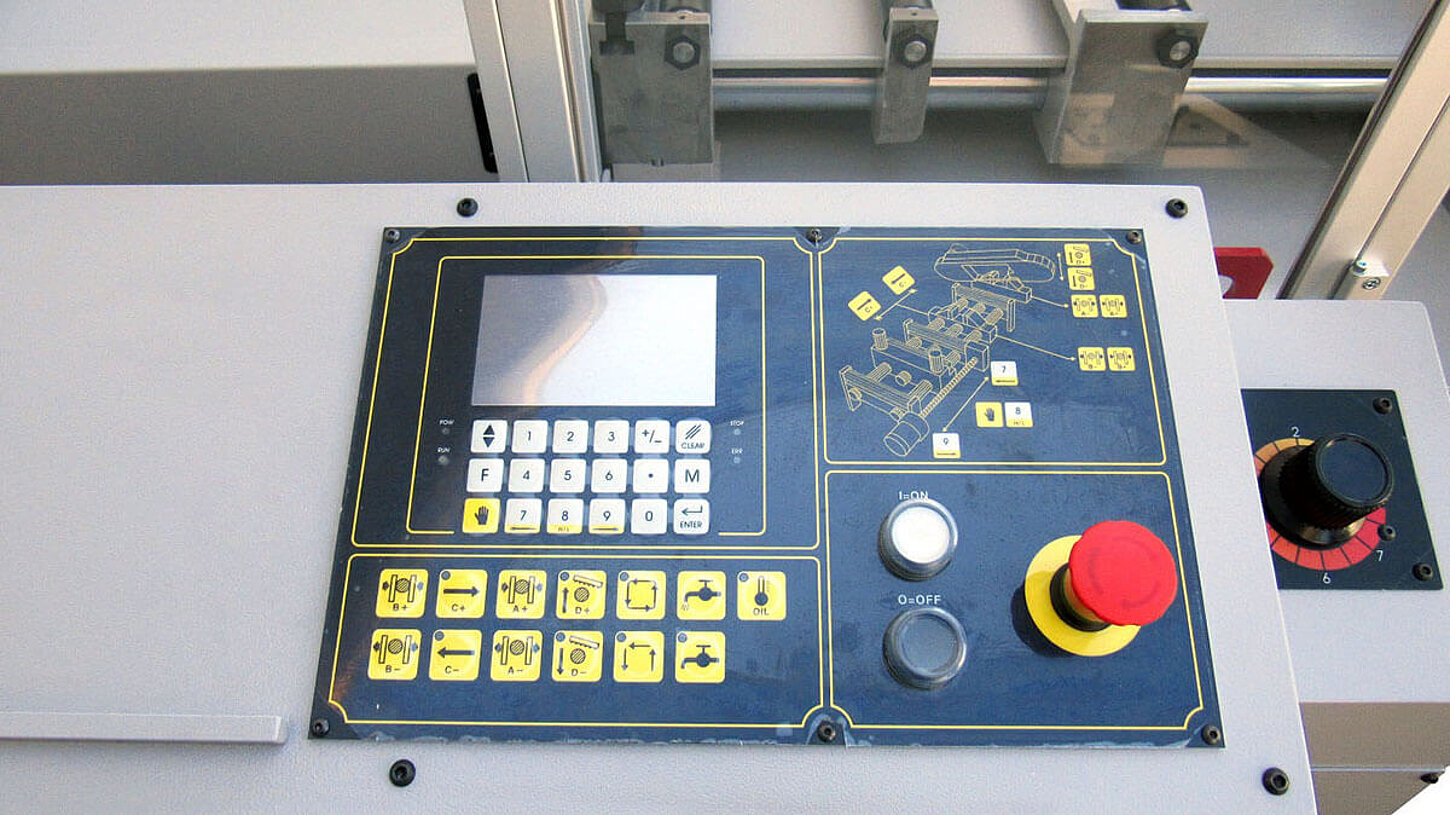

  • Control Panel

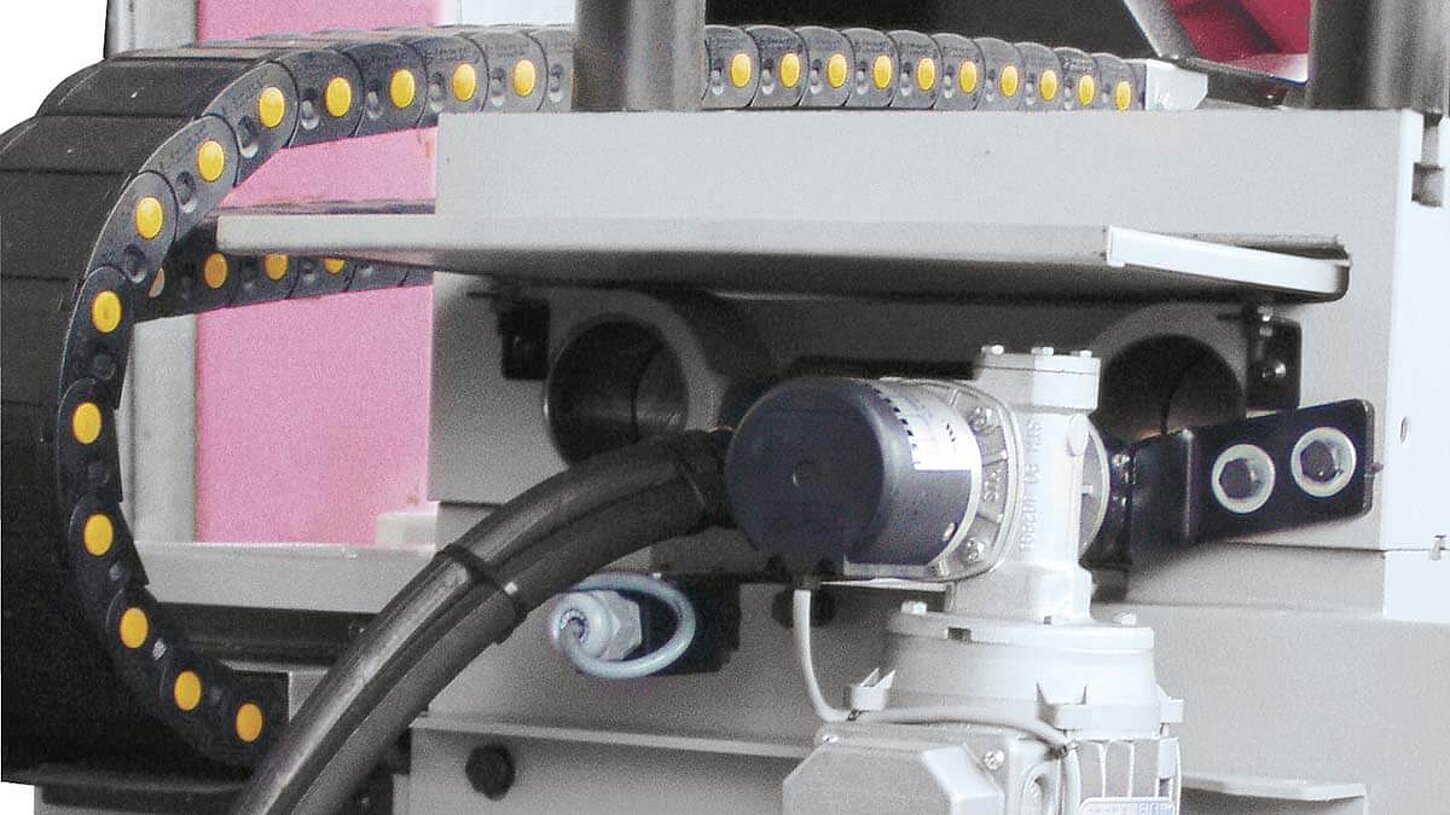

  • Behringer automatic bandsaw SLB240A feeding gripper

    Automatic Material Feed

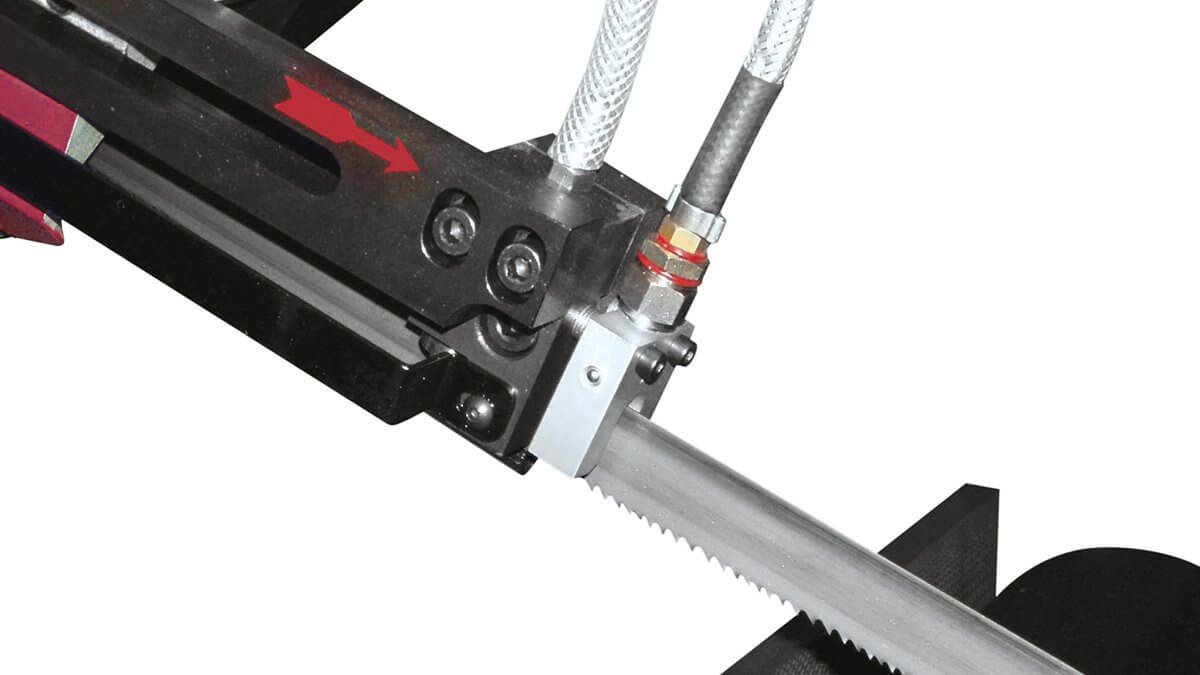

  • Behringer bandsaw with micro-spray system

    Micro Spray System (option)

Features of the automatic bandsaw SLB240AG

  • Miter Adjustment
    The miter angle can be adjusted to one side. The saw frame is locked by means of a quick-release clamp. The pivot point is in the area of intersection between the saw band and the datum vice - this does not change the reference line.

  • Automatic Material Feeding
    A hydraulically operated feeding gripper positions the material for series cuts. The cutting length is set using a stop that is positioned by an electrically driven spindle. Feed length and number of cuts can be programmed in the control. The automatic cycle is ended after the target number of cuts has been reached or when the material has ended.

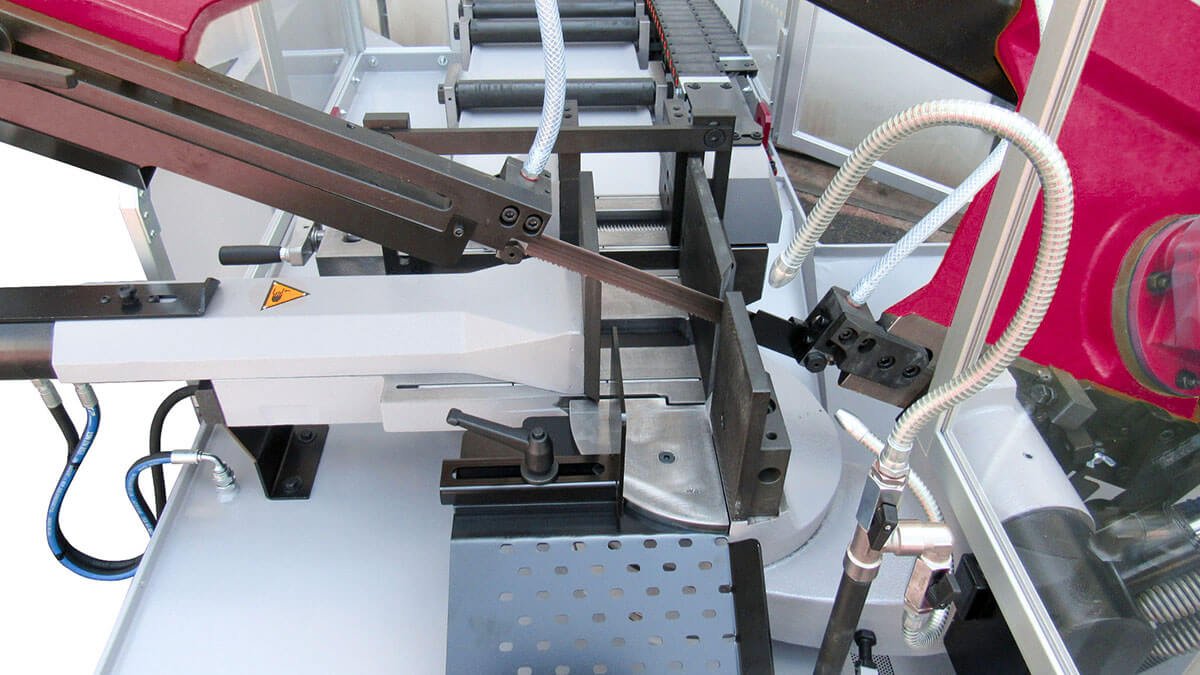

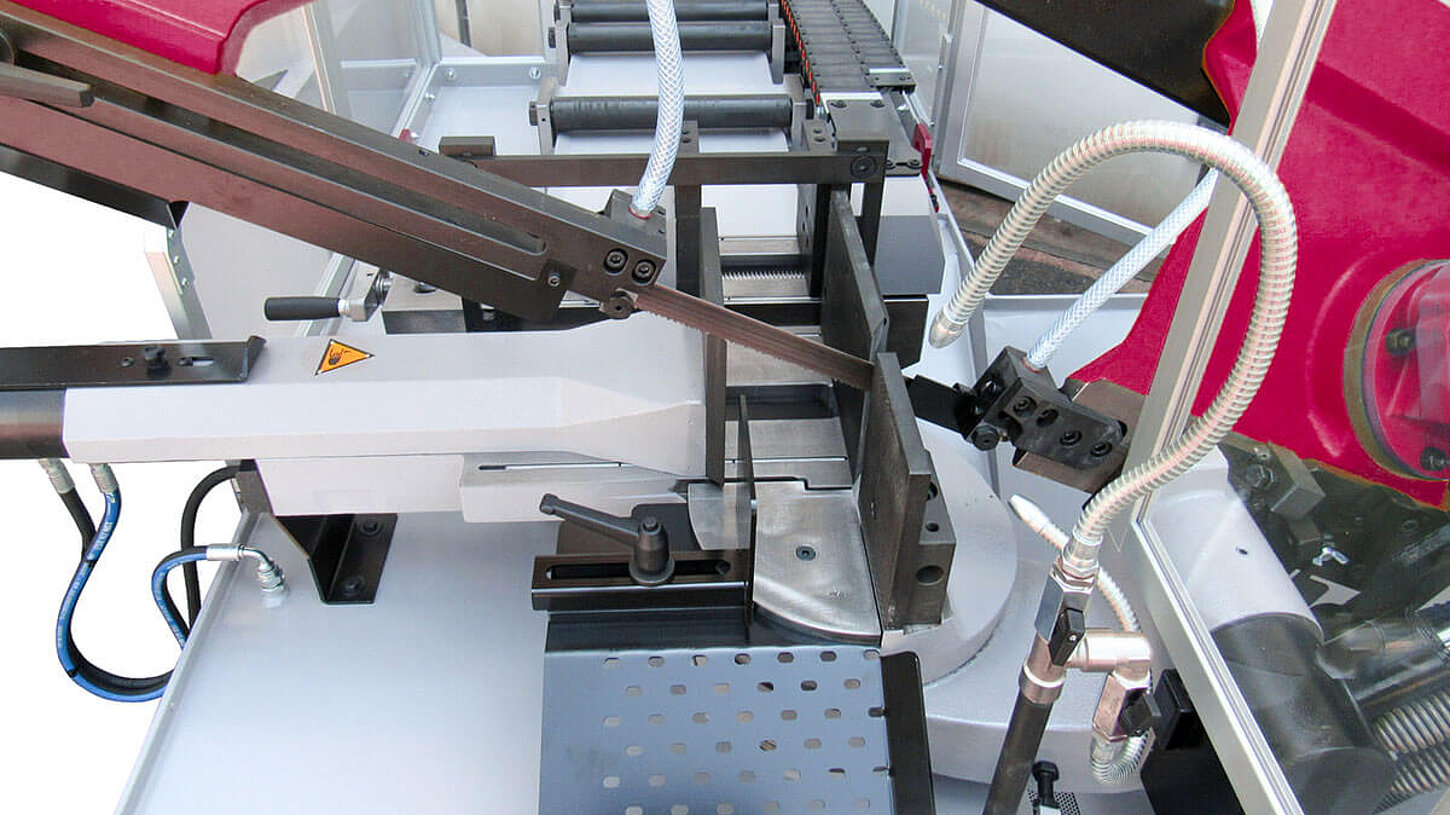

  • Robust Material Vice with Quick-Clamping Device
    The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel. In semi-automatic operation, the material is then clamped using a short-stroke hydraulic cylinder.

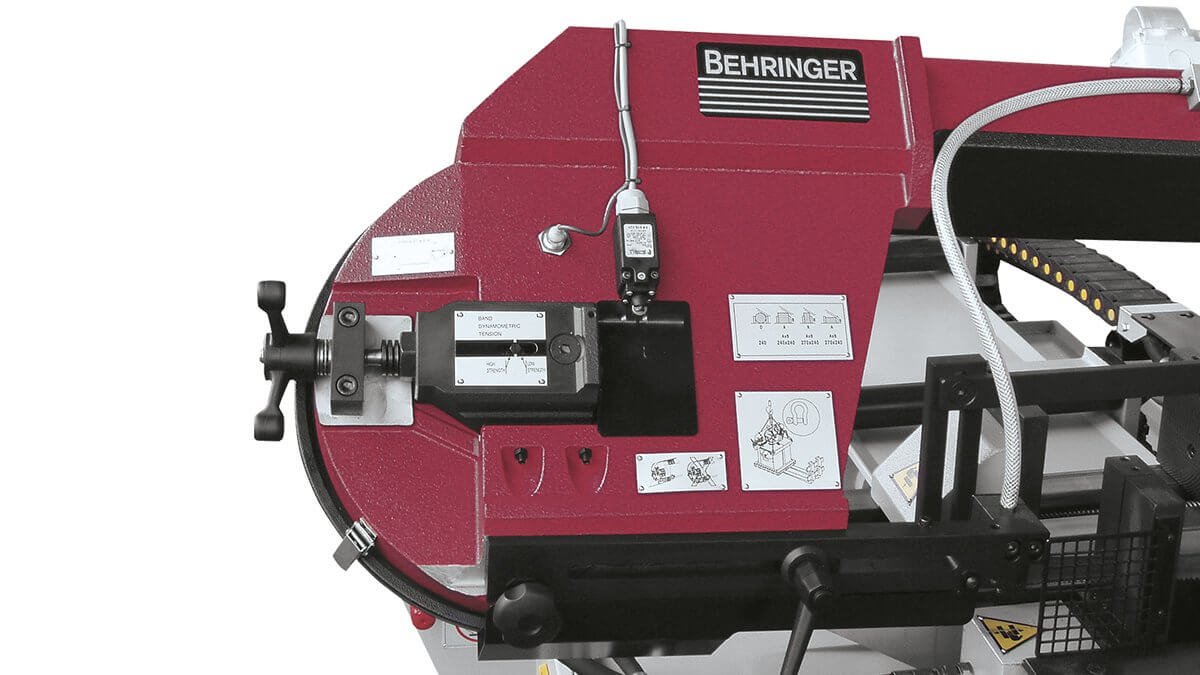

  • Saw Band Tensioning
    The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

  • NC Program Control
    Modern programmable logic controller with clear masks on the LCD display for simple and safe manual and automatic operation. It is possible to enter a maximum of 10 jobs with pre-selection of the cut length, number of pieces and the trim-cut length.

  • Frequency-Controlled Saw Drive
    offers maximum flexibility when sawing different material grades such as stainless steel or aluminum. The cutting speed can be adjusted infinitely variable.

  • Hydraulic Saw Feed
    The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

  • Precise Band Guides
    Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

  • Coolant System
    The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

Individual Configuration

The bandsaw SLB240AG can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical data automatic bandsaw SLB240AG

Cutting range 90° round 10.2 in
Cutting range 90° flat 12.2 in x 10.2 in
45° Miter right round 10.2 in
45° Miter right square 10.2 in x 10.2 in
45° Miter right flat 11.4 in x 4.7 in
30° Miter right round 7.1 in
30° Miter right square 7.1 in x 7.1 in
30° Miter right flat 7.5 in x 3.5 in
Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 in x 0.4 in
Feeding length single stroke 20.1 in
Drive power 2.0 hp
Blade speed 53 - 393 fpm
Saw blade dimensions 129.9 x 1-1/16" x 0.035 in
Rest piece length in automatic mode (90°) 3.2 in
Shortes cutting length 0.4 in
Saw feed hydraulic
Material feed hydraulic
Length 100.4 in
Width 72.9 in
Height 66.9 in
Weight 2,600 lbs
Material support height 33.5 in
