Swing Frame Bandsaw SLB240A

Simple operation and precise cuts

The swing frame band saws of the SLB series from Behringer are reliable partners for daily sawing tasks in the workshop and factory. They are suitable for cutting tubes, profiles and solid material made of metal and comparable plastics.

In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, they are ideal sawing machines for use in locksmiths, maintenance companies, blacksmiths and training workshops.

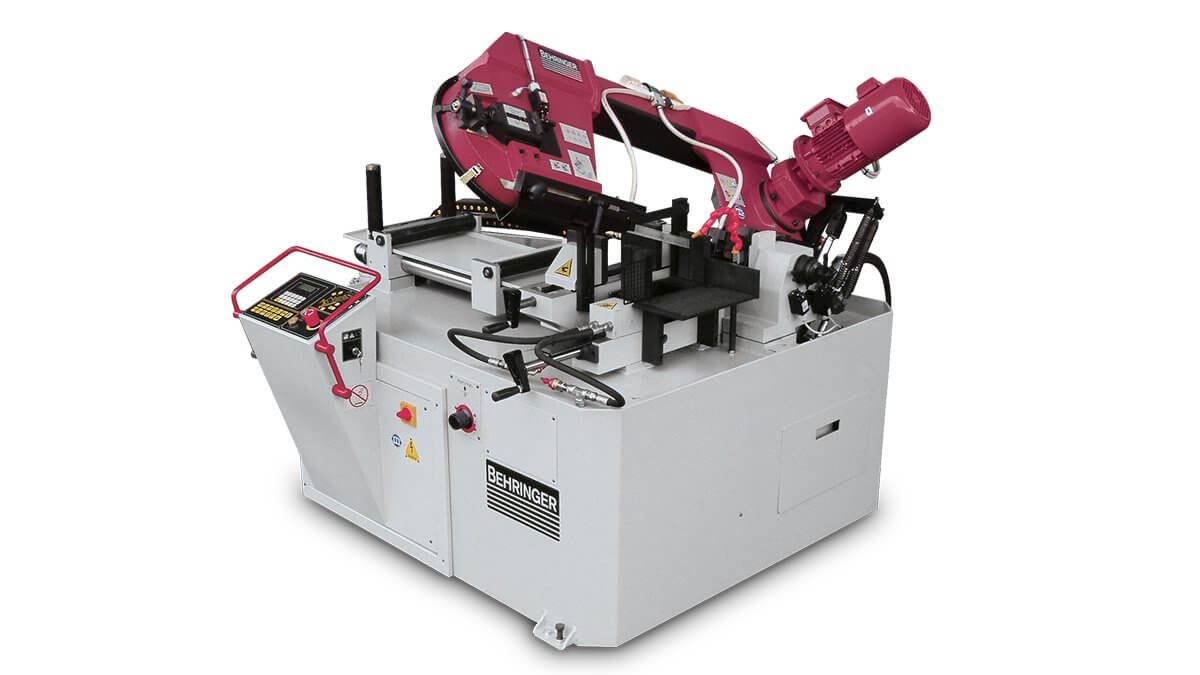

Behringer Profi Metallbandsägeautomat SLB240A

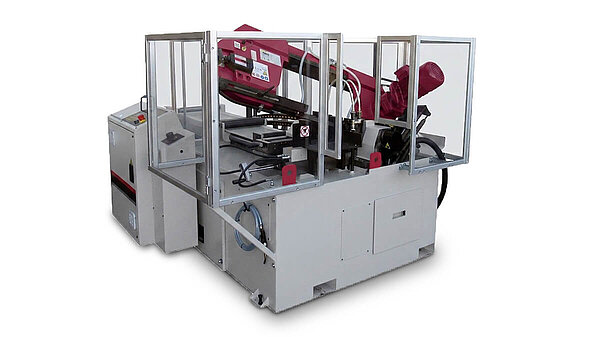

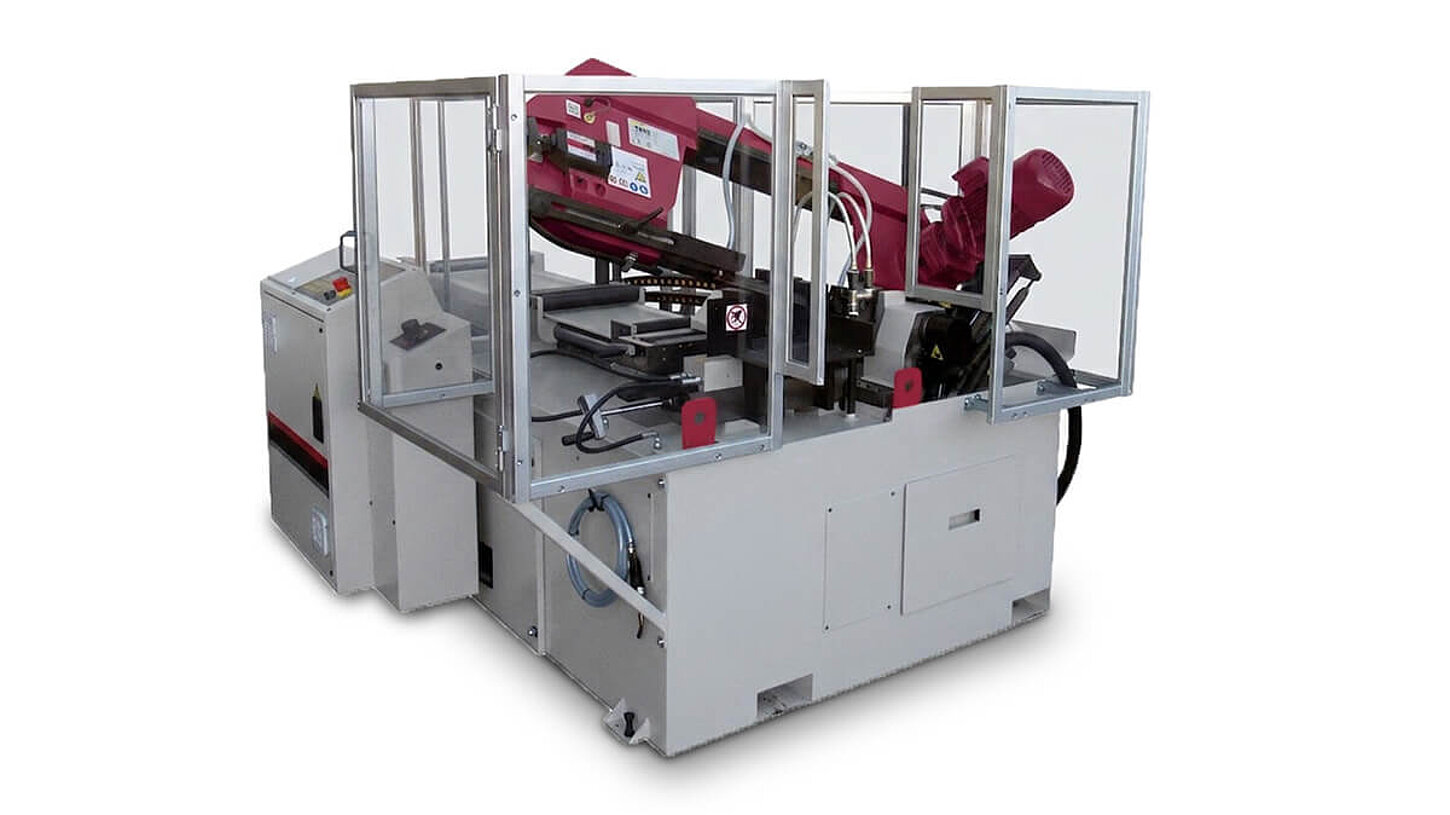

SLB240A

Behringer Metallbandsäge SLB240A Bandspannung mit automatischer Abschaltung bei Bandbruch

Saw Band Tensioning

Behringer Metallbandsäge SLB240A hydraulischer Sägevorschub

Hydraulic Saw Feed

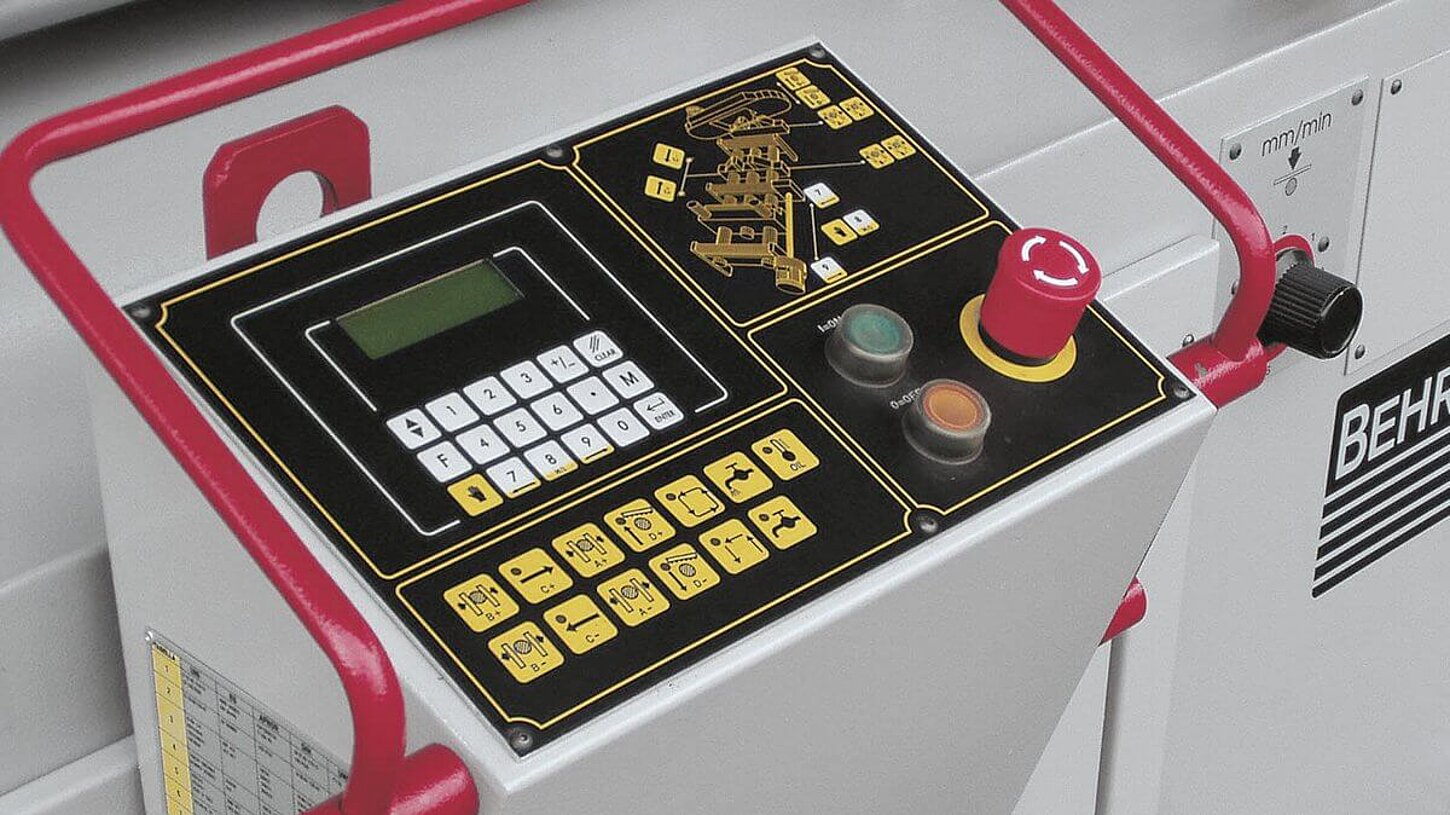

Behringer Metallbandsäge SLB240A Bedienpult

Control Panel

Behringer Metallbandsäge SLB240A Nachschubgreifer

Automatic Material Feed

Behringer Micro-Sprühsystem an einer Metallbandsäge

Micro Spray System (option)

Features of the SLB240A

  • Automatic Material Feeding
    A hydraulically operated feeding gripper positions the material for series cuts. The cutting length is set using a stop that is positioned by an electrically driven spindle. Feed length and number of cuts can be programmed in the control. The automatic cycle is ended after the target number of cuts has been reached or when the material has ended.

  • Robust Material Vice with Quick-Clamping Device
    The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel. In semi-automatic operation, the material is then clamped using a short-stroke hydraulic cylinder.

  • Precise Band Guides
    Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

  • Coolant System
    The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

  • NC Program Control
    Modern programmable logic controller with clear masks on the LCD display for simple and safe manual and automatic operation. It is possible to enter a maximum of 10 jobs with pre-selection of the cut length, number of pieces and the trim-cut length.

  • Frequency-Controlled Saw Drive
    offers maximum flexibility when sawing different material grades such as stainless steel or aluminum. The cutting speed can be adjusted infinitely variable.

  • Hydraulic Saw Feed
    The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

  • Saw Band Tensioning
    The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

Individual Configuration

The SLB240A can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data SLB240A

Cutting range 90° round 10.2 in
Cutting range 90° flat 10.6 in x 10.2 in
Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 in x 0.4 in
Feeding length single stroke 20.1 in
Drive power 1.5 hp
Blade speed 53 - 393 fpm
Saw blade dimensions 129.9 x 1-1/16" x 0.035 in
Rest piece length in automatic mode 3.2 in
Shortes cutting length 0.4 in
Saw feed hydraulic
Material feed hydraulic
Length 66.9 in
Width 70.9 in
Height 66.9 in
Weight 2,100 lbs
Material support height 33.5 in
