Swing Frame Bandsaw SLB230G

Simple operation and precise cuts

The swing frame band saws of the SLB series from Behringer are reliable partners for daily sawing tasks in the workshop and factory. They are suitable for cutting tubes, profiles and solid material made of metal and comparable plastics.

In addition to the attractive price, cutting precision, performance and reliability play the main role. Due to the simple operation and the small space requirement, they are ideal sawing machines for use in locksmiths, maintenance companies, blacksmiths and training workshops.

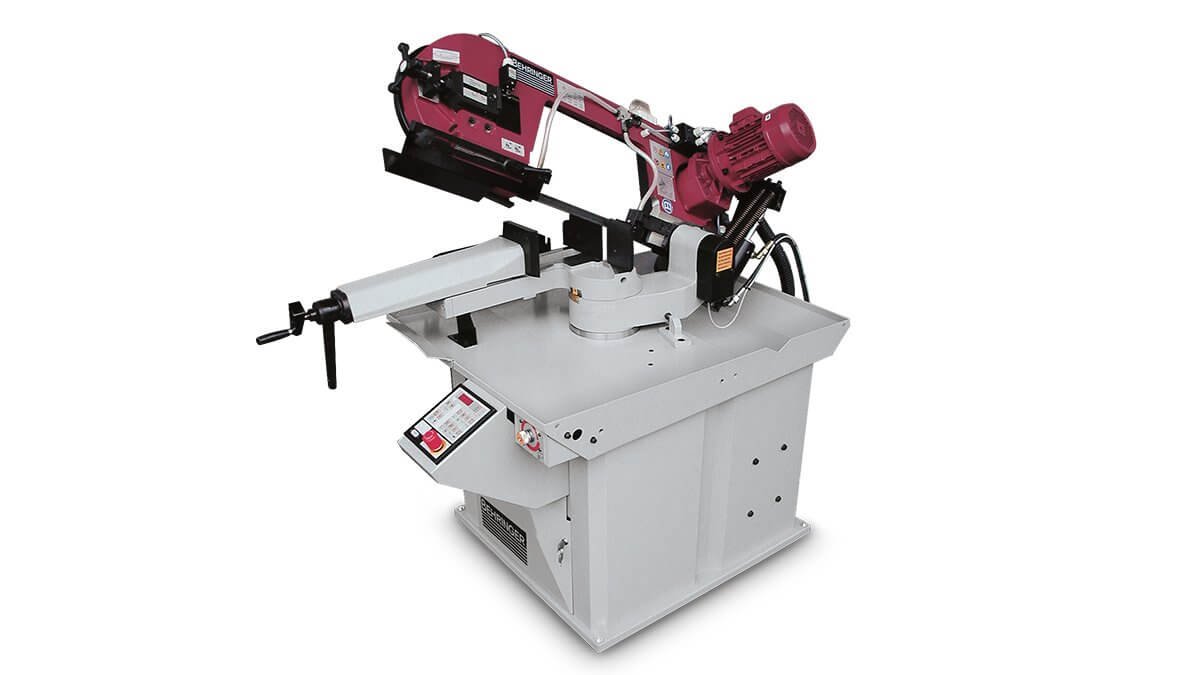

Behringer Profi Metallbandsäge SLB230G

SLB230G

Behringer Metallbandsäge SLB240A Bandspannung mit automatischer Abschaltung bei Bandbruch

Saw Band Tensioning

Behringer Metallbandsäge SLB240A hydraulischer Sägevorschub

Hydraulic Saw Feed

Behringer Metallbandsäge SLB230DG-HA Bedienpult

Control Panel

Behringer Micro-Sprühsystem an einer Metallbandsäge

Micro Spray System (option)

Behringer Messanschlag mit digitaler Anzeige

Measuring Unit with Digital Display (option)

Features of the SLB230G

  • Miter Adjustment
    The miter angle can be adjusted to one side. The saw frame is locked by means of a quick-release clamp. The pivot point is in the area of intersection between the saw band and the datum vice - this does not change the reference line.

  • Robust Material Vice
    The material is clamped using a manual vice with a quick-release lever.

  • Precise Band Guides
    Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

  • Material Handling from a Single Source
    The swing frame bandsaw machines of the SLB series can be perfectly tailored to your application with roller conveyors and measuring devices.

  • Hydraulic Saw Feed
    The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

  • Coolant System
    The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

  • Saw Band Tensioning
    The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

  • Standard Measuring Stop
    with millimeter scale up to 600 mm

Individual Configuration

The SLB230G can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data SLB230G

Cutting range 90° round 9.5 in
Cutting range 90° flat 11.0 in x 8.3 in
Cutting range 90° flat 10.2 in x 9.5 in

45° Miter right round 7.3 in
45° Miter right flat 7.1 in x 5.5 in
45° Miter right upright 6.5 in x 8.6 in

30° Miter right round 4.5 in
30° Miter right flat 4.3 in x 4.3 in

Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 in x 0.3 in
Drive power 0.94 / 1.78 hp
Blade speed 115 / 330 fpm
Saw blade dimensions 106.3 x 1-1/16" x 0.035 in
Length 63.0 in
Width 30.0 in
Height 74.8 in
Weight 800 lbs
Material support height 37.4 in
