Large Band Saw HBP1100

Effective performer for steel finishing and the steel trade

The large horizontal bandsaws with roller conveyor are the "great" allrounders from Behringer. Especially when cutting long solid materials - rolled or rough turned - or processing large pipes, these saws make for dramatic improvements in productivity. The good accessibility to all important components simplifies maintenance and servicing.

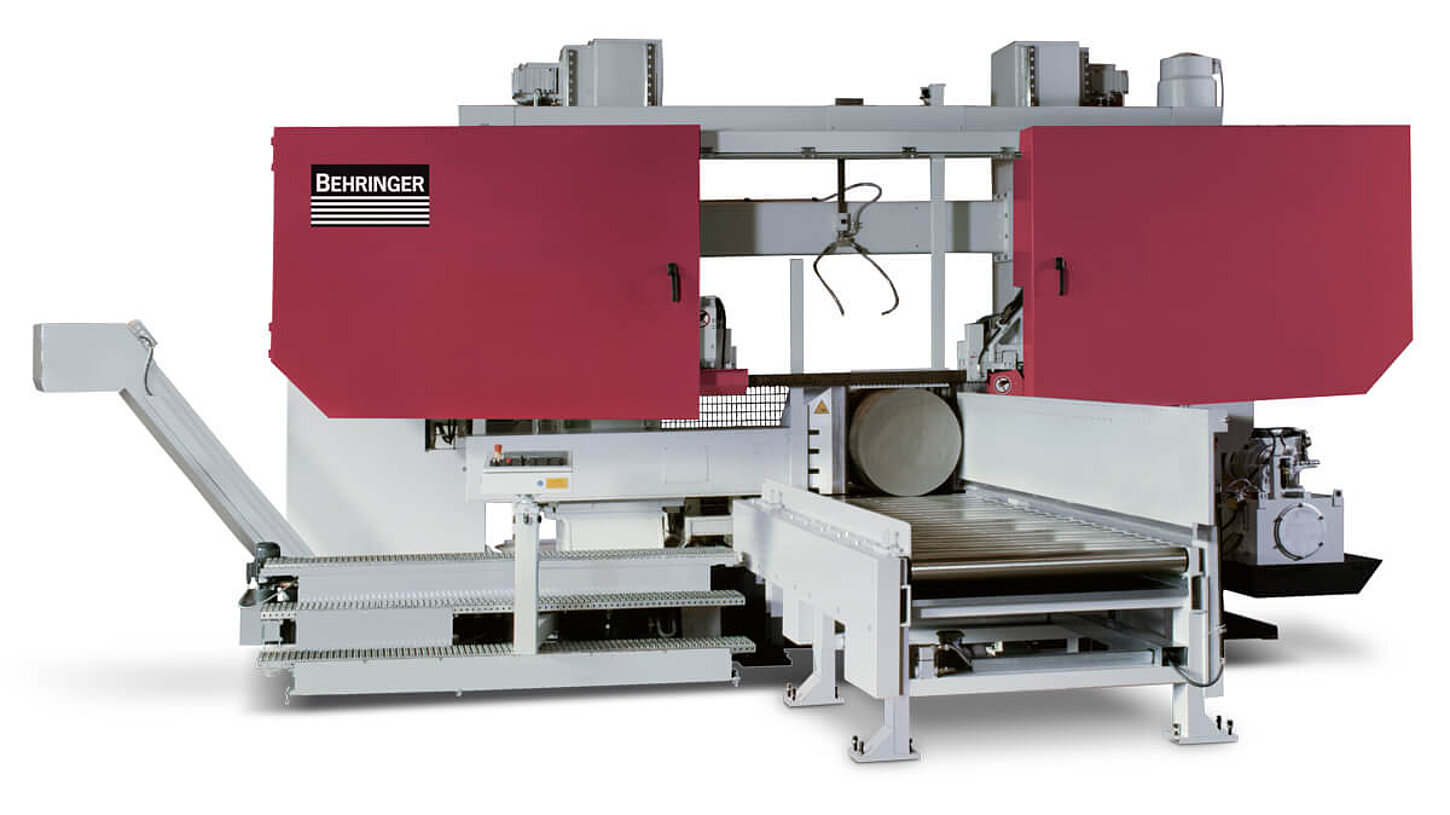

  • Behringer large band saw HBP1100

    Large band saw HBP1100 (similar illustration)

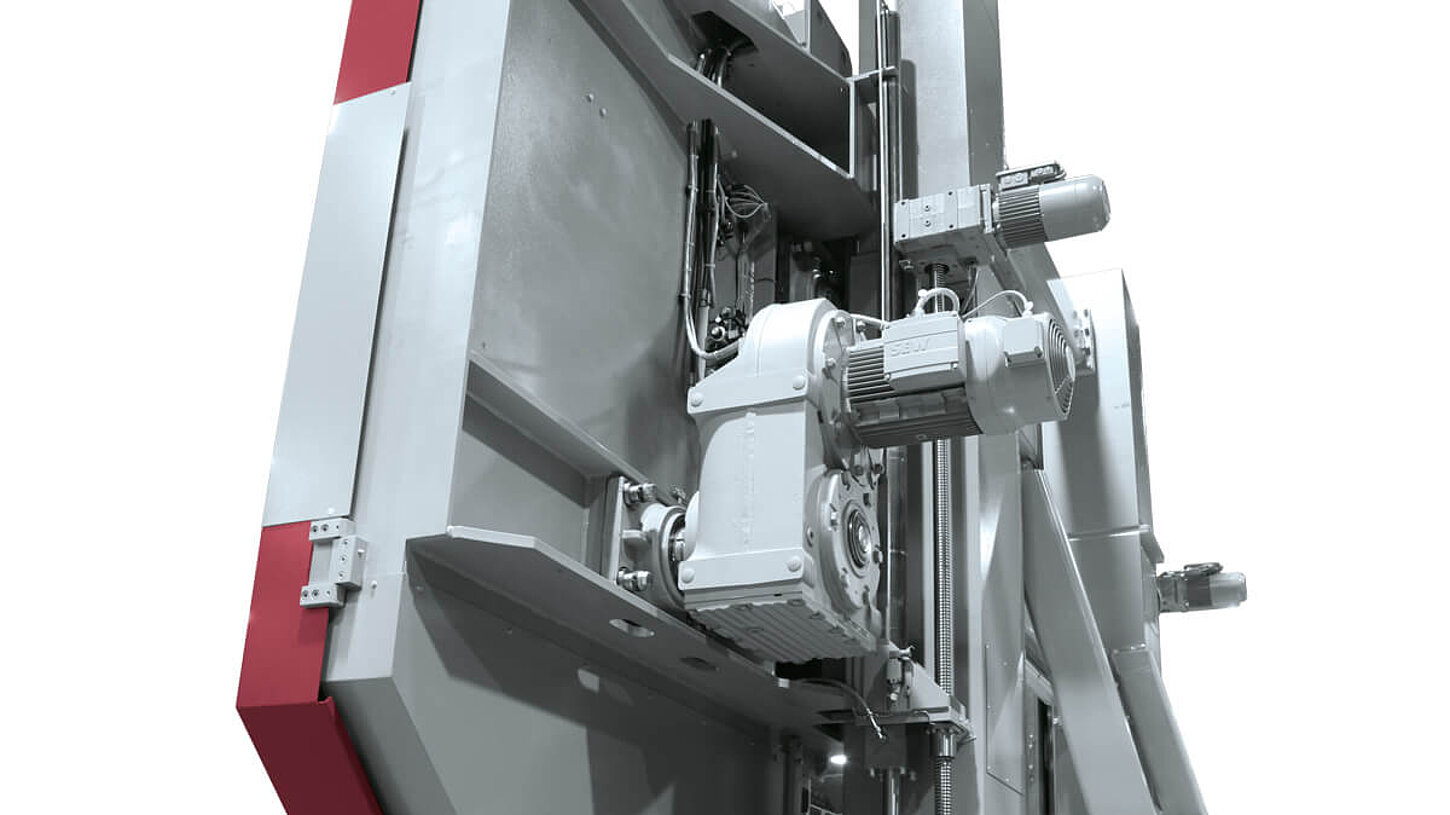

  • Behringer large band saw HBP1100 saw feed by servo motor

    Servo Feed System

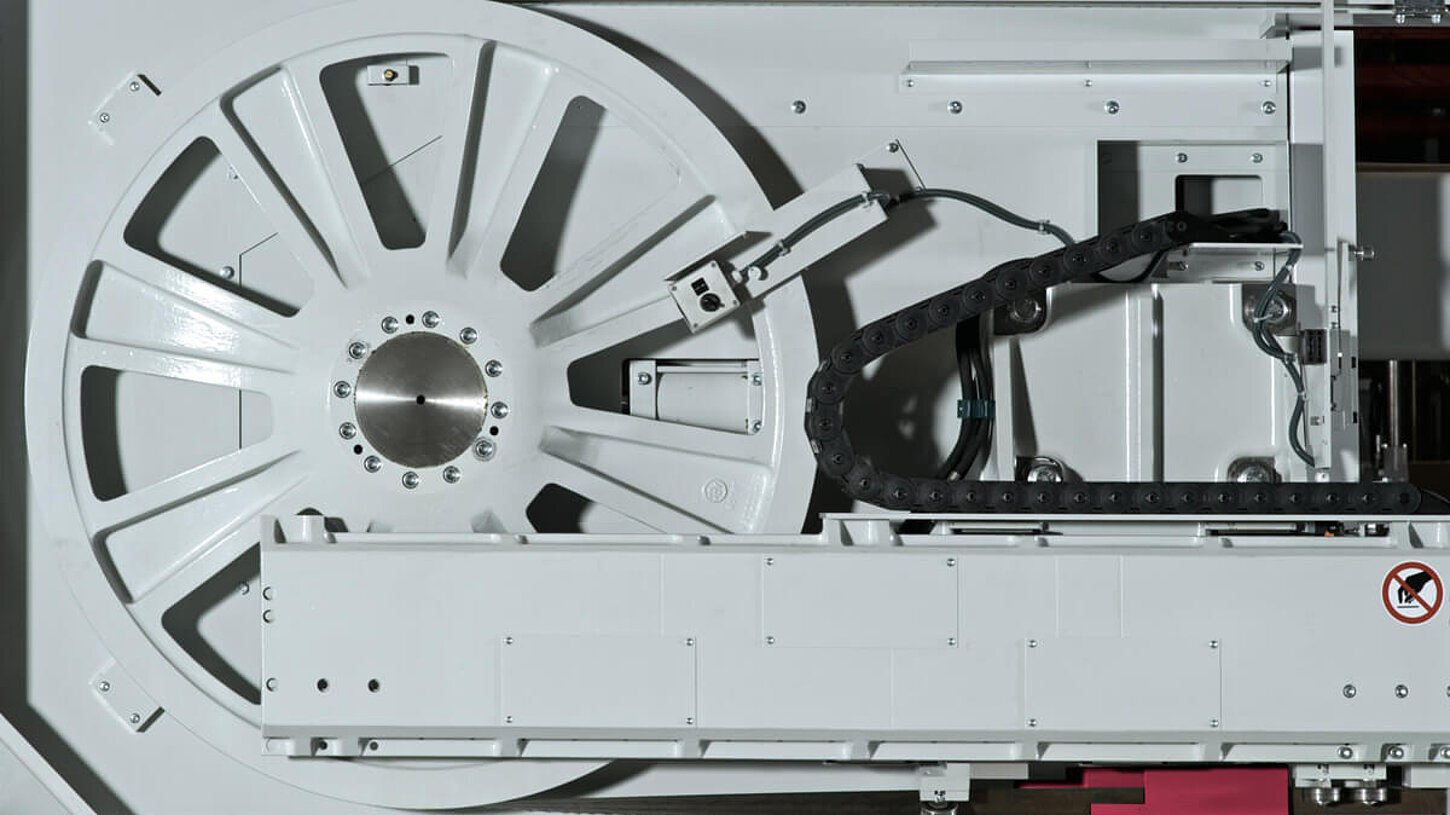

  • Behringer large band saw HBP1100 band wheel made from vibration damping grey cast iron

    Cast iron band guiding parts

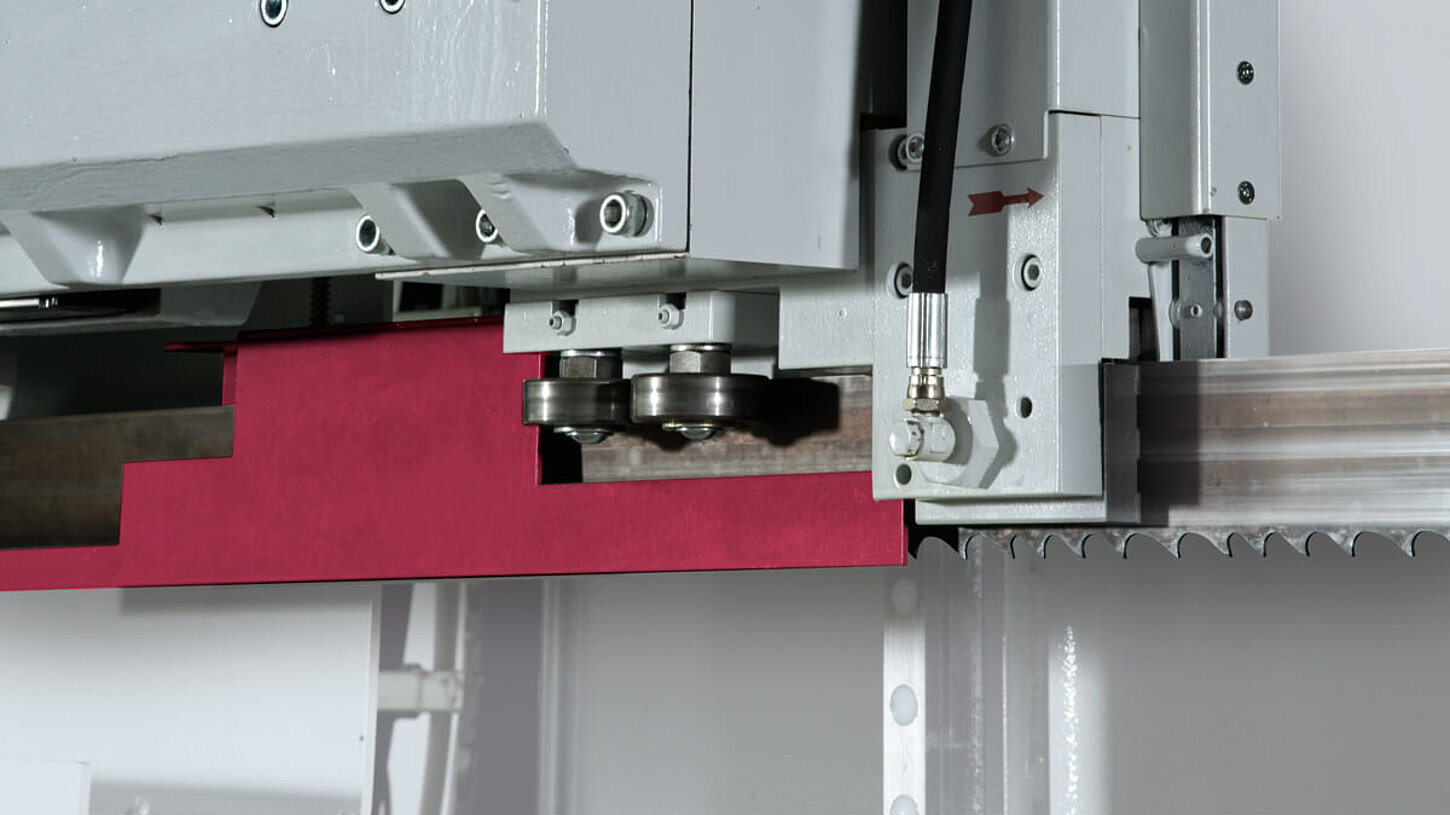

  • Behringer Großbandsäge HBP1100 Bandführung mit Dämpfungsrollen

    Carbide blade guides

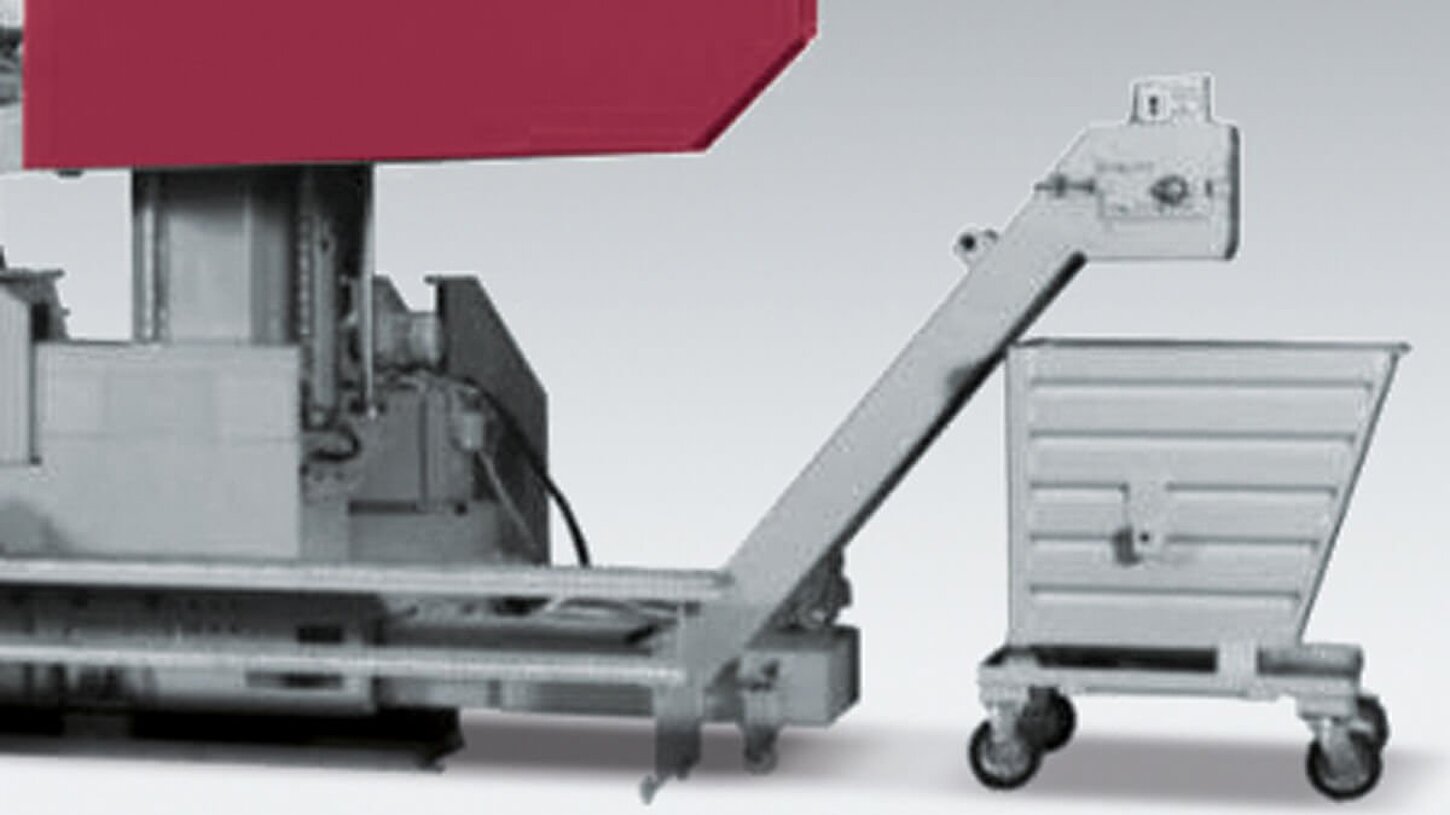

  • Behringer large band saw HBP1100 chip conveyor

    Process-reliable chip disposal by chain conveyor

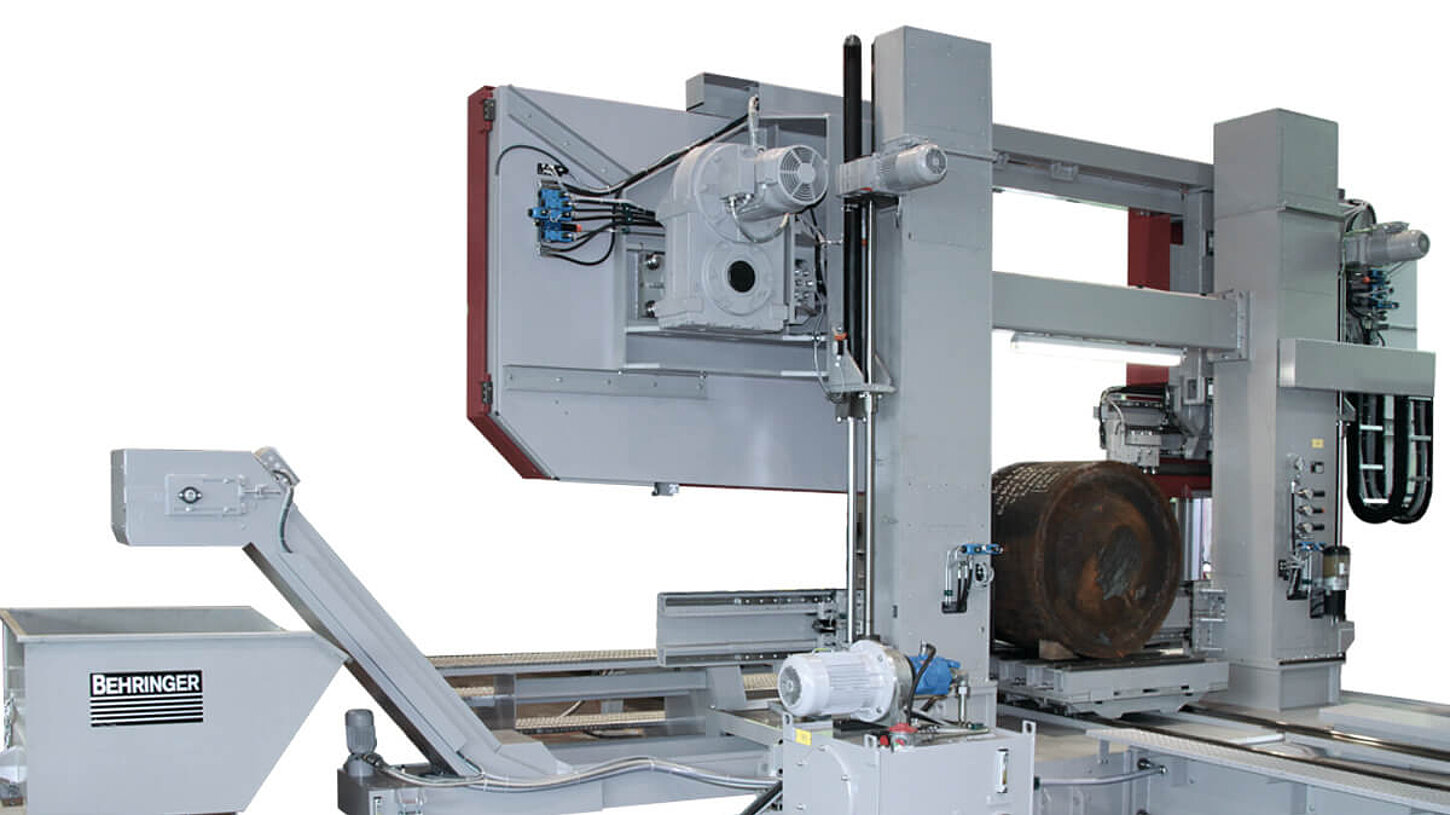

  • Behringer large band saw HBP1100 good accessibility for maintenance

    Optimum accessibility

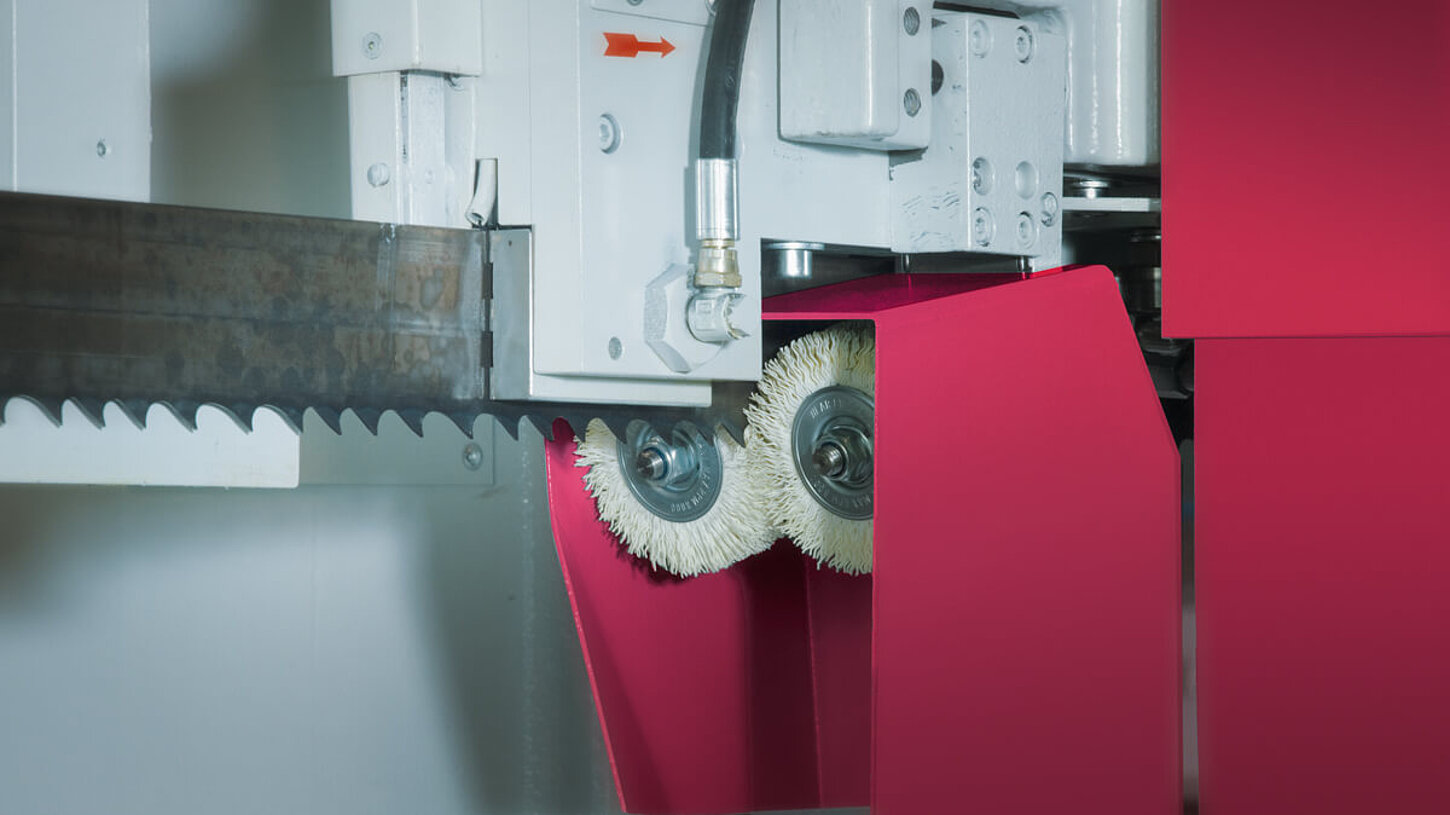

  • Behringer large band saw HBP1100 duplex chip brushes

    Duplex chip brushes

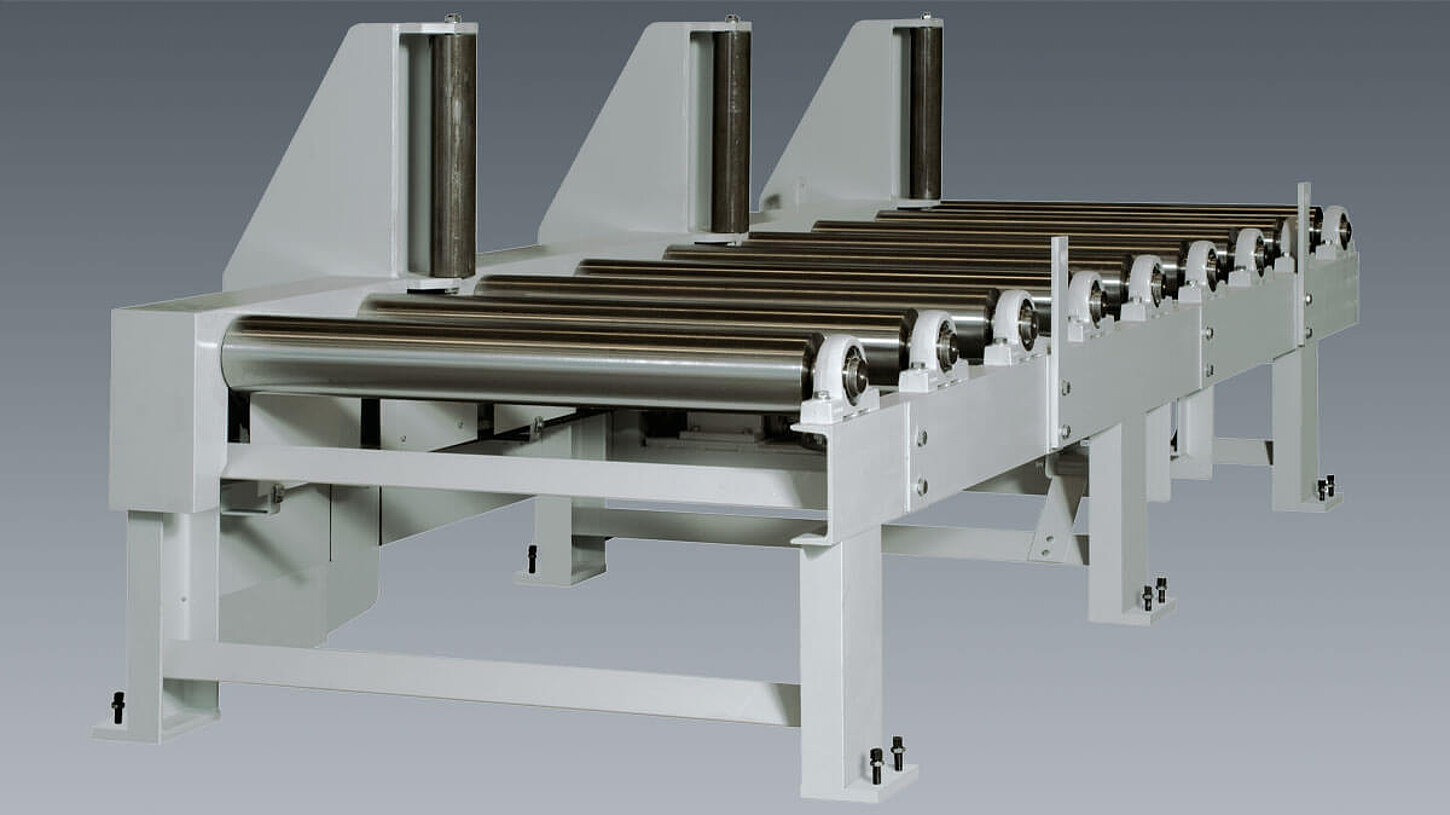

  • Behringer heavy duty roller conveyor series 148

    Heavy duty roller conveyors

Features of the large band saw HBP1100

  • Optimum accessibility
    Behringer attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs and simplifying saw blade changes.

  • Blade guiding parts in grey cast iron
    By dampening vibrations directly at the sawing point, blade-guiding elements made by Behringer help to increase tool service life. These elements are cast in-house in our own foundry, benefiting from experience handed down over decades.

  • Strong saw drive
    Behringer large band saws feature a high-torque frequency controlled saw drive with heavyduty hollow shaft gearbox. Drives with different speed ranges are available to suit particular materials.

  • Powered duplex chip brushes
    actively clean the blade and prevent chips being drawn into the cutting channel. The brushes are adjusted automatically towards the saw blade, ensuring uniform cleaning action. The benefits: Increased tool service life and lower brush wear.

  • Servo feed system with two ball screw spindles
    The BEHRINGER servo feed system with cutting pressure control produces constant chip removal, especially with slow feed movements. Large and difficult-to-cut materials are thus sawn with the highest cutting performance and at the same time longer blade life.

  • Precise guiding system in portal design
    The portal design of the machine concept is the most recognizable feature of the Behringer large band saws. Two solid columns and support bars form a balanced machine concept to address the most stringent demands. The effects of this highly stable gantry design include minimal vibrations during sawing, high loading capacity, and an extremely long service life.

  • Efficient chip removal
    The chip conveyor is located directly underneath the sawing point, which catches the saw chips and surplus cooling emulsion. The funnelshaped machine base ensures that these are efficiently carried out of the machine. The conveyor is fitted with an integrated coolant tank and can be pulled out of the machine for simple cleaning.

Individual Configuration

The large band saw HBP1100 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data large band saw HBP1100

Cutting range 90° round 43.3 in
Cutting range 90° flat 43.3 in x 43.3 in
Smallest dimension to be sawn round 4.0 in
Smallest dimension to be sawn flat 4.0 in x 2.0 in
Drive power 20.1 hp
Blade speed 26.2 - 275.6 fpm
Saw blade dimensions 509.0 x 3 x 0.063 in
Total power 40.2 hp
Length 122.1 in
Width 291.4 in
Height 151.6 in
Weight 30,900 lbs
Material support height 27.6 in
