Large Bandsaw HBP1500 GANTRY

The ultimate cutting machine for cast blocks or freeform forgings

The ultimate cutting machine for cast blocks or freeform forgings – the Behringer gantry giants. In forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines provide the ideal answer for dealing with large dimensions. They are perfect for preproduction in tool and mold making factories, helping to save valuable milling time. Loading in parallel is thus just as possible as relieving the crane capacity by placing several parts in parallel.

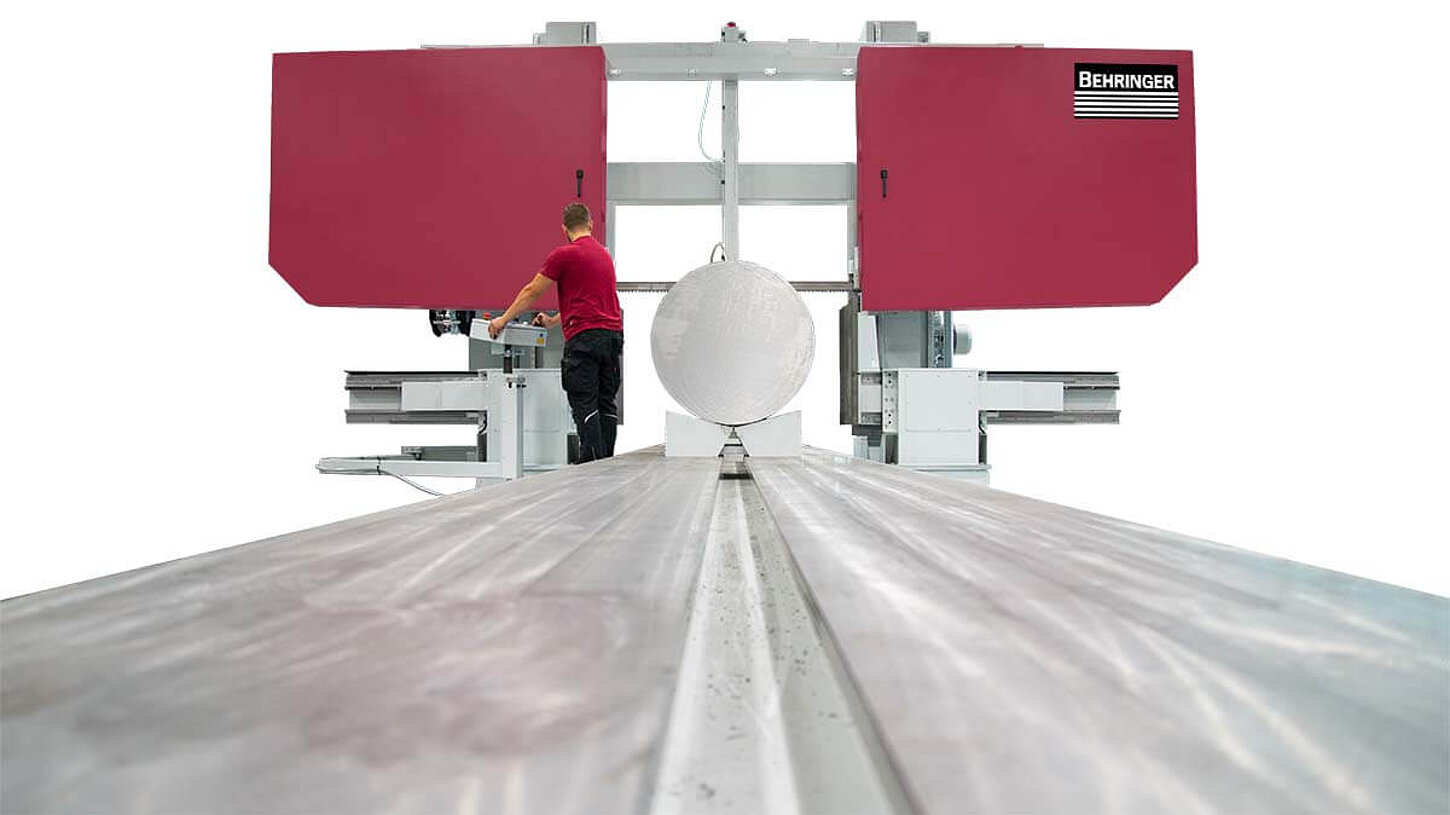

Behringer Großbandsäge HBP1500Gantry

HBP1500 GANTRY (similar illustration)

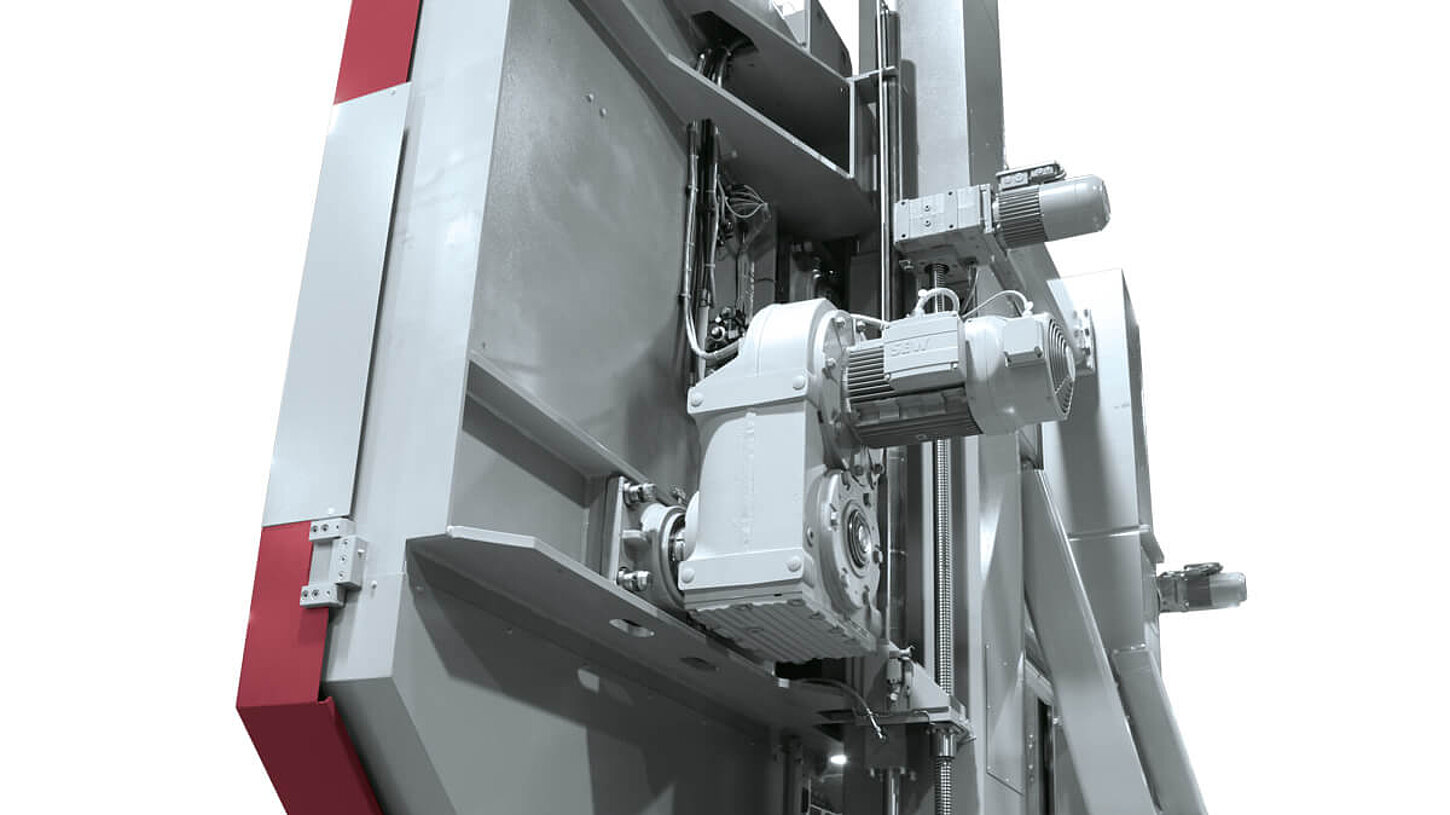

Behringer Großbandsäge HBP2100Gantry Sägevorschub durch Servomotor

Servo Feed System

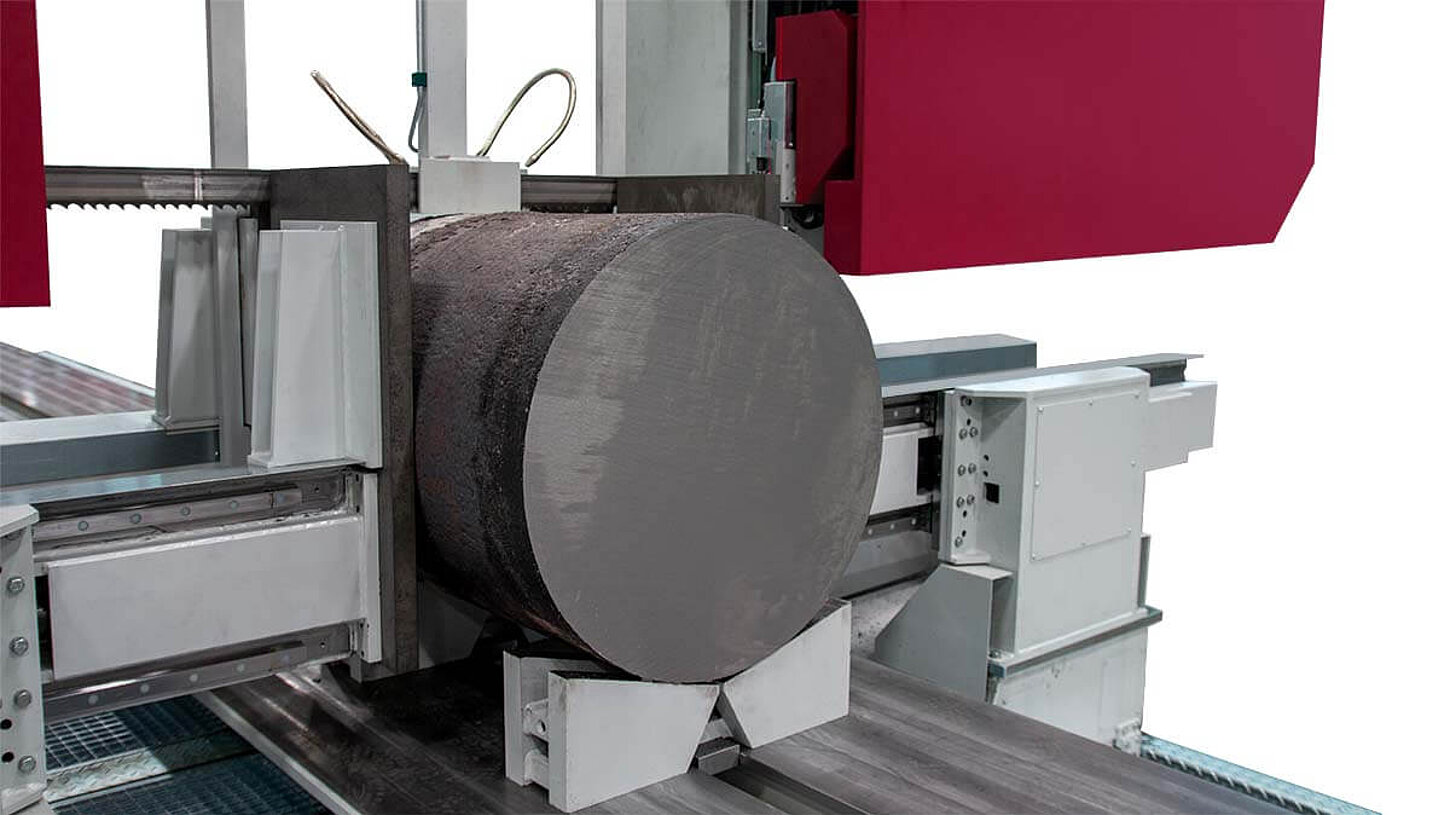

Behringer Großbandsäge HBP1500Gantry Materialspannstock

Centric material clamping

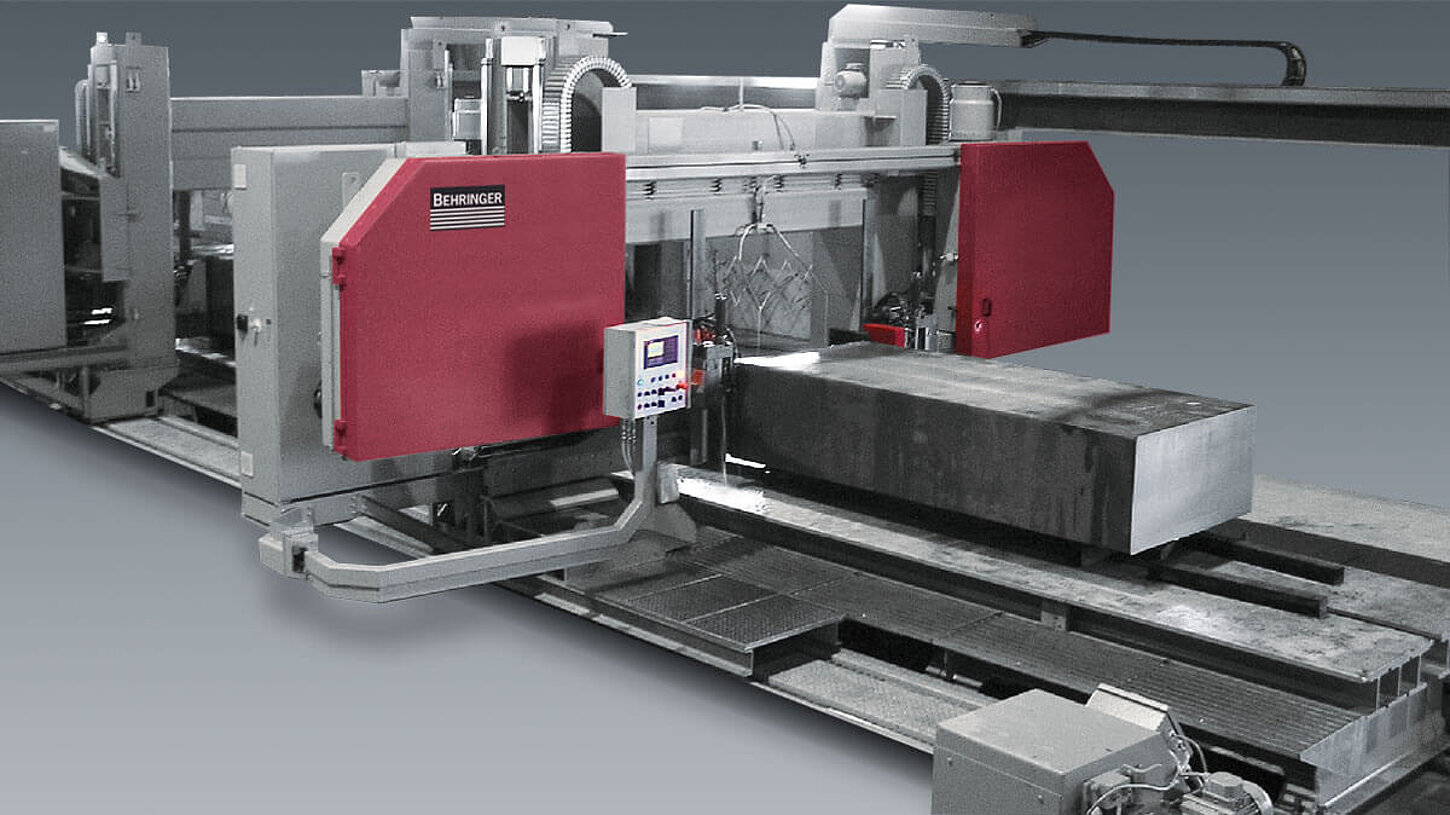

Behringer Großbandsäge in Gantry-Bauweise mit mehreren Sägeeinheiten

SPECIAL: Gantry with two or more saw units

Behringer Großbandsäge Bandlaufrad aus schwingungsdämpfendem Guss

Cast iron band guiding parts

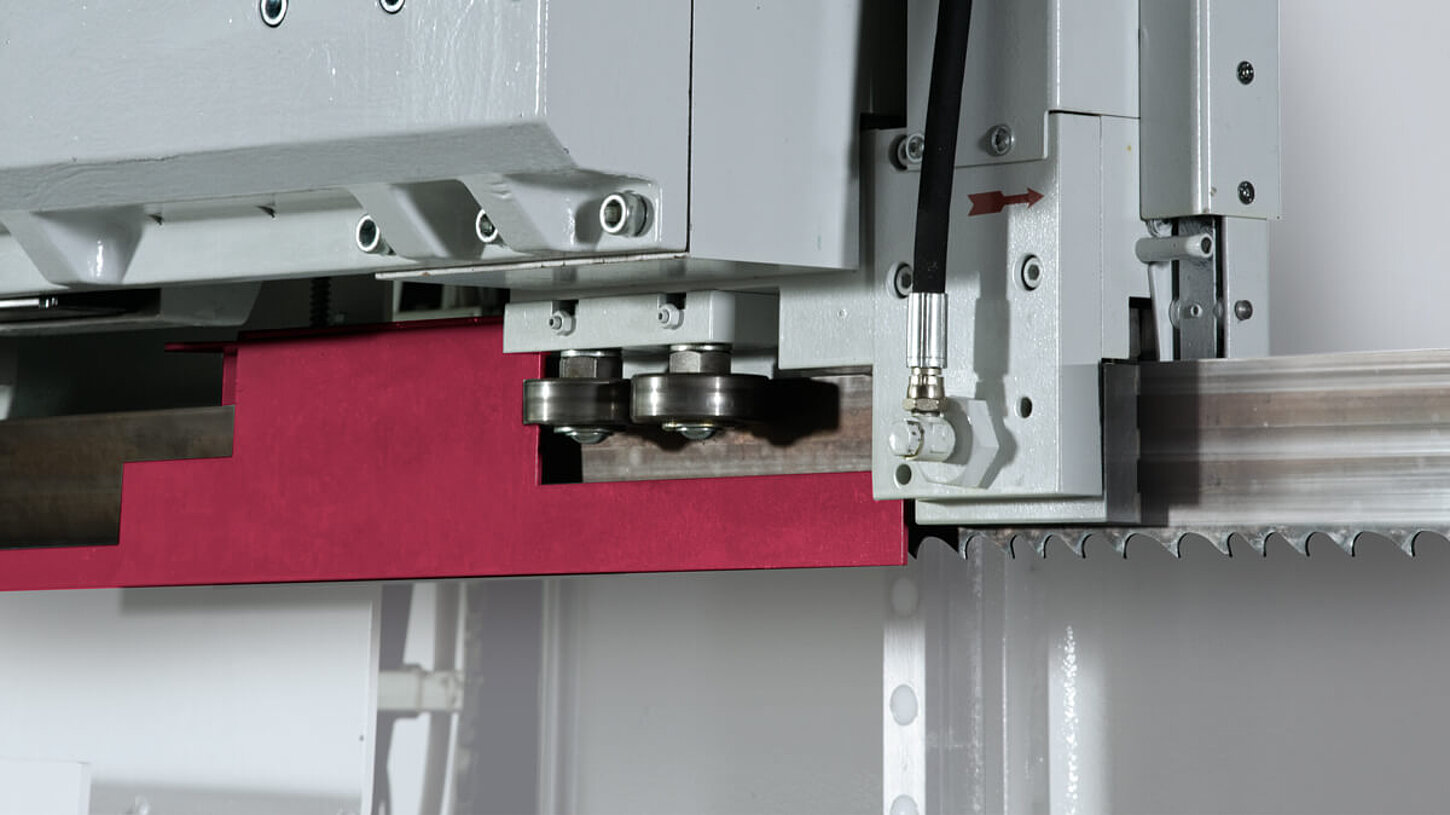

Behringer Großbandsäge Bandführung mit Dämpfungsrollen

Carbide blade guides

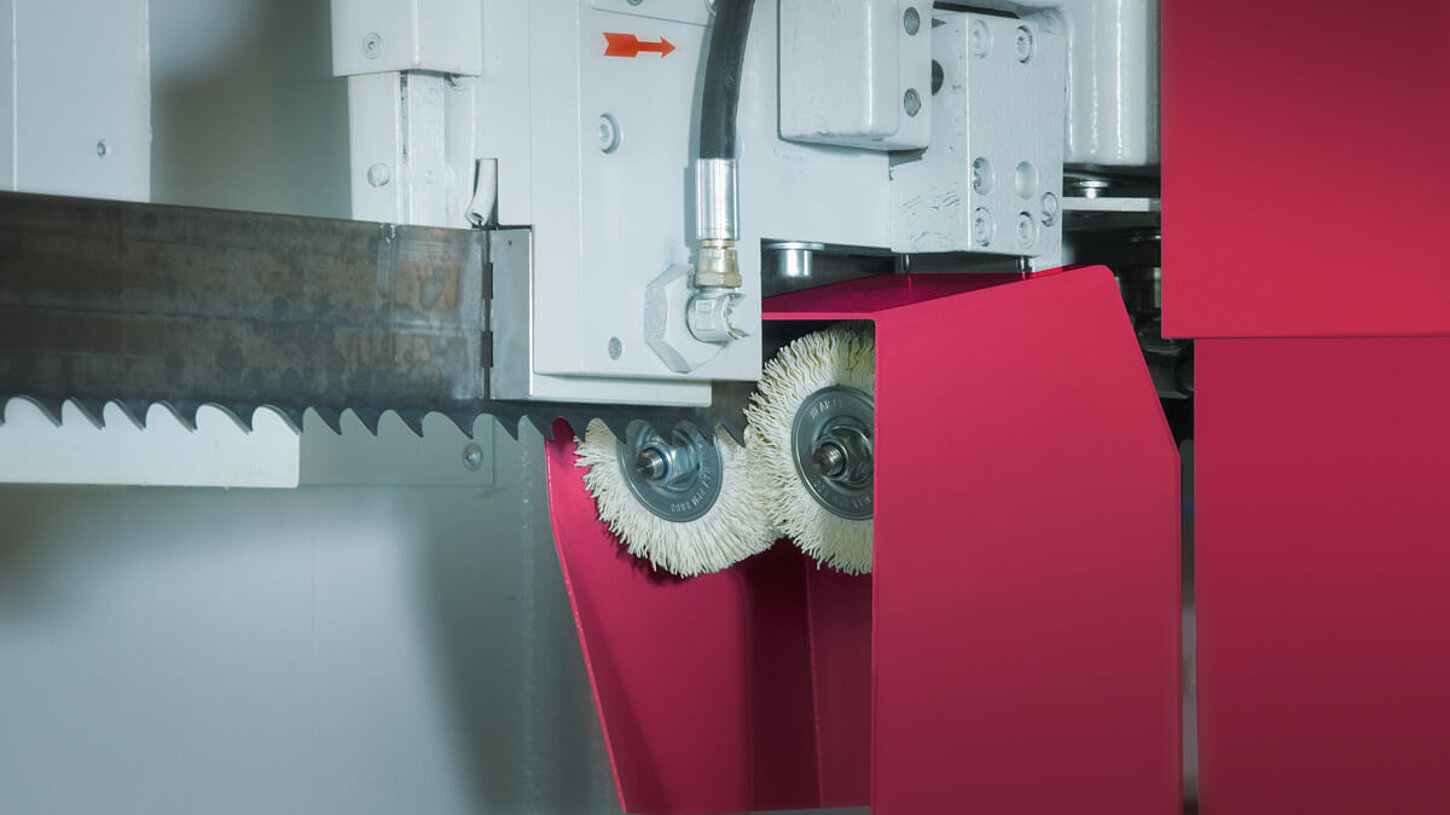

Behringer Großbandsäge Spänereinigung durch Duplex-Spänebürsten

Duplex chip brushes

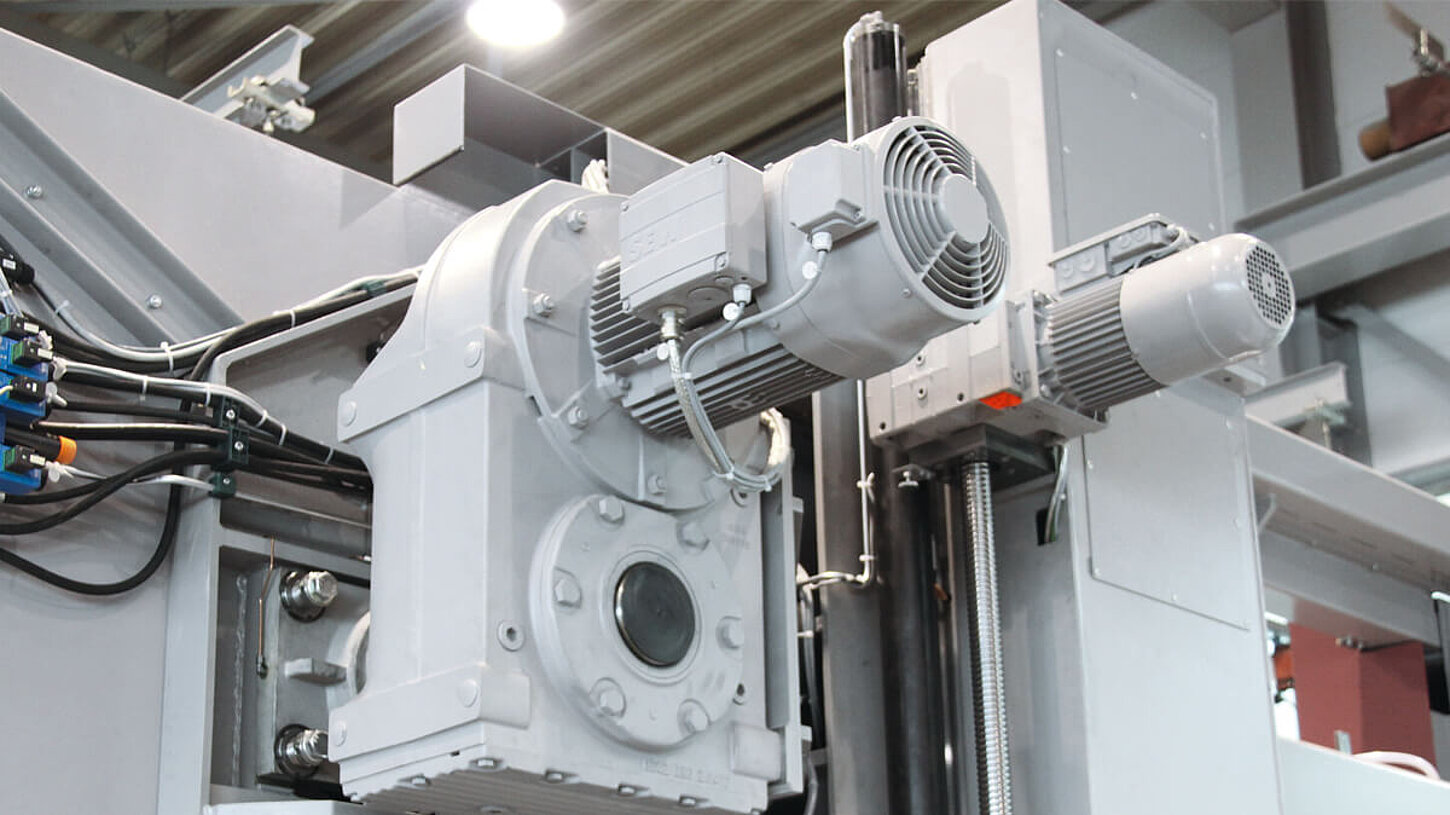

Behringer Großbandsäge drehmomentstarker Sägemotor

Powerful saw drive

Features of the HBP1500 GANTRY

  • Simplified material handling
    The material support table is recessed in the foundation. Its low-level transition to the hall floor makes for simpler material handling.

  • Centric material clamping
    The optimum solution for bulky material. The material clamping vices and blade guide arms can be traversed independently of each other. The material is clamped in the position in which it was placed on the table, without the need for it to be moved to meet the fixed side of a vice.

  • Rotatable band guide (option)
    Optionally available is the 90° rotatable band guide allowing vertical and horizontal sawing for notching material samples.

  • Precise guiding system in portal design
    The portal design of the machine concept is the most recognizable feature of the Behringer large bandsaws. Two solid columns and support bars form a balanced machine concept to address the most stringent demands. The effects of this highly stable gantry design include minimal vibrations during sawing, high loading capacity, and an extremely long service life.

  • Strong saw drive
    Behringer large bandsaws feature a high-torque frequency controlled saw drive with heavyduty hollow shaft gearbox. Drives with different speed ranges are available to suit particular materials.

  • Servo feed system with two ball screw spindles
    The BEHRINGER servo feed system with cutting pressure control produces constant chip removal, especially with slow feed movements. Large and difficult-to-cut materials are thus sawn with the highest cutting performance and at the same time longer blade life.

  • Optimum accessibility
    Behringer attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible. The open design offers direct access to all wearing parts, optimizing both maintenance and repairs and simplifying saw blade changes.

  • Automation possible
    Behringer large bandsaws in the Gantry design can be upgraded to an automated sawing system. This allows several cuts to be made on one part or different cuts to be made across several parts fully automatically. The positioning is axis-controlled.

  • Powered duplex chip brushes
    actively clean the blade and prevent chips being drawn into the cutting channel. The brushes are adjusted automatically towards the saw blade, ensuring uniform cleaning action. The benefits: Increased tool service life and lower brush wear.

Individual Configuration

The HBP1500 GANTRY can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data HBP1500 GANTRY

Cutting range 90° round 59.0 in
Cutting range 90° flat 59.0 in x 59.0 in
Smallest dimension to be sawn round 15.8 in
Smallest dimension to be sawn flat 15.8 in x 2.0 in
Drive power 20.1 hp
Blade speed 26.2 - 275.6 fpm
Saw blade dimensions 583.9 x 3-1/8 x 0.063 in
Total power 40.2 hp
Table size L x W 255.9 in x 47.2 in
Travel way of the portal (horizontal) 196.9 in
Travel way of the portal (vertical) 63.0 in
Length 456.7 in
Width 307.1 in
Height 165.4 in
Weight 72,800 lbs
