Automatic Miter Bandsaw HBE610-1256GA

for precise miter cuts in steel construction and sectional steel trade

The high-performance automatic miter band saw HBE610-1256GA is designed for automatic sawing of structural steel, profiles and pipes. Features such as electronic miter angle adjustment, saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are provided as standard. Its stable saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands tremendously.

When processing large profiles, however, material handling is in addition to the cutting performance also a key factor in determining the system throughput. The HBE610-1256GA computerized miter saw is therefore consequently designed for low-operator use in automated sawing lines. Automatic material loading and discharge systems, pre- and post-buffer lines and an intelligent control system with nesting functionality cover all requirements.

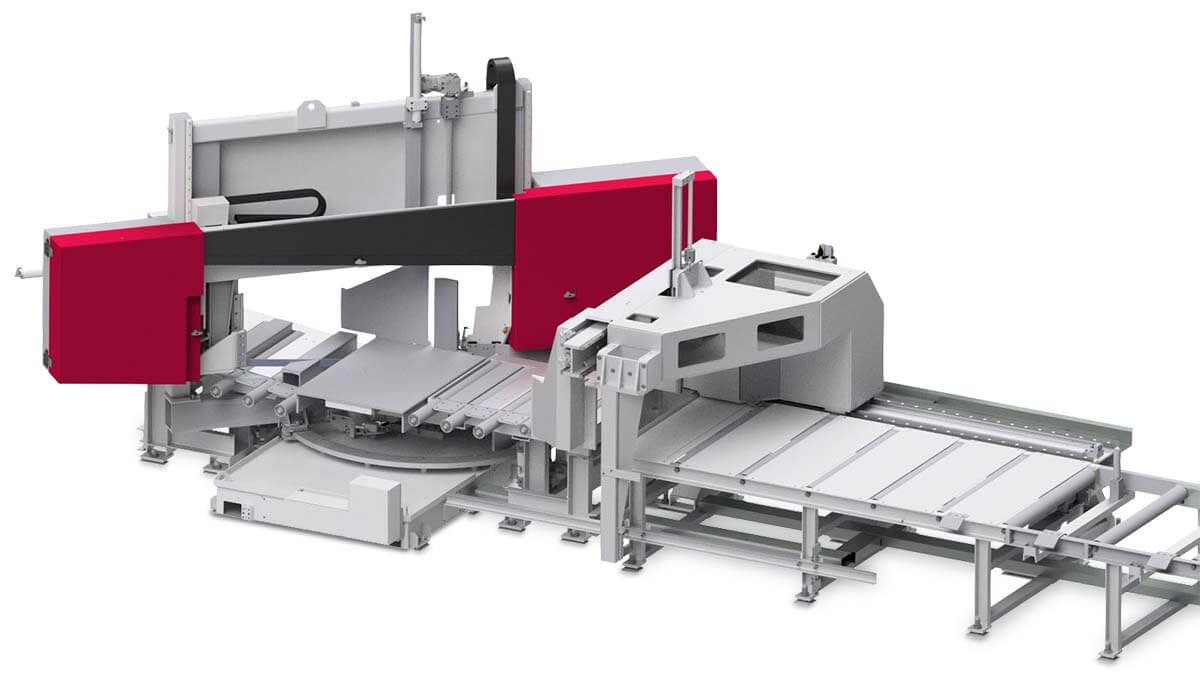

  • Automatic miter bandsaw Behringer HBE610-1256GA

    Automatic Miter Bandsaw HBE610-1256GA

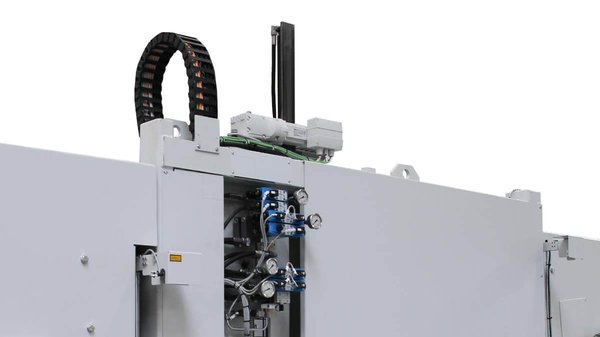

  • Miter bandsaw Behringer HBE610-1256GA saw feed with servo motor

    Servo feed system with BEHRINGER cutting pressure control

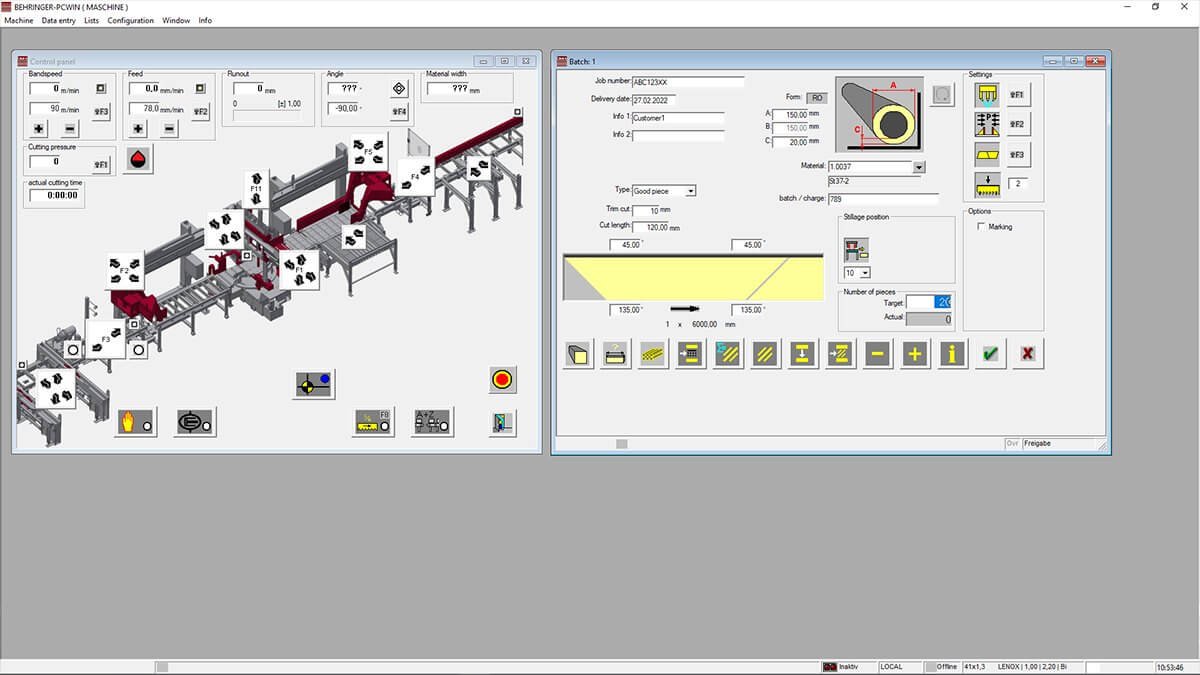

  • Behringer PC Control

    Powerful PC control

  • Youtube Logo

    Video Automatic Miter Bandsaw HBE610-1256GA

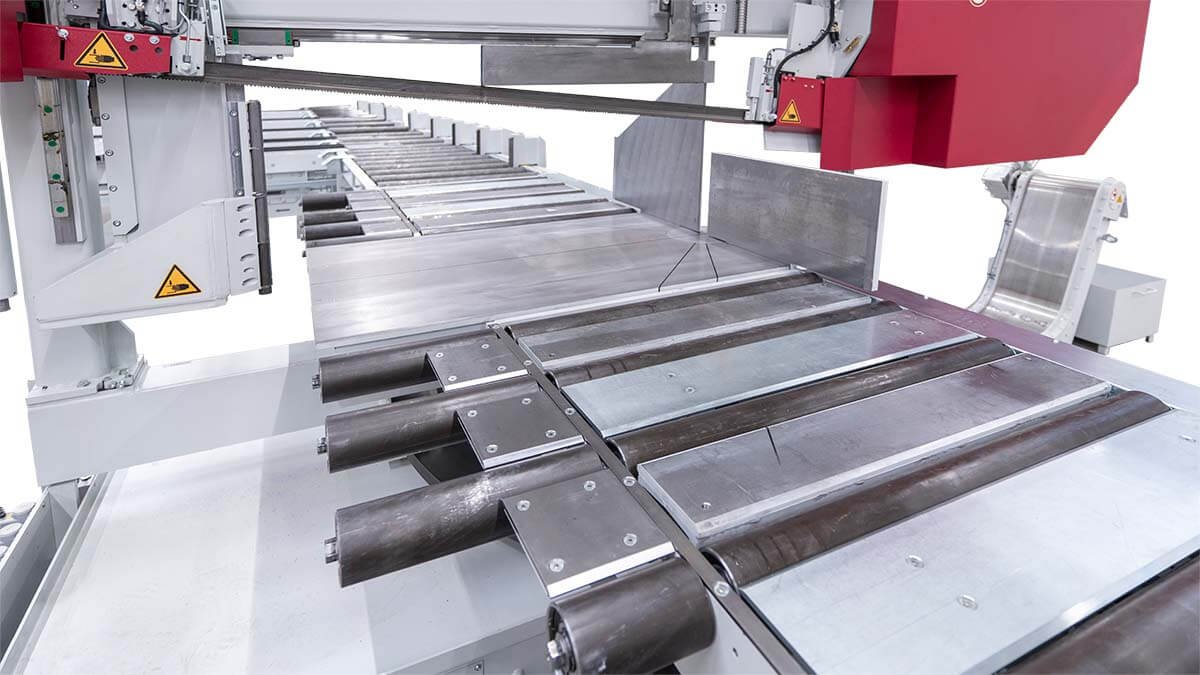

  • Miter bandsaw Behringer HBE610-1256GA enclosed material table

    Enclosed material table

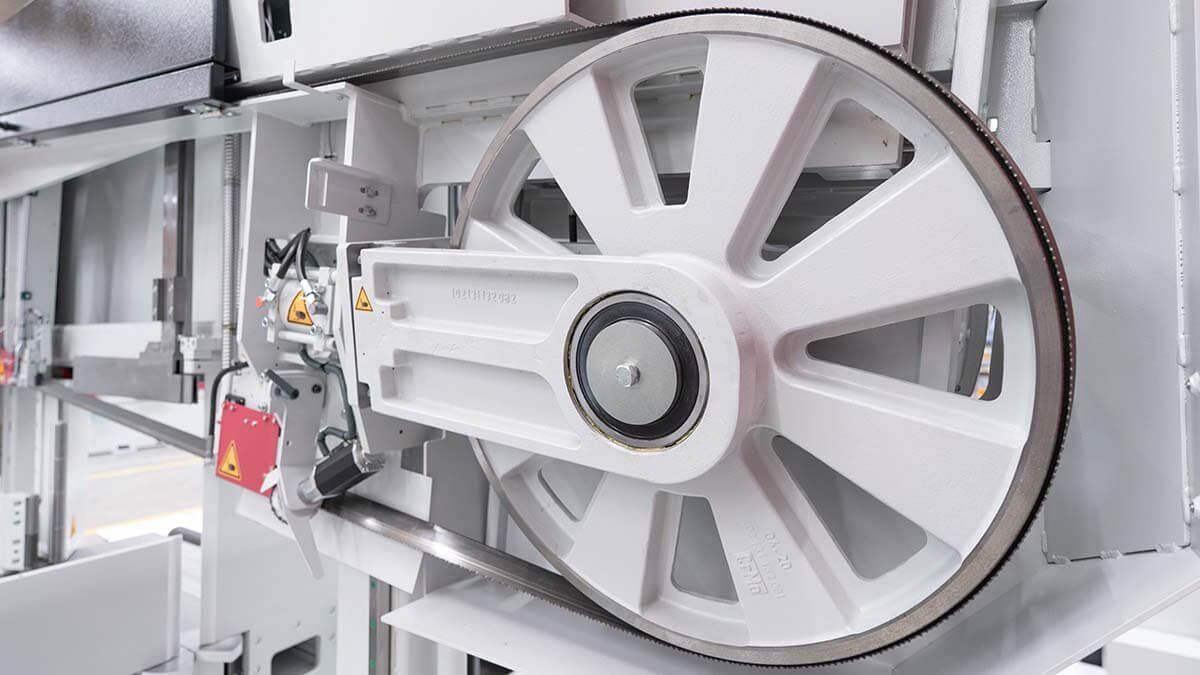

  • Miter bandsaw Behringer HBE610-1256GA band guiding parts made from vibration damping grey cast iron

    Cast iron band guiding parts

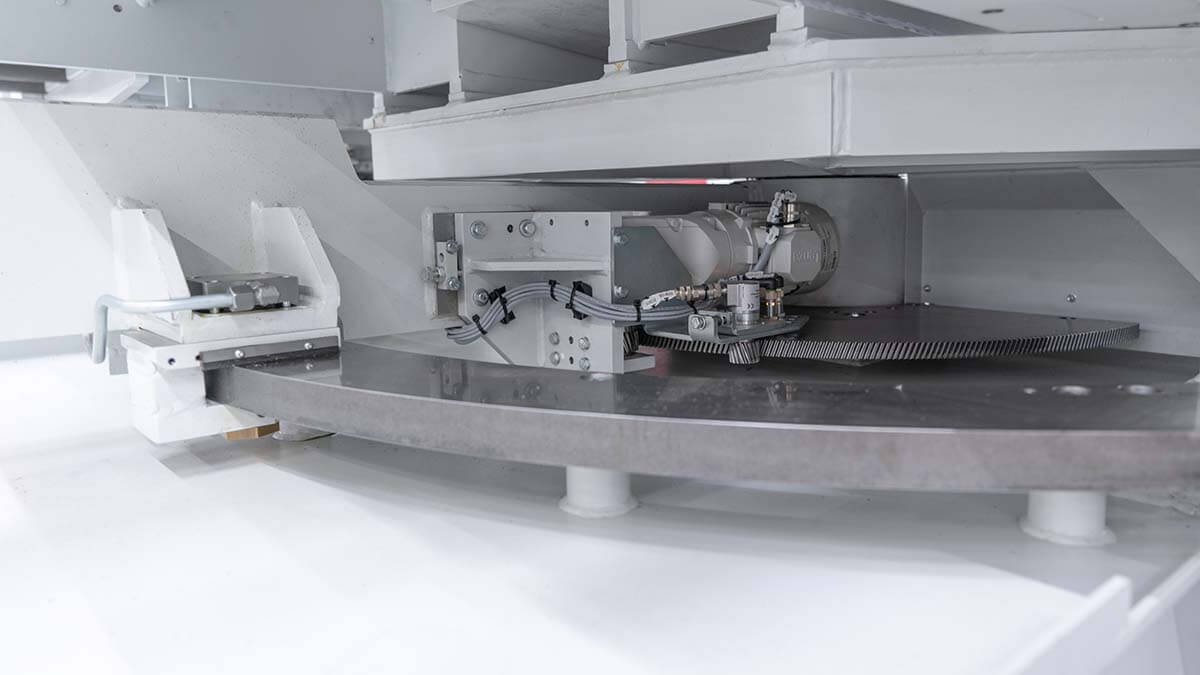

  • Miter bandsaw Behringer HBE610-1256GA automatic miter angle adjustment

    Fast NC miter angle adjustment

  • Miter bandsaw Behringer HBE610-1256GA electrically driven chip brush

    Electrically driven chip brush

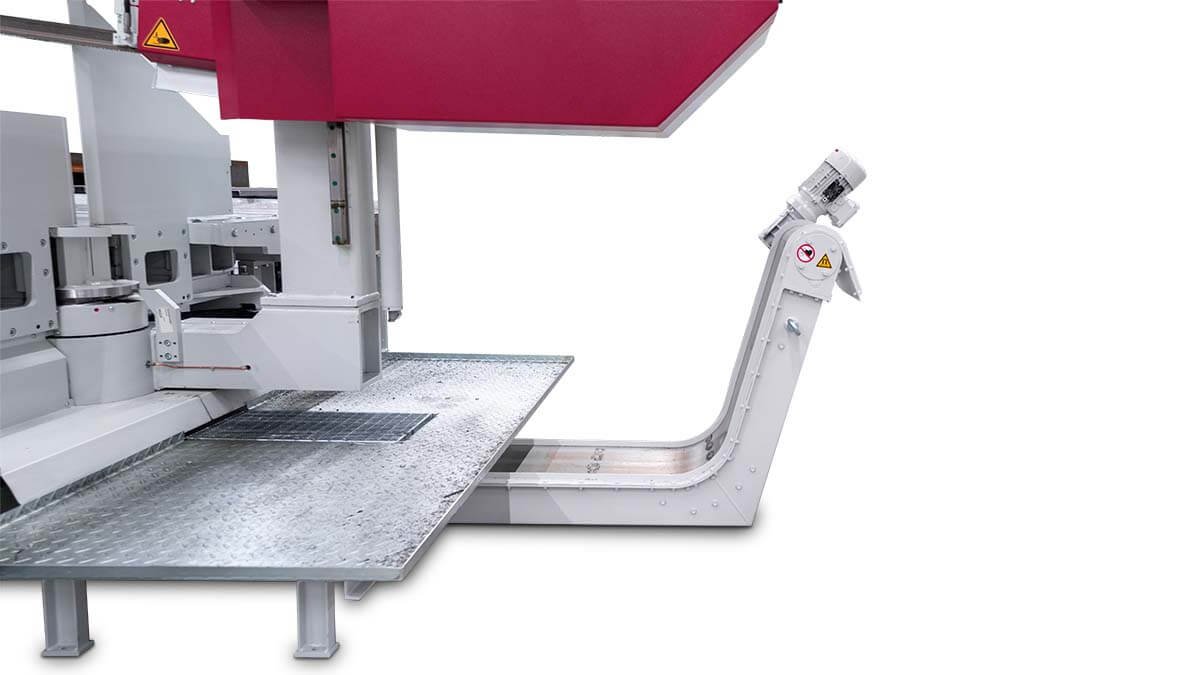

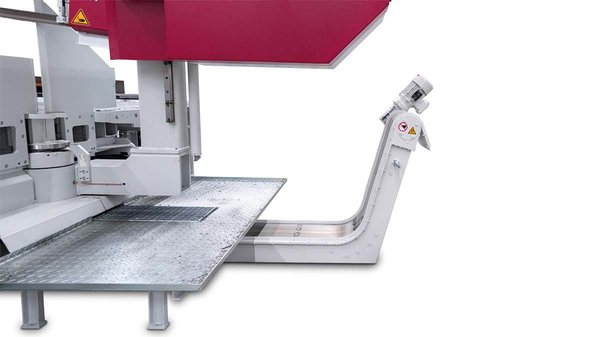

  • Miter bandsaw Behringer HBE610-1256GA magnetic chip conveyor

    Magnetic chip conveyor (option)

  • Miter bandsaw Behringer HBE610-1256GA needle marking unit

    Integrated needle marking system (Option)

Features of the automatic miter bandsaw HBE610-1256GA

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Safe material flow - even with short starting and cut-off lengths
    The closed table support and the clever connection to material handling systems offer maximum process reliability in fully automatic operation. Jamming of short cuts and gussets is avoided in the best possible way.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life of the miter saw.

  • Micro Spray System
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Customer-oriented sawing concepts
    Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

  • Downfeed control with servo drive
    The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

  • 6° inclination of the saw band
    provides significantly higher cutting performance when sawing large beams and hollow profiles and reduces burr formation.

  • Double clamping vice
    offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Powerful saw drive
    with a wide range of blade speed adjustment offers flexibility for various starting materials from stainless steel to aluminium.

Individual Configuration

The automatic miter bandsaw HBE610-1256GA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact



Efficient Material Handling

With Behringer's material handling solutions, you achieve high plant throughput in low-operator mode.

Learn More

Technical data automatic miter bandsaw HBE610-1256GA

Cutting capacity 90° round 24 in
Cutting capacity 90° flat 49.2 x 24 in

75° Miter left round / flat 24 in / 47.2 x 24 in
60° Miter left round / flat 24 in / 43.3 x 24 in
45° Miter left round / flat 24 in / 34.6 x 24 in
30° Miter left round / flat 24 in / 24 x 24 in

75° Miter right round / flat 24 in / 47.2 x 24 in
60° Miter right round / flat 24 in / 43.3 x 24 in
45° Miter right round / flat 24 in / 34.6 x 24 in

Smallest dimension to be sawn round 1.2 in
Smallest dimension to be sawn flat

1.2 x 1.2 in
Feeding length single stroke 118.1 in
Drive power 10.1 hp
Blade speed 55 - 393.7 fpm
Saw blade dimensions 393.7 x 2 (2-5/8) x 0.063 in
Rest piece length in automatic operation 11 in
Minimum cut length 1 in
Total power 21.5 hp
Saw feed servo-feed via ball screw
Material feed servo motor via gear rack
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 275.6 in
Width 185 in
Height 127.6 in
Weight 16,500 lbs
Material support height 31.5 in
