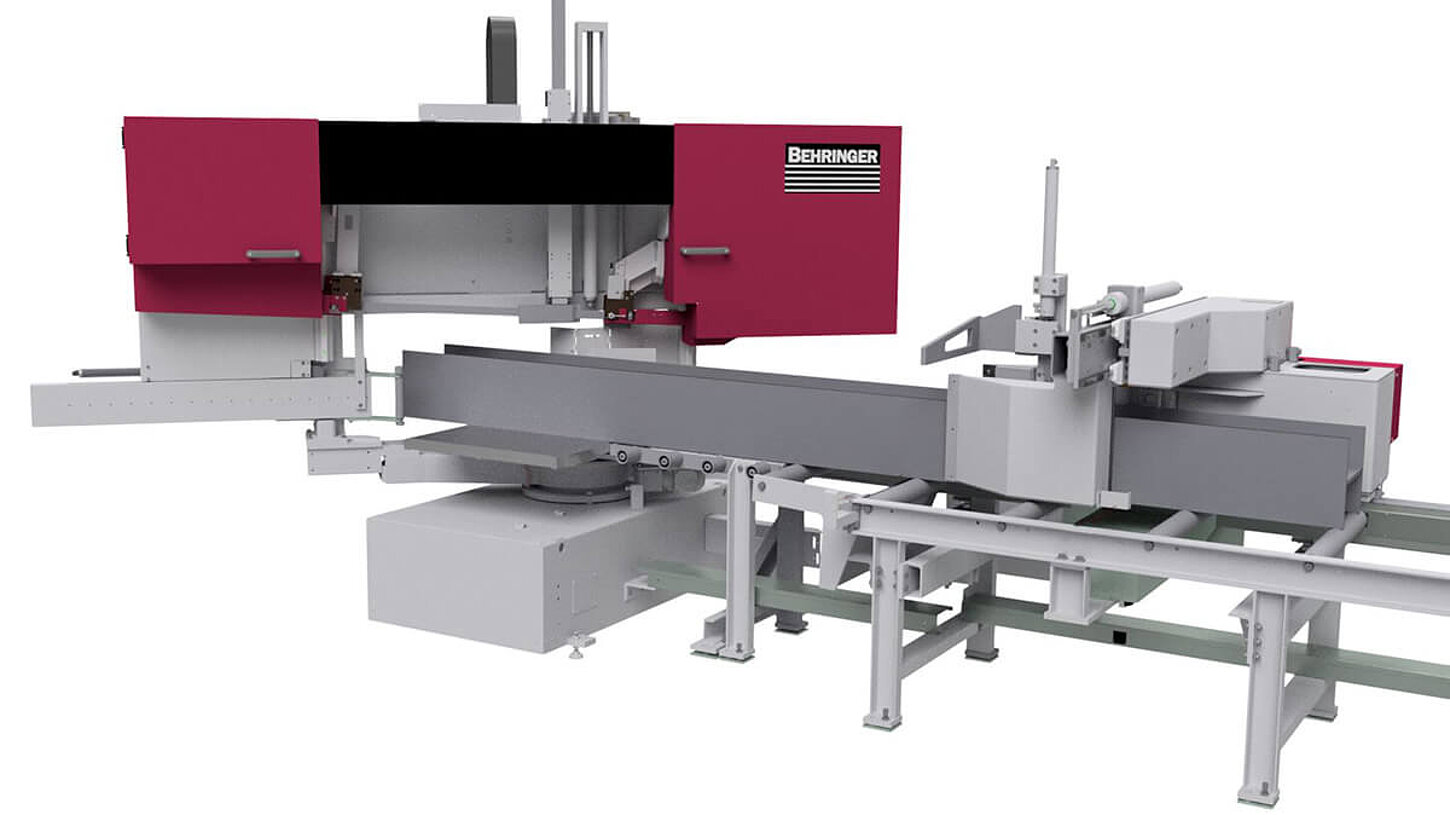

Horizontal Automatic Miter Bandsaw HBE420-723GA

For automatic miter cuts in metal construction, sectional steel trade and mechanical engineering

The automatic horizontal miter band saw HBE420-723GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle. Thanks to the precise feed gripper and fast, NC-controlled cutting angle adjustment, it is fully automatic.

Thanks to the standard saw feed with servo drive and unique Behringer cutting pressure control, it is up to twice as fast when sawing shaped steel as conventional saws at the same price level. Thanks to its powerful PC control, the HBE420-723GA is already prepared for the attachment of material handling equipment.

Behringer Gehrungsbandsägeautomat HBE420-723GA


Behringer Bandsägeautomat HBE411A Dynamic Sägevorschub durch Servomotor

Servo feed system with cutting pressure control

Behringer PC Steuerung

Powerful PC control

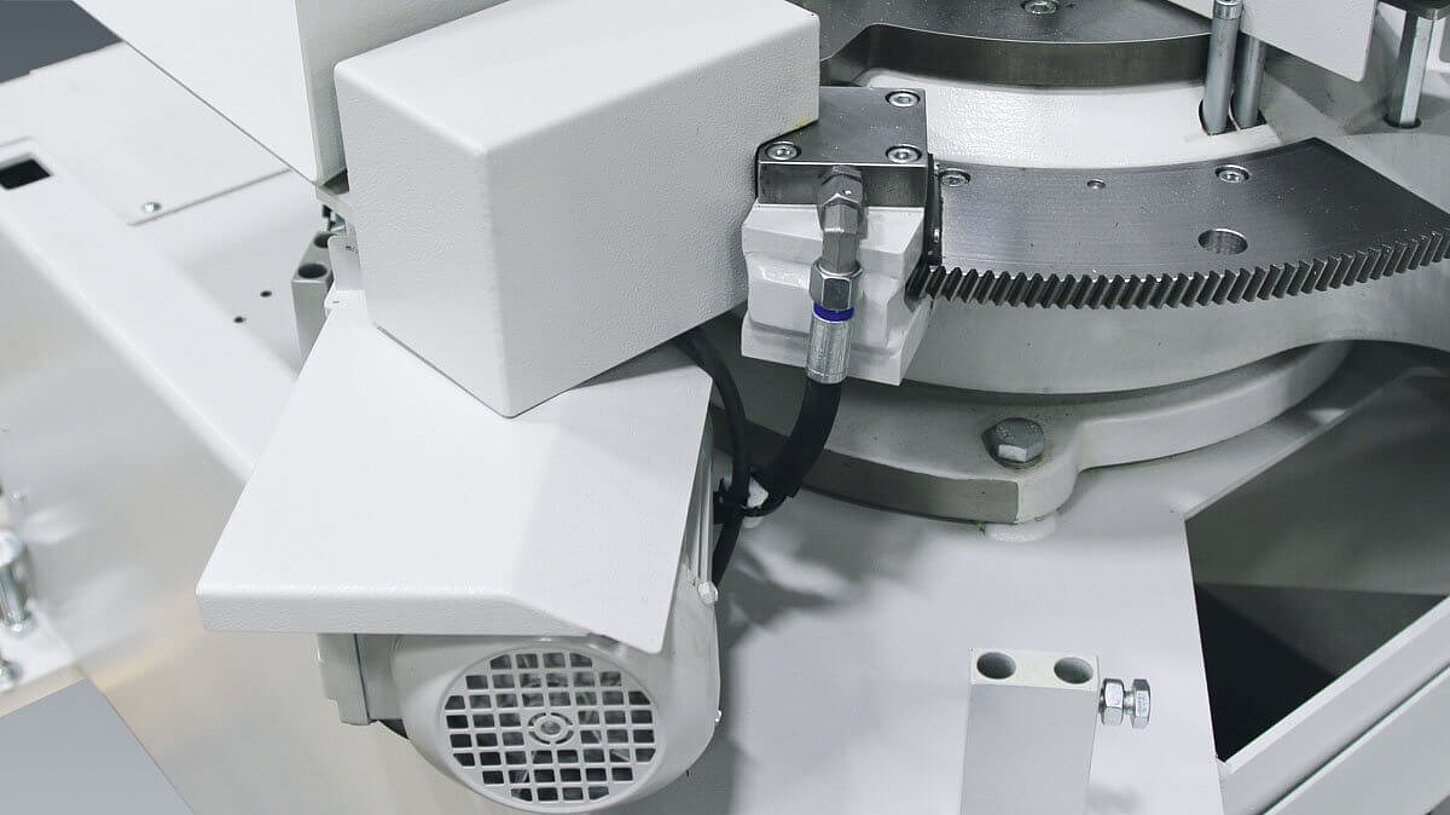

Behringer Gehrungsbandsägeautomat HBE320-523GA automatische Gehrungswinkeleinstellung

Automatic mitre angle adjustment

Demo HBE420-723GA

Behringer Gehrungssäge HBE320-523G Micro-Sprühsystem

Micro spray system

Behringer Gehrungssäge HBE320-523G Materialauflagetisch

Enclosed material table

Behringer Gehrungssäge HBE320-523G angetriebene Spänebürste

Electrically driven chip brush

Behringer Gehrungsbandsägeautomat HBE320-523GA Heberolle auf der Zufuhrseite

Lifting roller on the infeed side

Behringer Gehrungssäge HBE320-523G Linienlaser

Linienlaser (Option)

Features of the HBE420-723GA

  • Downfeed control with servo drive
    The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life.

  • Micro Spray System
    When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

  • 3° inclination of the saw blade
    provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Customer-oriented sawing concepts
    Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

  • Closed material table
    The closed table support offers maximum process reliability in fully automatic operation. Jamming of short cuts and gussets is avoided in the best possible way.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Hydraulic blade tensioning
    The saw band is always optimally tensioned by a hydraulic system. When the machine is at a standstill, the saw band is relieved, thus extending its service life. In the event of a band breakage, the machine stops automatically.

  • Energy-efficient drives
    More output with less energy consumption. Protects the environment and your wallet.

Individual Configuration

The HBE420-723GA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical Data HBE420-723GA

Cutting range 90° round 16.5 in
Cutting range 90° flat 24.4 x 15.7 in
75° Miter left round / flat 15.7 in / 24.4 x 15.7 in
60° Miter left round / flat 15.7 in / 24.4 x 15.7 in
45° Miter left round / flat 15.7 in / 21.3 x 15.7 in
30° Miter left round / flat 11.8 in / 11.8 x 13.8 in
75° Miter right round / flat 15.7 in / 24.4 x 15.7 in
60° Miter right round / flat 15.7 in / 23.6 x 15.7 in
45° Miter right round / flat 15.7 in / 18.5 x 15.7 in
Smallest dimension to be sawn round 0.8 in
Smallest dimension to be sawn flat 0.8 x 0.8 in
Feeding length single stroke 118.1 in
Drive power 7 hp
Blade speed 49 - 427 fpm
Saw blade dimensions 269.3 x 1-5/8 x 0.05 in
Rest piece length in automatic operation 5.9 in
Total power 14.8 hp
Saw feed servo-feed via ball screw
Material feed servo motor via gear rack
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 228.3 in (swivelling range: 244.1 in)
Width 143.7 in
Height 104.3 in
Weight 7936.6 lbs
Material support height 31.5 in
