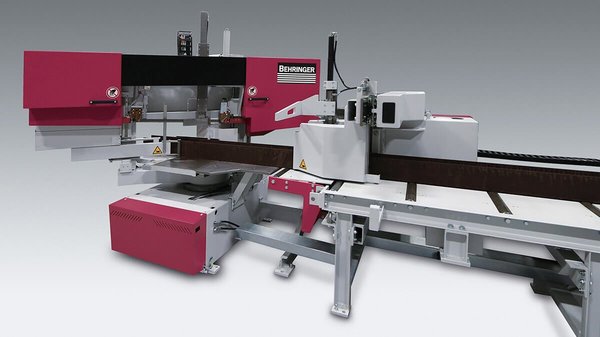

Automatic Miter Bandsaw HBE320-523GA

for precise miter cuts in metal construction, sectional steel trade and mechanical engineering

The automatic miter band saw HBE320-523GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle. Thanks to the precise feed gripper and fast, NC-controlled cutting angle adjustment, it is fully automatic.

Thanks to the standard saw feed with servo drive and unique Behringer cutting pressure control, it is up to twice as fast when sawing shaped steel as conventional saws at the same price level. With its powerful PC control, the computerized miter saw is already prepared for the attachment of material handling equipment.

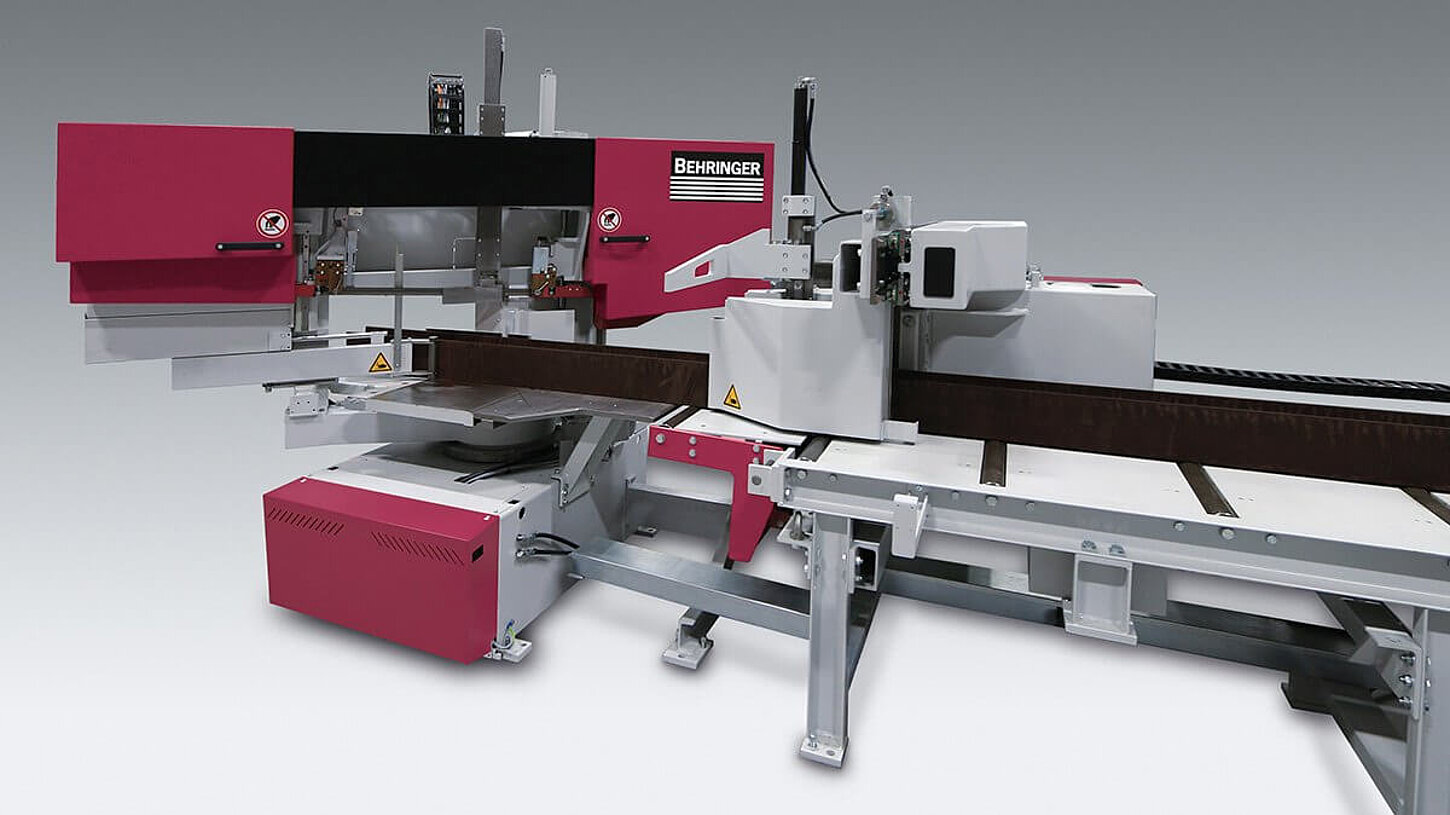

Automatic miter bandsaw HBE320-523GA
Servo feed system with cutting pressure control
Powerful PC control
Demo computerized miter saw HBE320-523GA

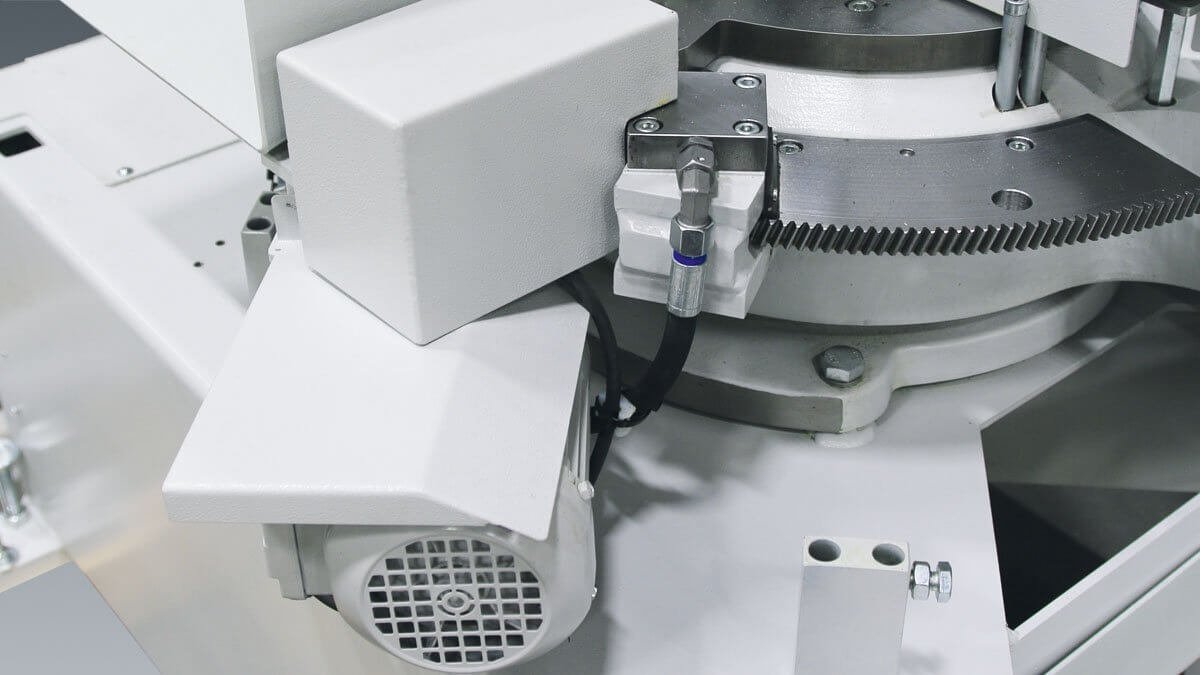

Automatic miter angle adjustment
Micro Spray System
Enclosed material table
Electrically driven chip brush

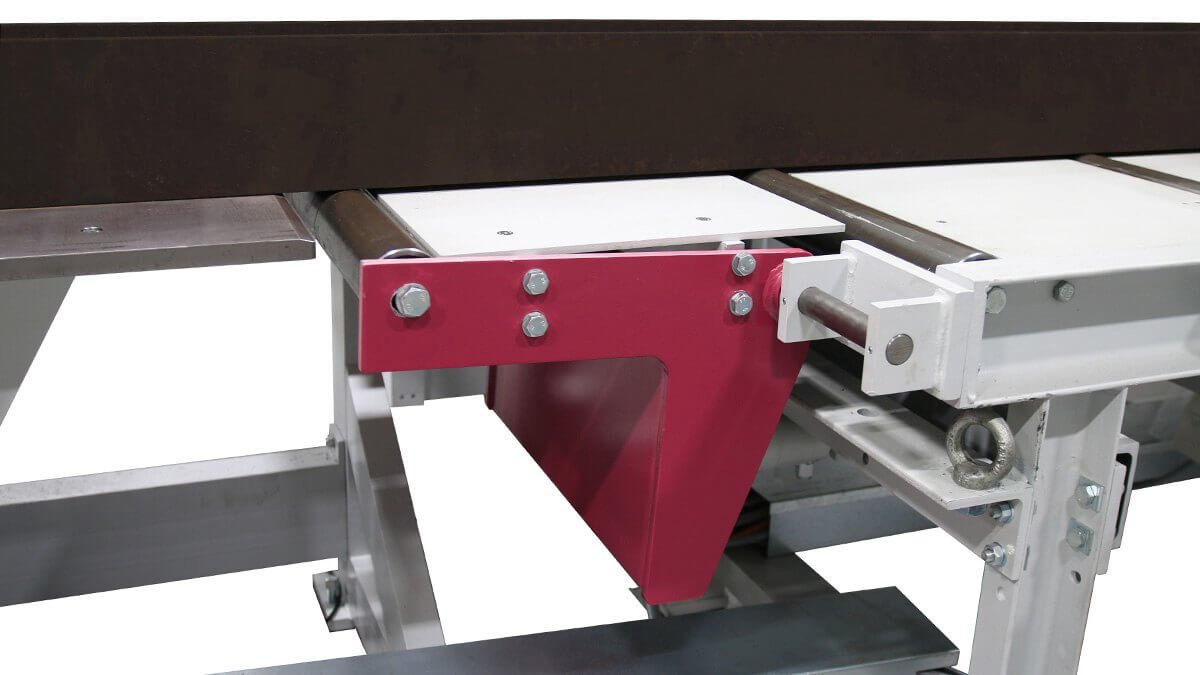

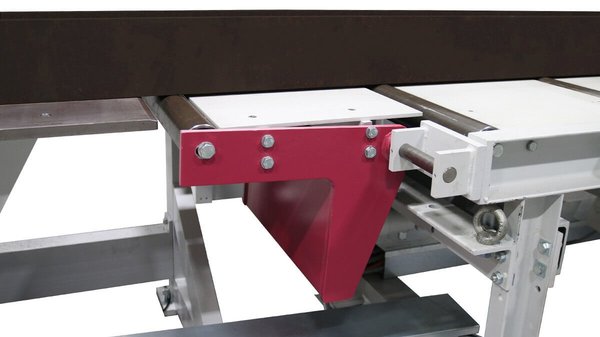

Lifting roller on the infeed side
Line laser (option)

Features of the automatic miter bandsaw HBE320-523GA

Downfeed control with servo drive
The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

Precision portal-design guide system
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life of the miter saw.

Micro Spray System
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles. This guarantees a long service life of the saw blade and a clean working environment.

3° inclination of the saw blade
provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.

Customer-oriented sawing concepts
Behringer offers complete system solutions with individual material handling where everything fits together perfectly. We are a competent partner and provide comprehensive advice.

Safe material flow - even with short starting and cut-off lengths
The closed table support and the clever connection to material handling systems offer maximum process reliability in fully automatic operation. Jamming of short cuts and gussets is avoided in the best possible way.

Cast iron band guiding parts
are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

Sensitive Behringer cutting pressure control
increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

Automatic guide arm
Optimum sawing result without any adjustments - even with frequently changing material sizes.

Hydraulic blade tensioning
The saw band is always optimally tensioned by a hydraulic system. When the machine is at a standstill, the saw band is relieved, thus extending its service life. In the event of a band breakage, the machine stops automatically.

Energy-efficient drives
More output with less energy consumption. Protects the environment and your wallet.

Electrically driven chip brush
with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Individual Configuration

The automatic miter bandsaw HBE320-523GA can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Efficient Material Handling

With Behringer's material handling solutions, you achieve high plant throughput in low-operator mode.

Learn More

Technical data automatic miter bandsaw HBE320-523GA

Cutting range 90° round	12.6 in
Cutting range 90° flat	20.5 x 12.6 in

75° Miter left round / flat	12.6 in / 20.5 x 12.6 in
60° Miter left round / flat	12.6 / 18.5 x 12.6 in
45° Miter left round / flat	12.6 in / 15.4 x 12.6 in
30° Miter left round / flat	7.9 in / 7.9 x 12.6 in

75° Miter right round / flat	12.6 in / 19.3 x 12.6 in
60° Miter right round / flat	12.6 in / 16.5 x 12.6 in
45° Miter right round / flat	12.6 in / 13 x 12.6 in

Smallest dimension to be sawn round	0.8 in
Smallest dimension to be sawn flat	0.8 x 0.8 in

Feeding length single stroke	118.1 in
Drive power	3.5 hp
Blade speed	49 - 360 fpm
Saw blade dimensions	208 x 1-1/4 x 0.042 in
Rest piece length in automatic operation	5.9 in
Total power	10.7 hp
Saw feed	servo-feed via ball screw
Material feed	servo motor via gear rack
Material clamping	hydraulic
Saw blade cleaning	electrically driven chip brush

Length	217 in (incl. swivel range: 236 in)
Width	114 in
Height	85 in
Weight	5,700 lbs
Material support height	31.5 in
