Metal cutting bandsaw HBE610-1256

Economical, semi-automatic band saw for steel construction and steel trade

The HBE610-1256 is a modern, semi-automatic horizontal band saw, which is suitable for sawing structural steel, profiles and plates in single cuts due to its robust design. For this purpose, features such as the saw feed with servo motor, Behringer cutting pressure control, automatic guide arm adjustment and a robust double clamping vice are installed as standard. Its sturdy saw frame, inclined band wheels and the use of vibration-damping cast components extend the service life of the saw bands.

Accordingly, with its extensive range of applications, the saw reliably covers all the requirements of small and medium-sized businesses. In short, the HBE610-1256 metal cutting bandsaw makes your production even more economical with high-performance, precise cuts at low cutting costs.

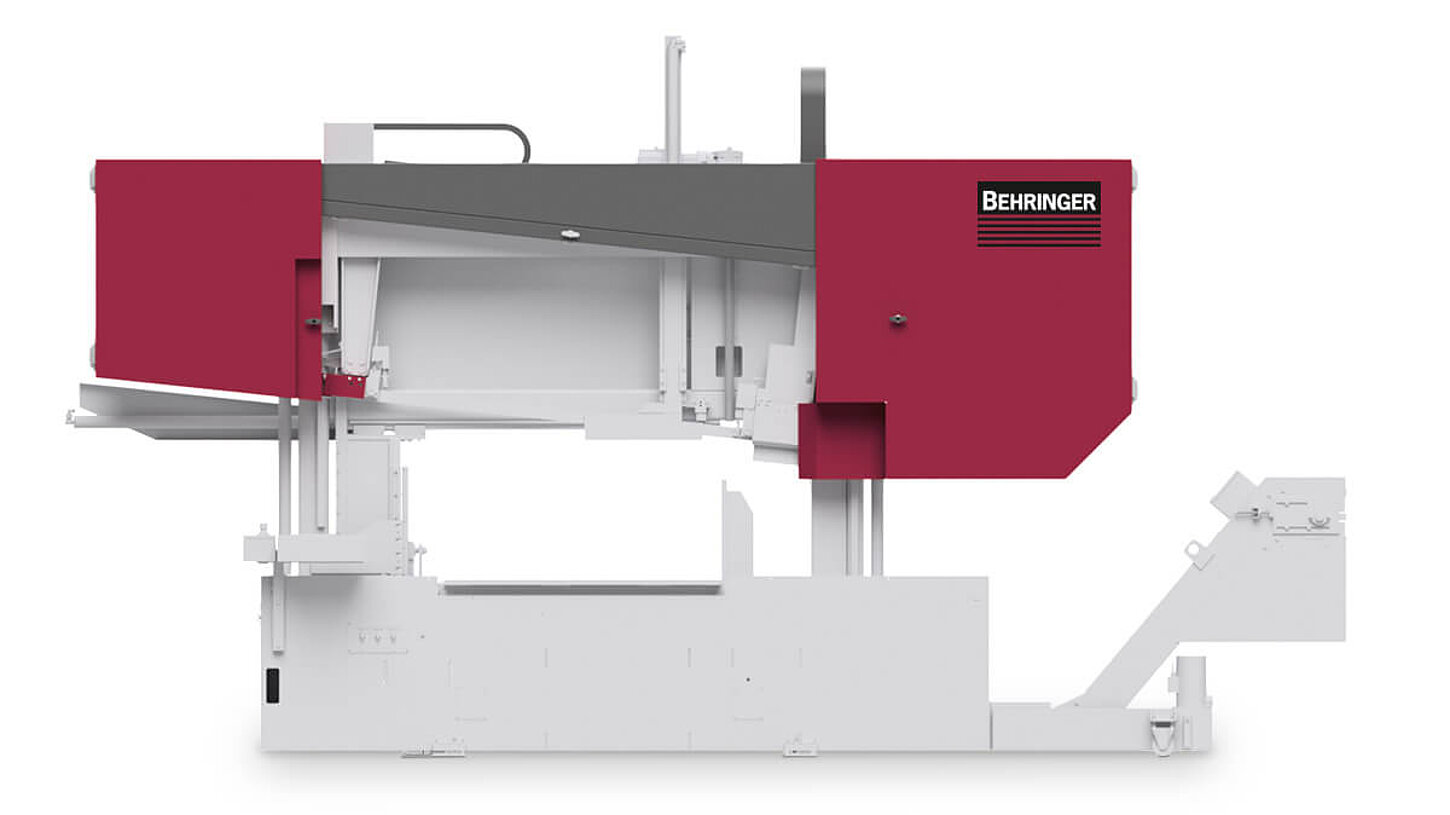

  • Behringer metal cutting bandsaw HBE610-1256

    Metal cutting bandsaw HBE610-1256

  • Miter bandsaw Behringer HBE610-1256 saw feed with servo motor

    Servo feed system with BEHRINGER cutting pressure control

  • Behringer machine control BehrCtrl10

    Intuitive BehrCtrl10 touch control

  • Miter bandsaw Behringer HBE610-1256 band guiding parts made from vibration damping grey cast iron

    Cast iron band guiding parts

  • Miter bandsaw Behringer HBE610-1256 electrically driven chip brush

    Electrically driven chip brush

Features of the metal cutting bandsaw HBE610-1256

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Energy efficient
    The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Double clamping vice
    is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade. After sawing through, the horizontal bandsaw securely holds the section and the starting material.

Individual Configuration

The metal cutting bandsaw HBE610-1256 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.


Technical data metal cutting bandsaw HBE610-1256

Cutting range 90° round 24.0 in
Cutting range 90° flat 49.2 x 24.0 in
Smallest dimension to be sawn round 1.2 in
Smallest dimension to be sawn flat 1.2 x 1.2 in
Drive power 10 hp
Blade speed 56 - 393 fpm
Saw blade dimensions 393.7 x 2 (2-5/8) x 0.063 in
Rest piece length 1.8 in
Total power 21.5 hp
Length 55 in
Width 191 in
Height 128 in
Weight 9920 lbs
Material support height 31.5 in
