Production band saw HBM440A

Highest performance through innovative Speed-Cutting technology

The innovative SpeedCutting technology of the HBM440A high-speed saw series allows process-reliable cutting performance that was previously unthinkable. The HBM440A shows its full potential especially when sawing tool steels to stainless steels or high-alloy materials such as Inconel or Titanium. The production bandsaw thus covers a wide range of applications in industry and the steel trade. Thanks to the combination of a powerful machine base, modern servo technology, innovative cooling system and process-reliable chip disposal, the HBM440A gets the maximum out of the tool used - regardless of whether it is a carbide or bi-metal blade.

  • Behringer production band saw HBM440A with innovative speed cutting technology

    Production band saw HBM440A

  • Behringer production band saw HBM440A saw frame made of vibration damping gray cast iron

    High-performance sawing unit with BEHRINGER SpeedCutting technology

  • Behringer production band saw HBM440A special speed cutting band guides

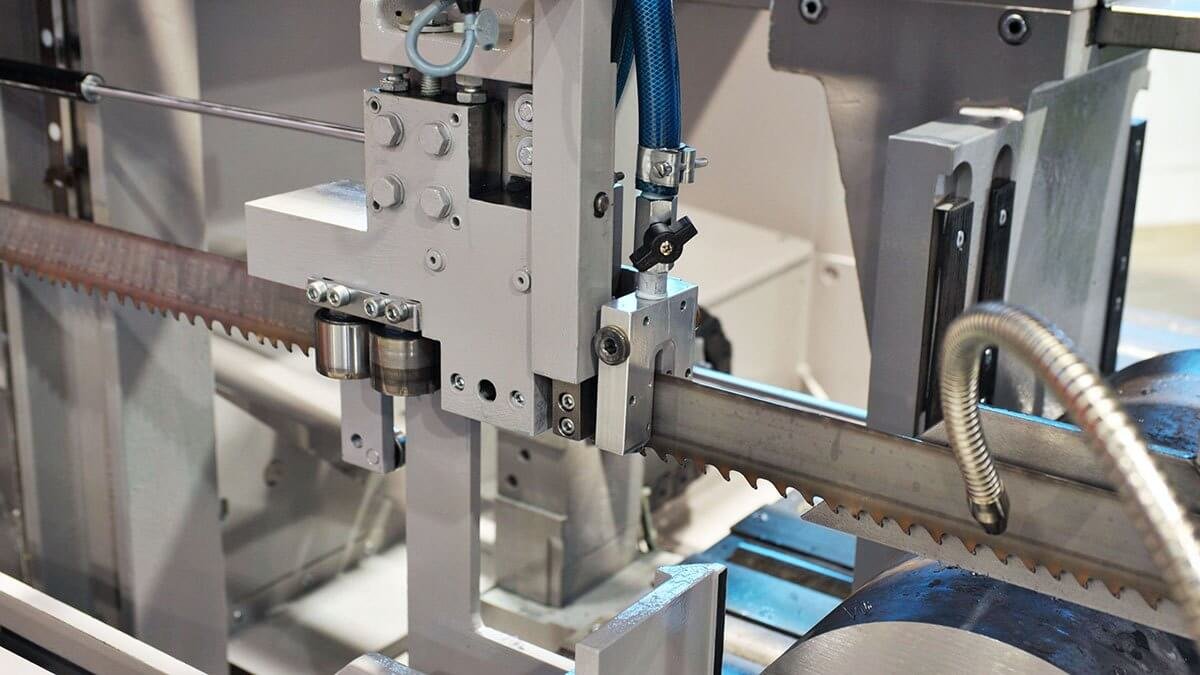

    HBM band guide with high-performance cooling

  • Youtube Logo

    Sawing example 4140 with SpeedCutting technology

  • Behringer production band saw HBM440A driven duplex chip brushes

    Duplex chip brush

  • Behringer production band saw HBM440A band wheel made of vibration damping cast iron

    Cast iron band guiding parts

  • Youtube Logo

    Product video fully automated carbide saw for tubes

Features of the production band saw HBM440A

  • SpeedCutting-Technology (option)
    The combination of SC-Performance saw blade guides, high-performance cooling system, dynamically controlled saw feed and specially optimized Auto-Feed-Control allows you to get the maximum performance and tool life.

  • Prepared for automation
    A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems. Therefore, the machines are already prepared in the basic configuration for the connection of extensive material handling equipment.

  • Servo downfeed system
    The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Optimum chip disposal
    Highest cutting performance requires high standards of chip disposal. The wide, funnel-shaped machine base allows chips to fly freely into the chip conveyor with integrated coolant tank below. The ejection height of 800 mm or optionally 1,200 mm allows the use of large chip buckets.

  • Economical use of carbide saw blades
    due to robust design, use of latest servo technology and well dimensioned chip disposal.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best cutting results and maximum service life.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

Individual Configuration

The production band saw HBM440A can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Productivity boost for your production

Faster cuts with the new AFC Pro



  • Countering the shortage of skilled workers
    Optimum sawing results WITHOUT prior knowledge of the operator.

  • Increase your output
    Significantly increased cutting performance thanks to dynamic sawing process (up to 50% depending on material).

  • Wide range of materials - no problem
    The extensive material database even includes tempering or electro-slag remelting (ESR).

  • Scalable production
    The sawing know-how is in the machine control system. This allows you to easily adapt your production to changing requirements.

We would be happy to show you how you can make your production even more efficient with our sawing solutions.

Get in touch with us!

Technical data production band saw HBM440A

Cutting range 90° round 17.3 in
Cutting range 90° flat 17.3 x 17.3 in
Smallest dimension to be sawn round 0.6 in
Smallest dimension to be sawn flat 0.5 x 0.5 in
Feeding length single stroke 23.6 in
Drive power 7.4 hp
Blade speed 43 - 427 fpm
Saw blade dimensions 264 x 2 x 0.05 in
Rest piece length in automatic operation 1.4 in
Total power 16 hp
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 104.3 in
Width 172.6 in
Height 106.3 in
Weight 10,141.3 lbs
Material support height 31.5 in
