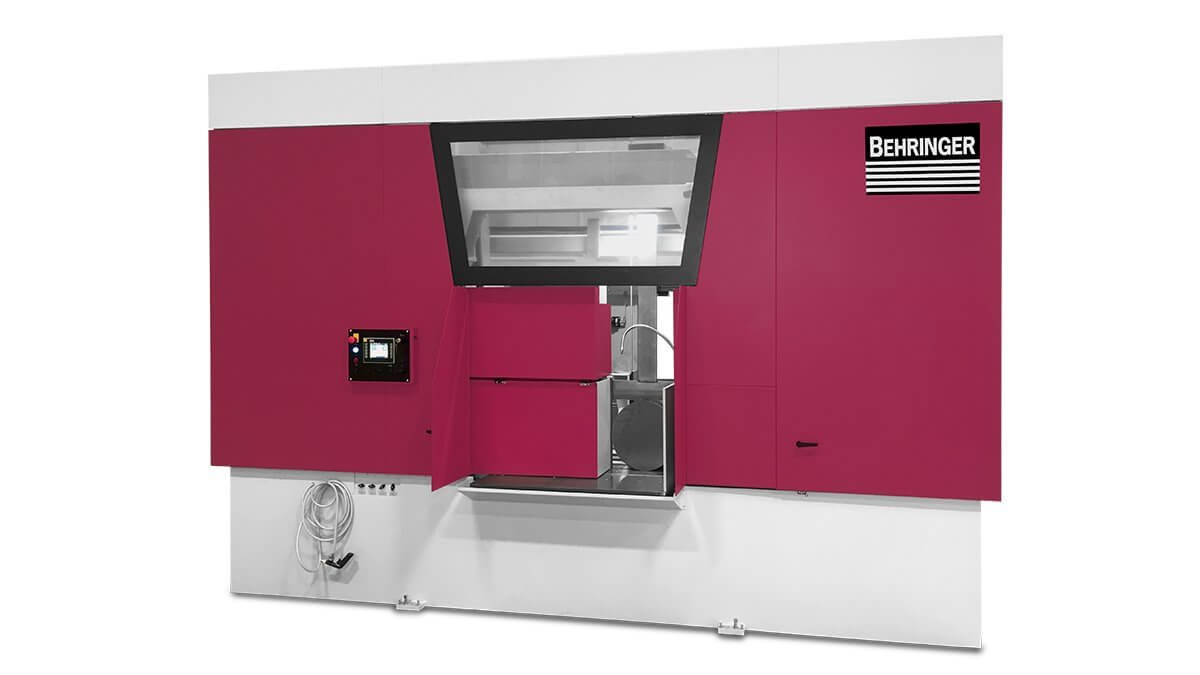

Production band saw HBE1060A Performance

Effective performers for steel trading and steel finishing!

The high-performance automatic saw HBE1060A Performance is designed for demanding use in the steel trade, manufacturing and metal production. Used for cutting large pipes or solid materials made of steel, plastic or high-alloy materials, they impress with precise and powerful cuts and easy material handling. The HBE1060A Performance is extremely robustly built for rough operation. While fully enclosed and complying with current safety standards, the industrial saw offers good accessibility and special features for single cuts.

  • Behringer industrial saw HBE1060A Performance

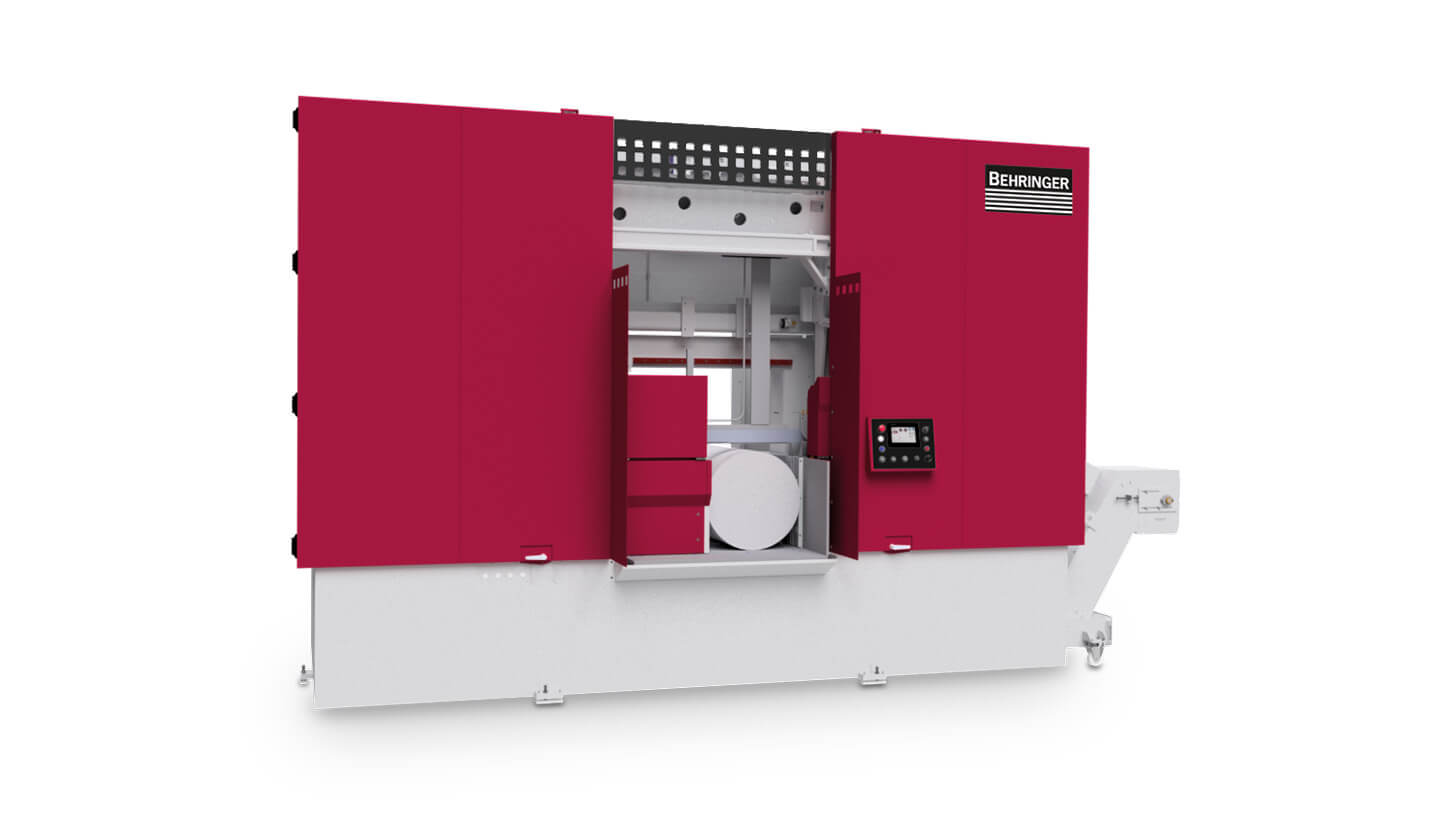

    Production band saw HBE1060A Performance

  • Behringer production band saw HBE1060A Performance servo driven saw feed

    Servo feed system with cutting pressure control

  • Behringer machine control BehrCtrl10

    Intuitive BehrCtrl10 touch control

  • Behringer production band saw HBE1060A Performance electrically driven chip brush

    Electrically driven chip brush

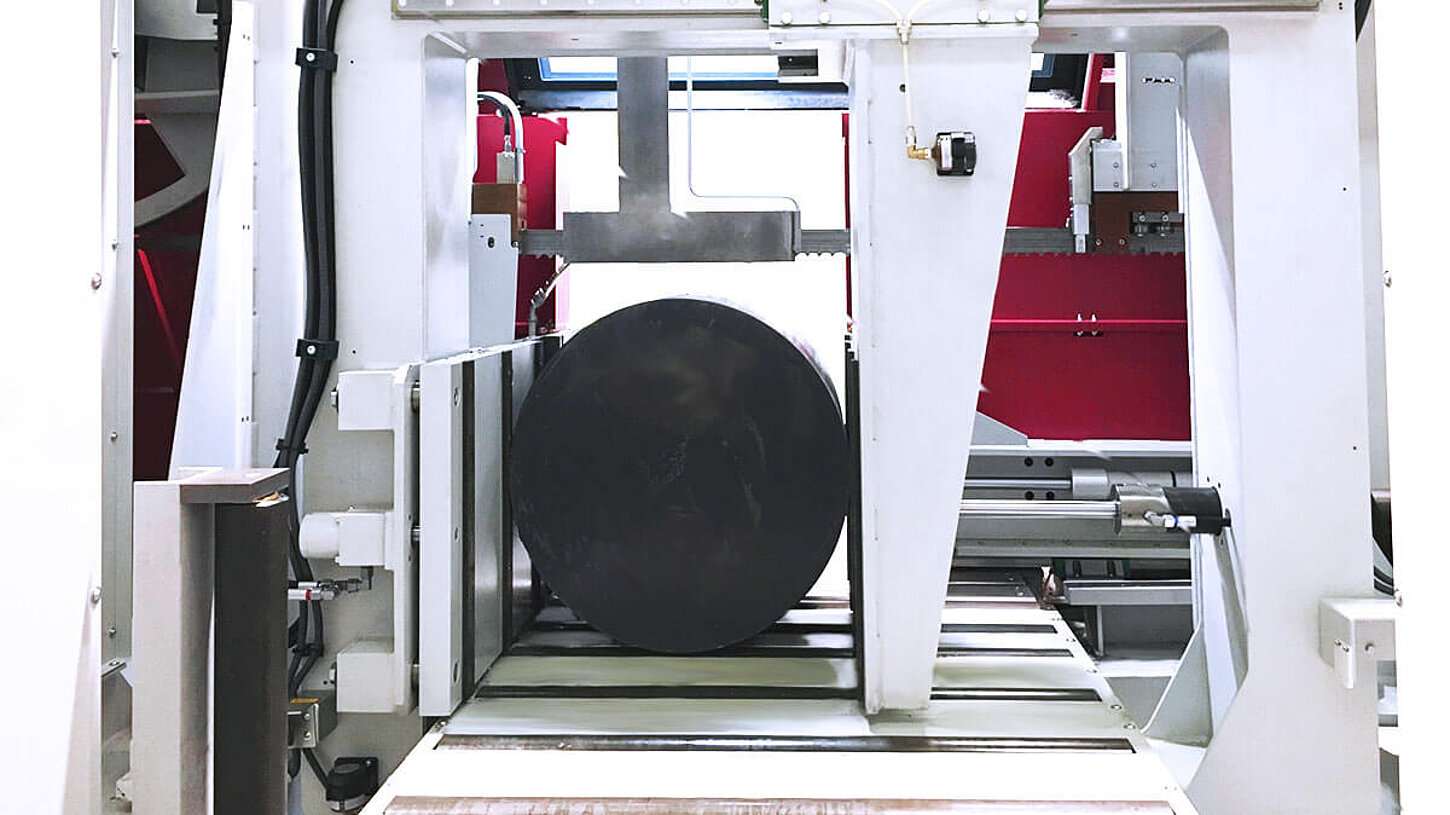

  • Behringer industrial saw HBE1060A Performance solid feeding gripper

    Massive feed gripper with ball screw

  • Behringer production band saw HBE1060A Performance chip conveyor in material flow direction

    Chip disposal in material flow direction (option)

Features of the production band saw HBE1060A Performance

  • Robust feeding gripper with linear retracting fixed vice jaw
    positions even solid material weighing tons to a tenth of a millimeter.

  • Servo downfeed system
    The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!

  • Auto-Feed-Control
    Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Optimized for single cuts
    The operator is supported in setting up individual cuts through the use of the feeding gripper and intelligent software.

  • Economical use of carbide saw blades
    due to robust design, use of latest servo technology and well dimensioned chip disposal.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Powerful chip conveyor
    Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank. The ejection height of 800 mm allows the use of large chip buckets.

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

Individual Configuration

The production band saw HBE1060A Performance can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Productivity boost for your production

Faster cuts with the new AFC Pro



  • Countering the shortage of skilled workers
    Optimum sawing results WITHOUT prior knowledge of the operator.

  • Increase your output
    Significantly increased cutting performance thanks to dynamic sawing process (up to 50% depending on material).

  • Wide range of materials - no problem
    The extensive material database even includes tempering or electro-slag remelting (ESR).

  • Scalable production
    The sawing know-how is in the machine control system. This allows you to easily adapt your production to changing requirements.

We would be happy to show you how you can make your production even more efficient with our sawing solutions.

Get in touch with us!

Technical data production band saw HBE1060A Performance

Cutting range 90° round 41.7 in
Cutting range 90° flat 41.7 x 41.7 in
Smallest dimension to be sawn round 2.4 in
Smallest dimension to be sawn flat 2.4 x 0.8 in
Feeding length single stroke 19.7 in
Drive power 10 hp
Blade speed 33 - 360 fpm
Saw blade dimensions 413.6 x 2-5/8 (3) x 0.063 in
Rest piece length in automatic operation 2.2 in
Total power 16 hp
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 99.4 in
Width 189 in
Height 139.8 in
Weight 24,250 lbs
Material support height 31.5 in
