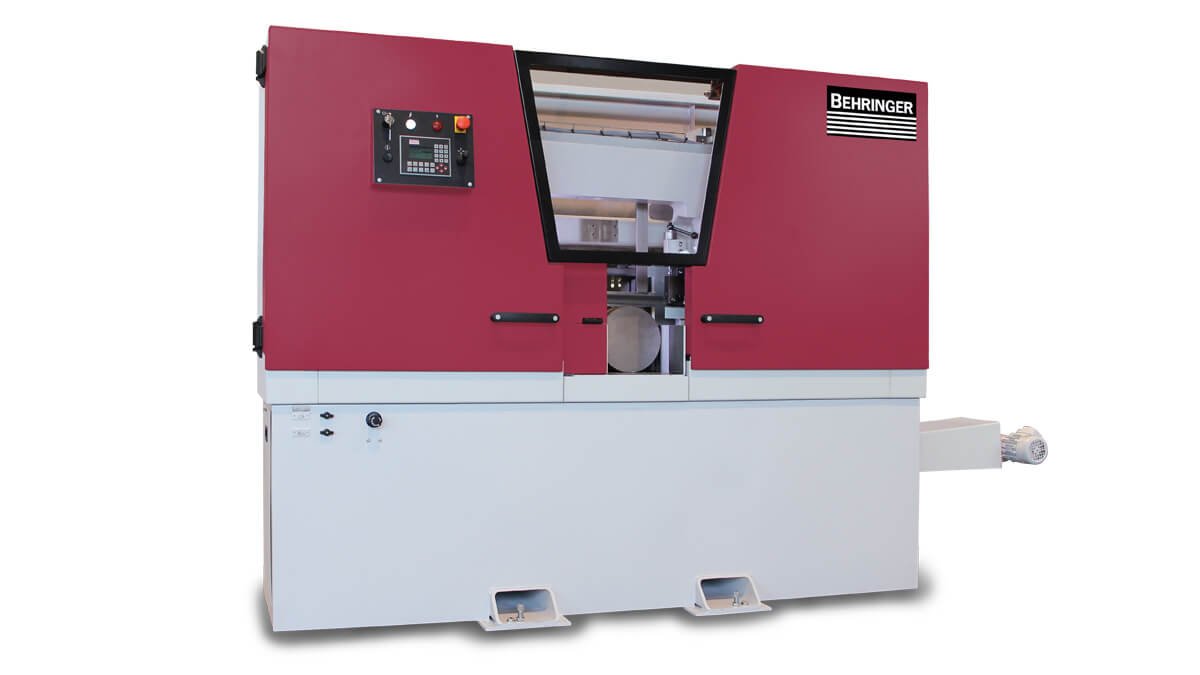

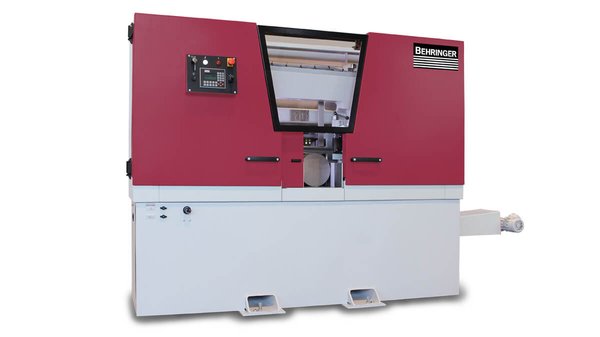

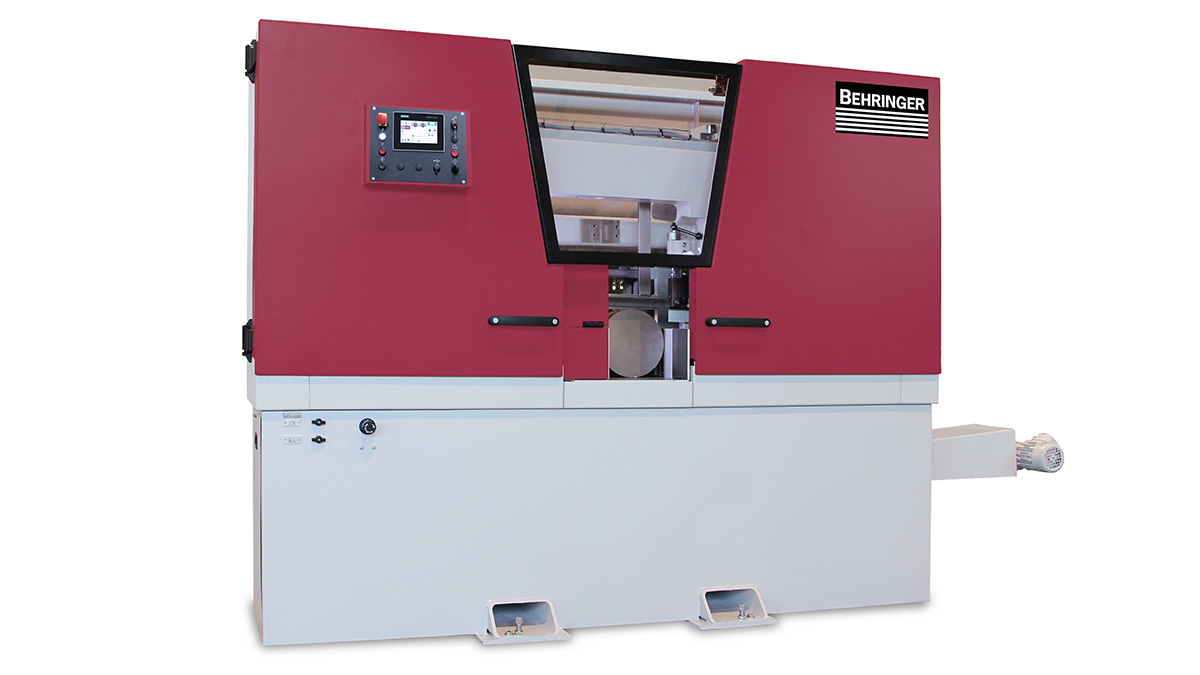

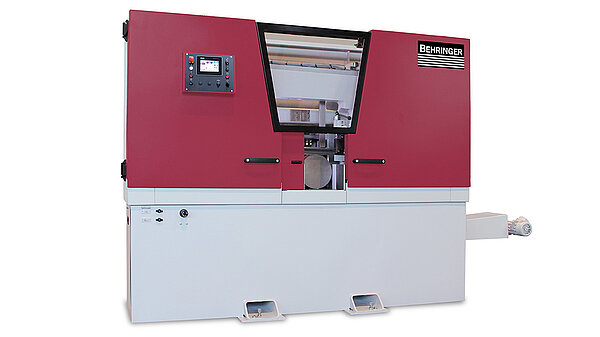

Horizontal bandsaw HBE261A Dynamic

The automatic bandsaw offers powerful, accurate cuts with low costs per cut

The automatic band saw HBE261A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE261A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.

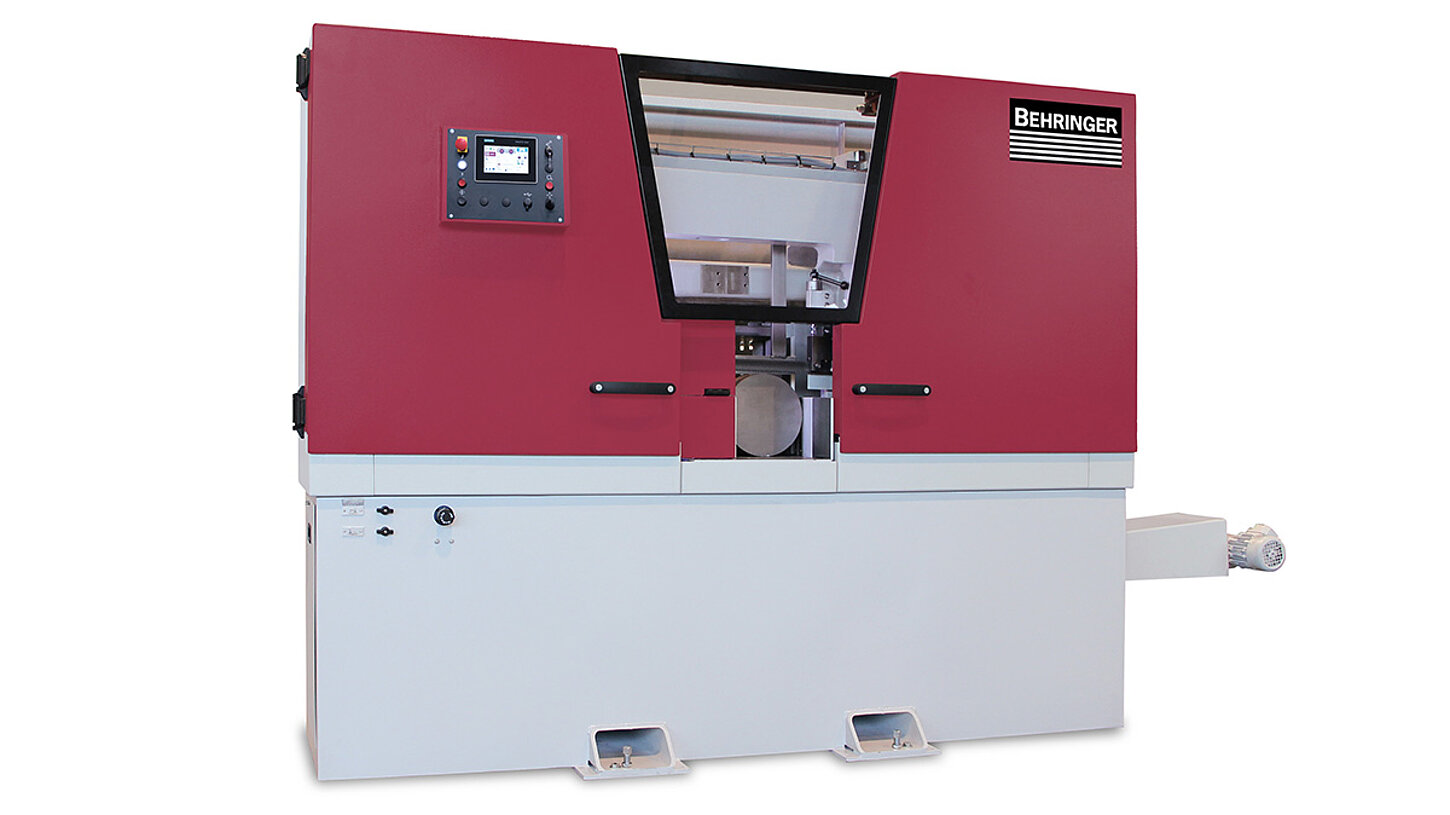

  • Behringer automatic band saw HBE261A Dynamic

    Horizontal bandsaw HBE261A Dynamic

  • Behringer machine control BehrCtrl10

    Intuitive BehrCtrl10 touch control

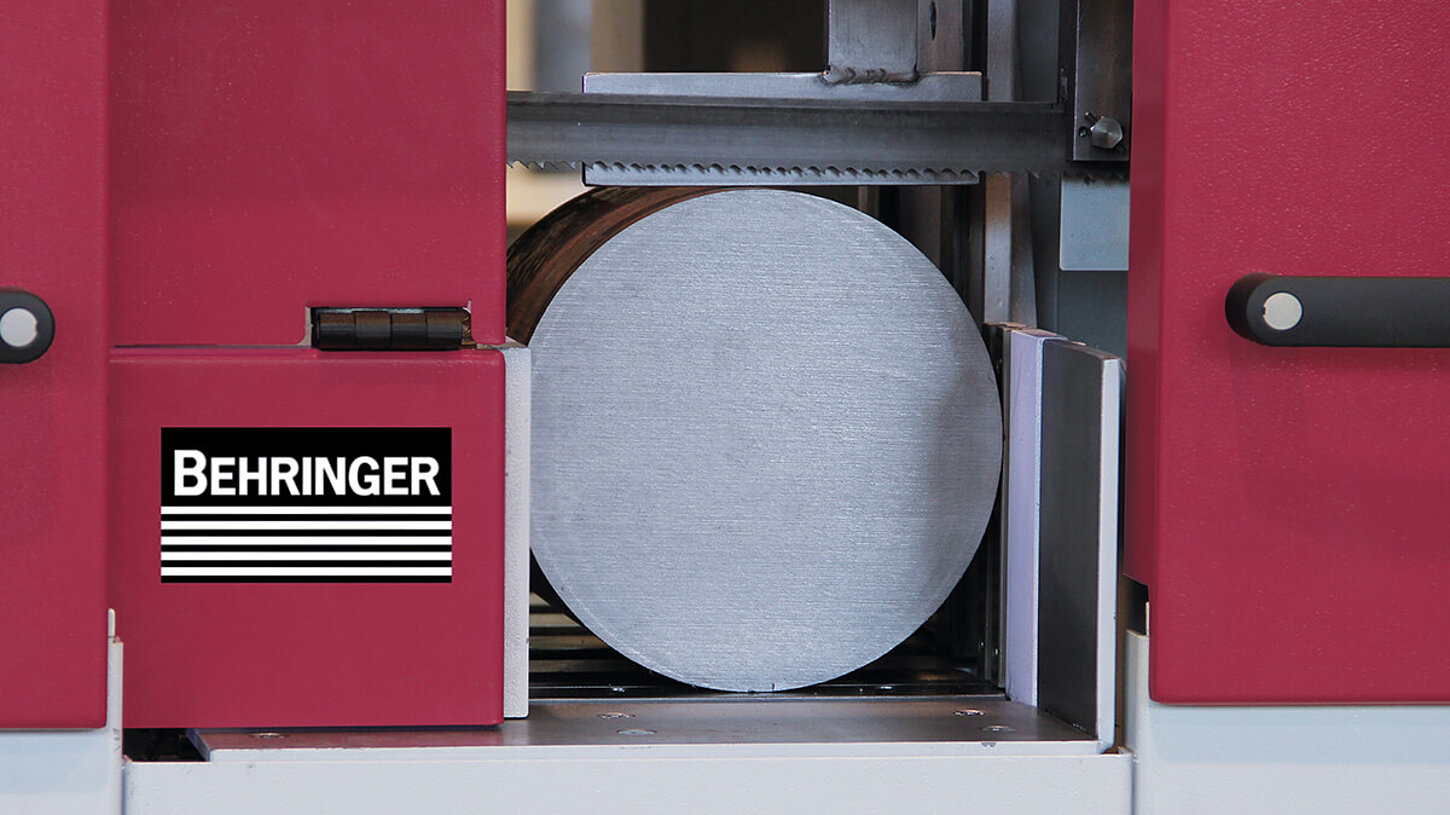

  • Behringer automatic bandsaw HBE261A Dynamic band guiding parts made of vibration damping cast iron

    Cast iron band guiding parts

  • Youtube Logo

    Product video automatic bandsaw HBE261A Dynamic

  • Behringer horizontal bandsaw HBE261A Dynamic electrically driven chip brush

    Electrically driven chip brush

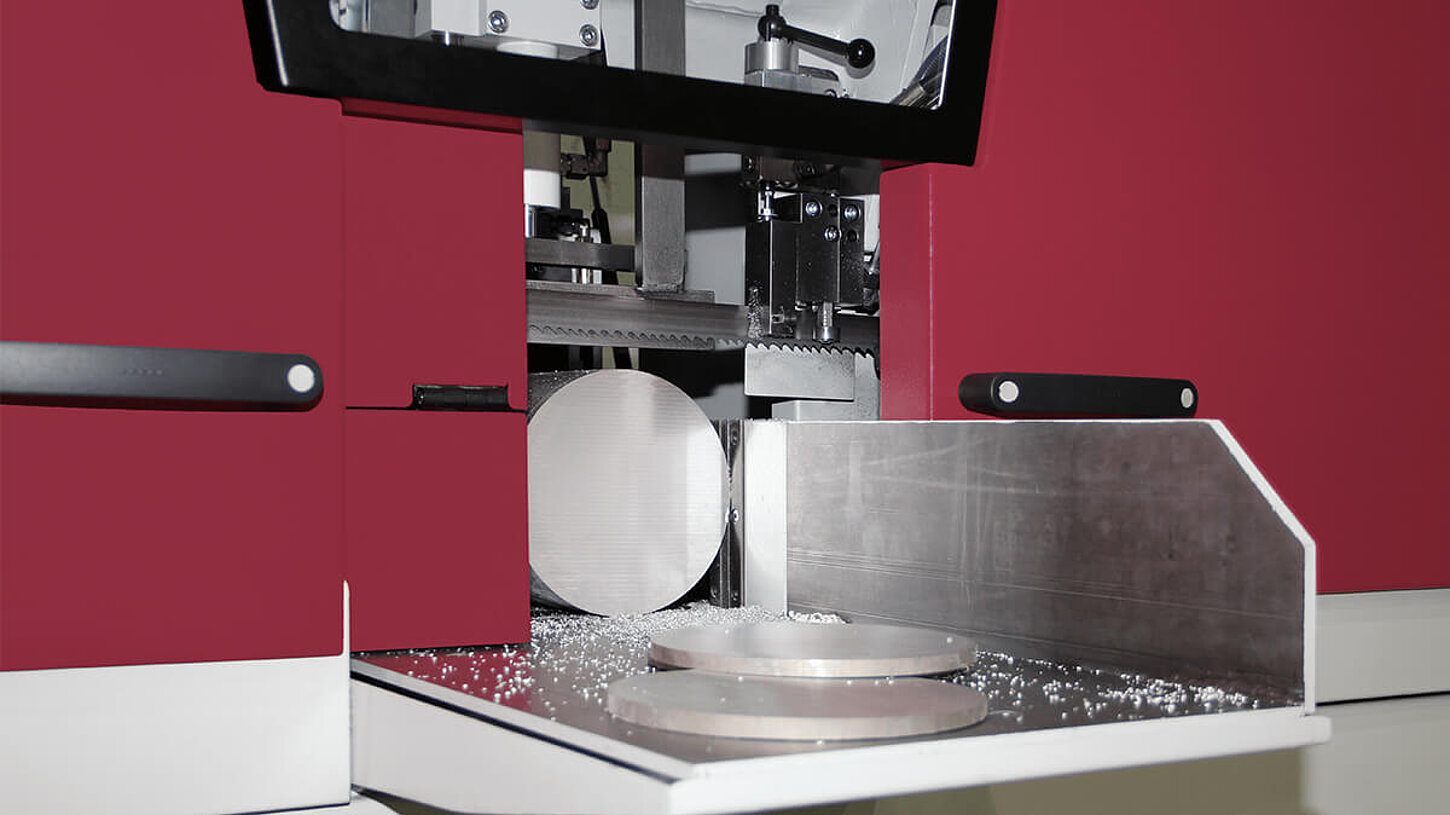

  • Behringer HBE261A Dynamic automatic bandsaw with extended material table

    Extended material table (option)

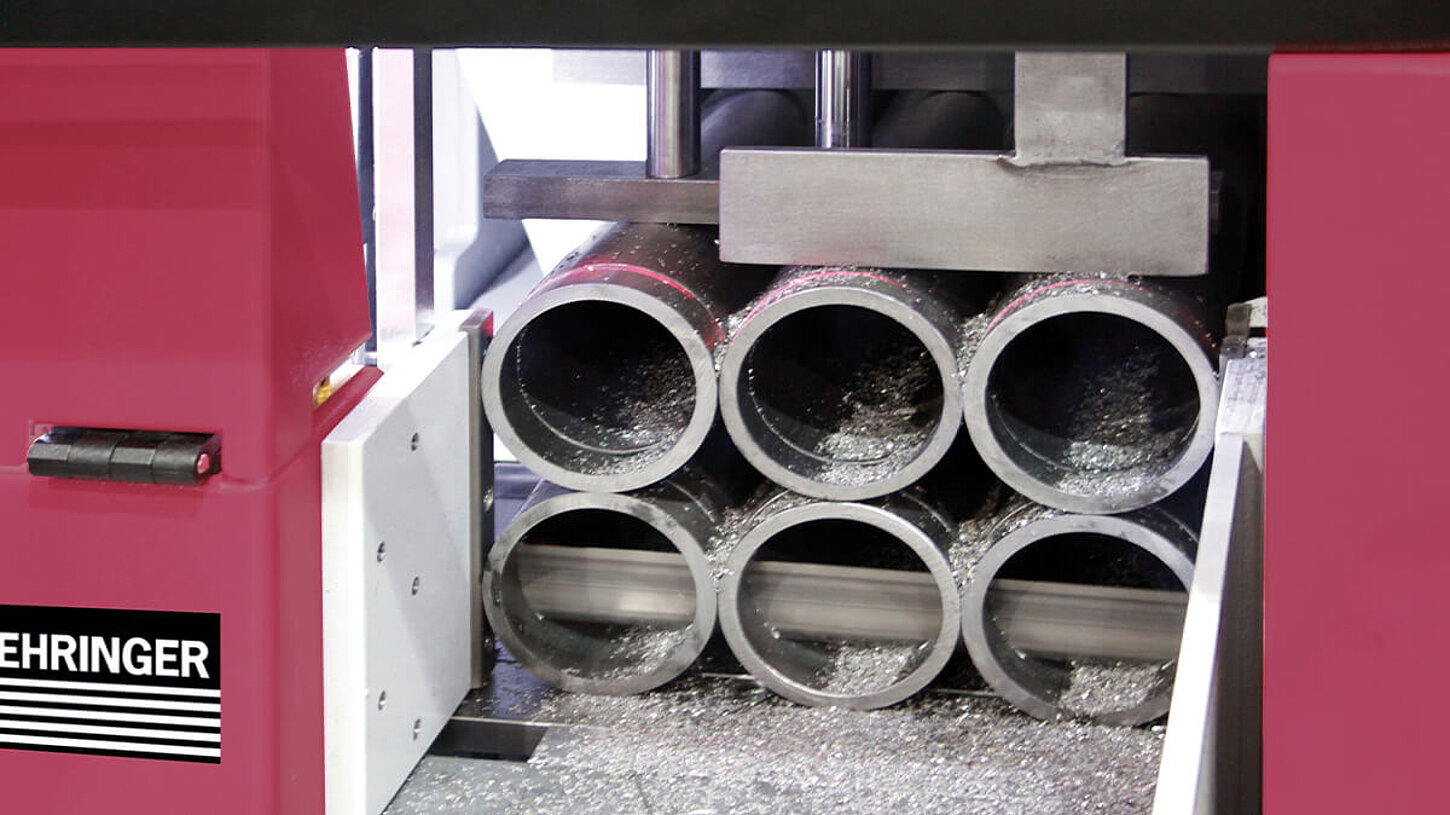

  • Behringer horizontal bandsaw HBE261A Dynamic bundle clamping device

    Bundle clamping device (option)

Features of the horizontal bandsaw HBE261A Dynamic

  • Cast iron band guiding parts
    are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.

  • Precision portal-design guide system
    The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

  • Electrically driven chip brush
    with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

  • Easy to use
    Quick and easy operation of all functions of the automatic band saw via touch control.

  • Sensitive Behringer cutting pressure control
    increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections. Due to the arrangement directly at the back of the blade, the system regulates quickly and precisely.

  • Automatic guide arm
    Optimum sawing result without any adjustments - even with frequently changing material sizes.

  • Energy efficient
    The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Individual Configuration

The horizontal bandsaw HBE261A Dynamic can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data horizontal bandsaw HBE261A Dynamic

Cutting range 90° round 10.2 in
Cutting range 90° flat 11.8 x 10.2 in
Smallest dimension to be sawn round 0.4 in
Smallest dimension to be sawn flat 0.4 x 0.3 in
Feeding length single stroke 25.6 in
Drive power 3.4 hp
Blade speed 50 - 360 fpm
Saw blade dimensions 174.8 x 1-1/4 x 0.042 in
Rest piece length in automatic operation 2.8 in
Total power 4.9 hp
Saw feed hydraulic
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Length 72.8 in
Width 90.6 in
Height 71.7 in
Weight 4078.6 lbs
Material support height 31.5 in
