VPX166 - Versatile and ultra-productive angle line
Choose reliability and increase your productivity
The Vernet Behringer angle line VPX166 covers numerous machining operations: marking, punching, drilling, shearing and notching. This highly productive machine combines high work rates and great ease of use. The VPX166 is ideally suited for manufacturers of lattice towers and structural steel builders seeking maximum productivity for angles up to 6.0 x .625 in.

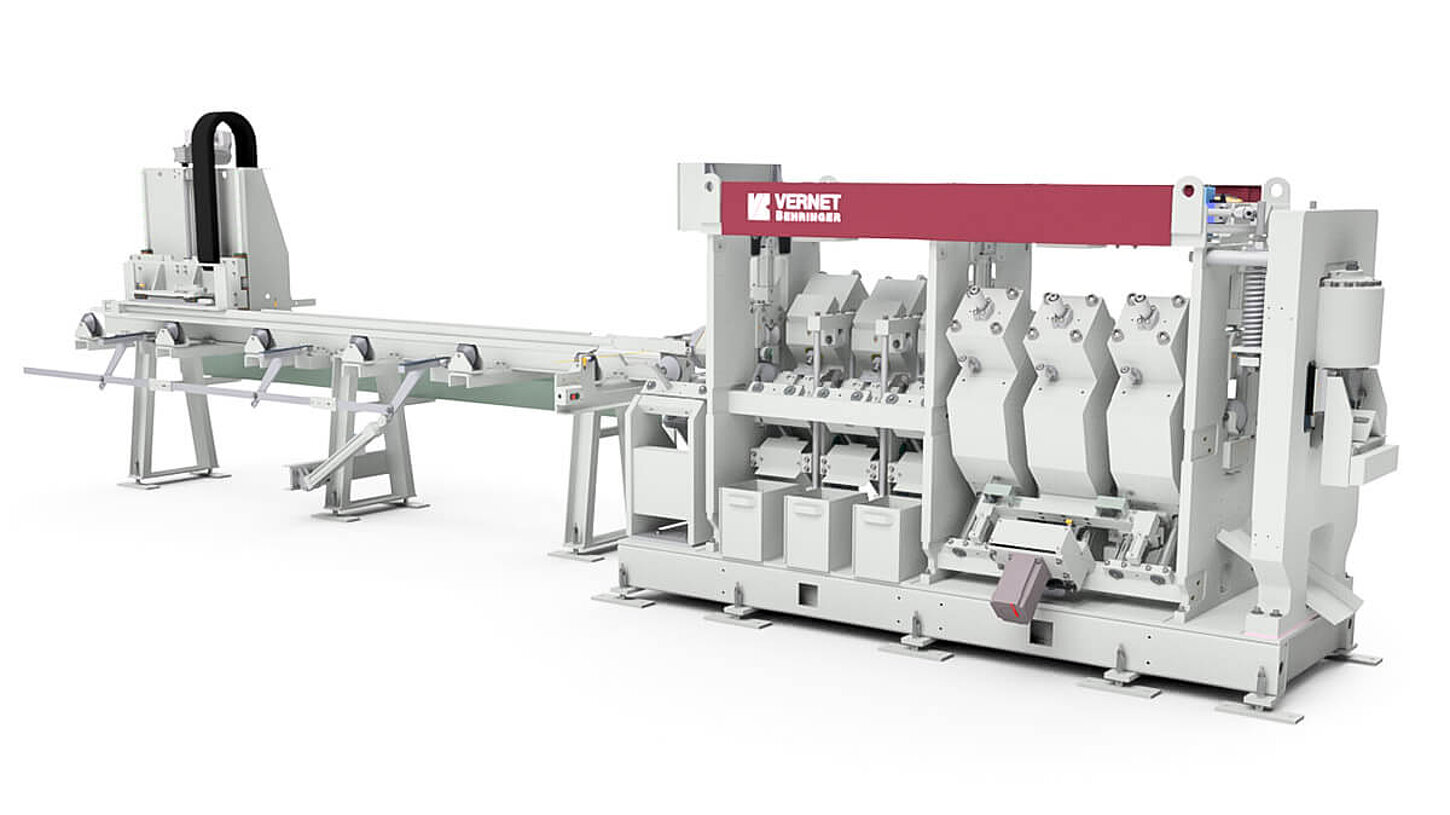

Angle line VPX166

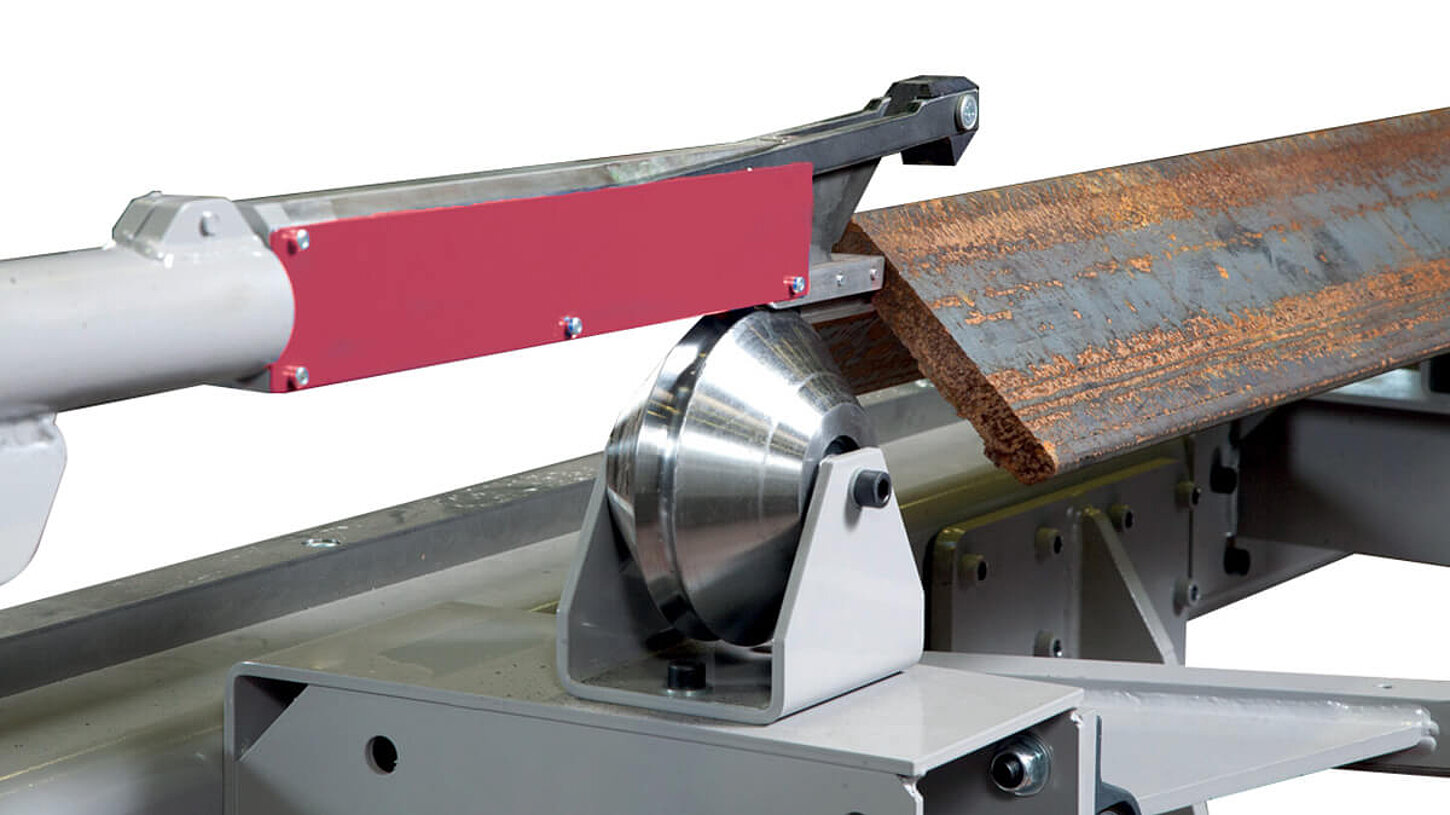

CNC carriage and gripper
Loading chains with rotating arms
High speed single cut shearing unit

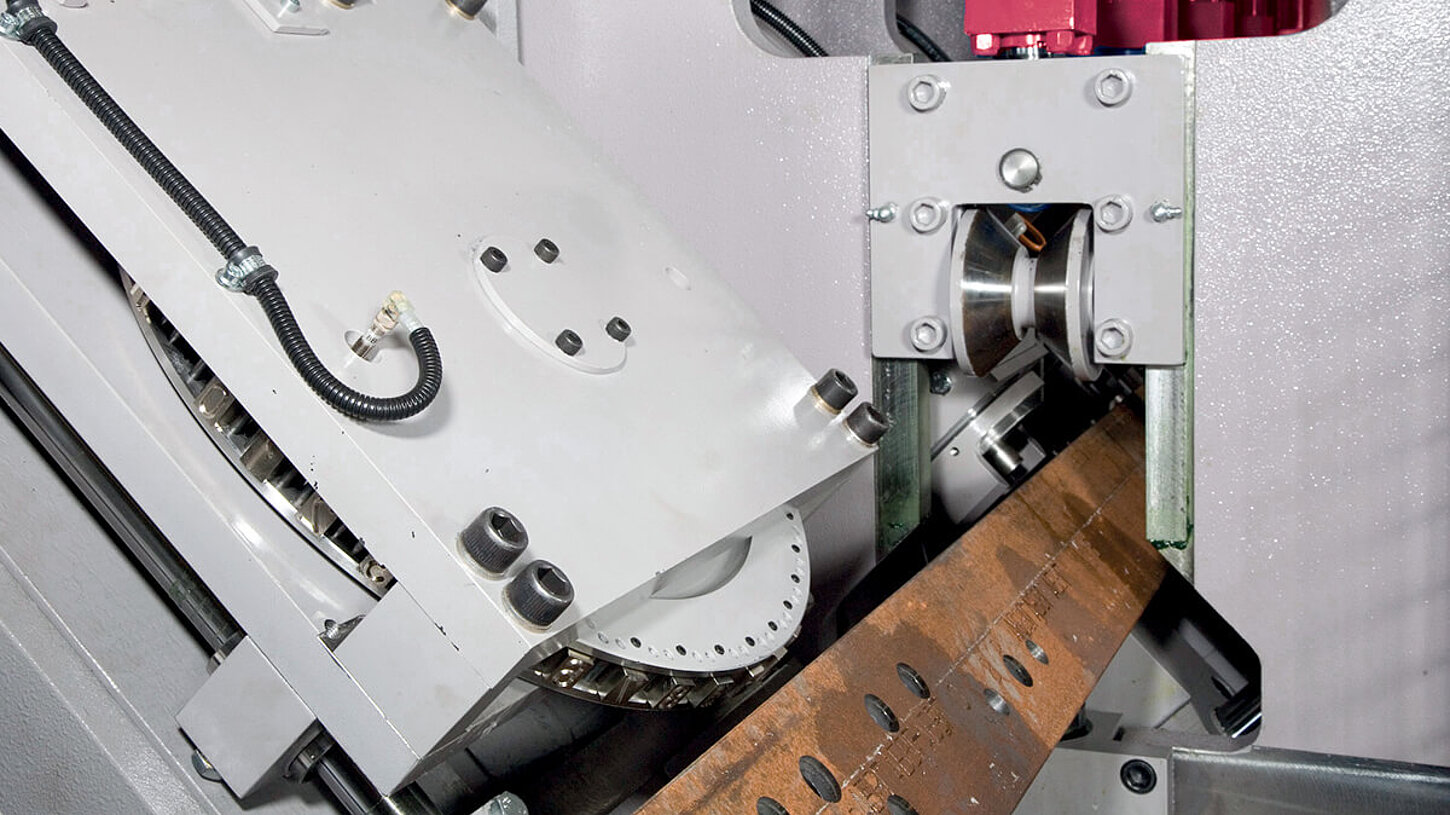

Highly versatile disc marking unit
High speed marking barrel marking unit

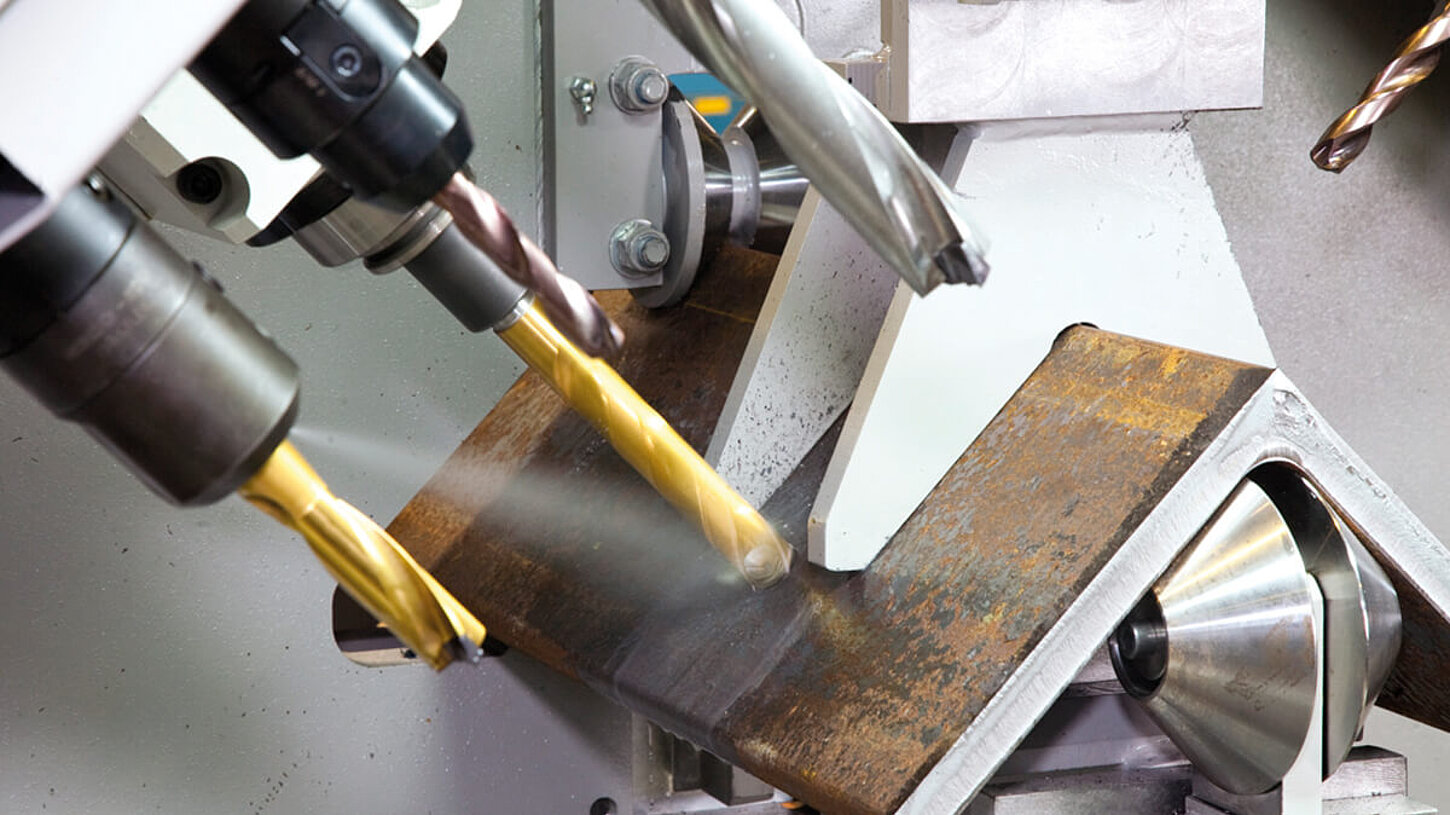

Drill units above the angle: easy collection of chips and coolant
|Punching Ø||6 (also available with 4Ø : VPX164)|
|Punching power||165,000 lbs|
|Shearing power||507,000 lbs|
|Hydraulic notching||option, up to 3.9 x .39 in|
|Disc marking unit||option, 40 positions|
|Barrel marking unit||option, 176,000 lbs, 8 positions, up to 15 characters/position|
|Feeding system||CNC high speed carriage with hydraulic gripper|
|Tilting loading arms||option|
|Storage chains and rotating arms||option|
|Outfeed conveyor with tilting unloading arms||standard|
|Removable element for unloading short parts||option|
|Fully-automatic loading, gripping and unloading operations||option|
|Multi-zone automatic part sorting||option|
|Machine control||PRONC23D programming software with 3D part display|
