FG1000 - Marking-drilling-milling machine for gusset plates

Complete plate machining at maximum productivity

The plate processing machine FG1000 from Vernet Behringer allows drilling (both HSS and carbide), milling (long holes, big diameters…), marking and holes deburring of gusset and connecting plates up to 39.4 x 25.6 x 1.5 in.

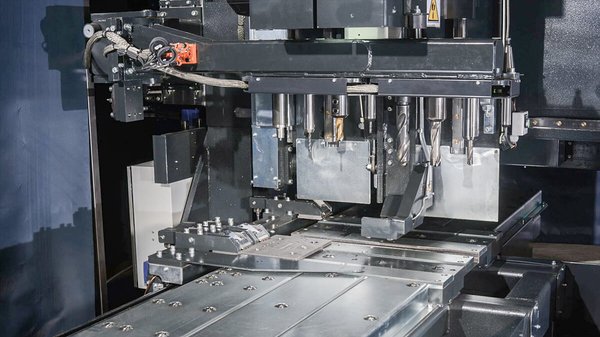

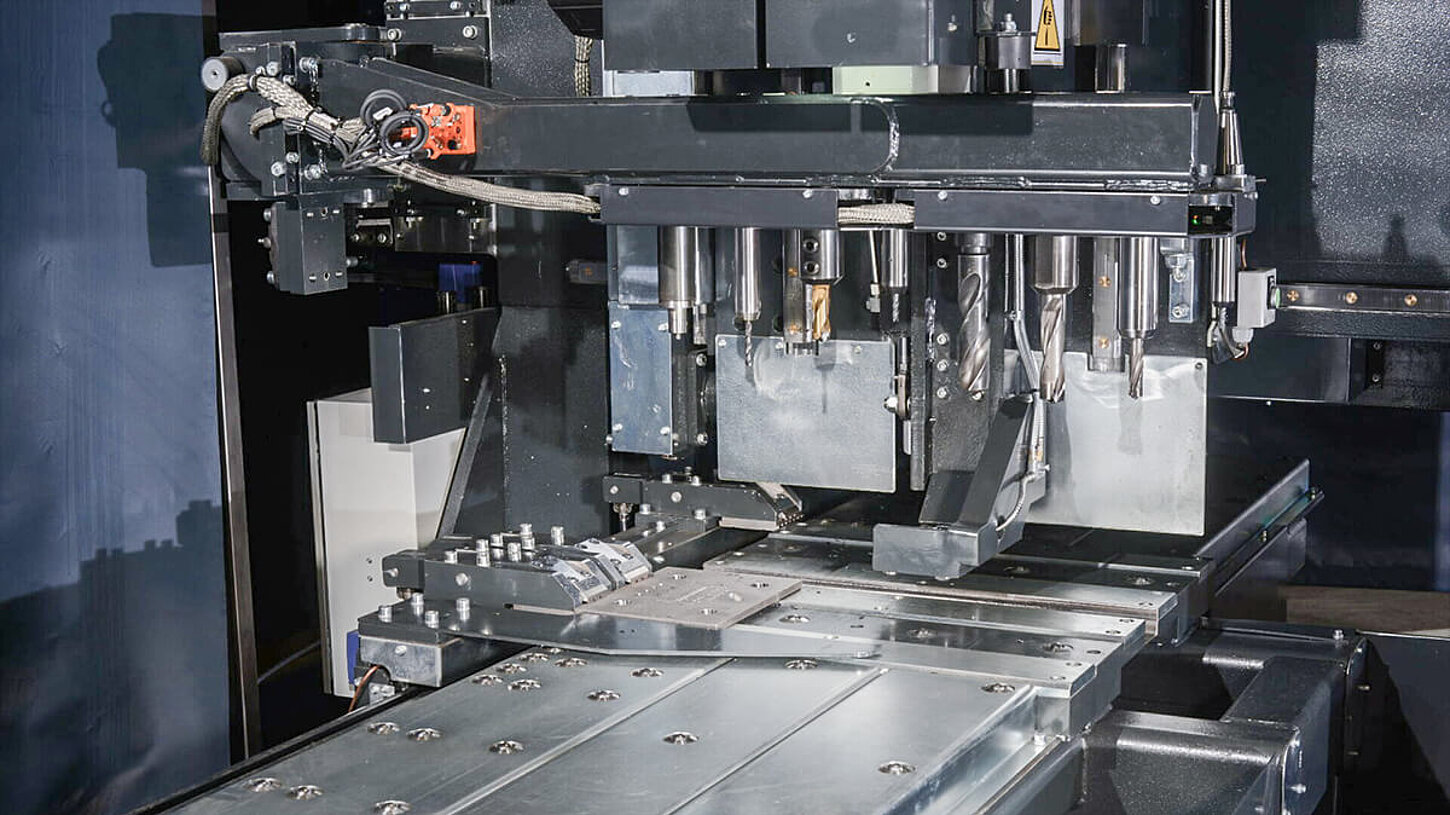

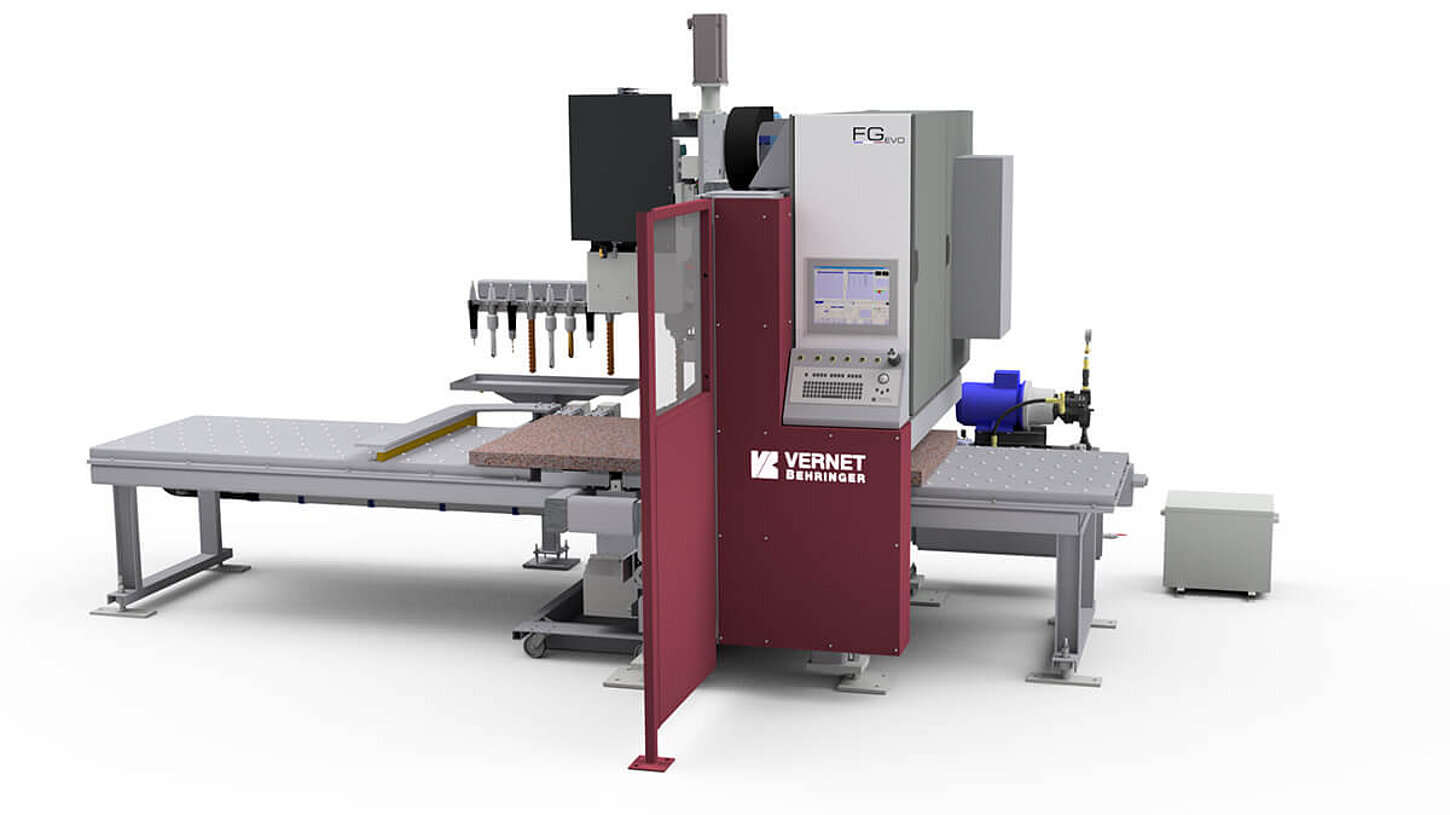

  • FG1000 plate drilling-milling-marking machine

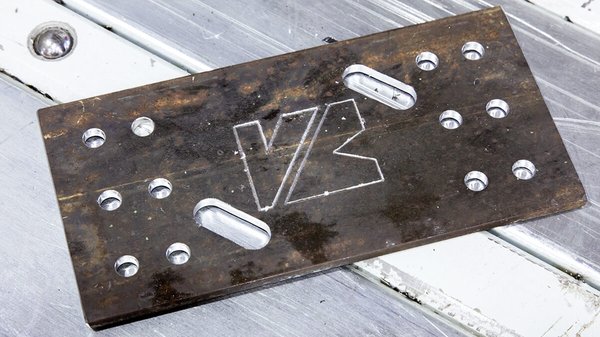

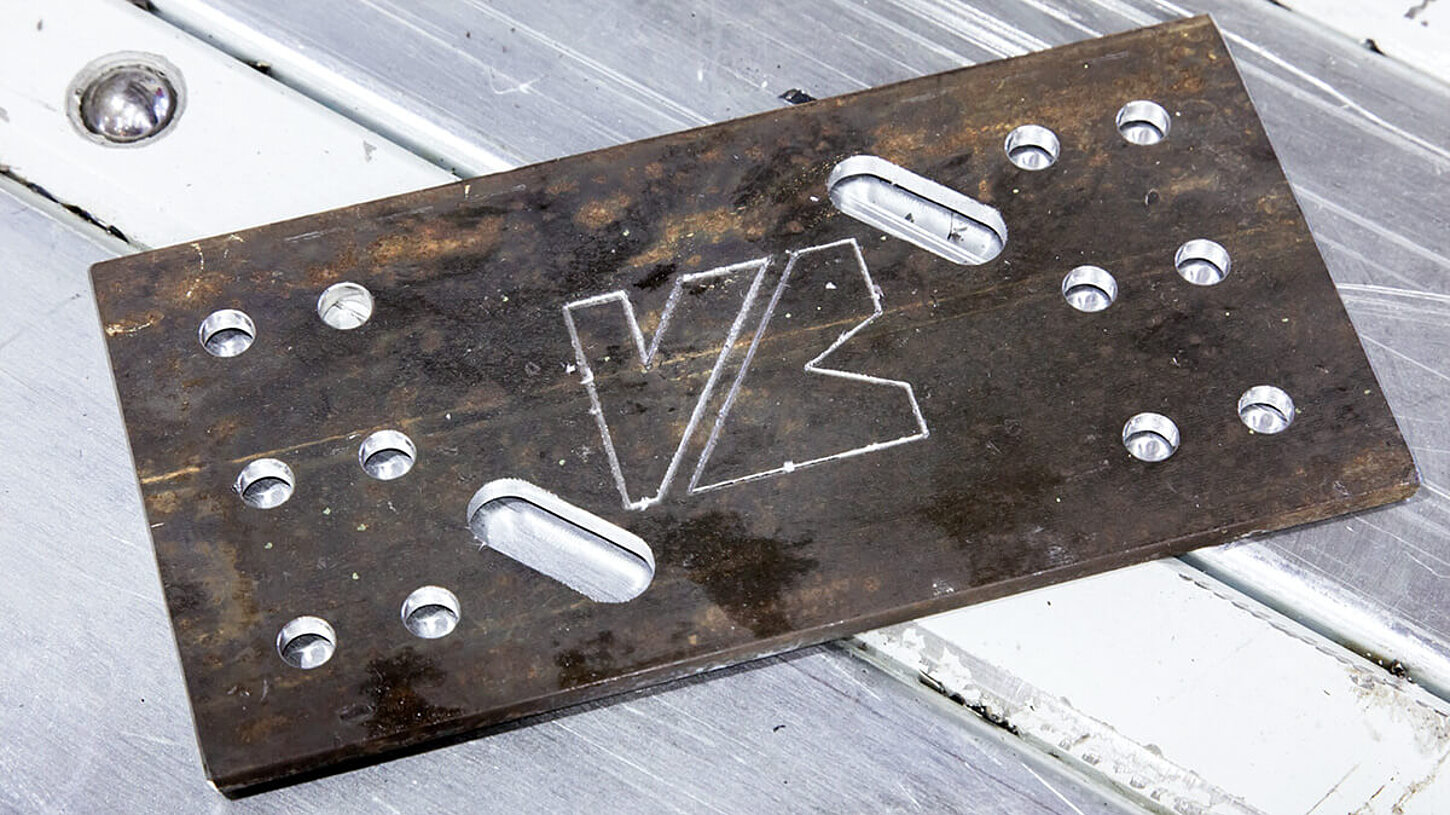

  • V-scoring quick and deep marking, carbide drilling and milling

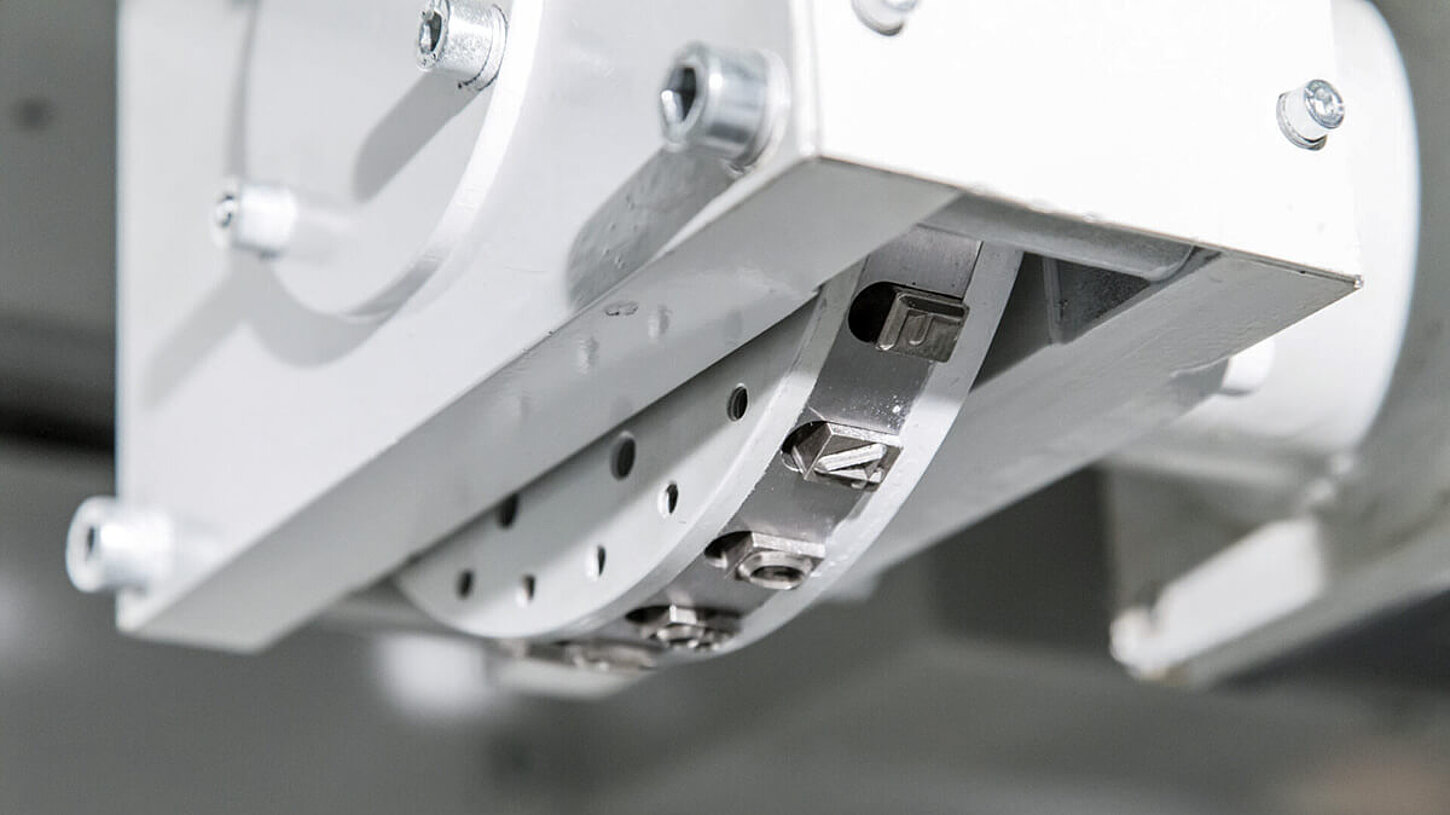

  • Disk marking unit with 25 positions

  • Youtube Logo

    Product video FG1000

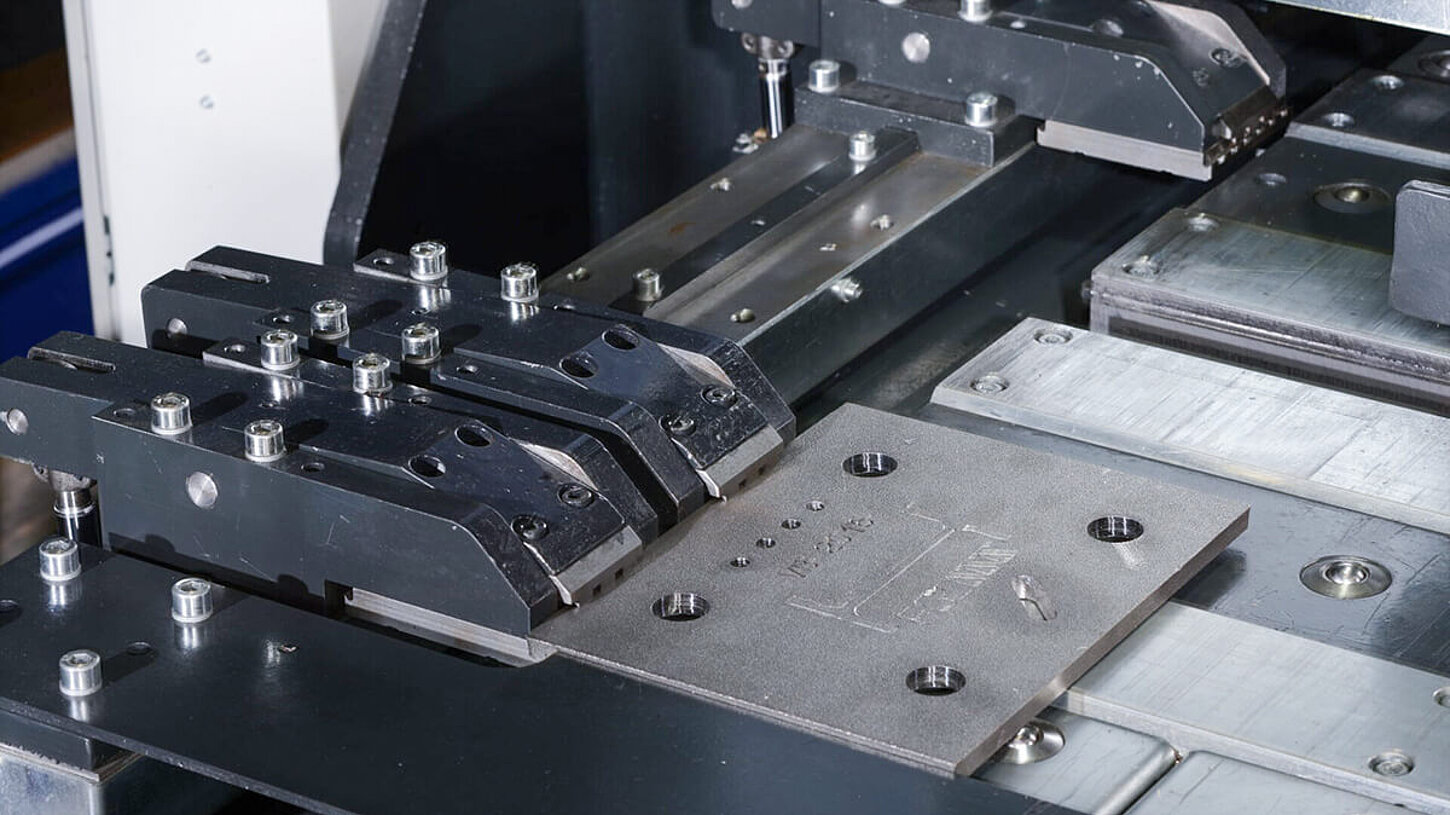

  • Positionning carriage and gripping assembly

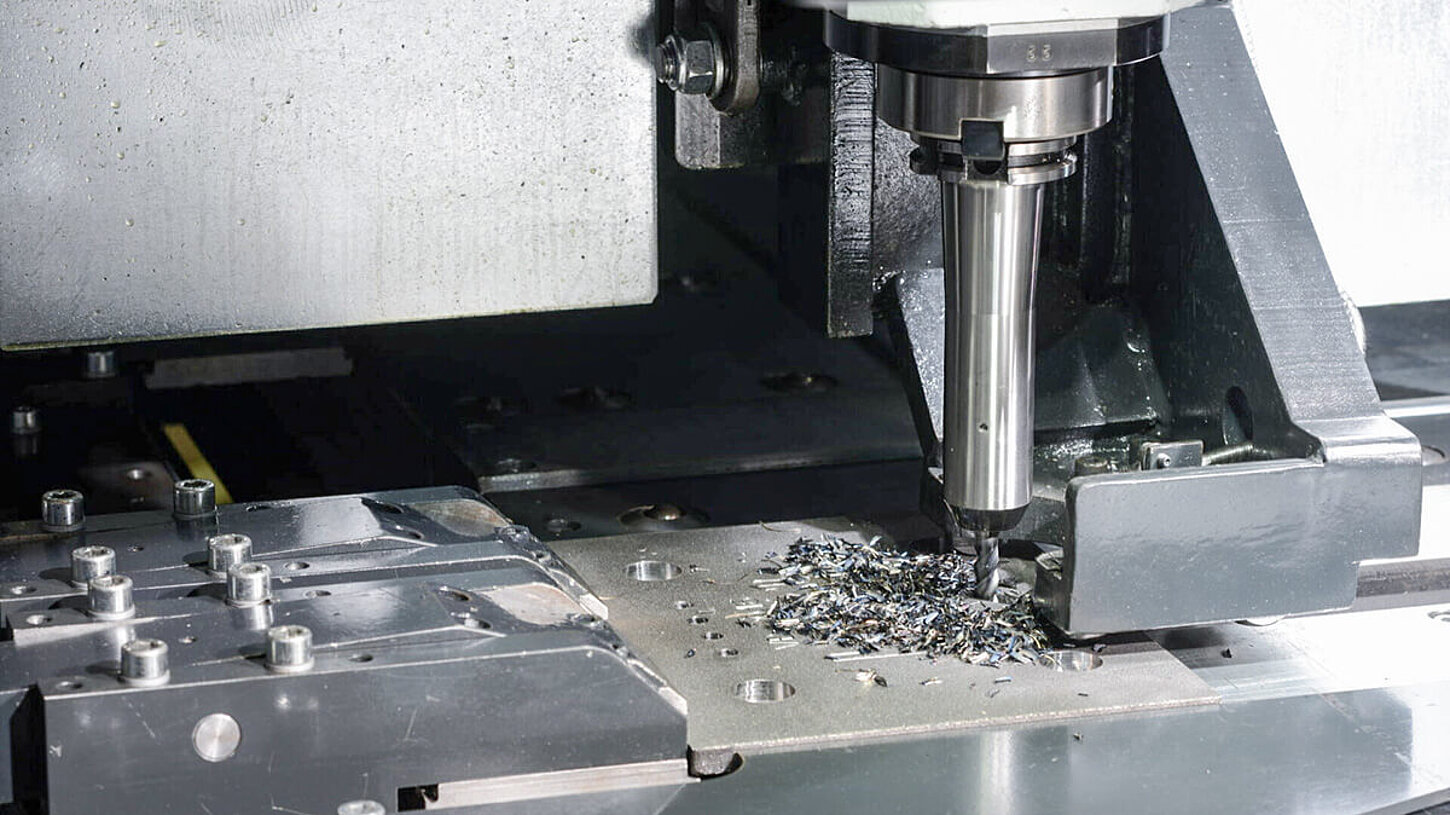

  • High-speed machining

  • 8-fold tool changer

Features of the plate processing machine FG1000

Milling

Marking

Drilling

Scribing

  • Increase your production capacity
    The closed portal machine frame guaranteing an optimal rigidity, and the table permanently supporting the plate ensure a high speed carbide drilling and vibration-free milling for quick machining with no equivalent on the market.

  • Minimize non-productive times
    easy loading and unloading thanks to the grippers positioned at the rear of the machine and to optimal work station ergonomics.

  • Identify your parts and indicate assembly positions
    with the exclusive V-scoring system, which is fast, quiet, visible after painting/galvanising and has a low running cost. The optional disc marking unit with 25 positions makes marking even faster.

  • Powerful control system
    User-friendly and powerful software suite allowing the import and easy programming of your parts.

Individual Configuration

The plate processing centre FG1000 can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical data plate processing machine FG1000

Plate dimensions 39.3 x 25.6 in
Max. thickness of processed plate 1.6 in
Max. weight 440 lbs
Max. drilling diameter 2.0 in Ø
V-scoring fast scribing Standard
Tool changer 8 Ø
Drilling power 21.4 hp
Rotation speed 160 - 4,000 rpm
Machine Control PRONC23D user-friendly programming software with 3D part display
