HDX - Machining center for steel profiles

Save time and manpower while increasing quality

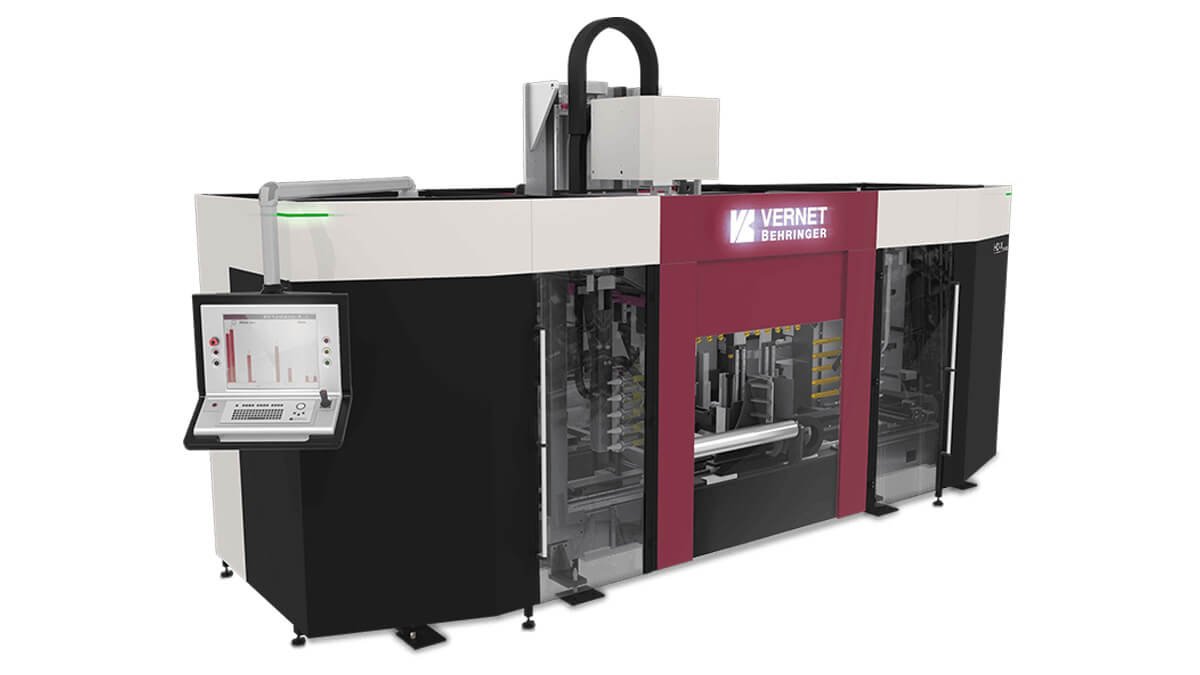

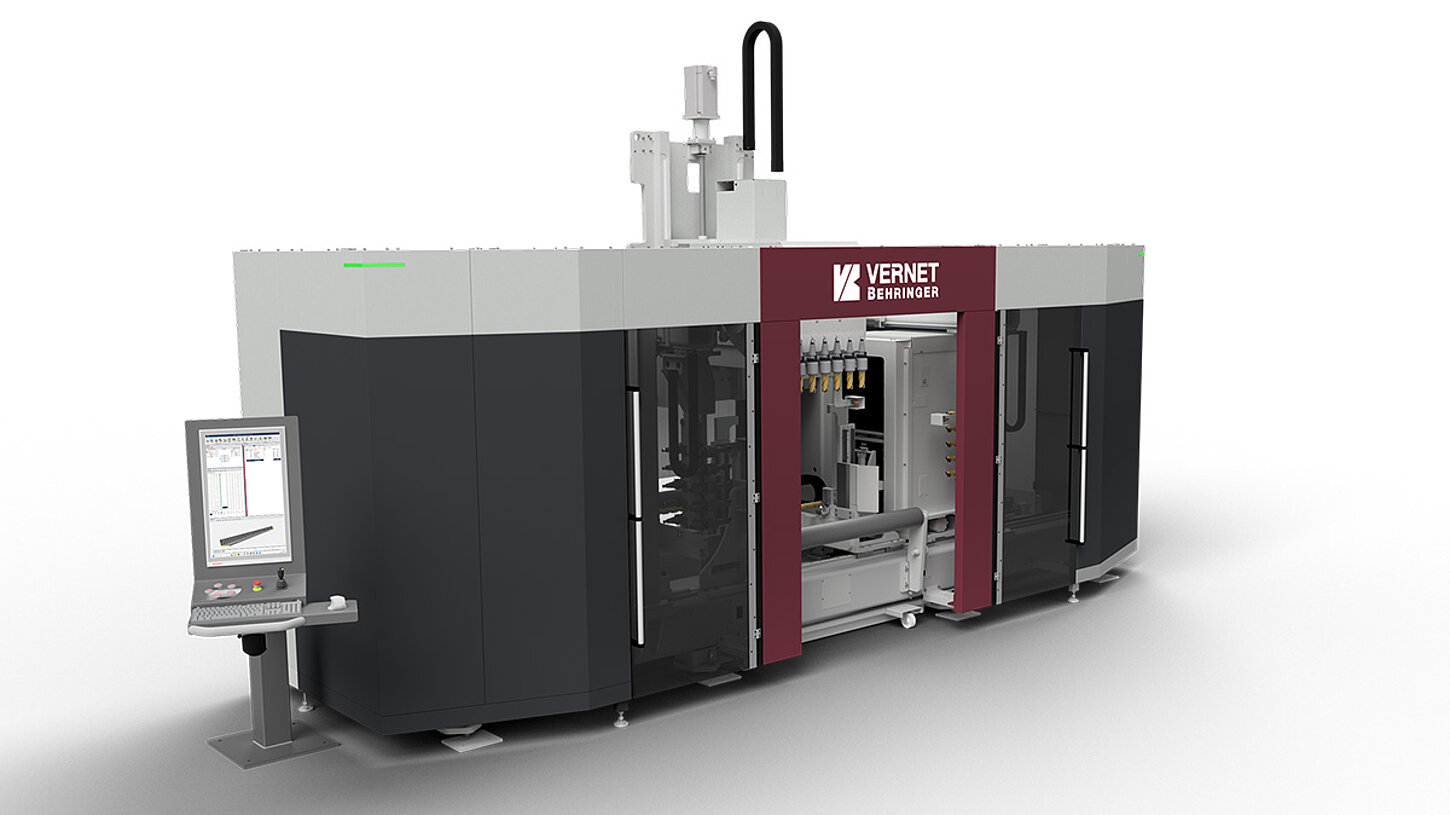

The HDX machining centre from Vernet Behringer is the fastest drilling, milling and marking machine on the market. Thanks to its 3 independent machining spindles, H, U and angle profiles as well as flat steel and rectangular tubes can be machined on 3 sides simultaneously. It is even possible to add one more milling spindle to process sections on 4 sides.

The HDX profile machining centers can be combined with bandsaws and/or shearing units. These universal lines offer great flexibility combined with very high productivity.

  • High speed beam drilling and milling line HDX

  • V-scoring for part identification & layout marking

  • Wide milling possibilities

  • Youtube Logo

    Product Video HDX

  • Various machining possibilities

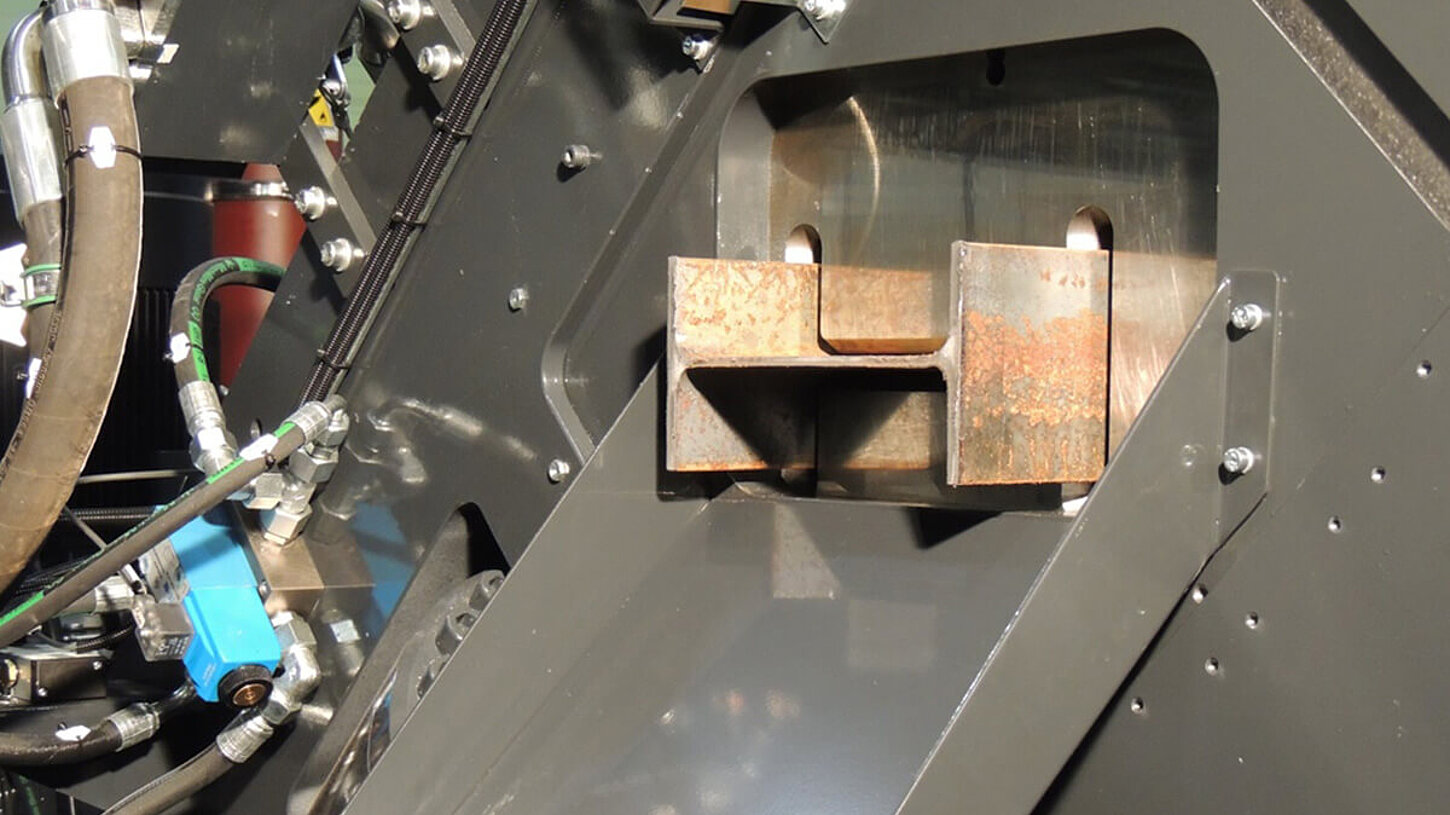

  • Optional shearing unit for H-beams, channels, angles and flats

Features of the drilling line HDX

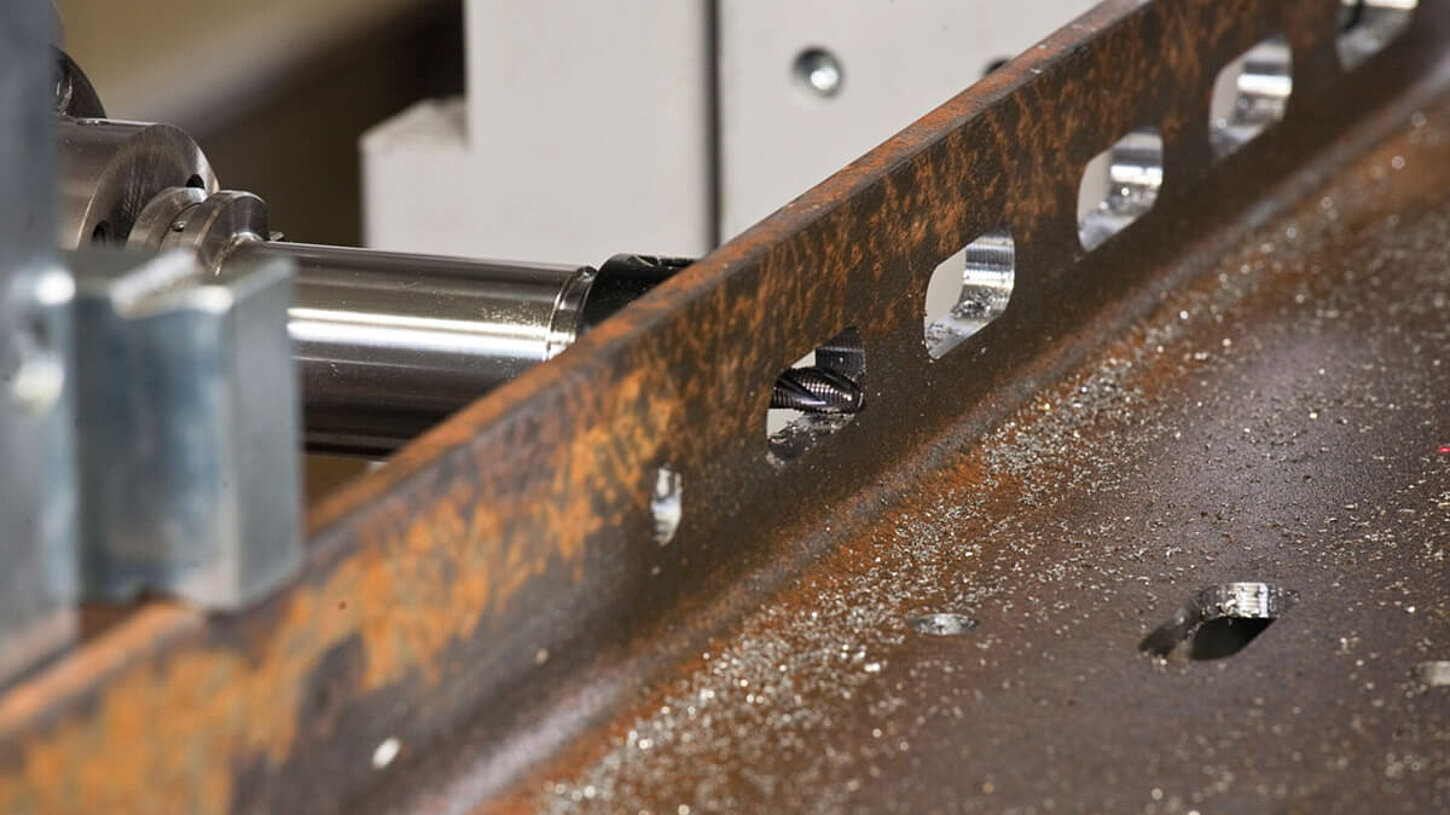

Milling

Marking

Drilling

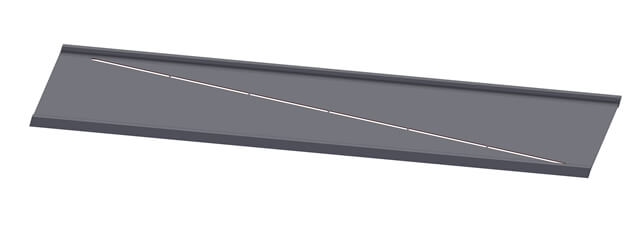

Scribing

Sawing

  • Reduce your power consumption
    Energy-saving design with high efficiency spindle motors & servo-driven hydraulic unit

  • Increase your production capacity
    Up to 60% faster than a traditional drilling machine thanks to the additional X-stroke of 19.6 in on the 3 drilling units: thus, simultaneous drilling is possible on the flanges and in the web at different positions, as well as machining in hidden time during sawing (according to part drawings). Spindle speed up to 4000 rpm combined with high torque for high performance carbide drilling up to 2 in diameter.

  • Increase your working time: total automation is possible
    Allowing you to work without an operator, especially at night: program your cycles the day before and find your machined profiles the next morning. Monitor your production remotely thanks to the camera kits and production feedback via e-mail.

  • Avoid manual tasks

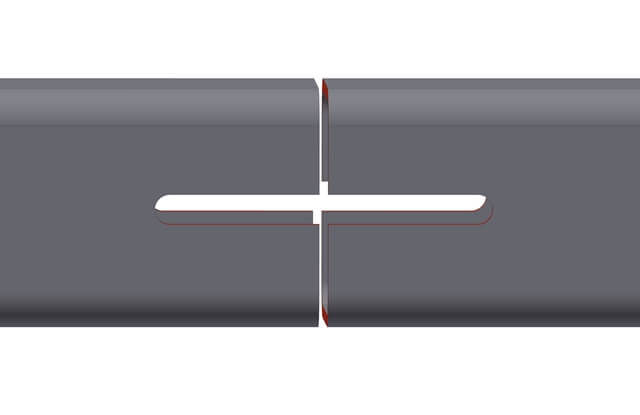

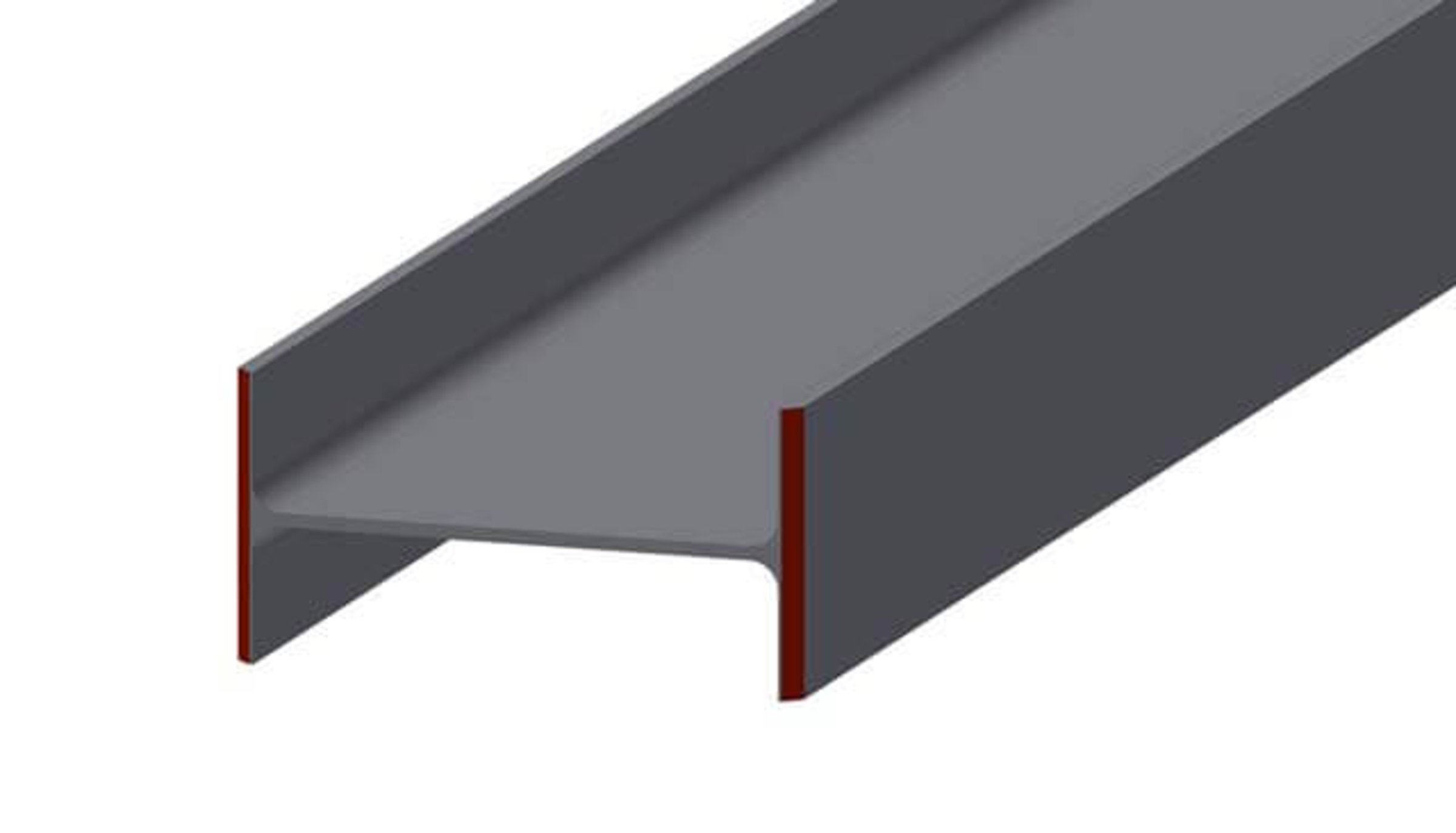

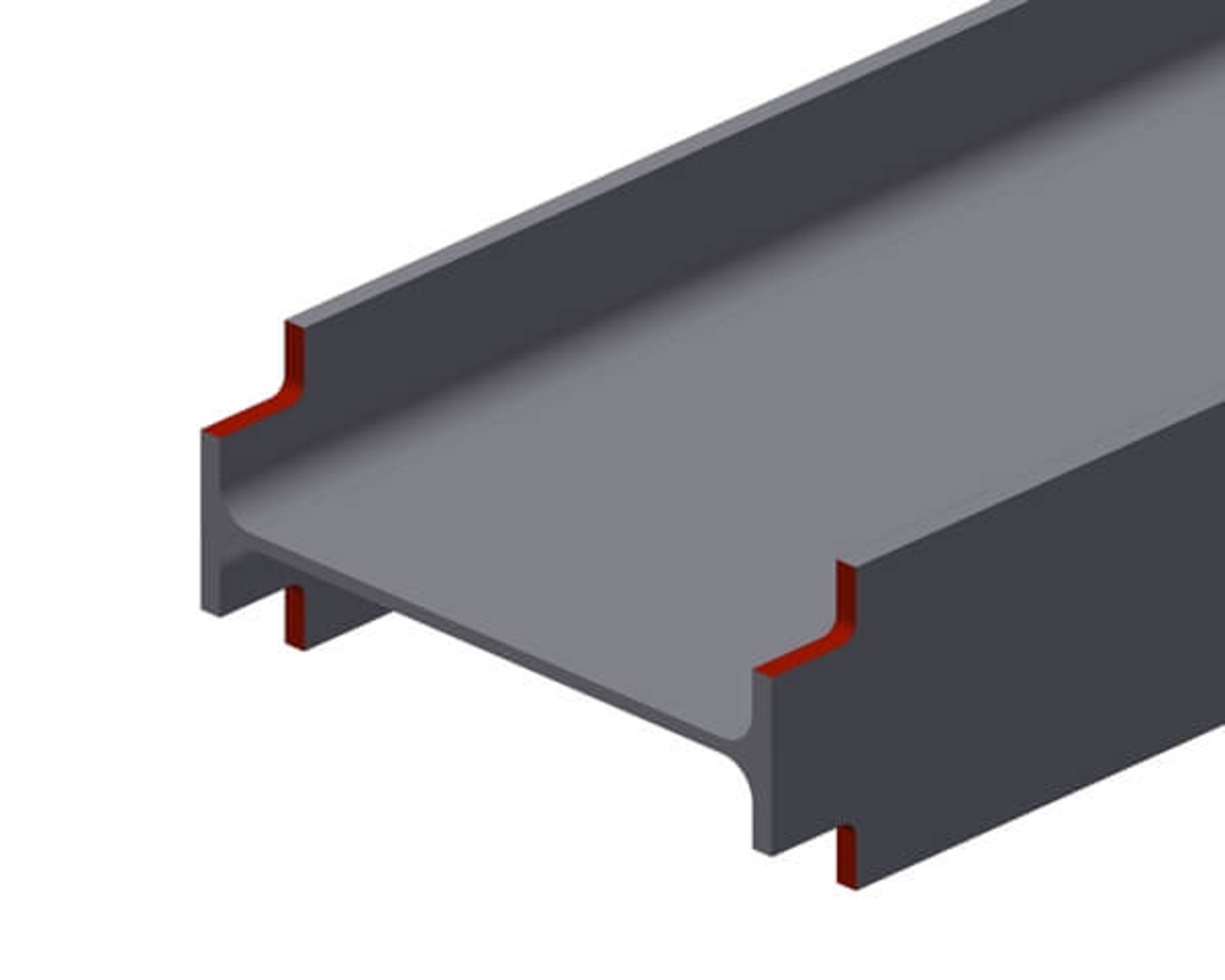

    By milling oblong holes and free forms, notching, chamfers for high speed welding preparation.

  • Monitor your production
    User-friendly and powerful software suite allowing the optimization of your bar stock, the import and easy programming of your parts, the addition of information on your parts such as coding and slinging indications, manage and optimize your scrap stock. Make your machine communicate with your ERP.

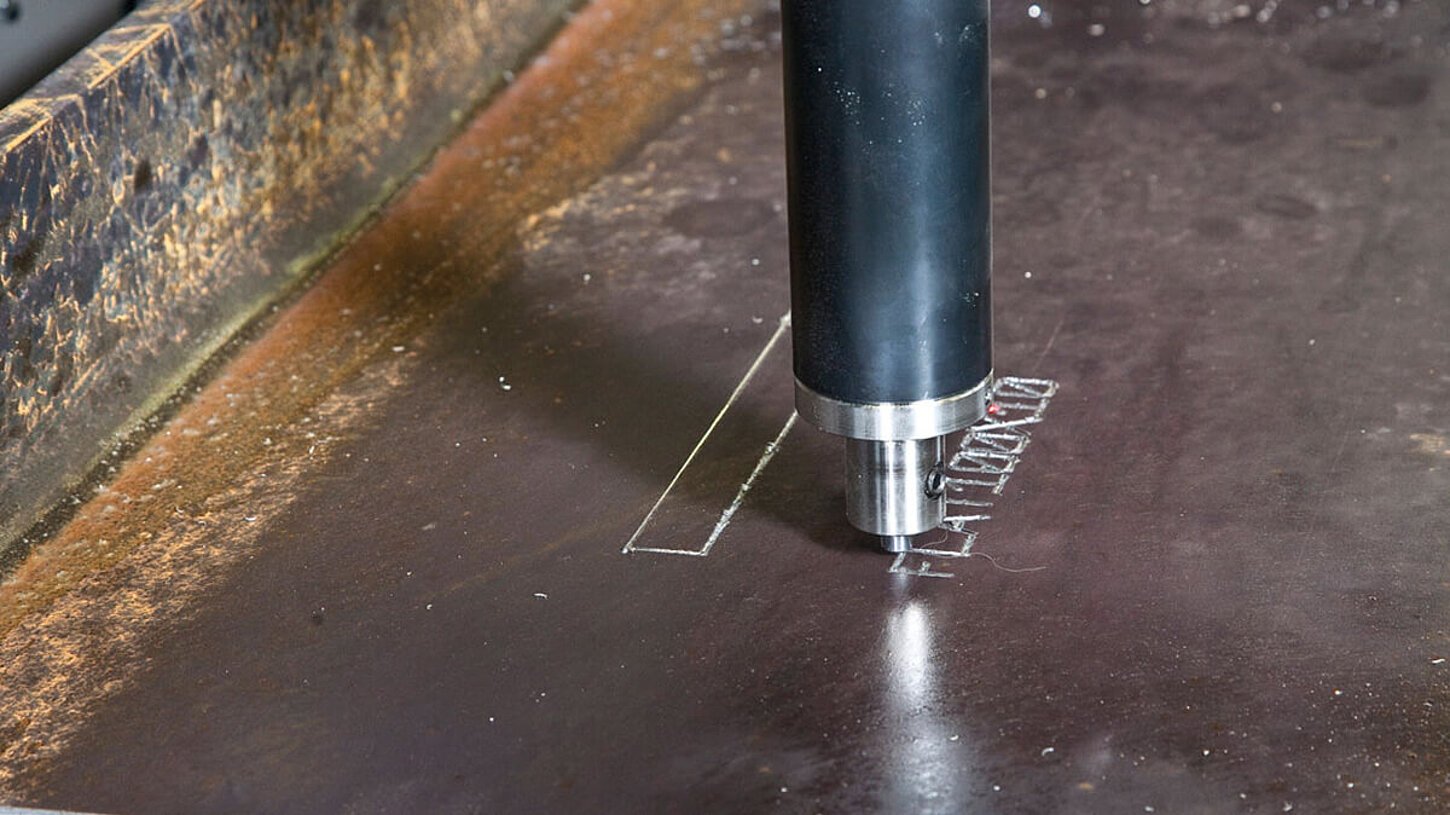

  • Identify your parts and indicate assembly positions

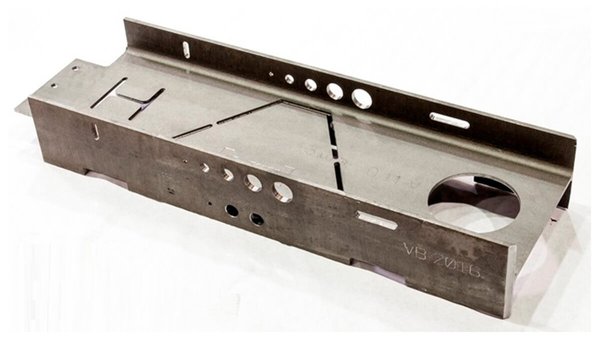

    with the exclusive V-scoring system. It is extremely fast, silent and low in operating costs. The markings are still clearly visible after painting or galvanising.

  • Lowest wear
    The robust design of the machine minimises vibrations and ensures the longest possible tool life and optimum durability of the machine elements. The service life of the machine is significantly increased.

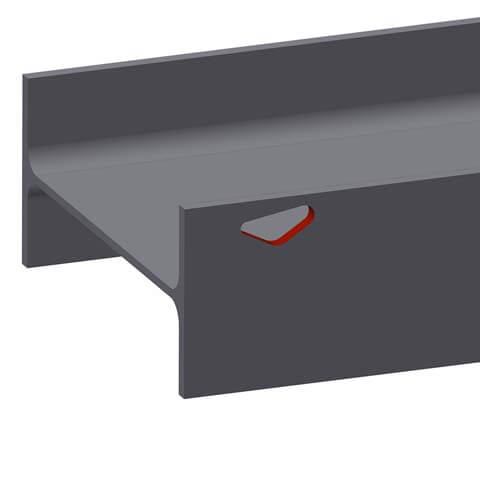

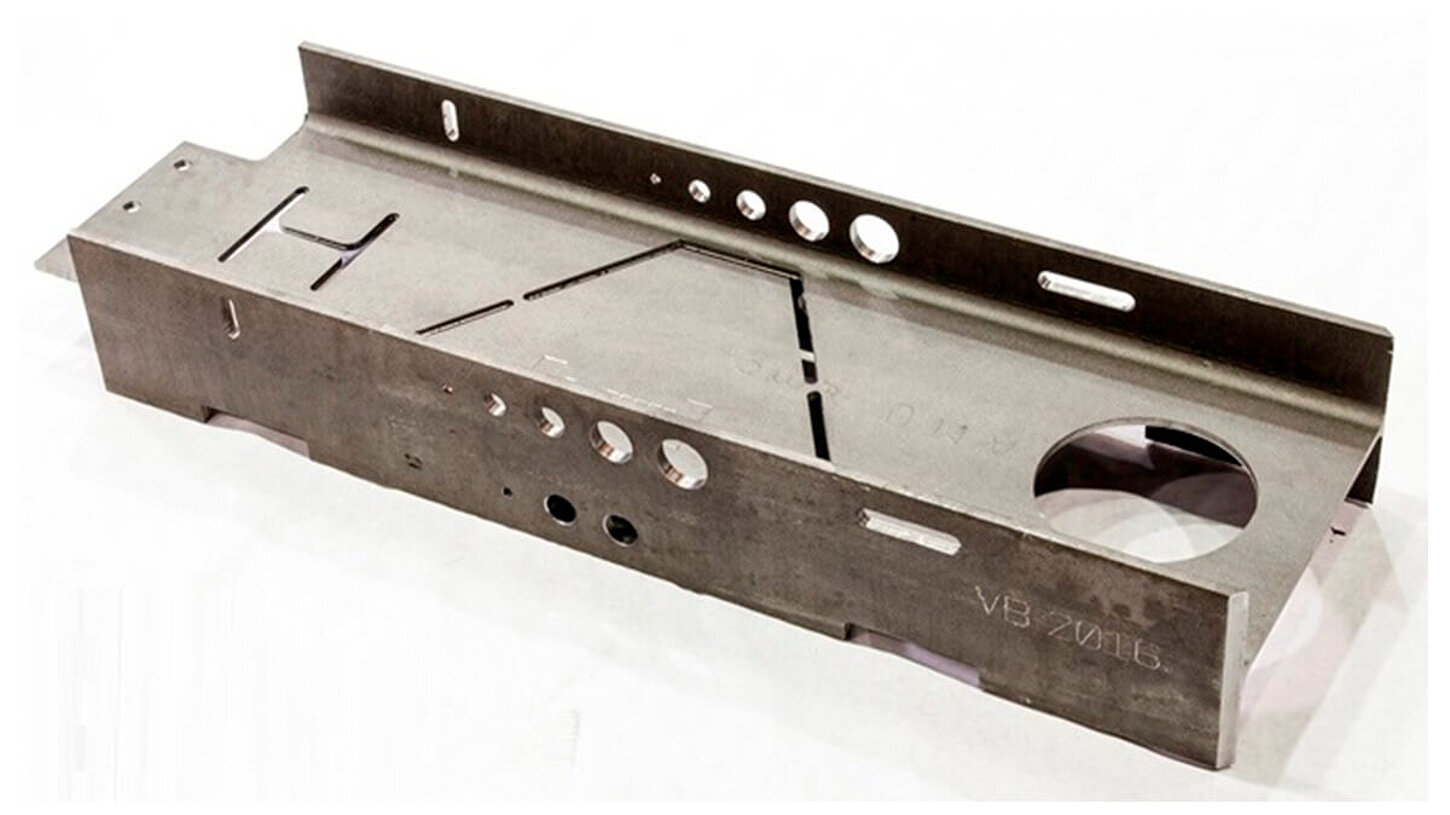

Examples of milling shapes

Individual Configuration

The HDX can be configured perfectly to your requirements with numerous options. This is how you get the most out of your production. Our experts will be pleased to advise you. We look forward to your inquiry.

Contact

Technical Data Drilling Line HDX

Capacity 49.2 x 23.6 in
Materials to be processed H-Profil  U-Profil  L-Profil  Quadrat  Parallel Option: Sonder-Profil
Raw material length 98 ft
Max linear load 335 lb/ft
Feeding system CNC high speed carriage with hydraulic gripper
Spindles 3 spindles with 19.6 in stroke in X-axis
V-scoring fast scribing V-Scoring 3 sides Option:
Milling Standard
Threading Standard
Spindle power (S6-60 %) 21.5 hp
Spindle speed 160 – 4,000 rpm
Max. drilling diameter 2 in Ø
Tool changers 10 / 12 / 10 positions
Control system PRONC23D user-friendly programming software with 3D part display
